RAM Mounts

RAM X-Grip Universal Phablet Cradle with Strap / U-Bolt Base

RAM X-Grip Universal Phablet Cradle with Strap / U-Bolt Base

SKU:RAM-B-231Z-2-UN10-v

Regular price $156.75 NZD
Regular price Sale price $156.75 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-231Z-2-UN10U RAM® X-Grip® Large Phone Mount with ATV/UTV Rail Base

Features

* Spring-loaded 'X' design for large phones and phablets sports great holding power without hiding your phone
* Optional device tether included for peace of mind during rugged use
* Kit includes RAM® steel strap base (for 40 to 80mm rails) and zinc-coated u-bolt base (for 13 to 33mm rails) to provide a range of mounting options
* RAM® double socket arm with ball and socket technology that allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

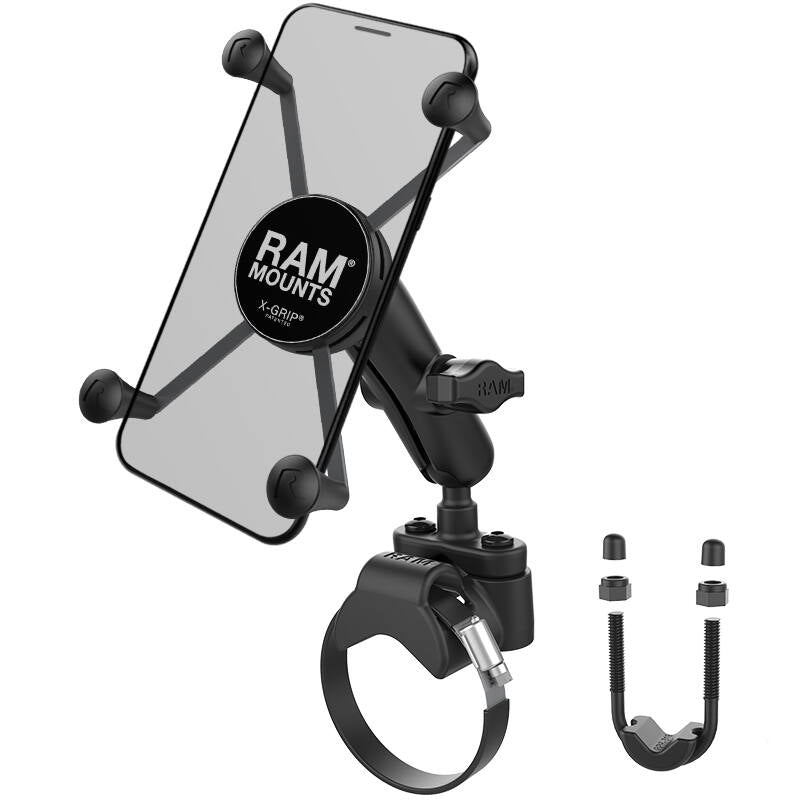

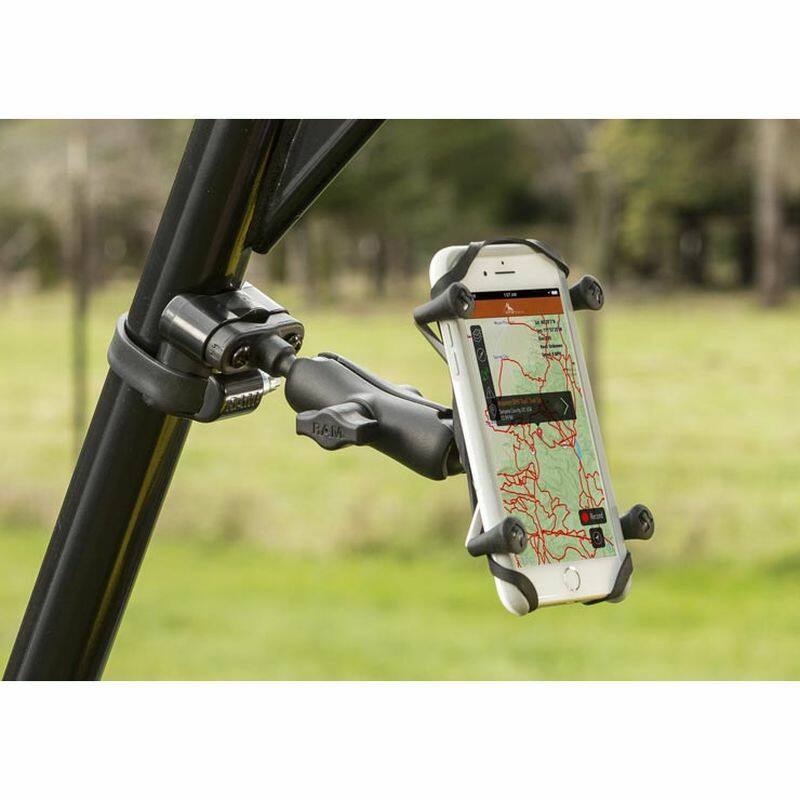

The RAM-B-231-2-UN10 consists of a steel strap base, zinc-coated u-bolt base, double socket arm and universal spring loaded X-Grip® cradle for large phones and phablets. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware.


The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles.


Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common tubing sizes on UTV’s and ATV's, allowing for the placement of the RAM rubber ball base. Safely concealing a strap clamp in a compact housing, you won’t have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc coated metal U-bolt, this allowing you to modify the mount to accommodate mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.


The MEDIUM arm measures 94mm overall. A short 60mm version and long version 152mm are also available.

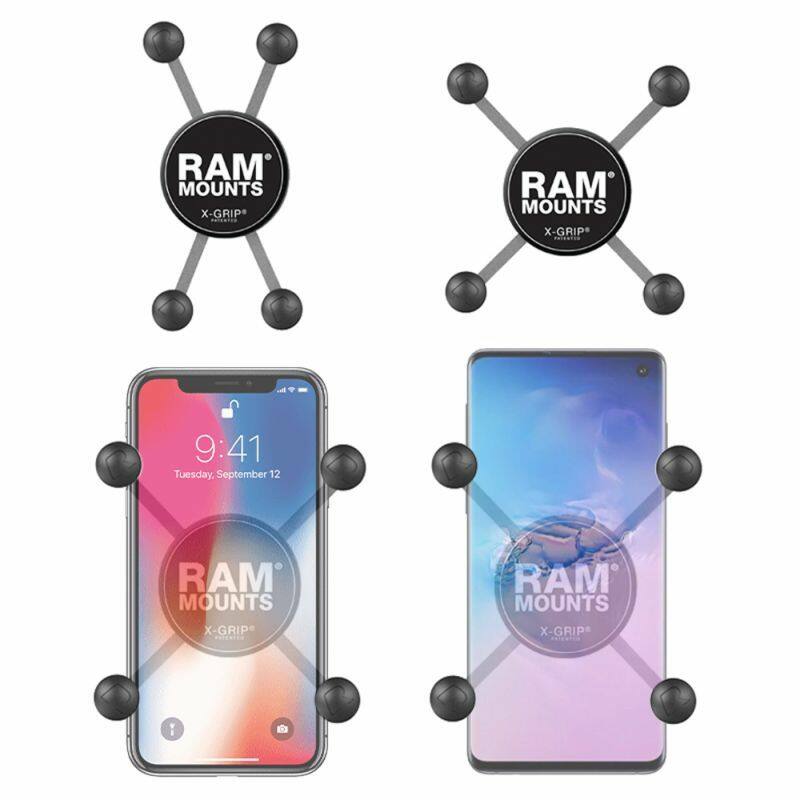

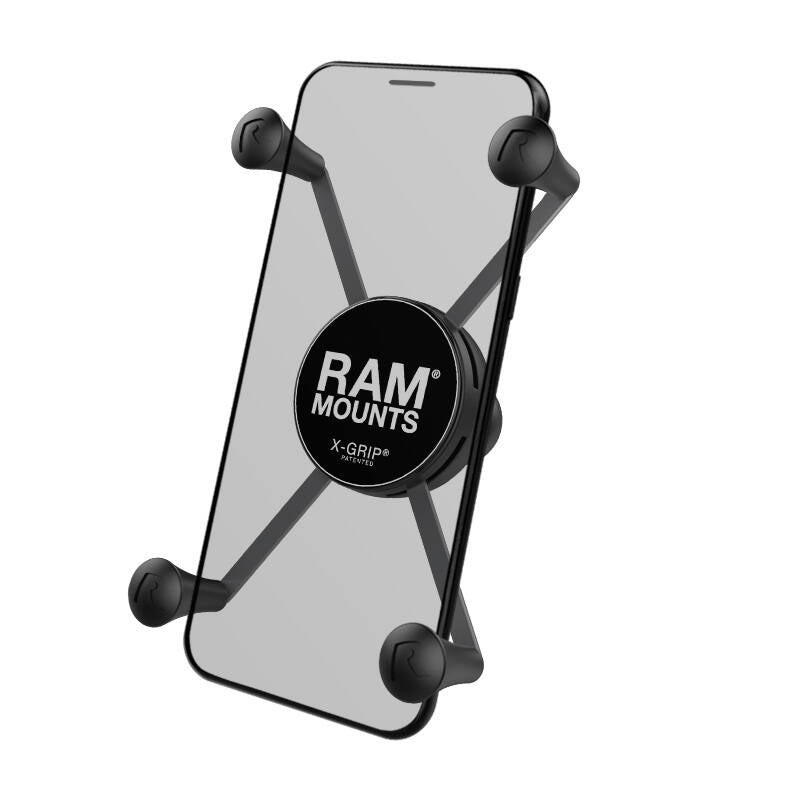

The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.

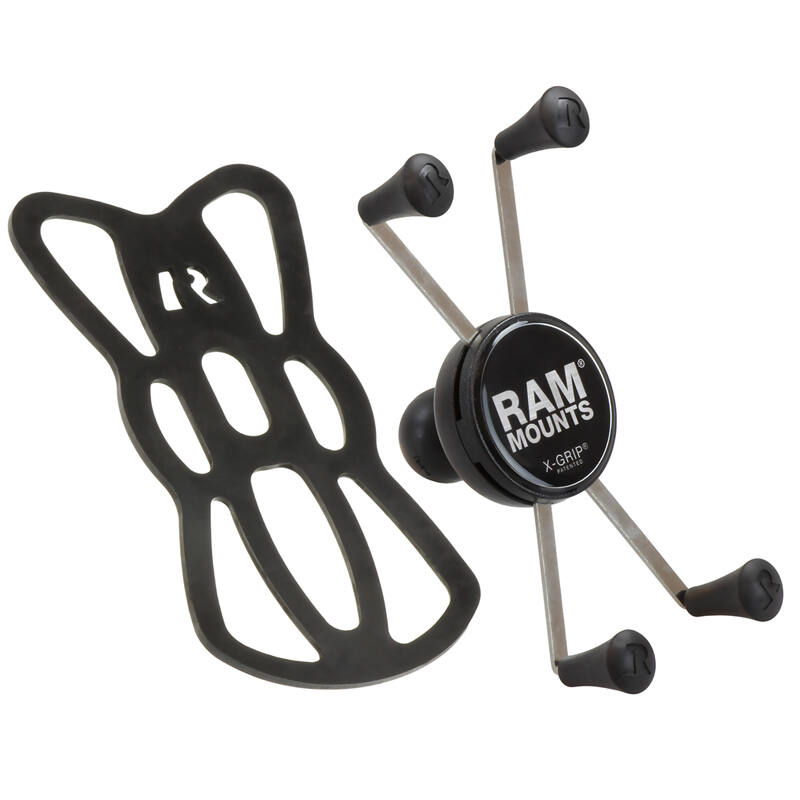

The X-Grip includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions

Minimum Width = 44.45mm (1.75”) – (if it is minimum width then the minimum height = 139.7mm / 5.5")
Maximum Width = 114.3mm (4.5") – (if it is maximum width then the minimum height = 82.55mm / 3.25")
Maximum Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU


Strap Dimensions:
40 to 80mm (1.57" to a maximum of 3.15")

U-Bolt Holding Dimensions:
12.7 to 32.75mm (0.50" to a maximum of 1.25")

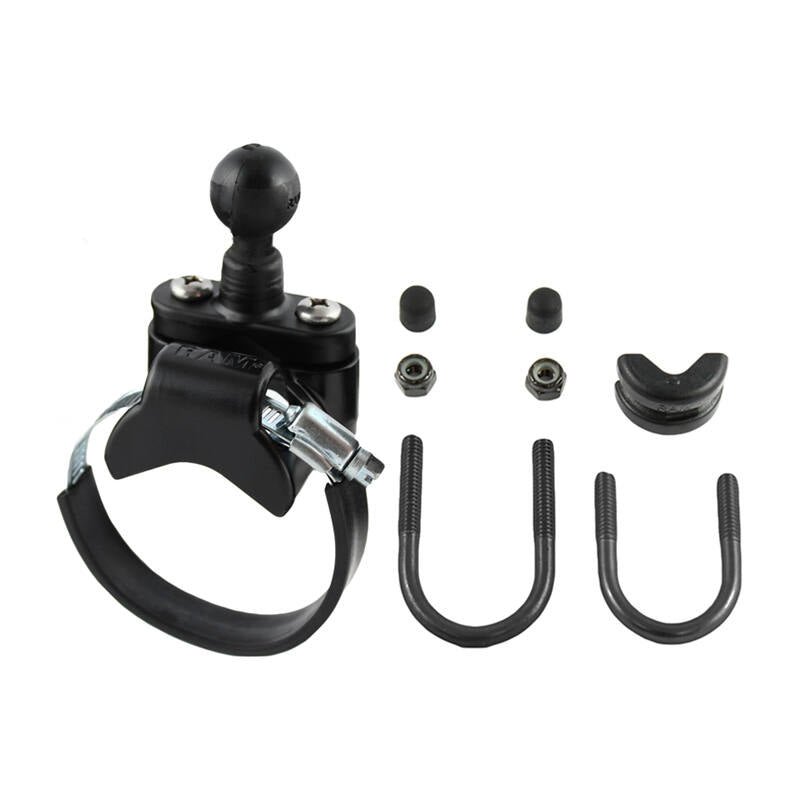

Hardware Included
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer


Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


Ball Size:
1" "B" Size

Weight
340 grams

Components:
RAM-B-231Z-2U BASE W/ U-BOLT & UTV STRAP BASE
RAM-B-201U DOUBLE SOCKET ARM
RAM-HOL-UN10BU X-GRIP IV UNIVERSAL CRADLE
