RAM Mounts

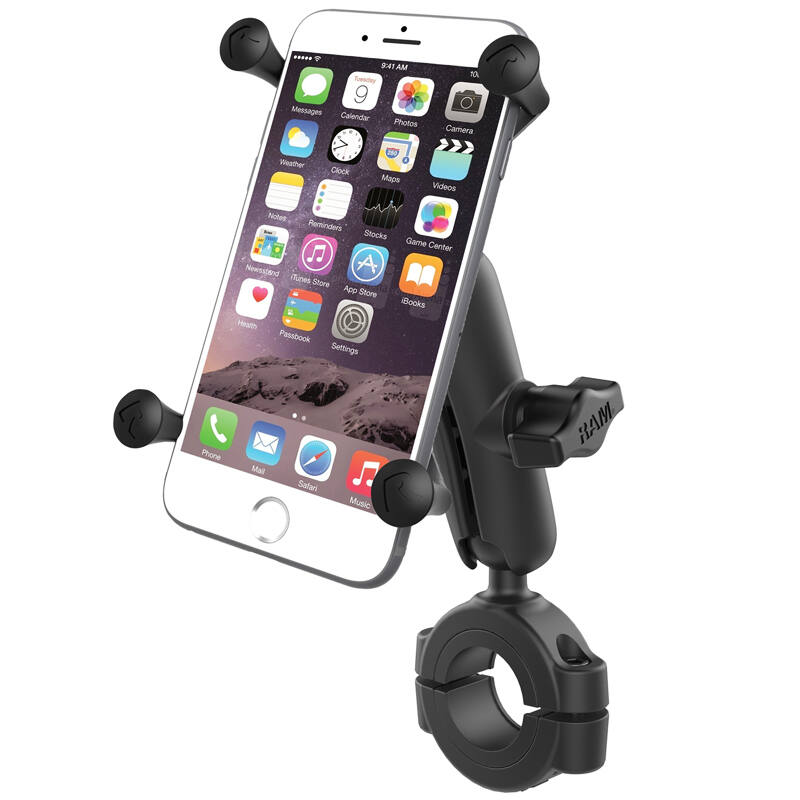

RAM X-Grip Universal Phablet Cradle with Torque Base (Large Bars) & Med Arm

RAM X-Grip Universal Phablet Cradle with Torque Base (Large Bars) & Med Arm

SKU:RAM-B-408-112-15-UN10U-V

Regular price $173.22 NZD
Regular price Sale price $173.22 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

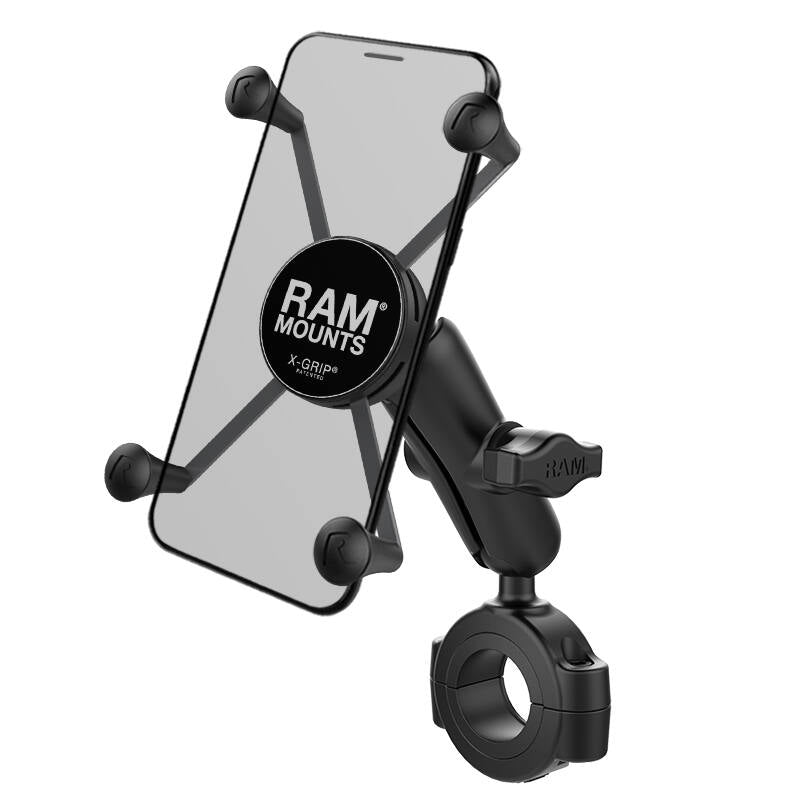

RAM-B-408-112-15-UN10U RAM® X-Grip® Large Phone Mount with RAM® Torque™ Rail Base for 28.5-38mm bars

Features

* Spring-loaded 'X' design for large phones and phablets with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* Handlebar mounting base with B size 1" rubber ball accommodates LARGE rails 28.5-38mm in diameter
* Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
* Includes medium B size RAM® Mounts double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of stainless steel components, Powder Coated Marine Grade Aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

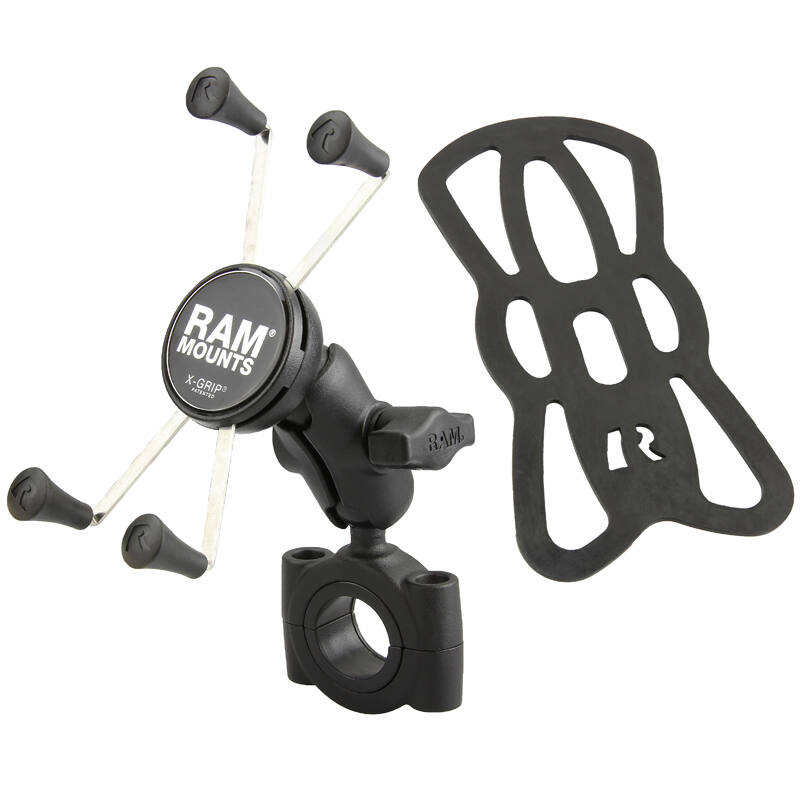

Take your mobile entertainment on the road with the new RAM® Torque™ handlebar and rail mounting base. This combines a large Torque base, medium arm and X-Grip cradle for large (5.5") phones and phablets.

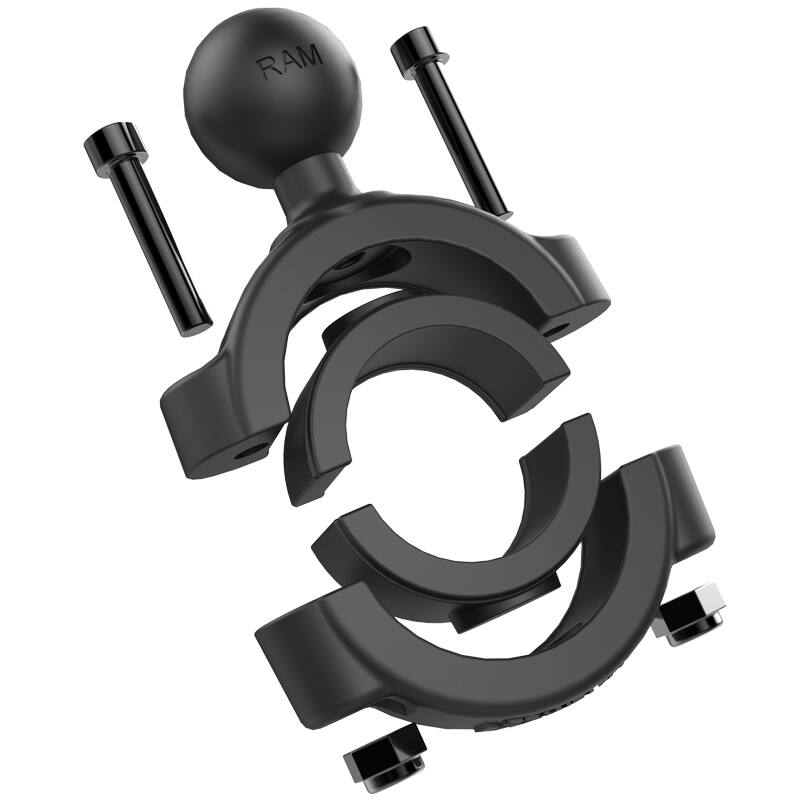

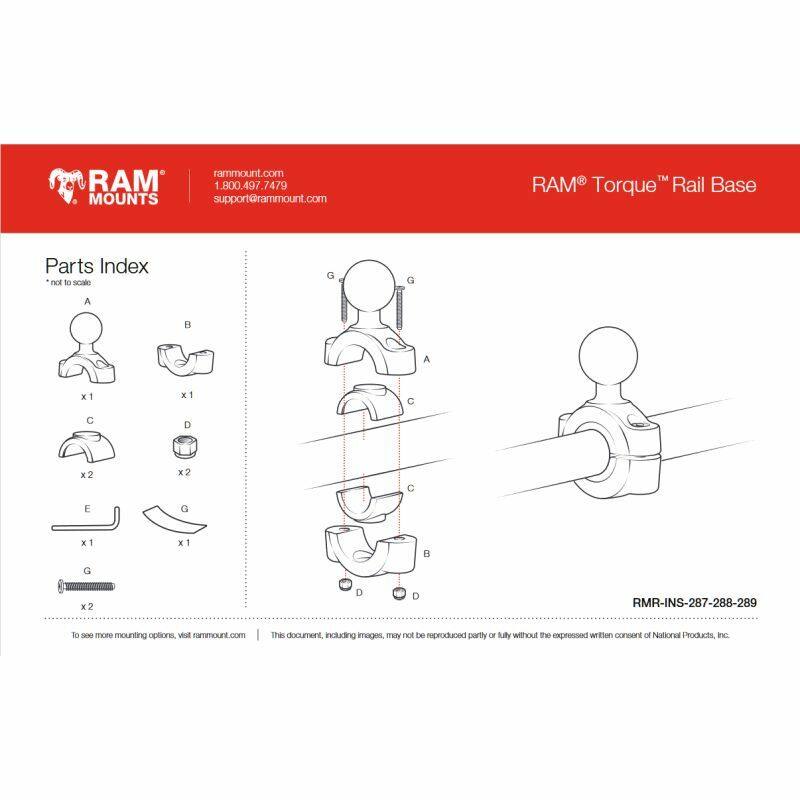

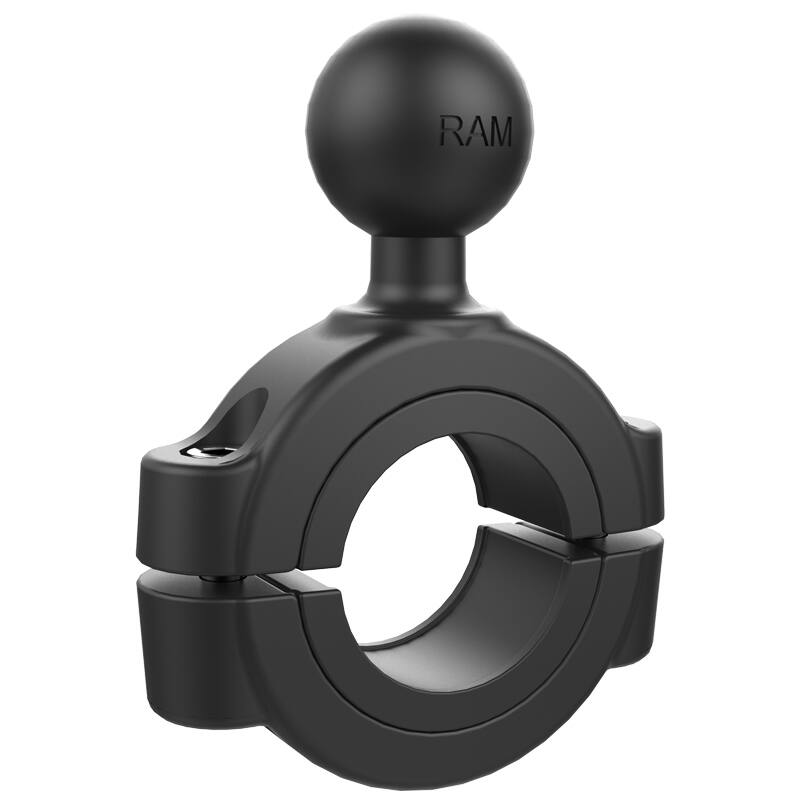

The RAM Torque handlebar and rail mounting base has a 1” rubber ball and accommodates bars 28.5-38mm in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock-nuts to prevent loosening in high vibration environments.

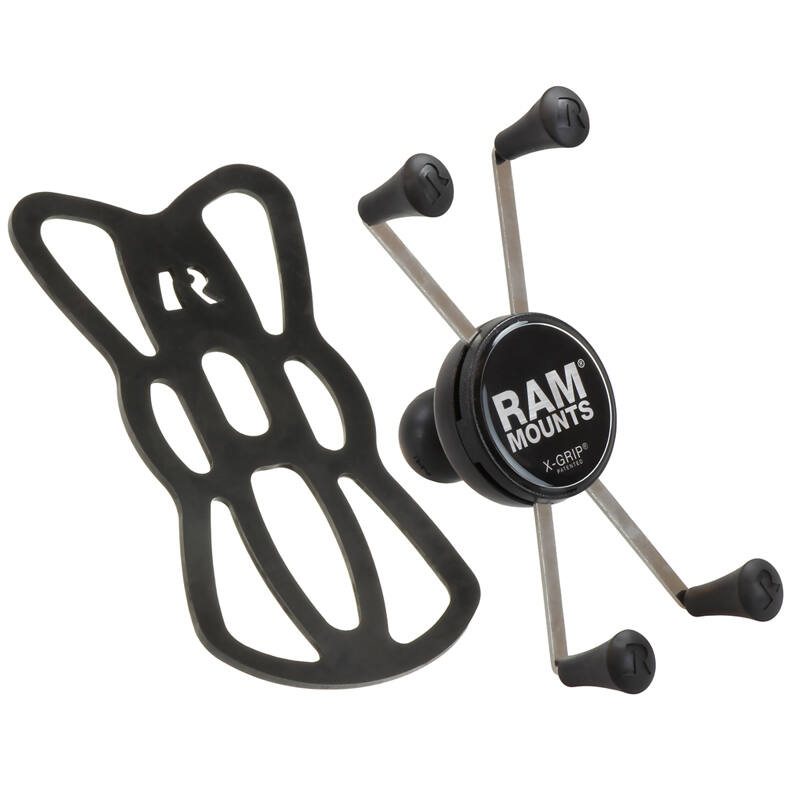

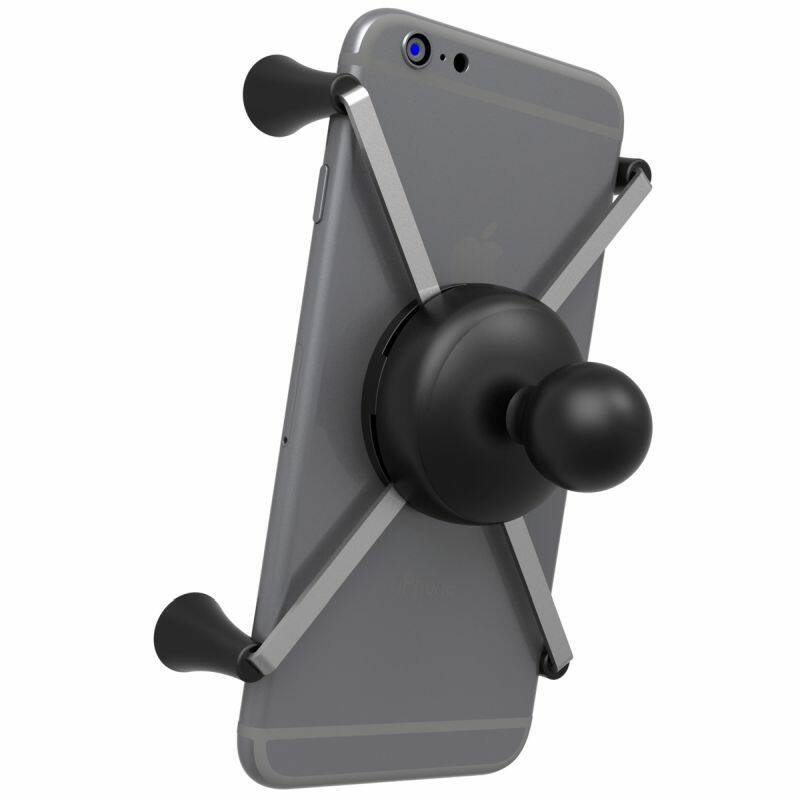

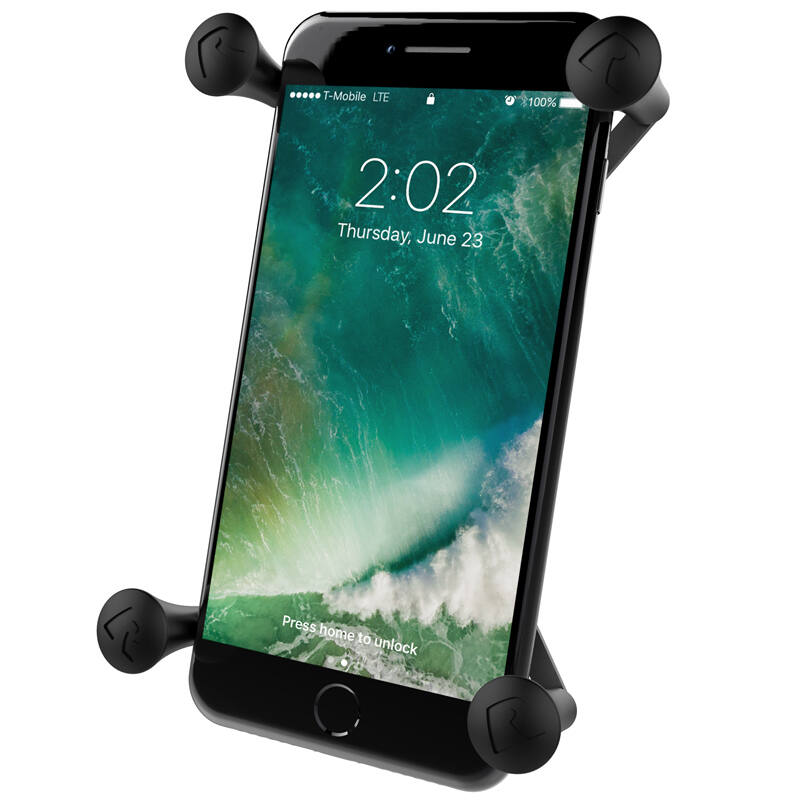

The X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved. The X-Grip includes a device tether recommended for outdoor applications.


The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size


Cradle Dimensions

Minimum Width = 44.45mm (1.75”) – (if it is minimum width then the minimum height = 139.7mm / 5.5")
Maximum Width = 114.3mm (4.5") – (if it is maximum width then the minimum height = 82.55mm / 3.25")
Maximum Thickness = 22.2mm (0.875")




Compatible Devices

For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN10BU

Torque Base Dimensions:

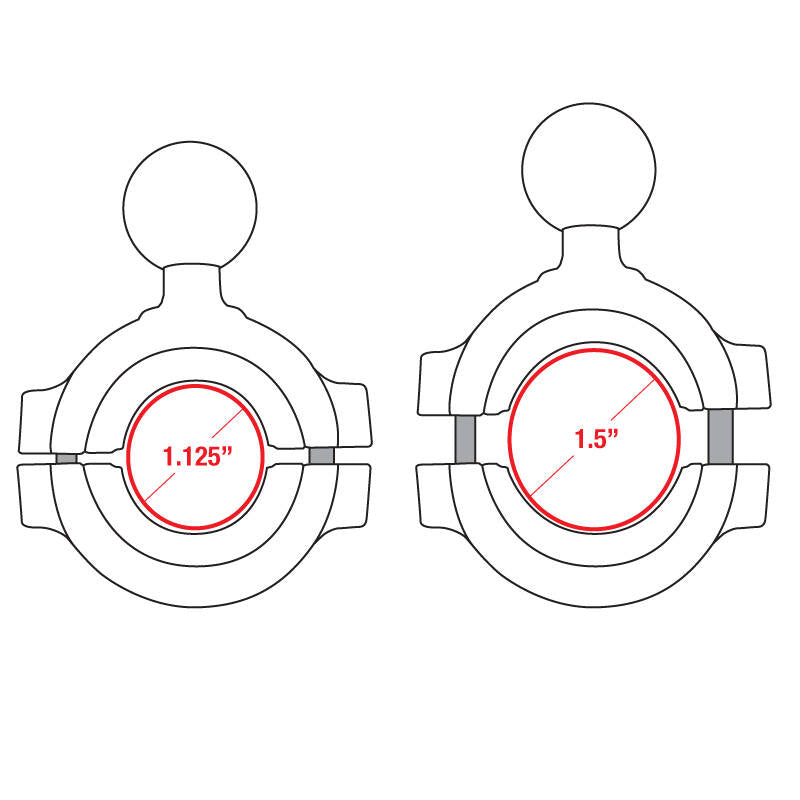

Accommodates rails
28.5-38mm (1 1/8" - 1 1/2") in diameter.

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")


Material:
Powder Coated Marine Grade Aluminium
Marine Grade Stainless Steel Components
High Strength Composite


Ball Size:
1" Rubber Ball "B" Size


Weight:
267 grams / 0.59 lbs.


Components:
RAM-B-408-112-15U - Torque base
RAM-HOL-UN10BU - X-Grip Cradle
RAM-B-201U Double Socket Arm

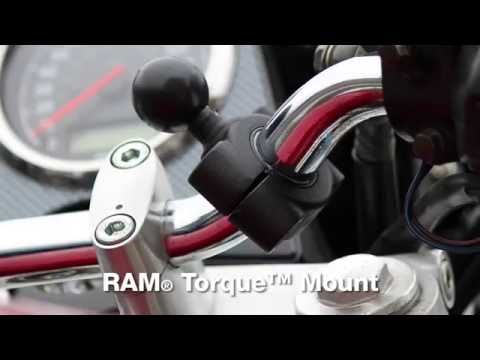

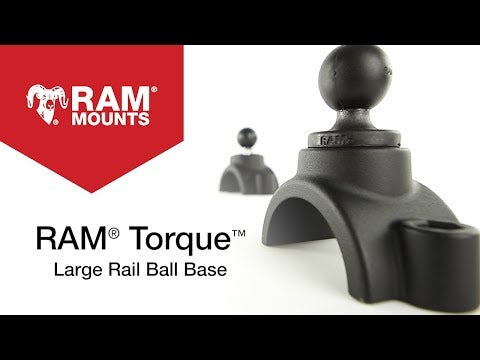

YouTube:
