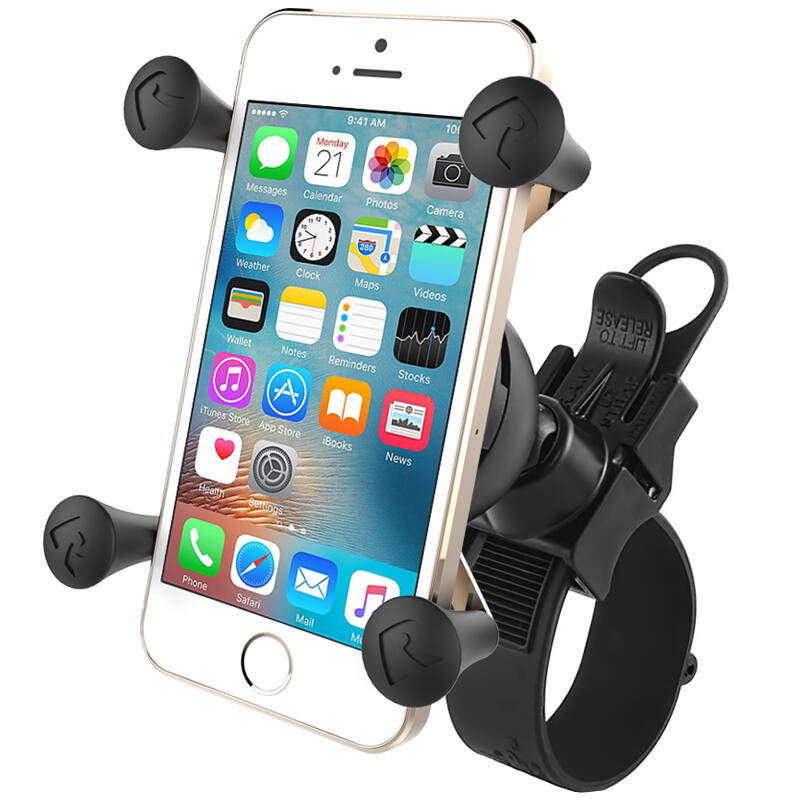

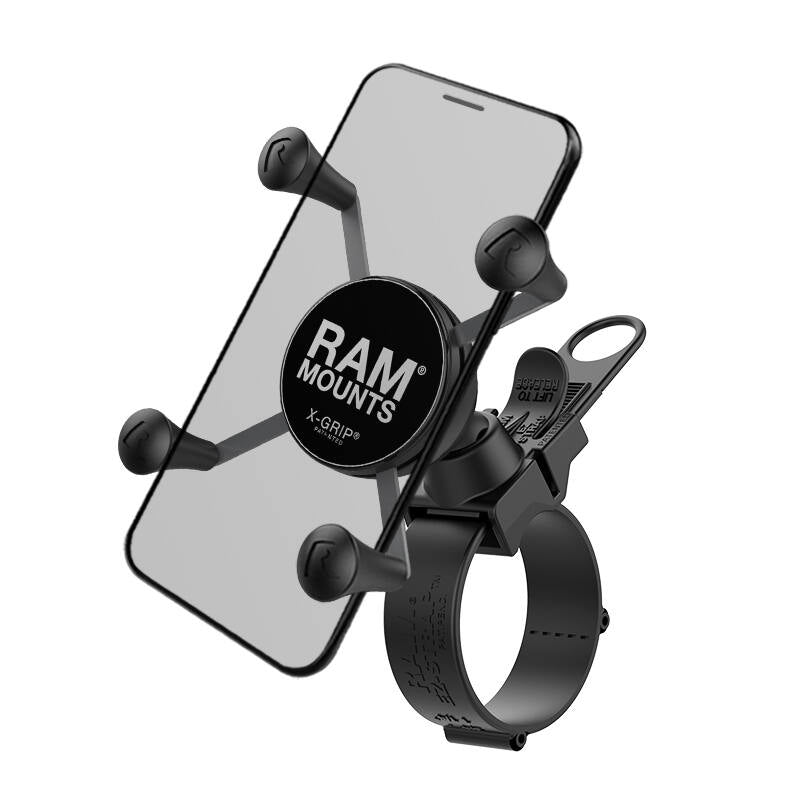

RAP-SB-187-UN7U RAM® X-Grip® Phone Mount with RAM® EZ-Strap™ Rail Mount
Features
* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone
* Includes optional device tether for peace of mind during rugged use
* Compatible with any B size RAM® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* RAM EZ-Strap base can be cut to fit tubing, square rails and irregular shapes from 12.7 to 65.5mm diameter.
* Backed by a lifetime warranty

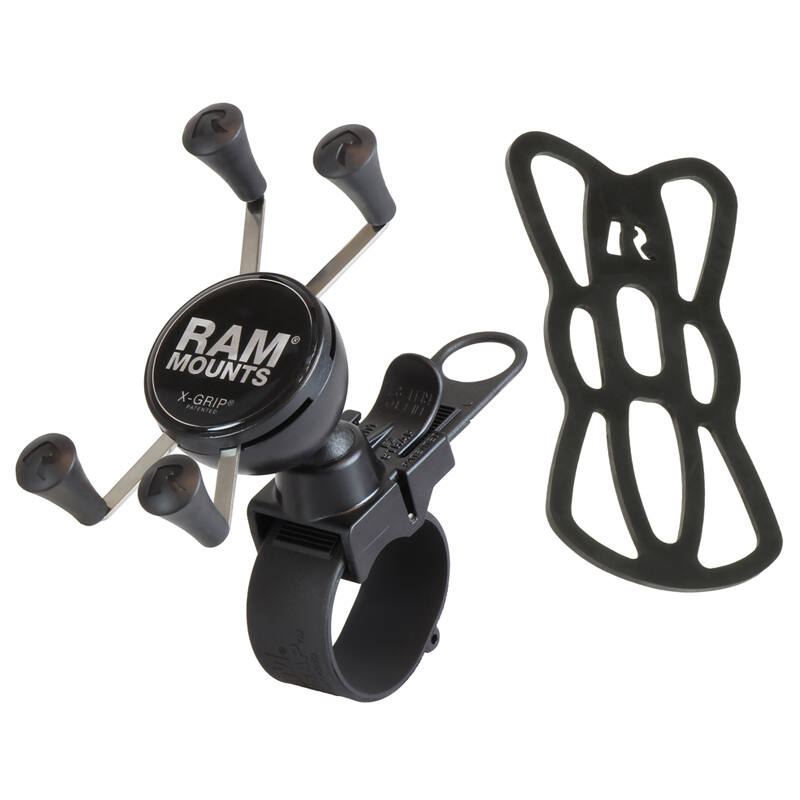

Optional Tether Included

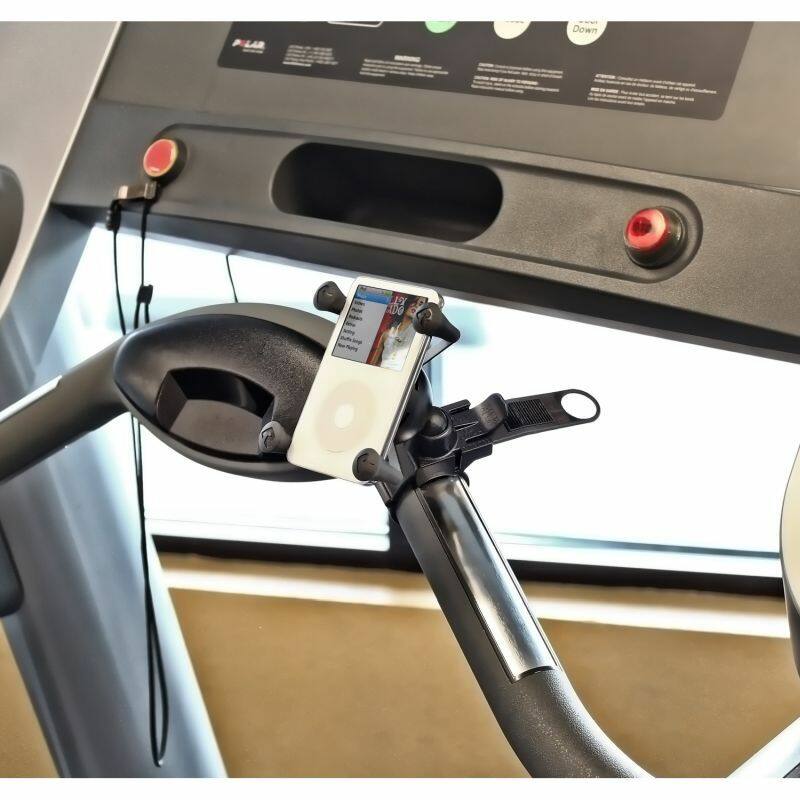

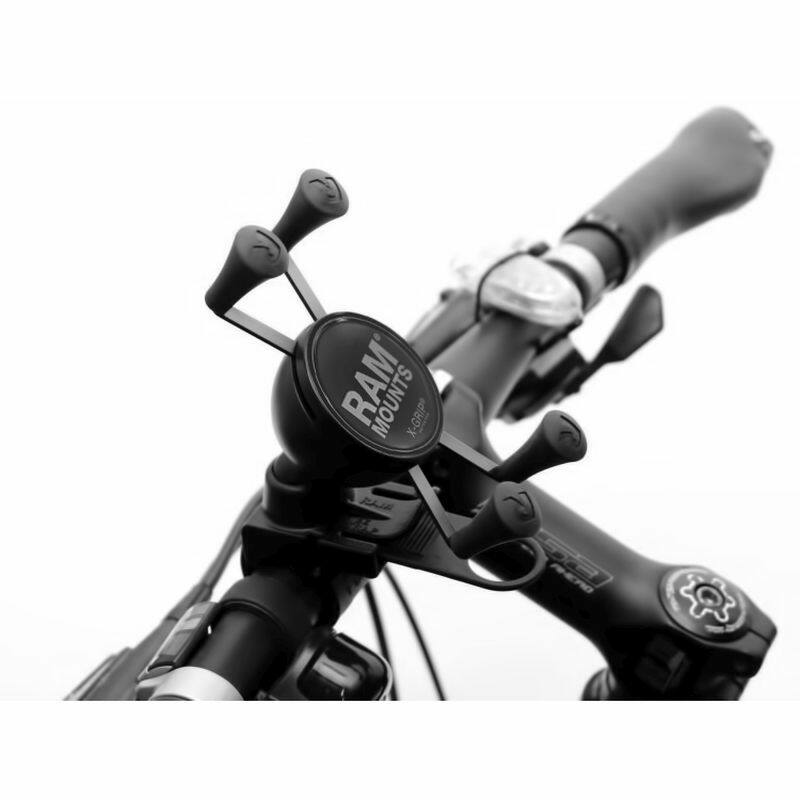

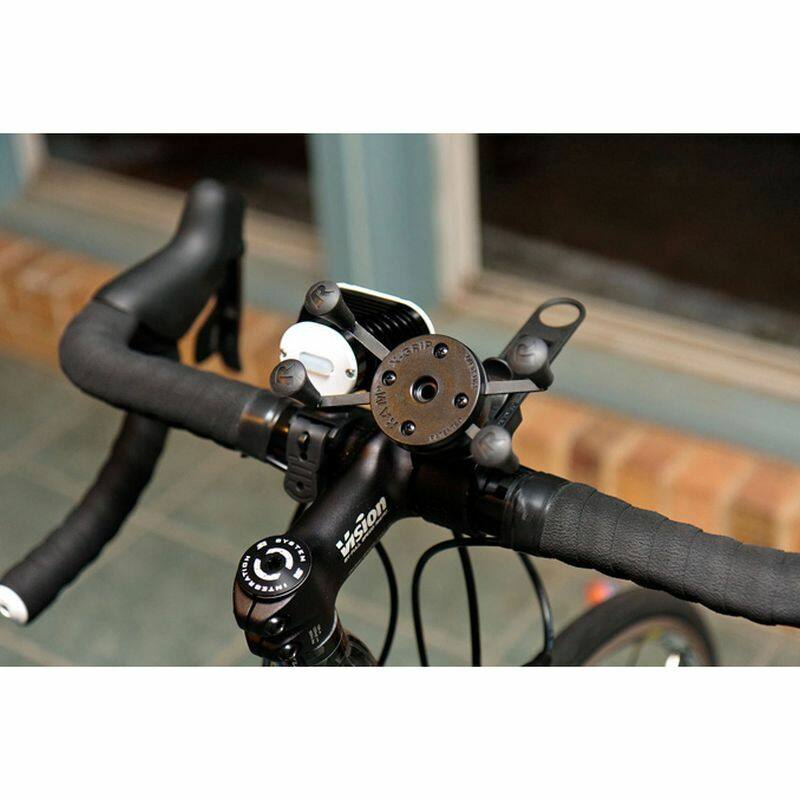

This RAM mount will enable you to securely mount your chosen smartphone / small tablet onto any rail - on your bicycle, exercycle,
The RAP-SB-187-UN7U consists of the RAM EZ-Strap base, double ball SHORT arm and universal X-Grip cradle. The strap can be cut to fit tubing, square rails and irregular shapes from 12.7 to 65.5mm diameter. Multiple adjustment points allow you to move the universal X-Grip cradle to your optimum viewing position. This mount rotates 180 degrees.
The included X-Grip cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip holder expands and contracts, allowing for a perfect custom fit of your cell phone, the RAM X-Grip is the cell phone holder evolved.
The X-Grip includes a device tether recommended for outdoor applications.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Minimum Width = 47.6mm (1.875”) – (if it is minimum width then the minimum height = 108mm / 4.25")
Maximum Width = 82.6mm (3.25")– (if it is maximum width then the minimum height = 57.2mm / 2.25")
Maximum Thickness = 22.2mm (0.875")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN7BU
Clamp Range
12.7 to 65.5mm (0.5 to 2.58") diameter
