RAM Mounts

RAM Yoke Clamp Base - Alloy with 1" Rubber Ball

RAM Yoke Clamp Base - Alloy with 1" Rubber Ball

SKU:RAM-B-121BU

Regular price $61.17 NZD
Regular price Sale price $61.17 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-121BU RAM® Yoke Clamp Base with Ball

Features

* The RAM Yoke Clamp will hold firm to most glare shields, yokes, or tubing, or even exercise equipment 16-32mm in diameter
* Includes 1" ball to adapt to any RAM® B size double socket arm provides for almost infinite adjustment and perfect viewing angles
* Manufactured from Powder Coated Marine Grade Aluminium for maximum longevity
* Backed by a lifetime warranty


This is a G-clamp style mount with a 1" ball for use with the RAM B-series range of fittings. Attaches to a round bar such as a control column yoke but could also fit roll bars or small struts from 15.9mm to 31.8mm (0.625" to a maximum of 1.25") diameter.

Note: The bar does not need to be perfectly round for this clamp to work.

Great for a fixing a GPS, camera, radio or iPad in the cockpit of the aircraft or car, or attaching to motorbike handlebars.


The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.

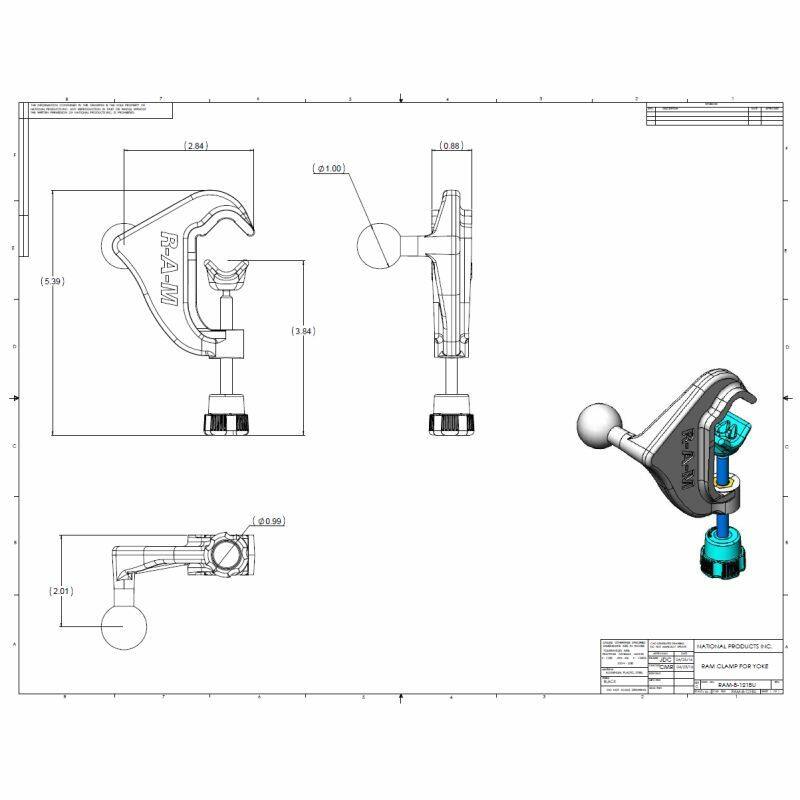

Clamp Dimensions:
15.9mm to 31.8mm (0.625" to 1.25").

Ball Size:
1" Rubber Ball "B" Size

Material:
Powder Coated Marine Grade Aluminium

Weight:
157 grams (0.35 lbs.)


YouTube:
https://www.youtube.com/watch?v=s0l6AQ5xprI
https://www.youtube.com/watch?v=0kDMJ3SozRE



QUESTIONS & ANSWERS

Q: Will this fit the yoke on a 1976 Cherokee Archer 2?

A: The RAM-B-121BU will work well with a yoke between .625" and 1.25" in diameter.
