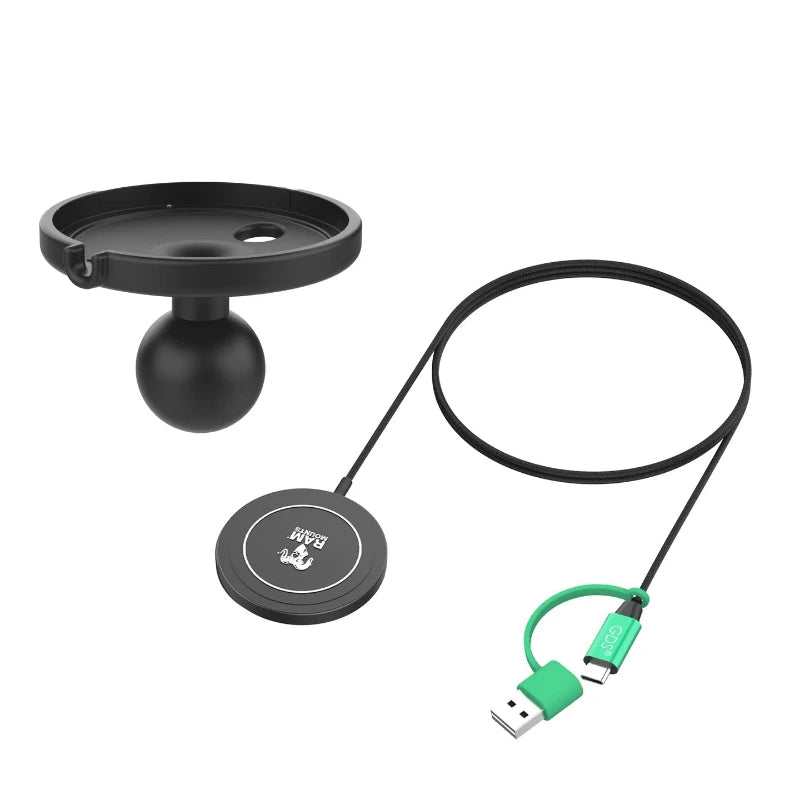

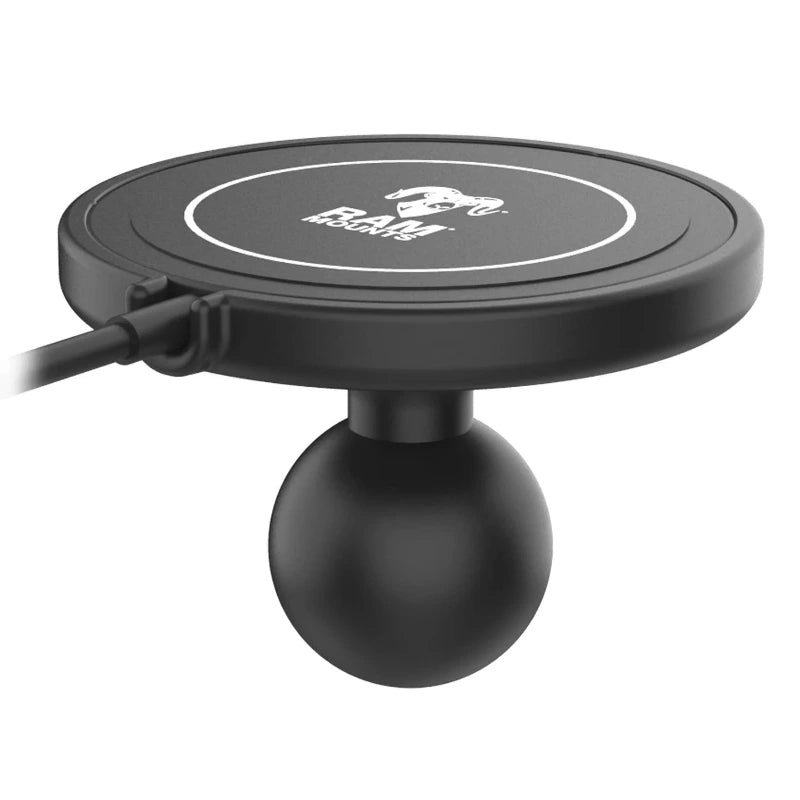

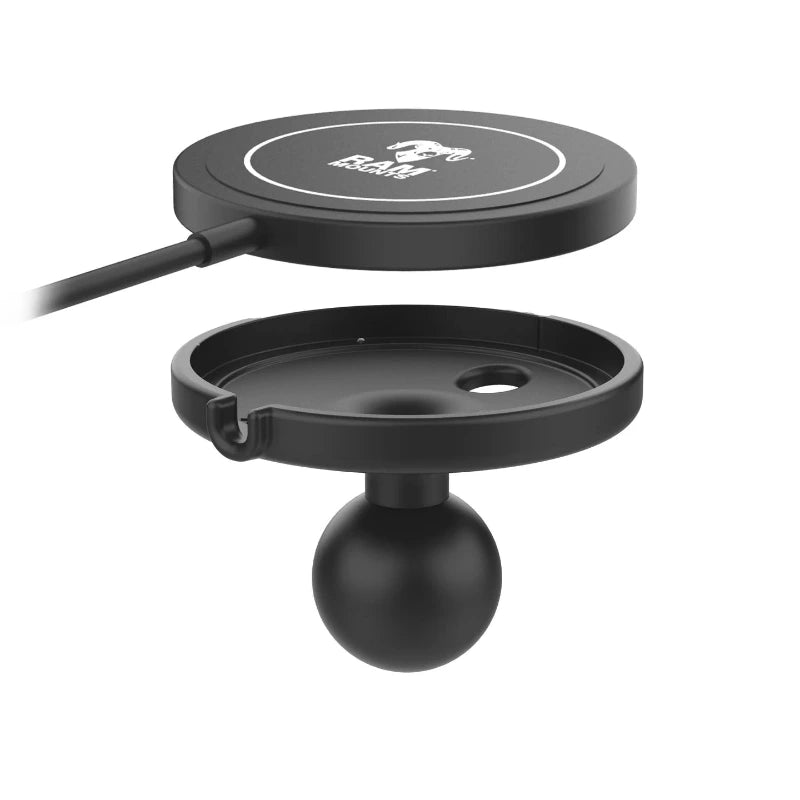

RAM Ball Adapter with RAM Qi2 15W Wireless Charger

RAP-B-202-AP-MAG-1-W2MU RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger

Features

• Wireless charger and form-fit ball adapter compatible with any RAM^® B size ball and socket components
• 15W Qi2 fast charging for efficient power delivery
• Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
• Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

The RAM^® Ball Adapter with RAM^® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU) makes it easy to add wireless charging to your existing RAM^® Mount setup—or build a custom one from scratch. The ball adapter securely holds the Qi2 15W Wireless Charger, giving your iPhone 12, 13, 14, 15, 16 (Plus, Pro, Pro Max, and later) a snap-on magnetic connection for effortless MagSafe^® charging. Compatible with RAM^® B size socket arms, this bundle gives you the flexibility to mount your phone in virtually any vehicle location with the right base. A simple, reliable way to keep your device powered while you’re on the move.

Hardware Included:

(1)   Ball Adapter
(1) RAM® Qi2 Wireless Charging Puck

(2)

Ball Size:

B Size (1")

Weight Capacity:

Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)

Materials:

High strength composite

Power Specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

Input Voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

Power Output:

BPP - 5W
EPP - 7.5W
MPP - 15W

Output Connector:

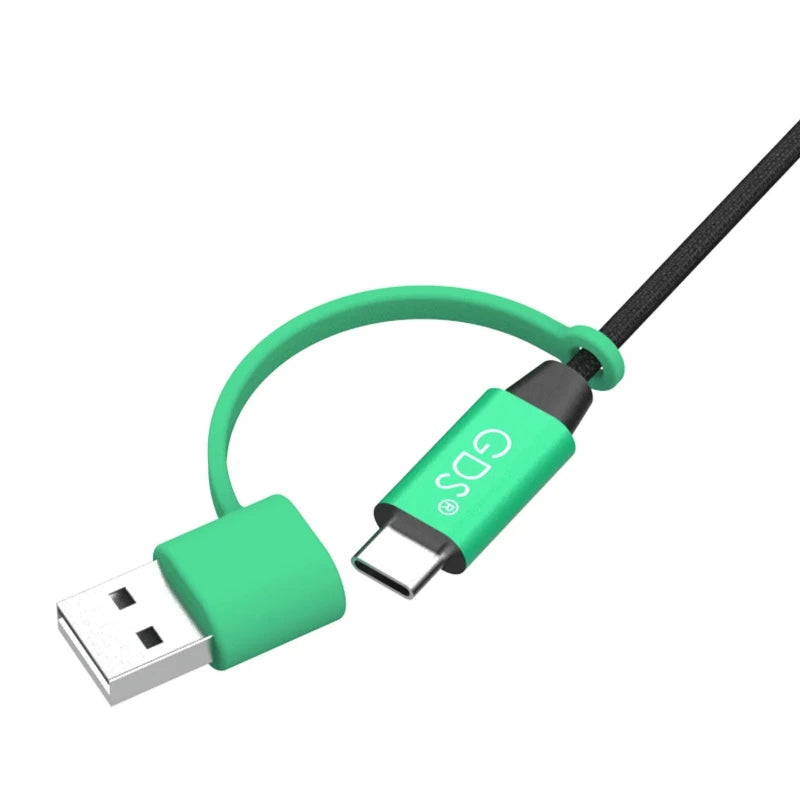

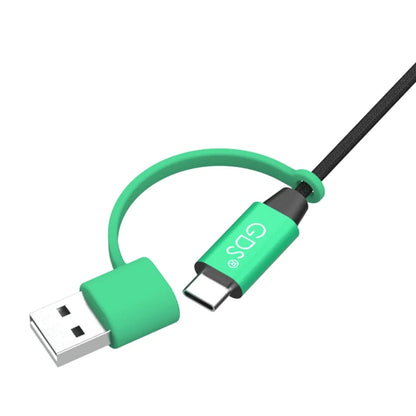

USB Type-C Male with USB-A Adapter

Output Cable Length:

1 Metre

Operating Temperature:

0°C to +40°C

Storage Temperature:

-20°C to +80°C

Regulatory:

Over Current Protection
Short Circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

Certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Additional Information:

The included wireless charger will support up to 8mm charging distance between puck and device.
