RAM Tough-Mag Heavy Duty Magnetic Mount with Round Plate - Short

RAM-101-B-MAG88U – RAM® Tough-Mag™ Heavy-Duty Magnetic Mount with Round Plate (Short)

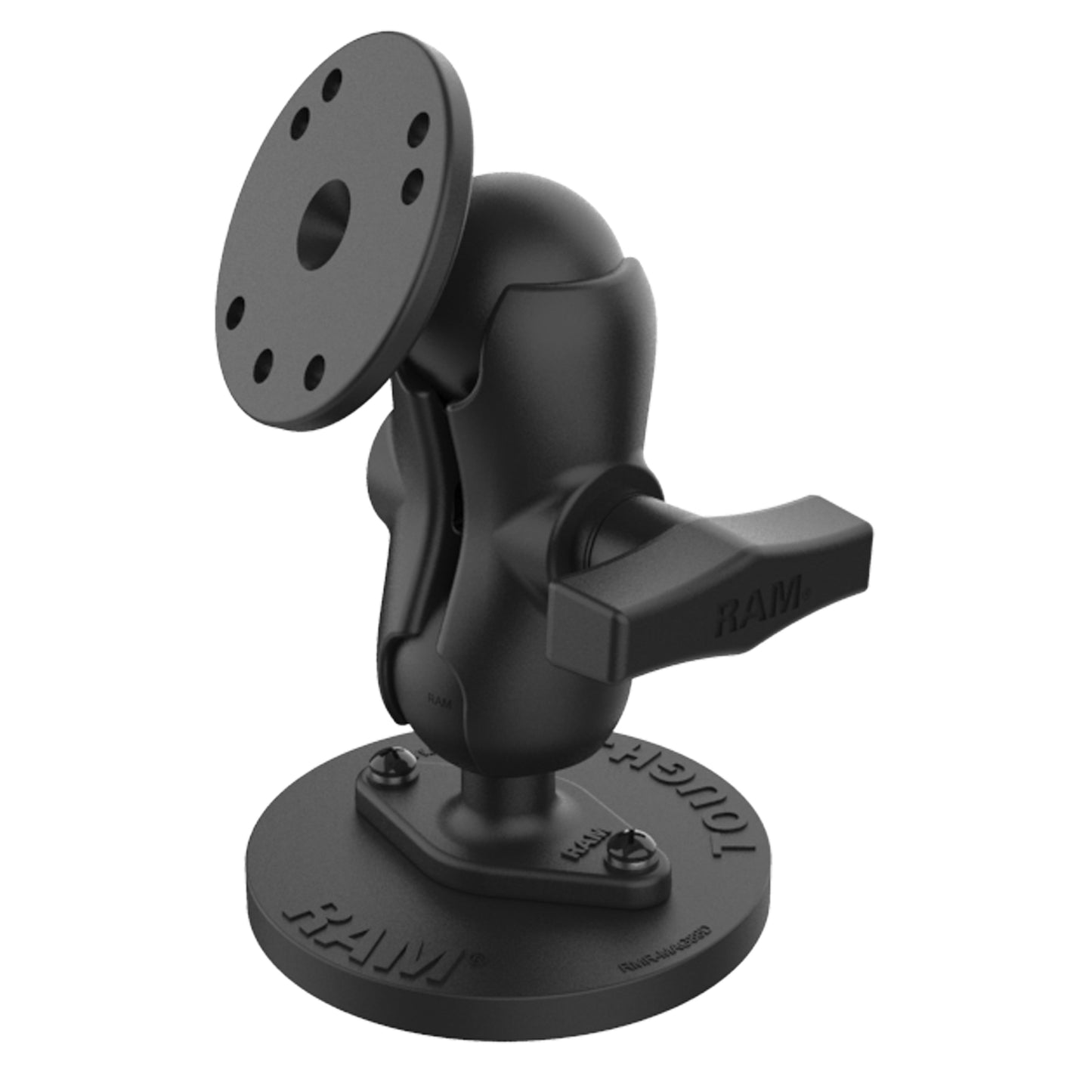

The RAM-101-B-MAG88U is a complete heavy-duty magnetic mount that clamps a device holder to any ferrous metal surface without drilling. It pairs an 88mm RAM® Tough-Mag™ base with a short C-size double socket arm and a 2.5" round ball base, giving you adjustment at both ends and a strong hold on steel.

Key Features

• Magnetic or drill-down mounting: 88mm Tough-Mag™ base holds to any ferrous metal surface, or bolt it down through the round plate

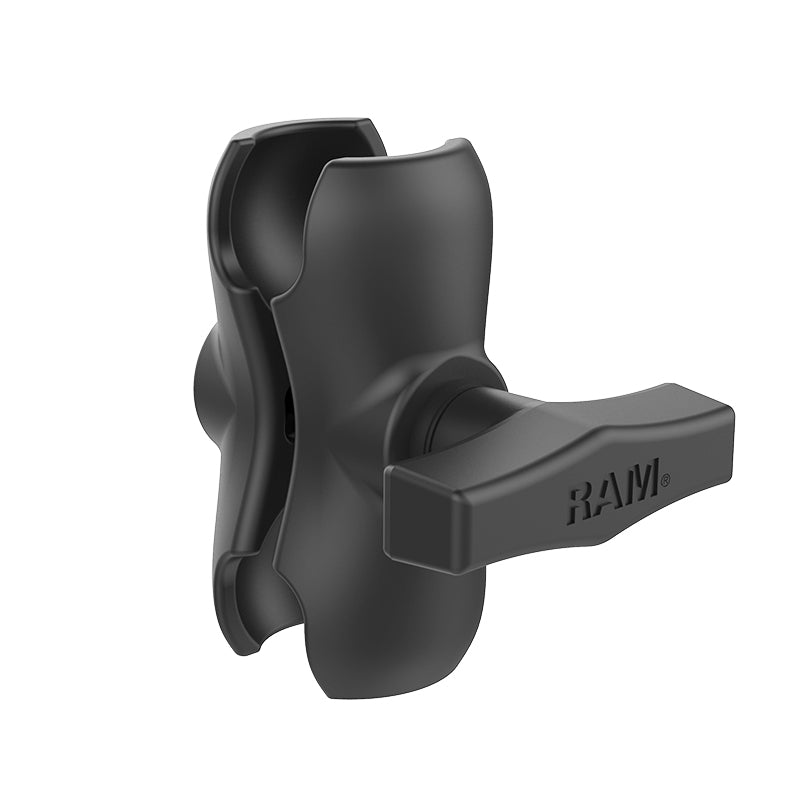

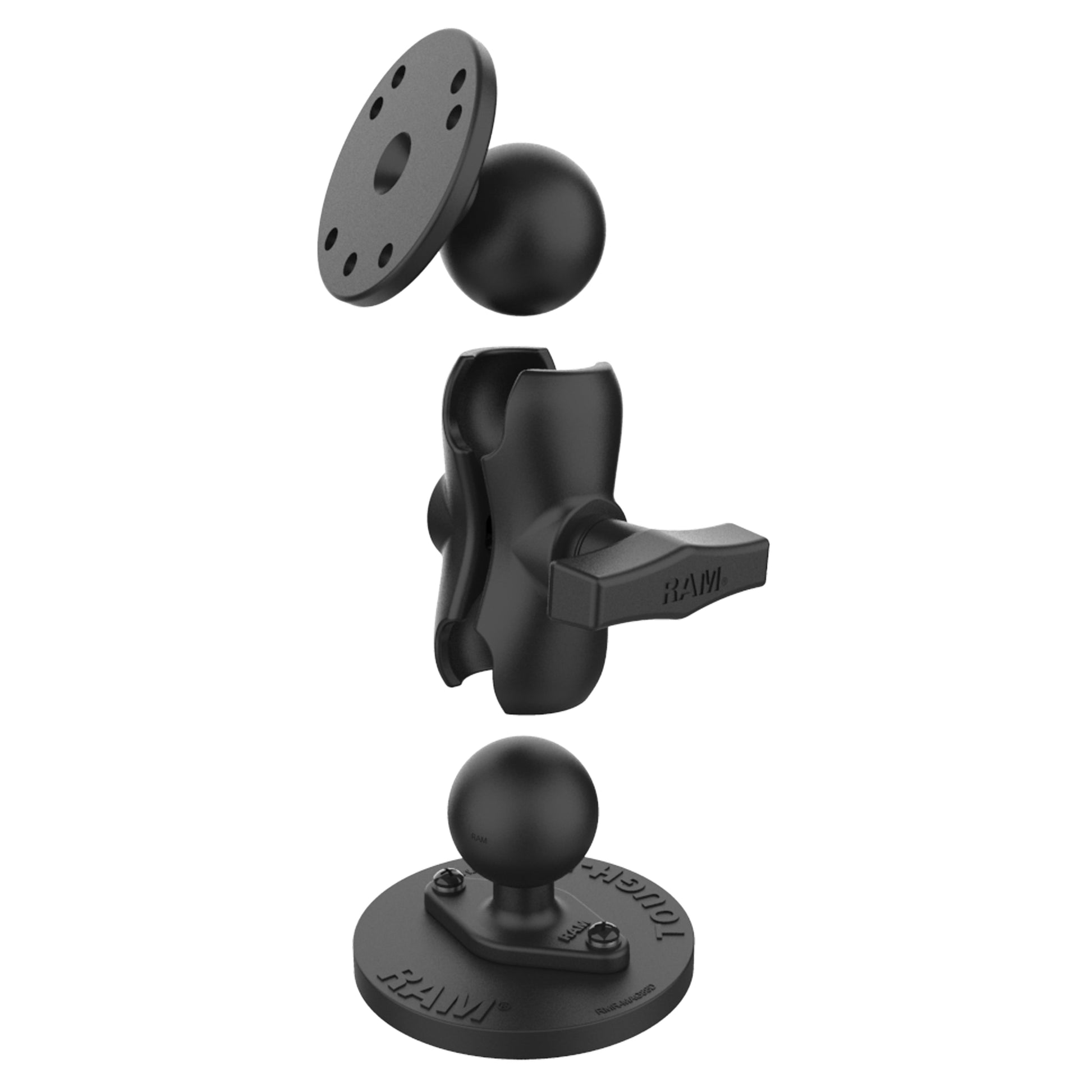

• Complete kit: one round ball base, one Tough-Mag™ base, and one short C-size double socket arm
• C-size ball and socket at both ends for near-infinite adjustment; dampens shock and vibration
• Ten industrial-strength N52-grade magnets with a rubber coating that protects the surface
• Powder-coated marine-grade aluminium; backed by a lifetime warranty

Works With

Any RAM® cradle or device holder using the 4-hole AMPS or 3-hole pattern on the round plate. Attaches to any flat ferrous (steel or iron) surface.

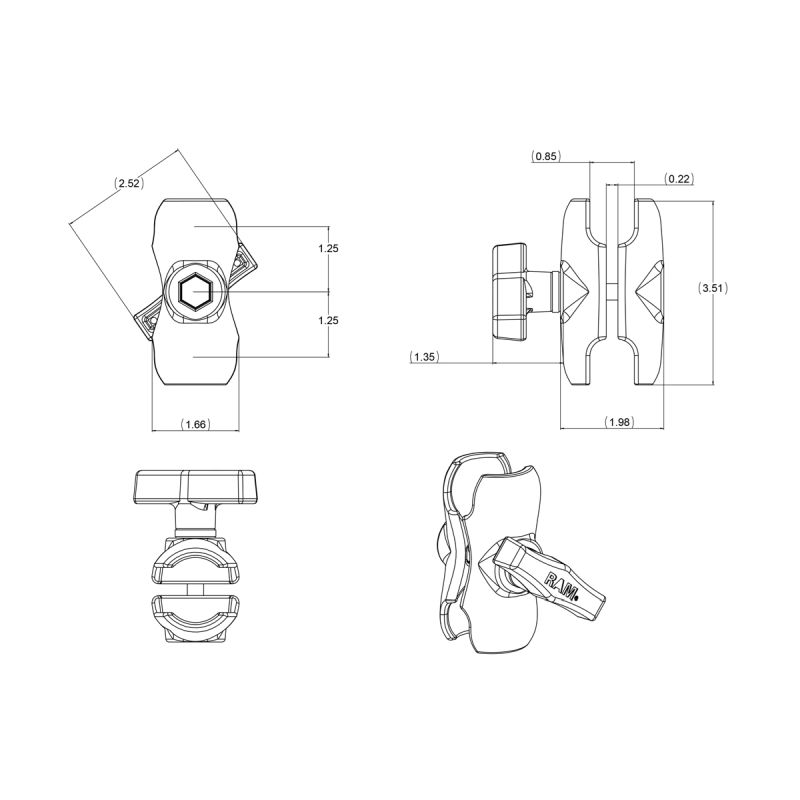

Dimensions & Specifications

• Overall height: 140.7mm (5.54")
• Socket-to-socket length: 63.5mm (2.5")
• Top plate: 63.5mm (2.5") diameter
• Magnetic base: 87.9mm (3.46") diameter
• Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° 46.0mm (1.812") diameter
• Ball size: 38mm (1.5") C size
• Magnets: 10 x N52 grade
• Material: marine-grade aluminium
• Weight: 585g (1.29 lb)
• Weight capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use

FAQs

What's the difference between this and the RAM-101-MAG88U? This is the short-arm version; the RAM-101-MAG88U uses a medium arm for more reach and height.

Will it hold on aluminium or stainless? No — magnets only grip ferrous metals (steel and iron). Non-magnetic aluminium and most stainless won't hold.
