RAM Tough-Mag Heavy Duty Magnetic Mount with Round Plate - Medium

RAM-101-MAG88U – RAM® Tough-Mag™ Heavy-Duty Magnetic Mount with Round Plate (Medium)

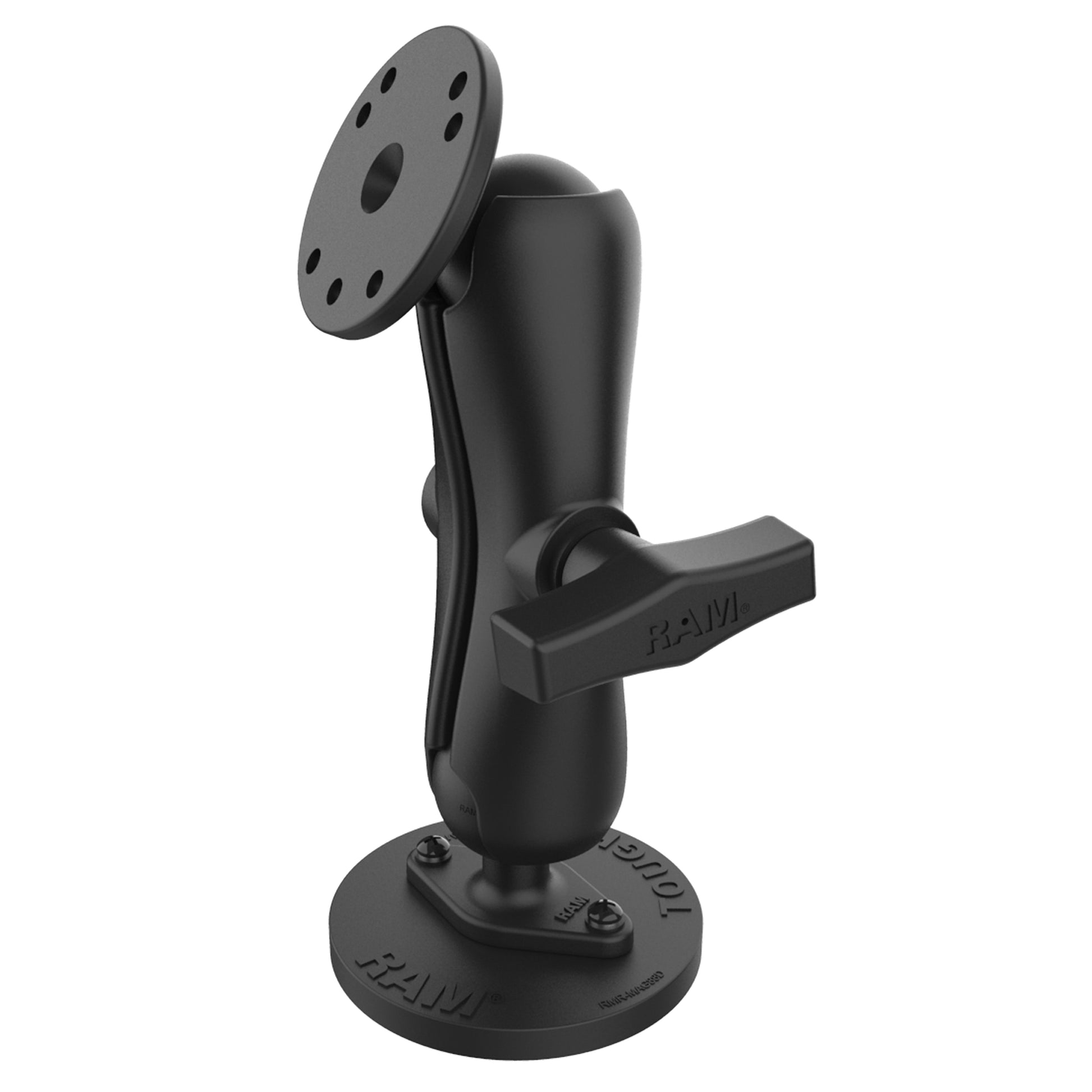

The RAM-101-MAG88U is a complete heavy-duty magnetic mount that clamps a device holder to any ferrous metal surface without drilling. It pairs an 88mm RAM® Tough-Mag™ base with a medium C-size double socket arm and a 2.5" round ball base, giving you extra reach and adjustment at both ends with a strong hold on steel.

Key Features

• Magnetic or drill-down mounting: 88mm Tough-Mag™ base holds to any ferrous metal surface, or bolt it down through the round plate

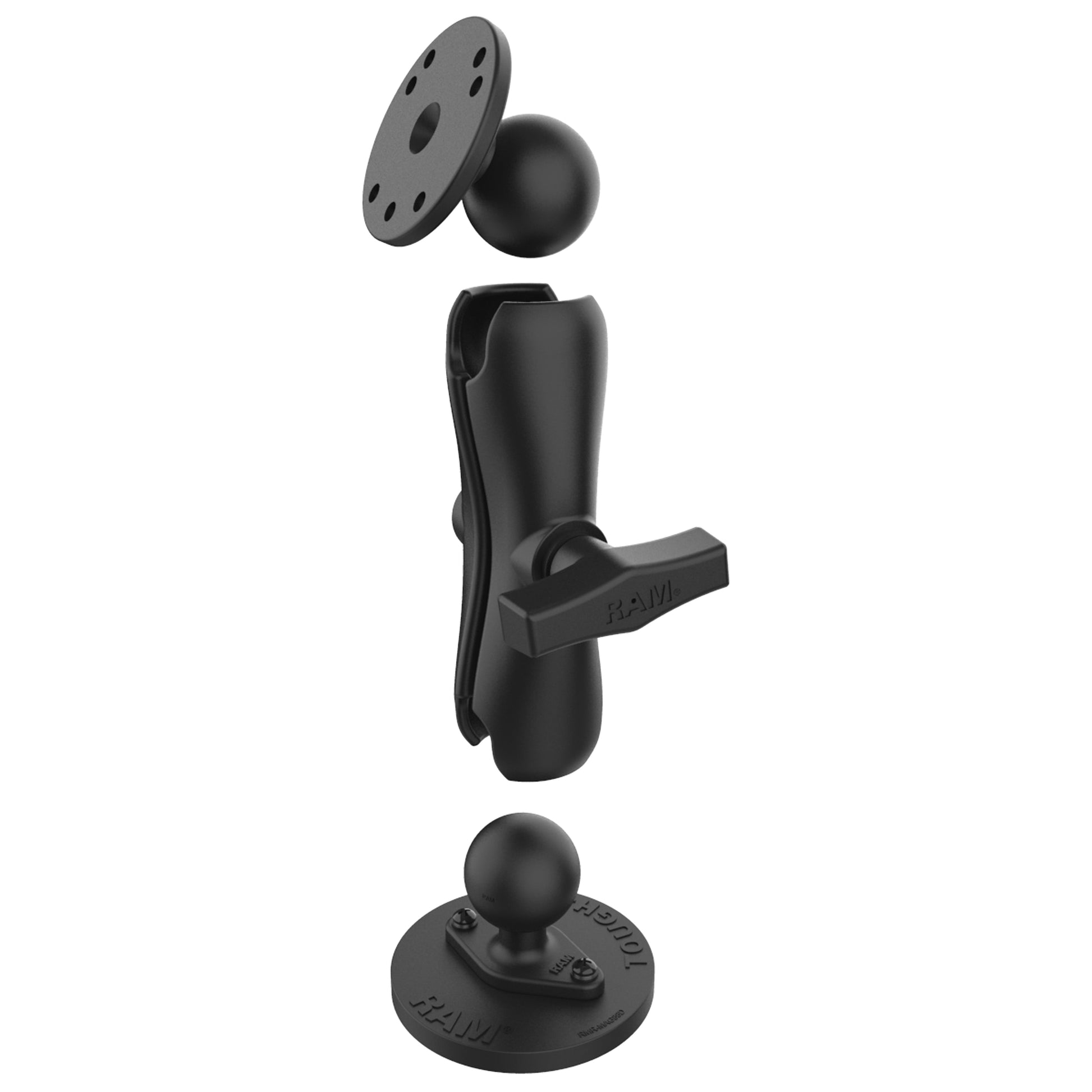

• Complete kit: one round ball base, one Tough-Mag™ base, and one medium C-size double socket arm
• C-size ball and socket at both ends for near-infinite adjustment; dampens shock and vibration
• Ten industrial-strength N52-grade magnets with a rubber coating that protects the surface
• Powder-coated marine-grade aluminium; backed by a lifetime warranty

Works With

Any RAM® cradle or device holder using the 4-hole AMPS or 3-hole pattern on the round plate. Attaches to any flat ferrous (steel or iron) surface.

Dimensions & Specifications

• Overall height: 194.8mm (7.67")
• Socket-to-socket length: 118.3mm (4.66")
• Top plate: 63.5mm (2.5") diameter
• Magnetic base: 87.9mm (3.46") diameter
• Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° 46.0mm (1.812") diameter
• Ball size: 38mm (1.5") C size
• Magnets: 10 x N52 grade
• Material: marine-grade aluminium
• Weight: 675g (1.49 lb)
• Weight capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use

FAQs

What's the difference between this and the RAM-101-B-MAG88U? This is the medium-arm version, giving more reach and height; the RAM-101-B-MAG88U uses a shorter arm for a lower, more compact setup.

Will it hold on aluminium or stainless? No — magnets only grip ferrous metals (steel and iron). Non-magnetic aluminium and most stainless won't hold.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
