RAM Tough-Mag Heavy Duty Magnetic Mount with Diamond Plate - Short

RAM-138-B-MAG88U – RAM® Tough-Mag™ Heavy Duty Magnetic Mount with Diamond Plate, Short

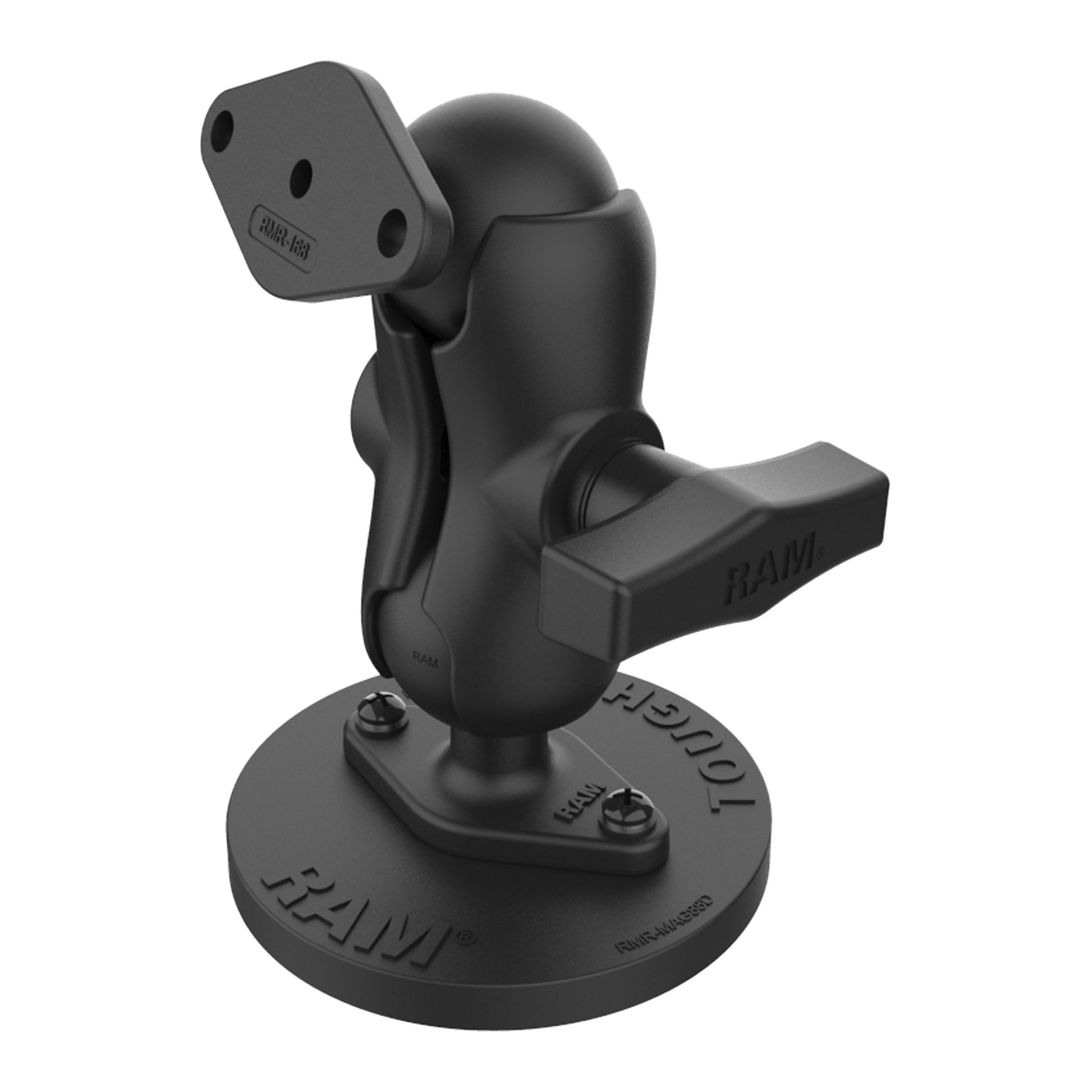

The RAM-138-B-MAG88U is a complete heavy-duty magnetic mount: an 88mm RAM® Tough-Mag™ base with ten N52 magnets, a C size short double socket arm, and an AMPS diamond plate for your device holder. Stick it to any ferrous metal surface, or use the drill-down option for a permanent install.

Key Features

• Magnetic or drill-down mounting; device on one end, your chosen surface on the other

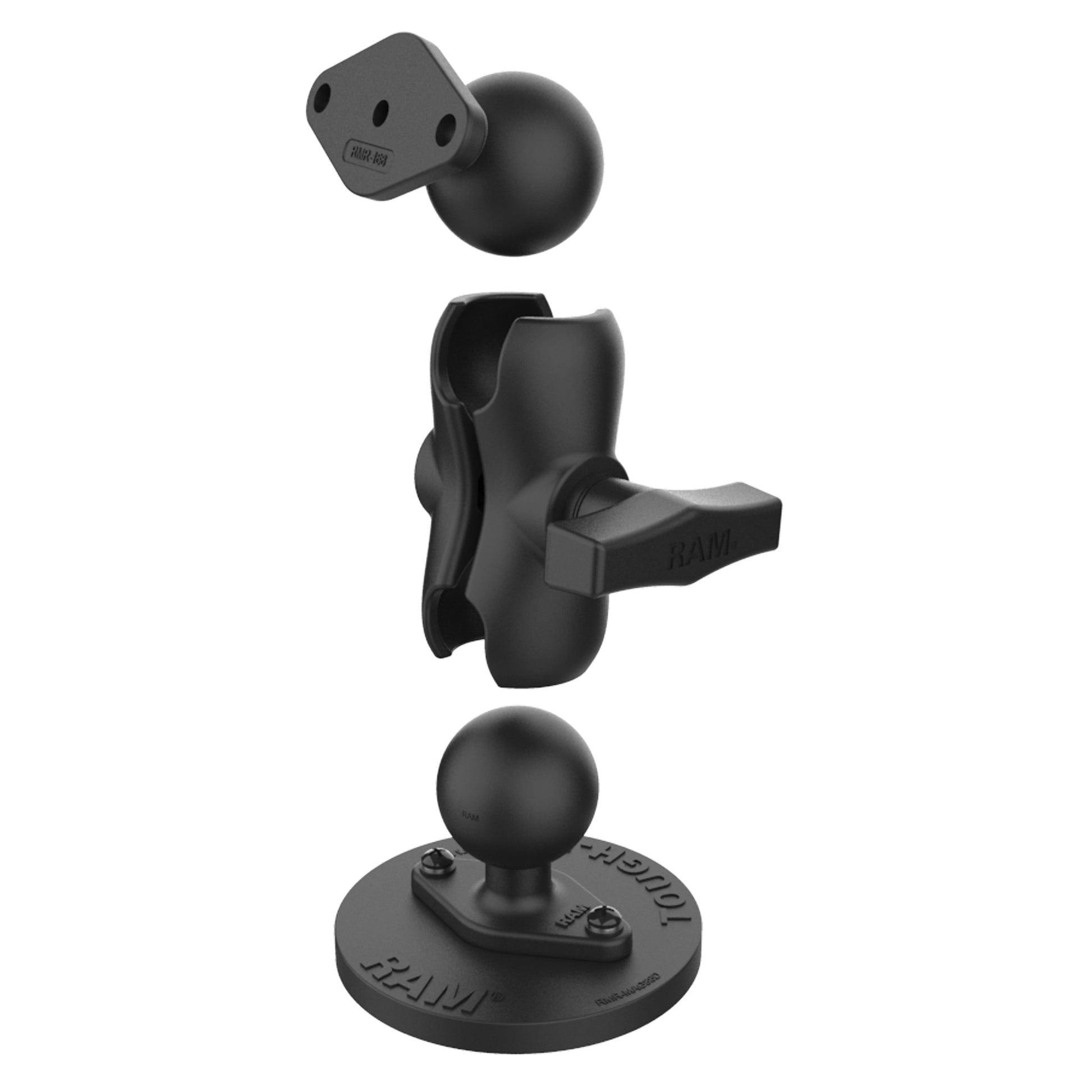

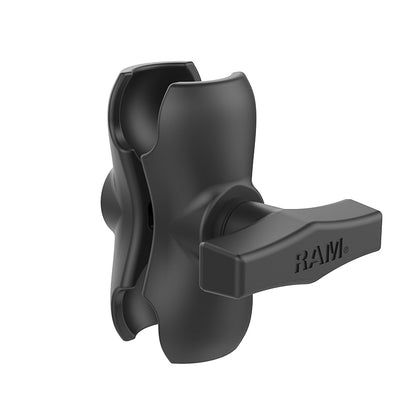

• Includes one diamond ball base, one Tough-Mag™ base and one C size short double socket arm
• Ten industrial-strength N52 grade magnets grip any ferrous metal surface
• Rubber coating protects the surface from scratches; ball and socket adjustability at both ends
• Powder-coated marine-grade aluminium construction
• Backed by a lifetime warranty

Works With

Any ferrous metal surface (machinery, vehicles, toolboxes, shelving) and any RAM® device holder with the 2-hole AMPS pattern.

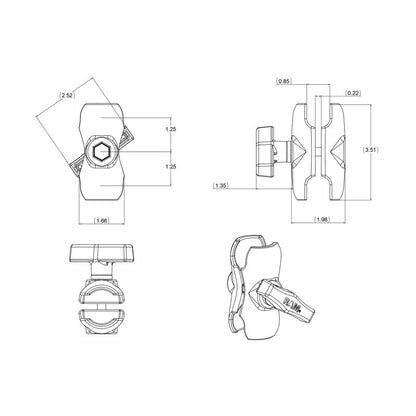

Dimensions & Specifications

• Overall height: 140.7mm (5.54"); arm socket-to-socket 63.5mm (2.5")
• Top plate: 61.7 x 33.3mm (2.43" x 1.31") diamond; magnetic base 87.88mm (3.46") diameter
• Hole pattern: 2-hole AMPS, 1.912" (48.6mm)
• Ball size: C (1.5")
• Load capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
• Weight: 548g (1.21 lb)
• Materials: marine-grade aluminium, (10) N52 magnets
• Warranty: lifetime

FAQs

Will the magnets scratch my machine?

No; the Tough-Mag™ base has a rubber coating specifically to protect the metal surface it grips.
