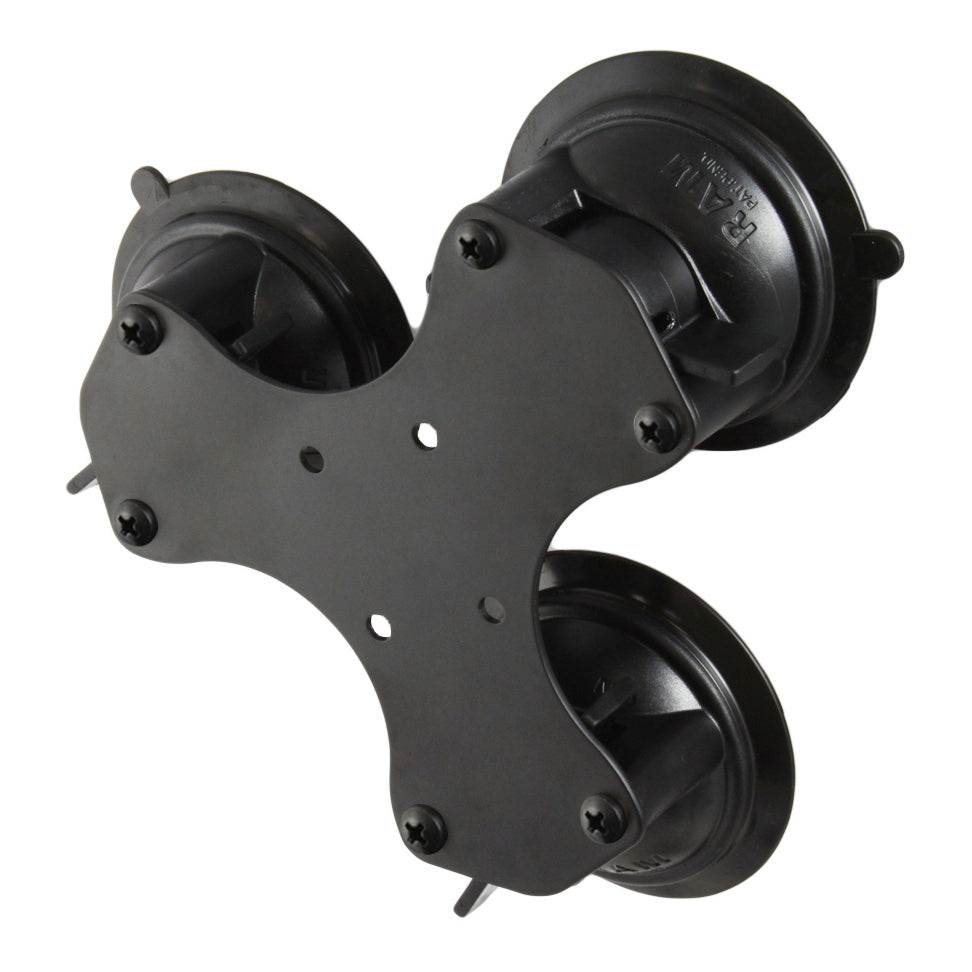

RAM Twist-Lock Triple Suction Cup Base

RAM-333-224-1U – RAM® Twist-Lock™ Triple Suction Cup Base

The RAM-333-224-1U is a triple twist-lock suction cup base with a 4-hole AMPS plate and no ball attached, for high-vibration environments such as aviation, forestry and tractors where a single or dual suction cup won't hold.

Key Features

• Triple twist-lock suction cups for an extra-strong hold on windscreens and other smooth, non-porous surfaces
• 4-hole AMPS plate compatible with standard RAM® base plates such as the RAM-B-202U, RAM-202U or RAM-D-254U
• Powder-coated, marine-grade aluminium and high-strength composite construction
• Backed by a lifetime warranty

Works With

Any RAM® round base with the 4-hole AMPS pattern, such as the RAM-B-202U, RAM-202U or RAM-D-254U. For the strongest hold, mount on glass or non-porous plastic rather than a textured surface.

Dimensions & Specifications

• Suction cups: three 83.8mm (3.3") diameter bases, total width 202mm (7.95")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496"
• Weight: 422g (0.93 lb)
• Materials: powder-coated steel, high-strength composite

What's Included

• Triple twist-lock suction cup base with AMPS plate
• Assembly hardware: 4 x #8-32 x 3/4" machine screws, 4 x #8-32 Nylock nuts

FAQs

Is the rubber suction cup covered by the lifetime warranty? No — the rubber is a general wear item and isn't covered, though the rest of the base carries RAM's lifetime warranty.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
