RAM Twist-Lock Pivot Suction Cup Base with Socket Arm & Retention Knob

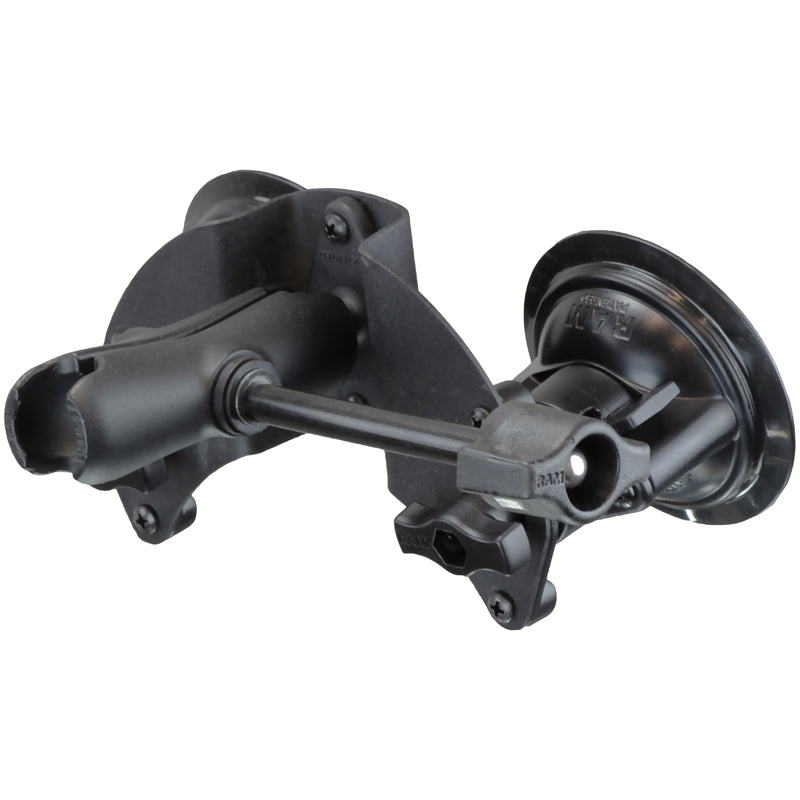

RAM-B-189B-PIV1-201-ALA1-KRU RAM® Twist-Lock™ Pivot Dual Suction Cup Base with Retention Knob Arm

The RAM-B-189B-PIV1-201-ALA1-KRU pairs RAM's pivoting dual Twist-Lock™ suction cup base with a double socket arm and retention knob — built to grip curved glass and other non-porous surfaces, including helicopter transparencies.

Key Features

• Pivot dual suction cup base — each cup articulates independently for a secure hold on curved surfaces
• Ideal for curved windows and windscreens, including helicopter transparencies
• B size double socket arm with retention knob for easy adjustment without over-loosening
• Double socket technology allows near-infinite adjustment angles
• Arm connects to any RAM 1" ball base
• Powder-coated steel and high-strength composite construction
• Lifetime warranty

Works With

Because each suction cup pivots independently, this base holds securely on curved surfaces where a rigid dual-cup base wouldn't seat properly. A single spring inside the arm opens the end sockets so you can pivot the ball-and-socket connection, and the retention knob lets you fine-tune the angle without the arm working loose.

Dimensions & Specifications

• Ball size: 1" rubber ball (B size)
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket length: 76mm (3")
• Weight capacity: 907g (2 lbs) standard use, 453g (1 lb) heavy-duty use
• Weight: 667g (1.47 lbs)
• Material: powder-coated steel, marine-grade aluminium, high-strength composite

FAQs

Will this work on a curved windscreen? Yes — the independently articulating suction cups are designed specifically for curved surfaces such as helicopter transparencies.

How soon will this ship? This item is currently showing as out of stock — please contact us to confirm availability and lead time.
