RAM Camera Base (1/4"-20 Male Thread) with Short Composite Arm & Round Base

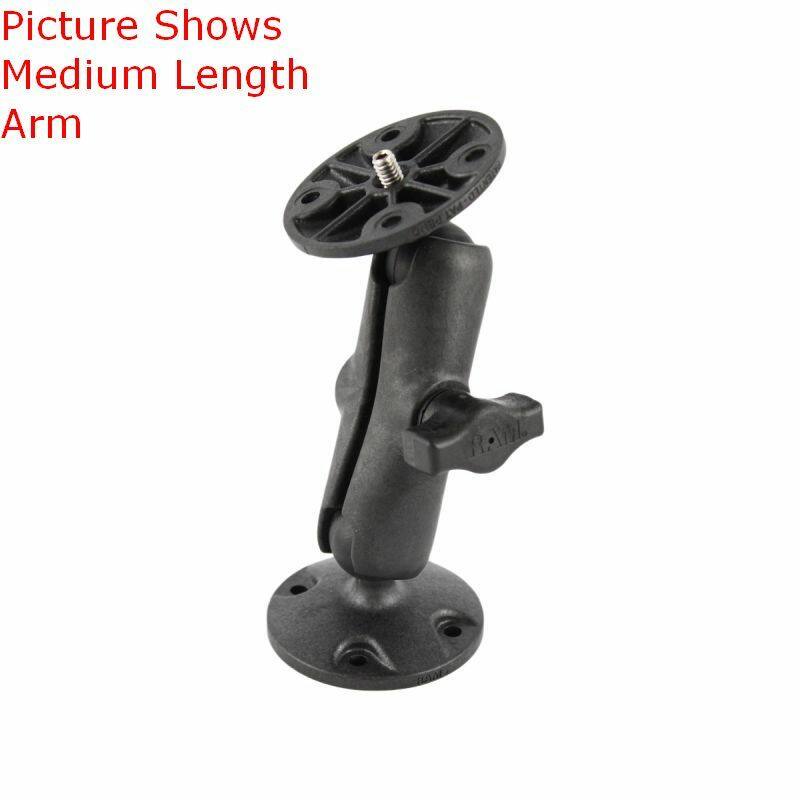

RAP-B-101AU-A – RAM® Composite Camera Mount with 1/4"-20 Thread, AMPS Base & Short Arm

The RAP-B-101AU-A mounts a camera or camcorder by its standard 1/4"-20 tripod thread, drilling down to a flat surface via an AMPS round base and linking the two with a short composite double socket arm. The threaded plate supports the camera from underneath, and the ball-and-socket arm adjusts to almost any angle — all in lightweight, lower-cost composite.

Key Features

• Universal camera base: a 1/4"-20 threaded steel stud on a 63mm round plate that supports the camera resting on it; fits most standard camera and camcorder threads
• AMPS round base connects to RAM device holders with the universal AMPS hole pattern
• Short composite double socket arm; ball-and-socket design adjusts to almost any angle
• High-strength composite; backed by a lifetime warranty

Works With

Any camera or camcorder with a standard 1/4"-20 female thread — including GoPro HD HERO 1–4 and most Sony, Canon, Nikon, Fuji, Garmin and Midland models. For a powder-coated aluminium version, see the RAM-B-101AU-A.

Dimensions & Specifications

• Camera base: 63mm (2.5") round plate with 1/4"-20 threaded steel stud
• AMPS round base: 63mm (2.5") diameter
• Arm overall length: 60.5mm (2.38"); socket-to-socket 51mm (2")
• Ball size: B size, 1" rubber ball
• Material: high-strength composite

Compatible Devices

• Any camera with a 1/4"-20 female threaded hole
• GoPro HD HERO 1–4
• Most Sony, Canon, Nikon, Fuji, Garmin and Midland cameras and video cameras

What's Included

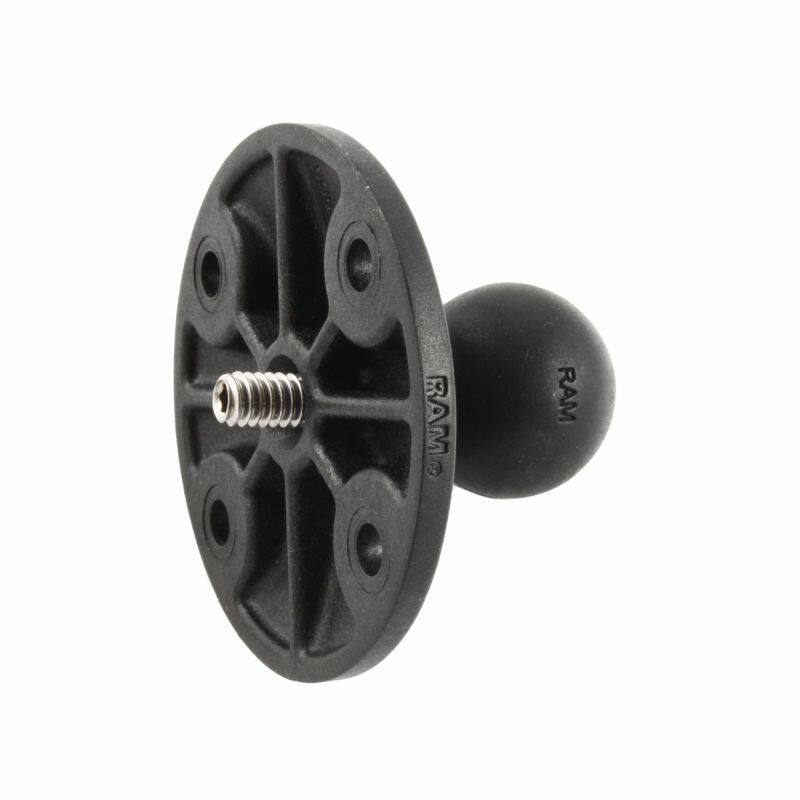

• RAM-B-202AU 63mm round base with 1/4"-20 camera thread and 1" ball

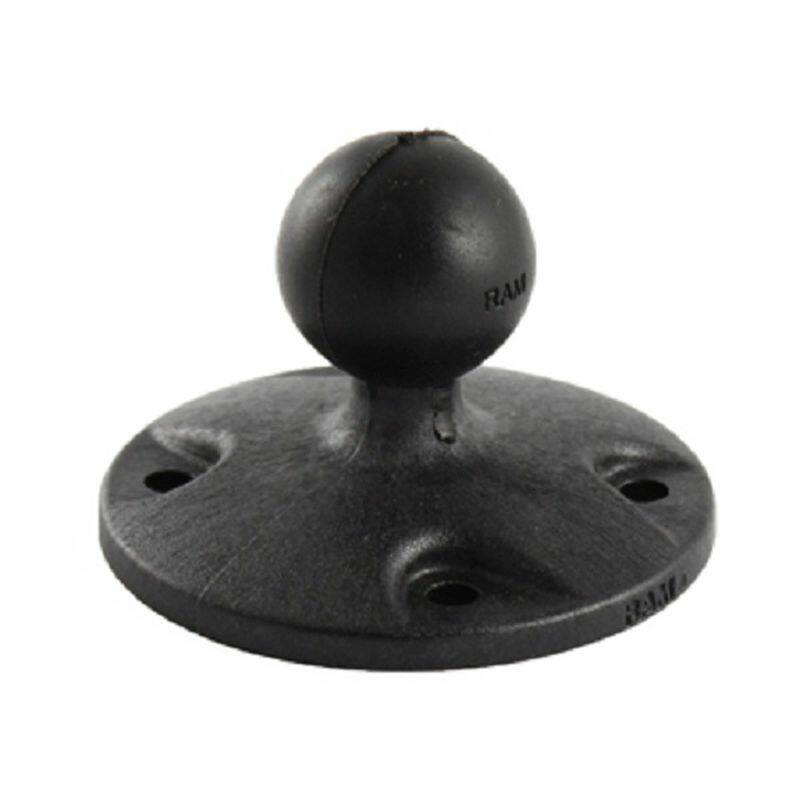

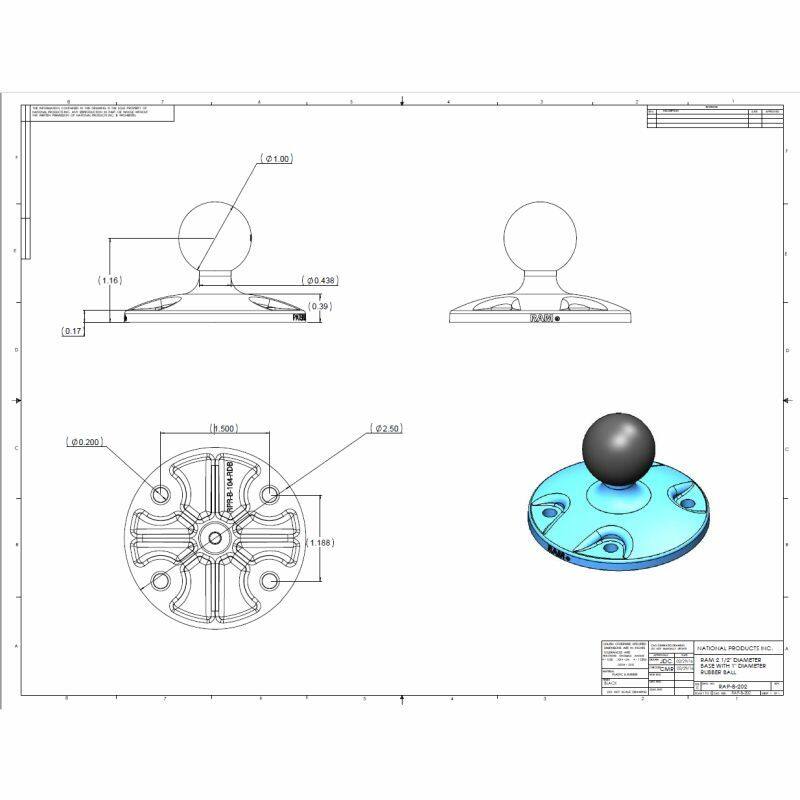

• RAP-B-202U 63mm round AMPS base with 1" ball

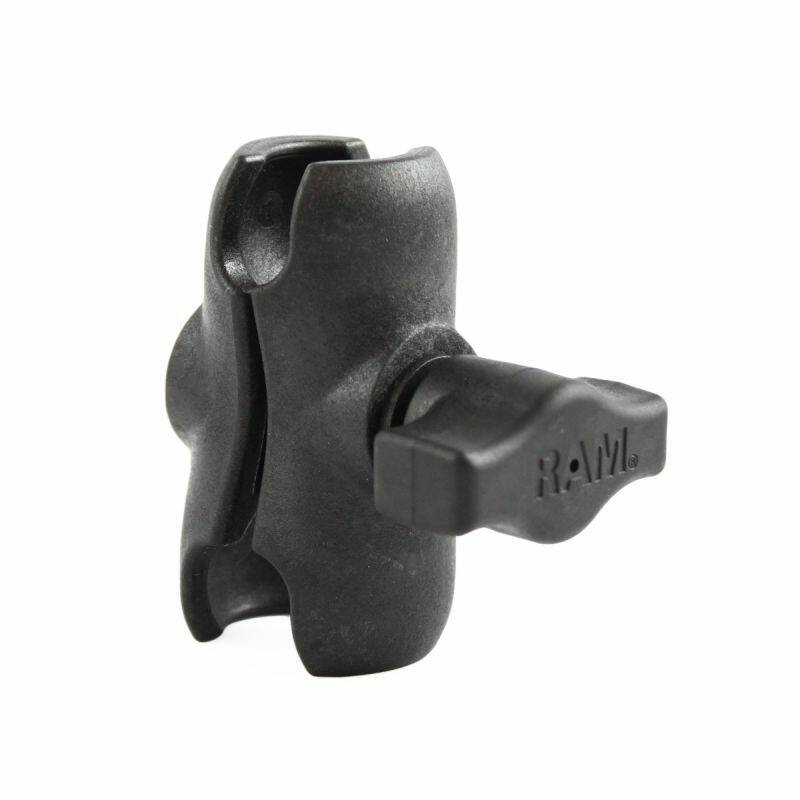

• RAP-B-201U-A short composite double socket arm

FAQs

Will it fit my camera? Yes, if your camera has the standard 1/4"-20 tripod thread on the base — that covers most cameras, camcorders and the GoPro HERO 1–4.

Composite or aluminium? This is the lighter, lower-cost composite version. The RAM-B-101AU-A is powder-coated aluminium for maximum durability.

How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
