RAM Rectangular Base 1.5" x 3.5" 4-Hole Pattern - D Size

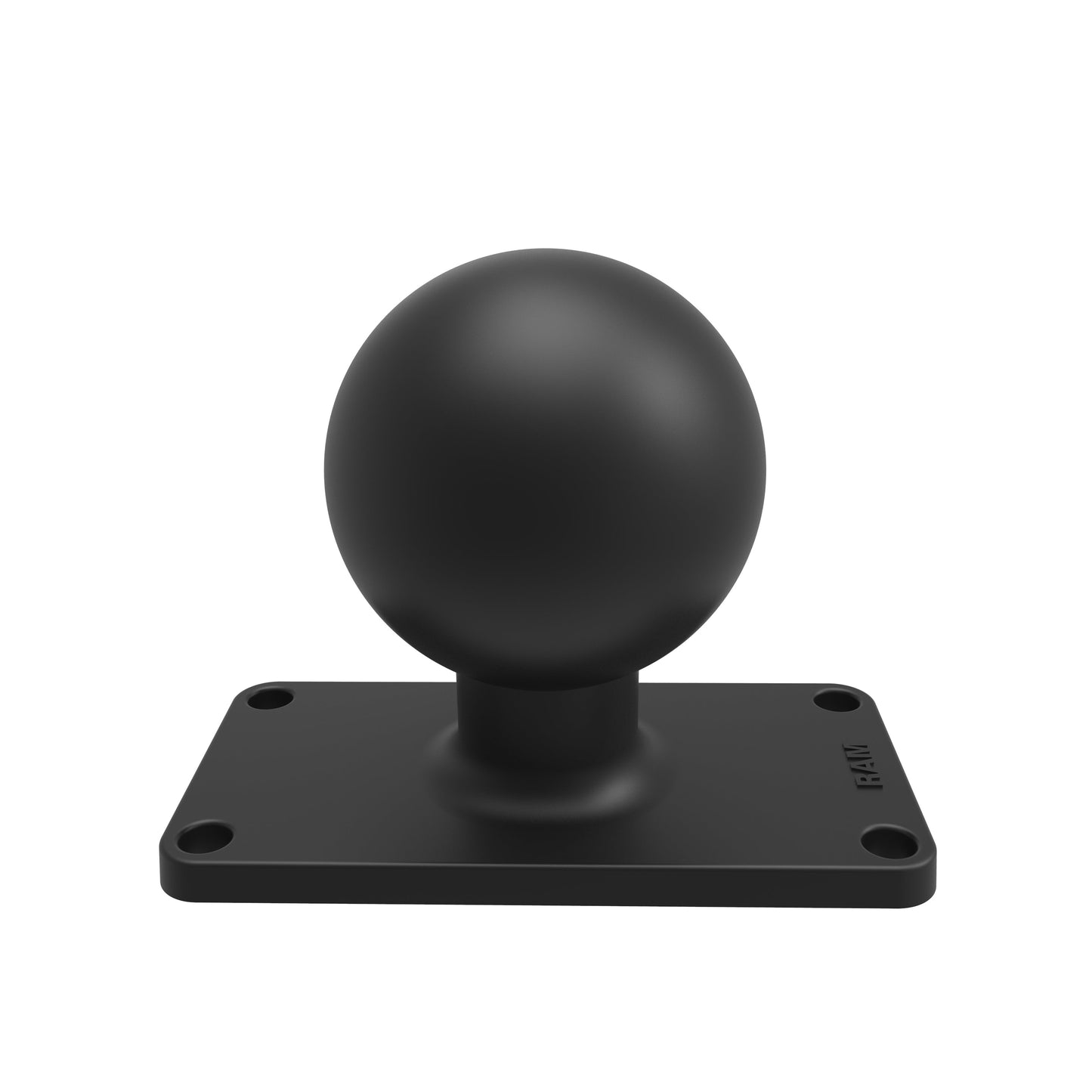

RAM-D-202U-24 RAM® Ball Base with 1.5" x 3.5" 4-Hole Pattern, D Size

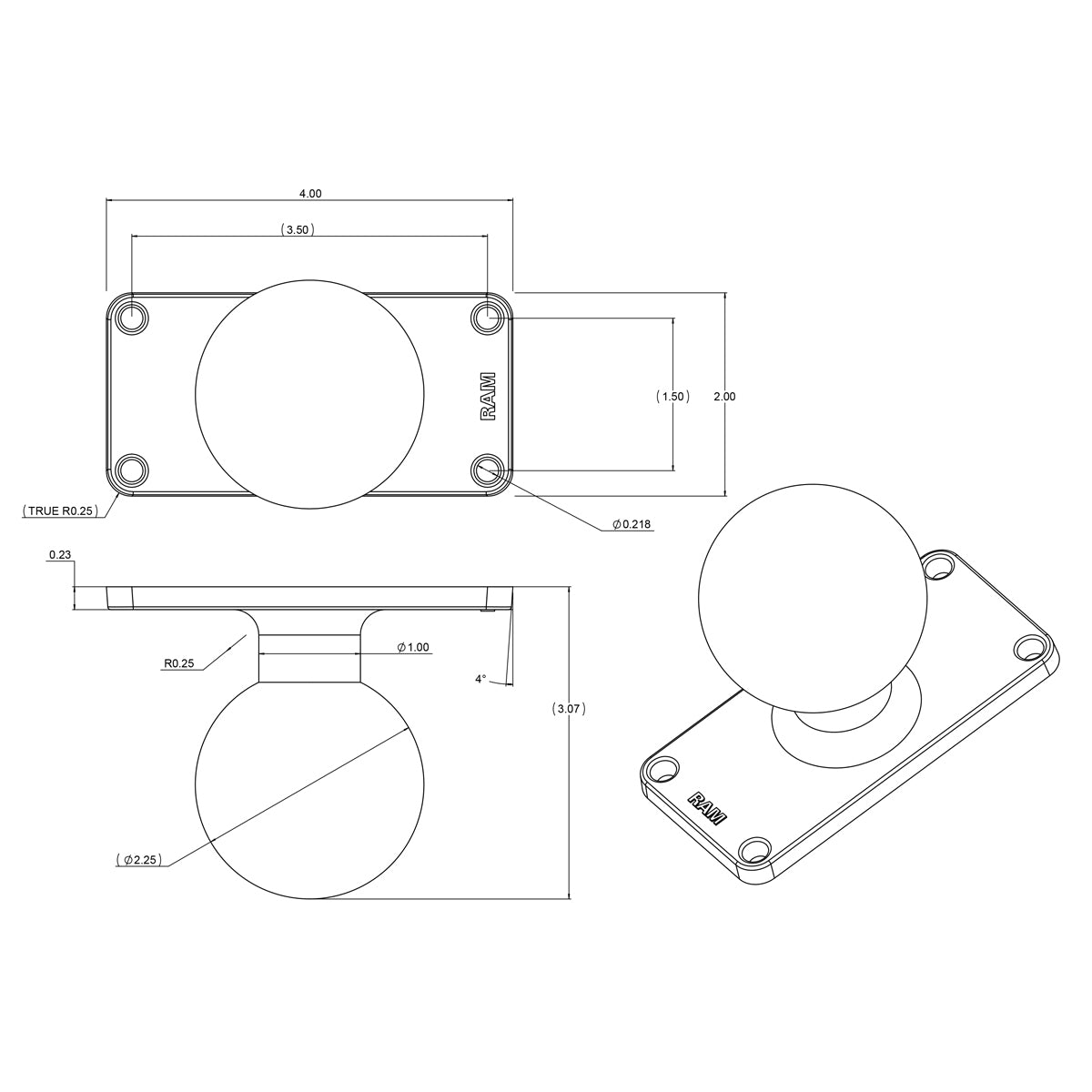

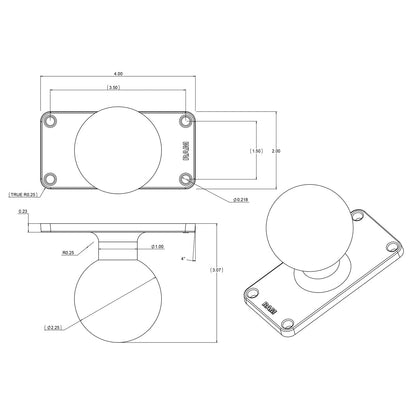

The RAM-D-202U-24 is a 51 x 102mm rectangular plate with a 38.1 x 88.9mm 4-hole mounting pattern, fitted with a D size 2.25" rubber ball. It connects to any D size RAM® double socket arm for a heavy-duty, near-infinitely adjustable mounting point.

Key Features

• Rectangular plate with a 4-hole mounting pattern, 38.1 x 88.9mm (1.5" x 3.5") centre to centre
• D size 2.25" RAM® rubber ball connects to any D size RAM® double socket arm
• RAM® ball-and-socket technology for near-infinite adjustability
• Powder-coated, marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Dimensions & Specifications

• Plate size: 50.8 x 101.6mm (2" x 4")
• Hole pattern: 38.1 x 88.9mm (1.5" x 3.5"), 4-hole
• Ball size: D Size (2.25")
• Material: marine-grade aluminium
• Weight: 263 grams (0.58 lb)
• Weight capacity: 2.72kg (6 lb) standard use, 2.26kg (5 lb) heavy-duty use

FAQs

How fast does it ship? If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
