RAM-B-201-273U RAM® Double Socket Arm - B Size Medium with extra 1" Ball Base.
Features
* Standard RAM® double socket arm provides an ideal overall length of 94mm and a socket-to-socket length of 76mm
* Extra ball replaces the bolt in the double socket arm to add another 1" B size RAM® rubber ball to your mounting setup
* Attaches to any B size RAM® ball component, including mounting bases and device holders
* RAM double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Made of powder-coated, marine-grade aluminum and stainless steel for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

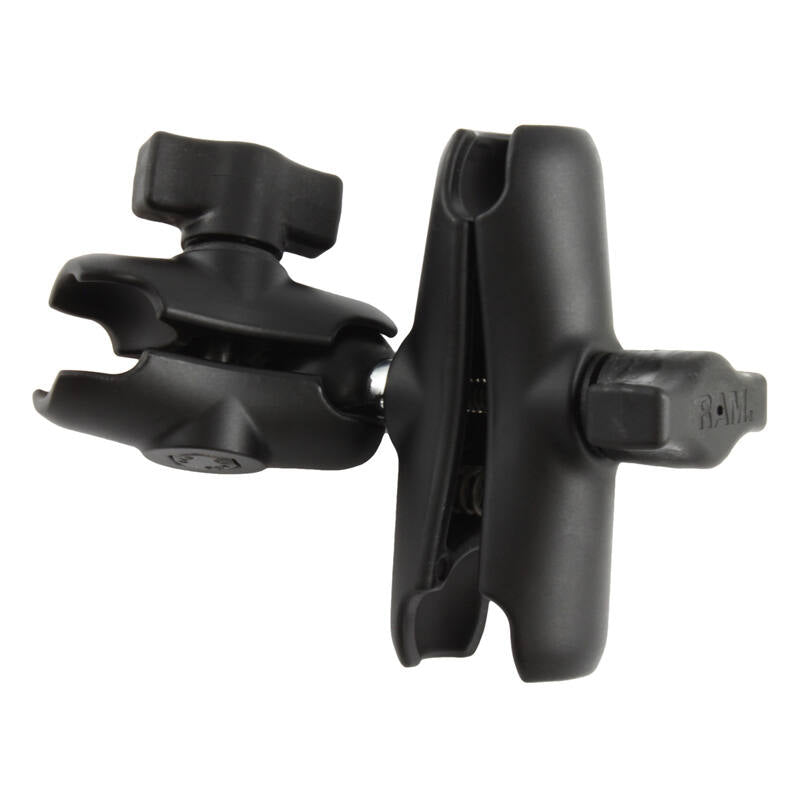

An ideal way to add a second device on to a single RAM Base - this combines the RAM-B-201U arm and RAM-B-273U Add-A-Ball™ Accessory Ball
This double socket arm is the heart of the RAM mounting system. The double socket arm suits 1" diameter (B series) ball fittings at both end. Simply choose a base style and a device adapter of your choosing.
A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology provides for almost infinite adjustment and perfect viewing angles. The easy to adjust knob allows for near-infinite adjust-ability for your connected device.

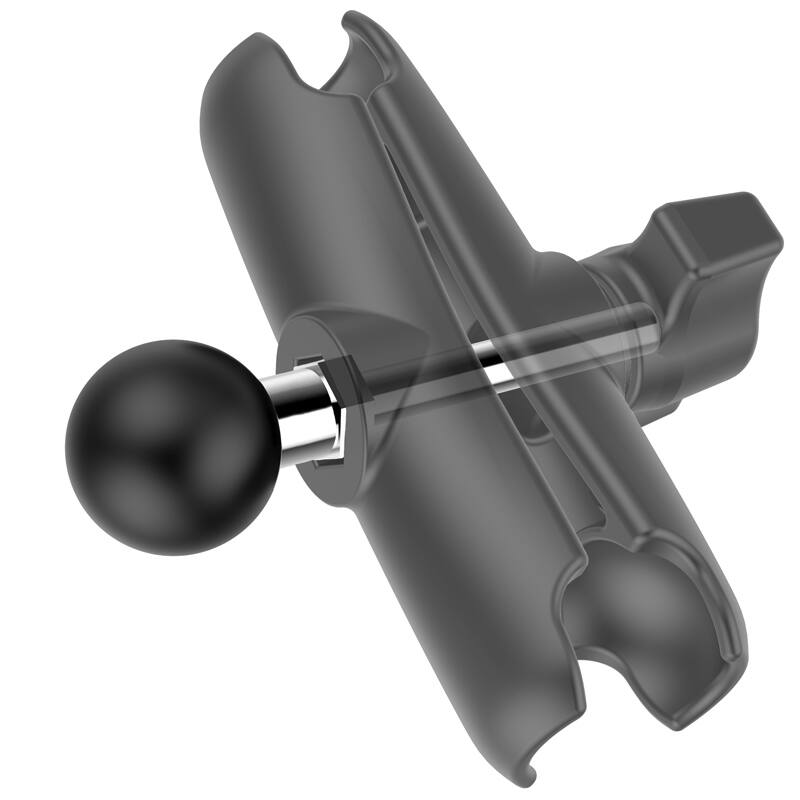

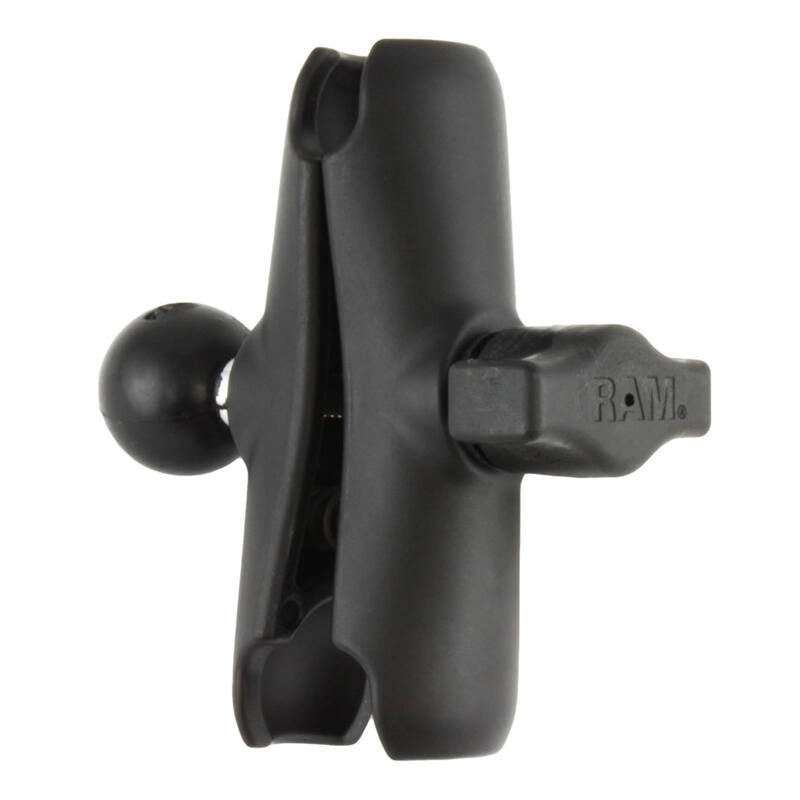

The RAM-B-273U allows you to connect another device to the RAM-B-201U arm. This ball is made up of a 1" ball connecting to a 1/4"-20 threaded stud with a length of 1.6". The threads on this ball replace the bolt in the socket arm, and the ball connects to the middle of the socket arm on the opposite side of the tightening knob. If you are looking to mount more than one device but cannot locate multiple mounting points on your motorcycle or vehicle, this base is the ideal accessory for connecting both devices off of one mounting base.
Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
Stainless steel
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Weight:
141 grams (0.31 lbs)
Ball Size:
1" Rubber Ball "B" Size
