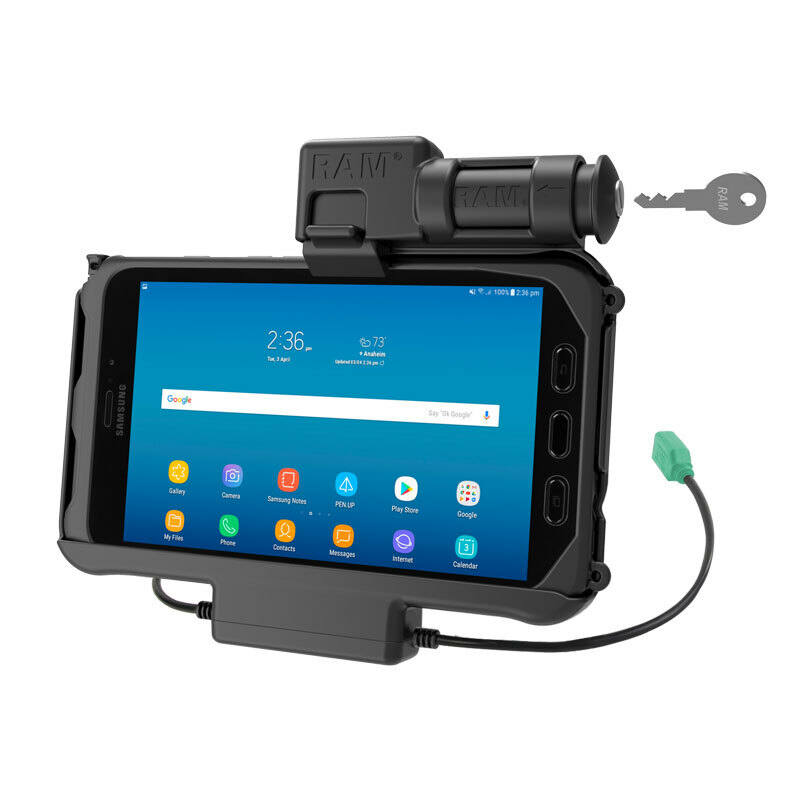

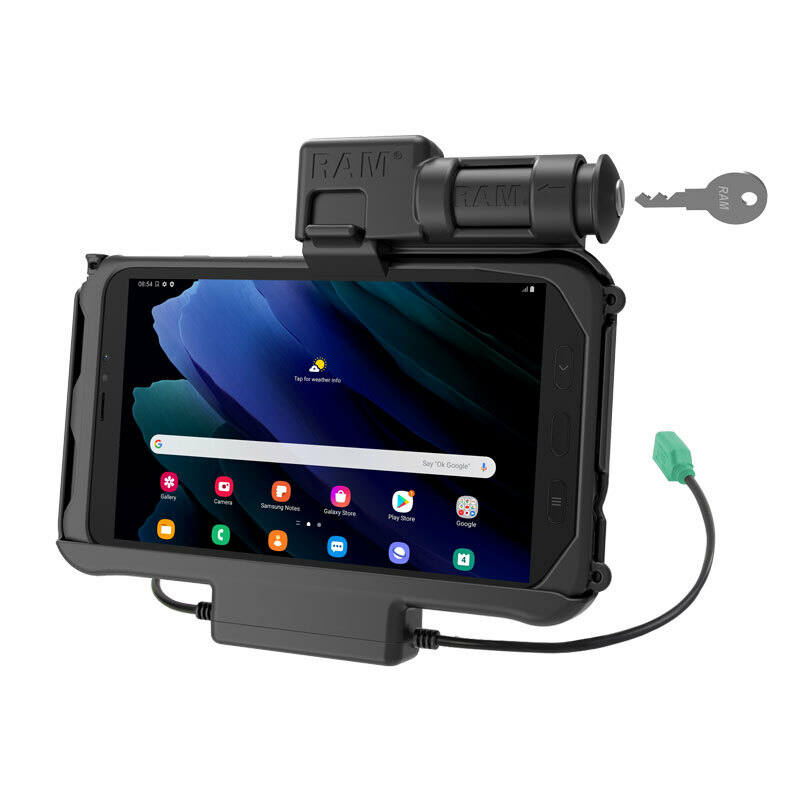

RAM-HOL-SAM58PDKLU RAM® Key Locking Power + Data Dock for Samsung Tab Active3 & Tab Active2
Features
* Powered cradle featuring keyed lock for the Samsung Galaxy Tab Active3 and Tab Active2
* RAM® Mounts Compatible™ with AMPS hole pattern components
* Made of high-strength composite materials for durability and reliability in the most demanding environments
* Backed by a 3-year warranty

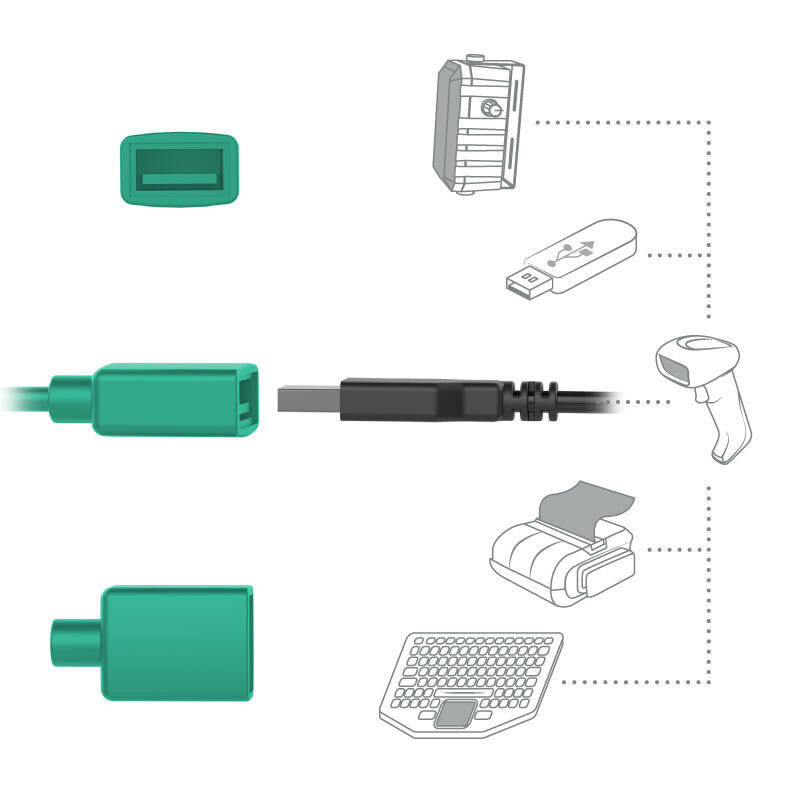

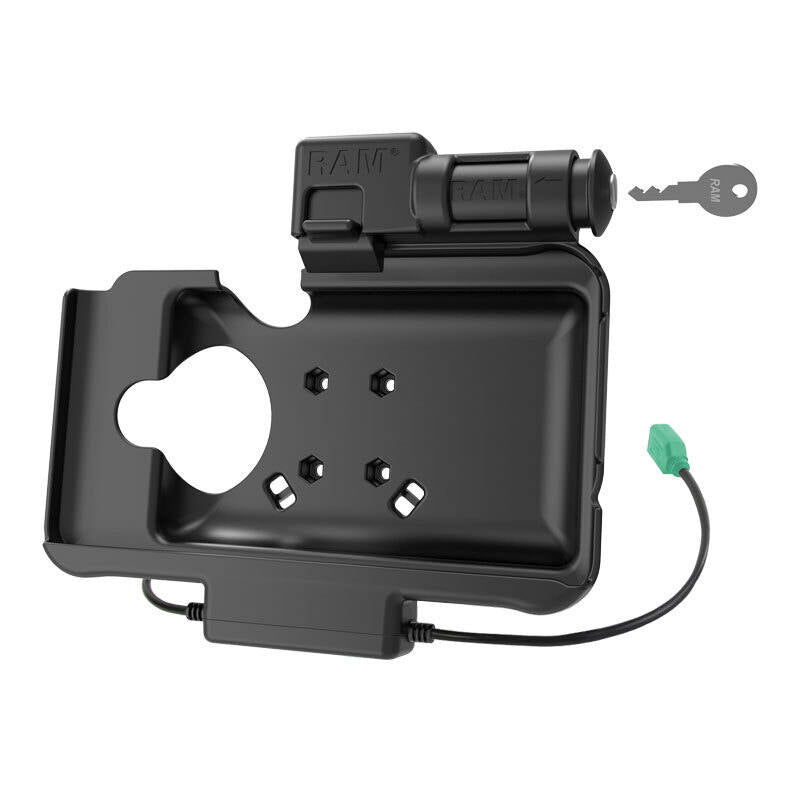

This key locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active3 or Tab Active2 from your vehicle, to your person, to your desk with zero hassle.

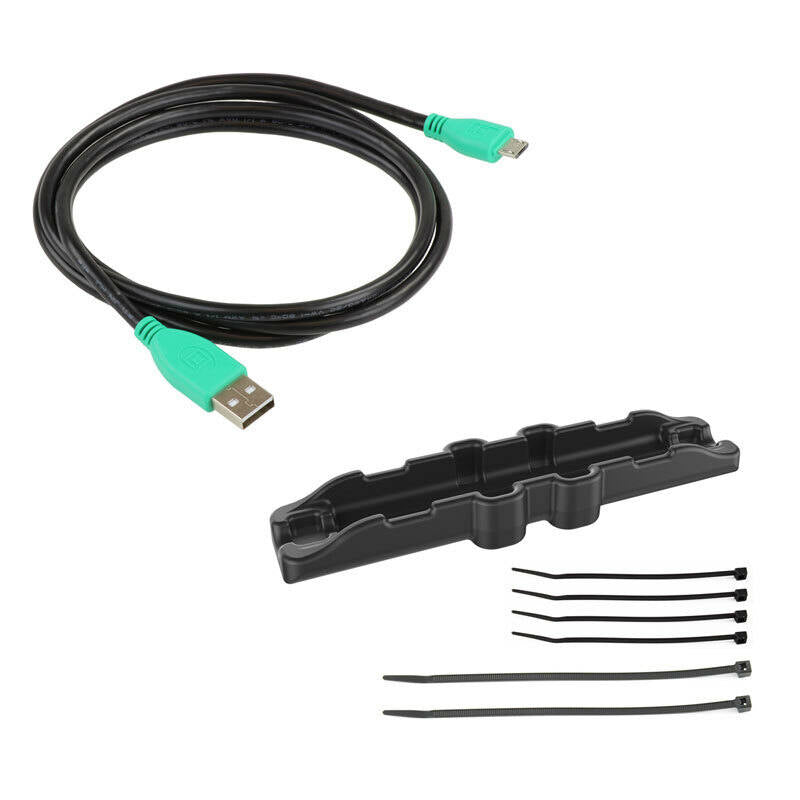

Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
Product Dimensions
Width: 234.95mm (9.25")
Height: 196.85mm (7.75")
Depth: 76.2mm (3")

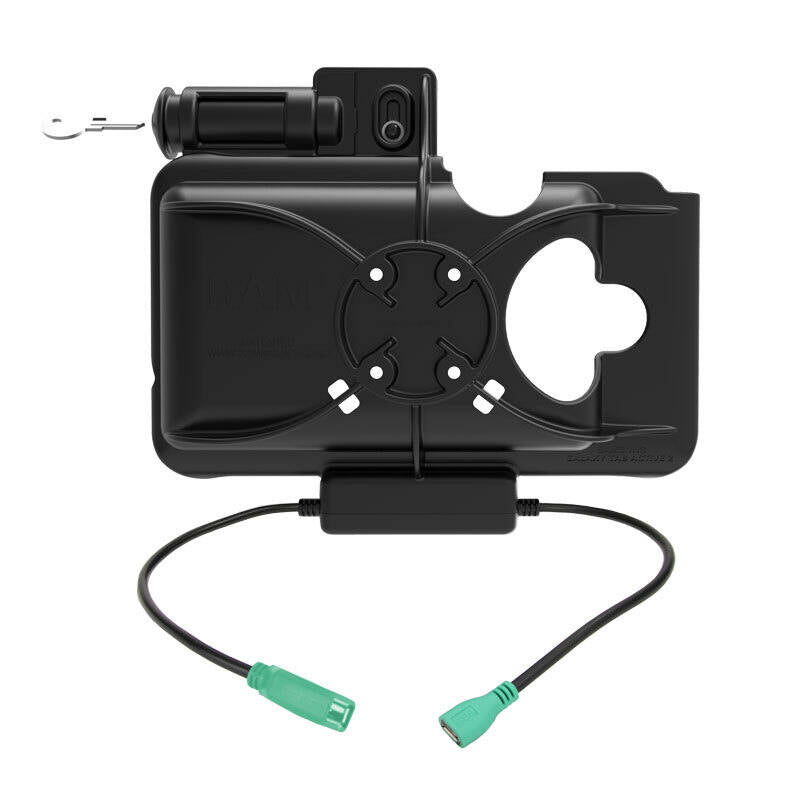

4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
Materials
High strength composite
Input Voltage
4.4VDC - 5.4VDC (USB power source dependent)
Output Voltage
5.20VDC
Power Output
500mA
Input Connector
mUSB 2.0 Female
Input Cable Length
220mm
Output Connector
USB 1.1 Type A
Output Cable Length
220mm
Transfer Speed
12Mbps
Weight
544 grams (1.2 lbs.)
Warranty Status
3 year warranty
Additional Information
* Mount using a round ball base (RAM-202U recommended)
* Device speakers and mics exposed
* Device headphone jack exposed
* mUSB female pigtail for power
