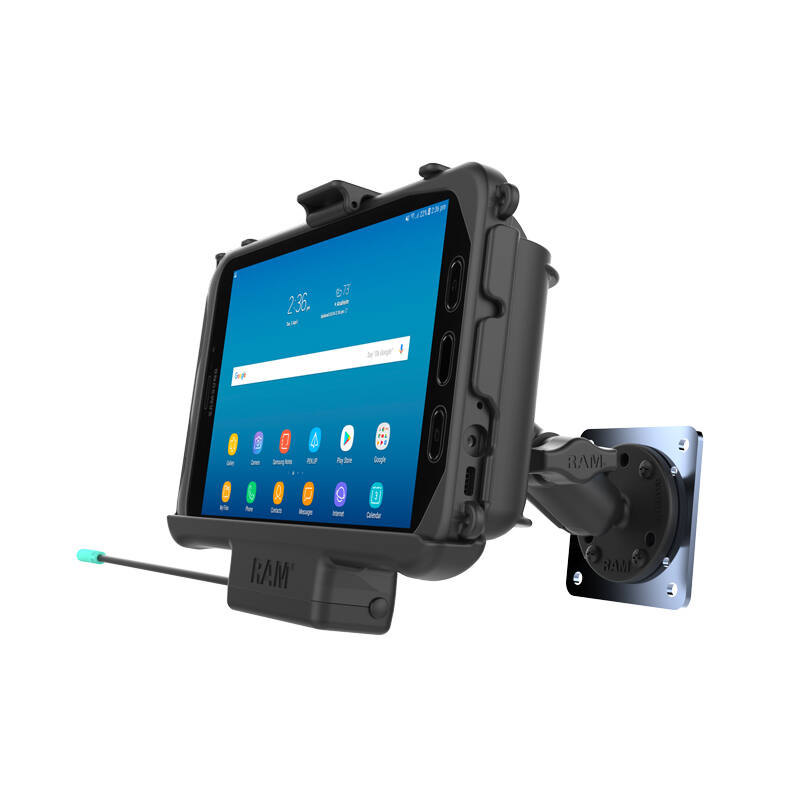

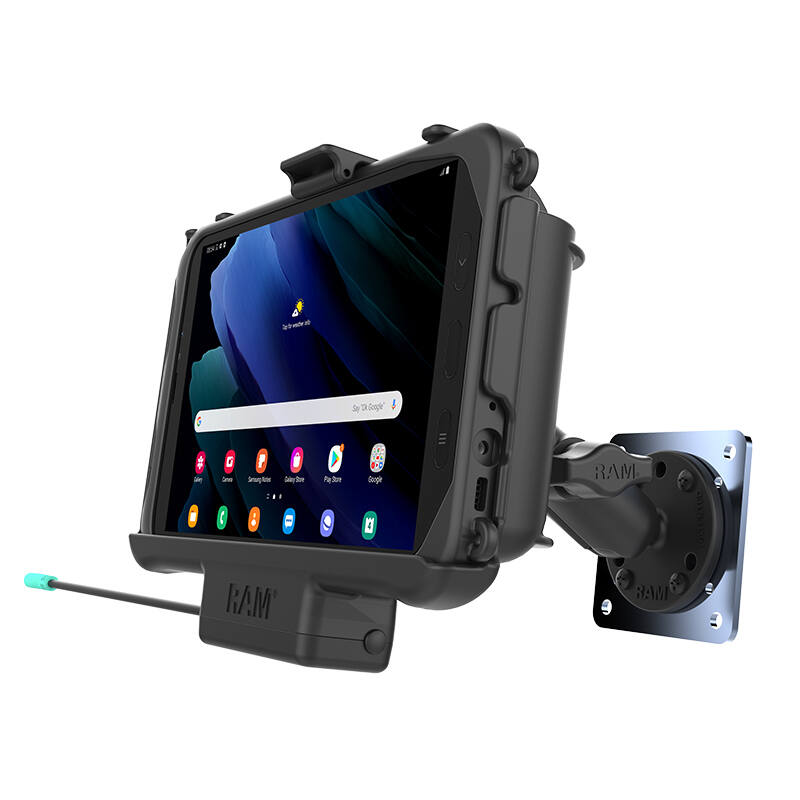

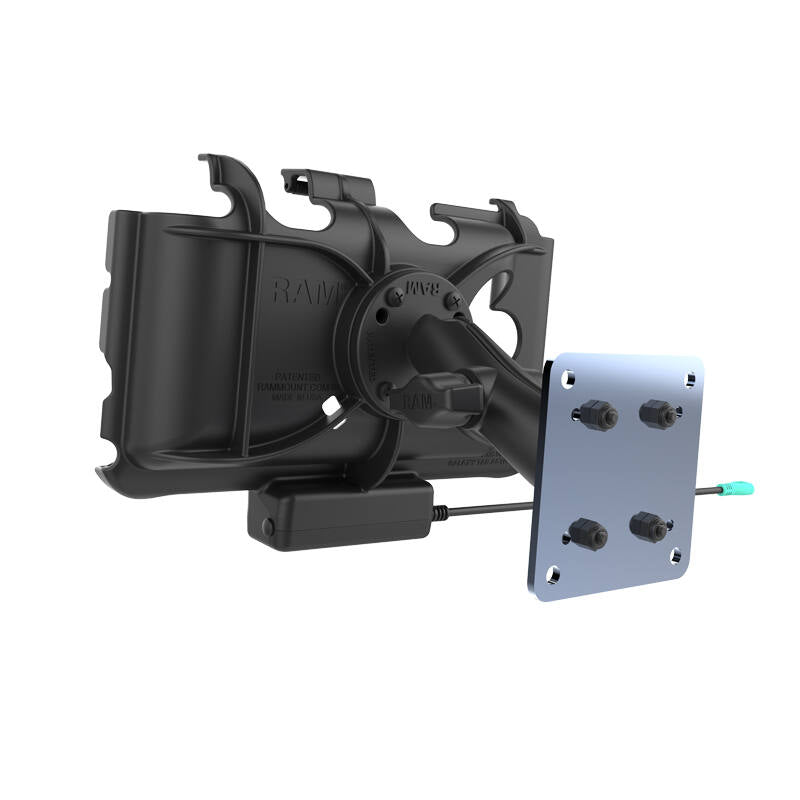

RAM-B-101-225B-SAM60P-HARU RAM® EZ-Roll'r™ Powered Mount for Samsung Tab Active3 and Tab Active2
Features
* RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
* Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
* Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
* Backed by a 3-year warranty

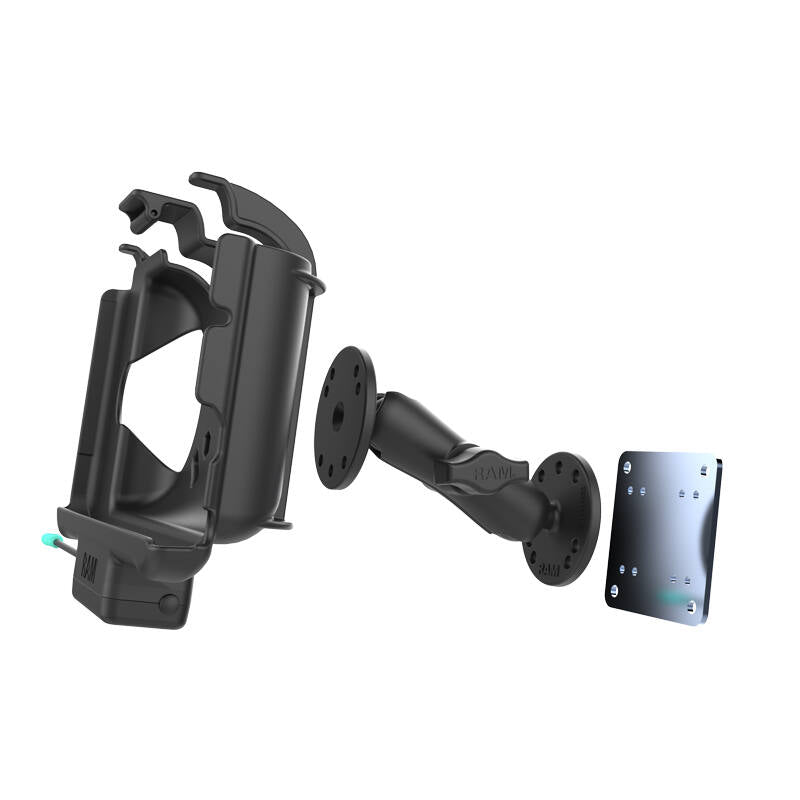

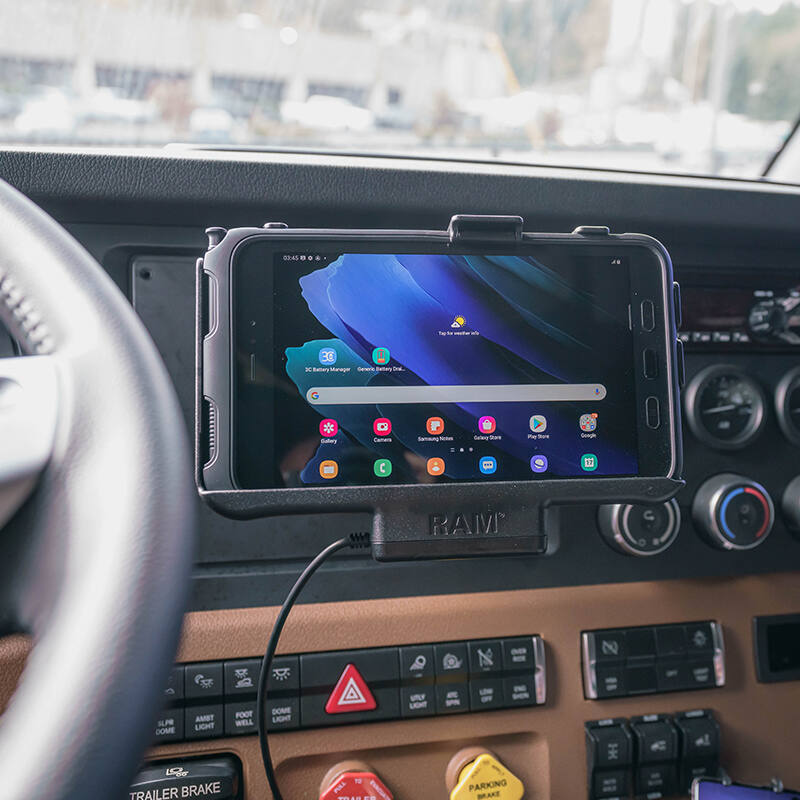

RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active3 and Tab Active2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 3” x 3” steel backing plate with #10-24 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active3 and Tab Active2.
Compatible Devices
Samsung
Galaxy Tab Active3
Galaxy Tab Active2

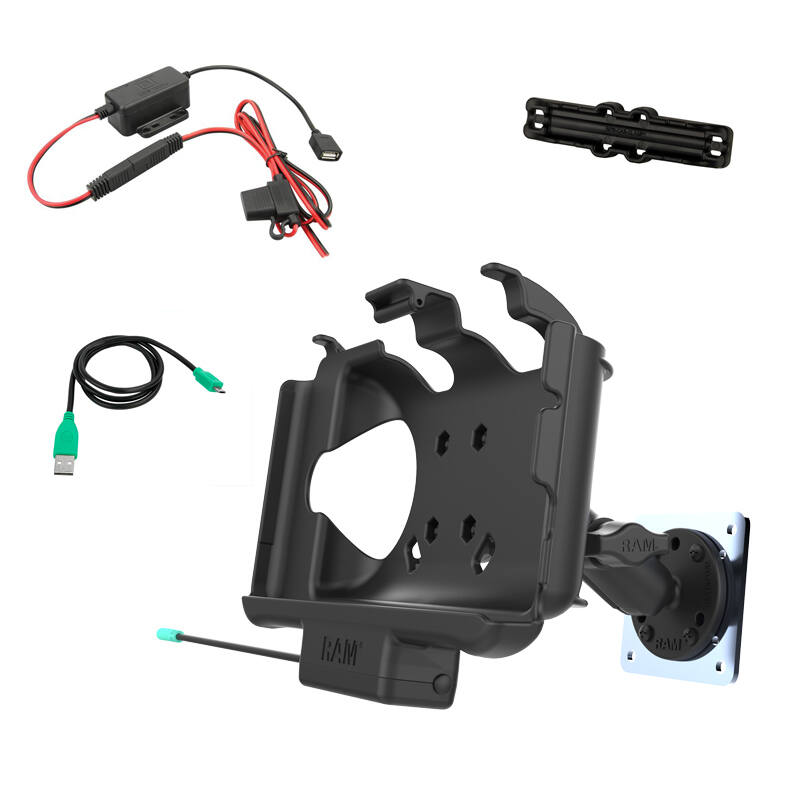

Hardware Included
Assembly Hardware

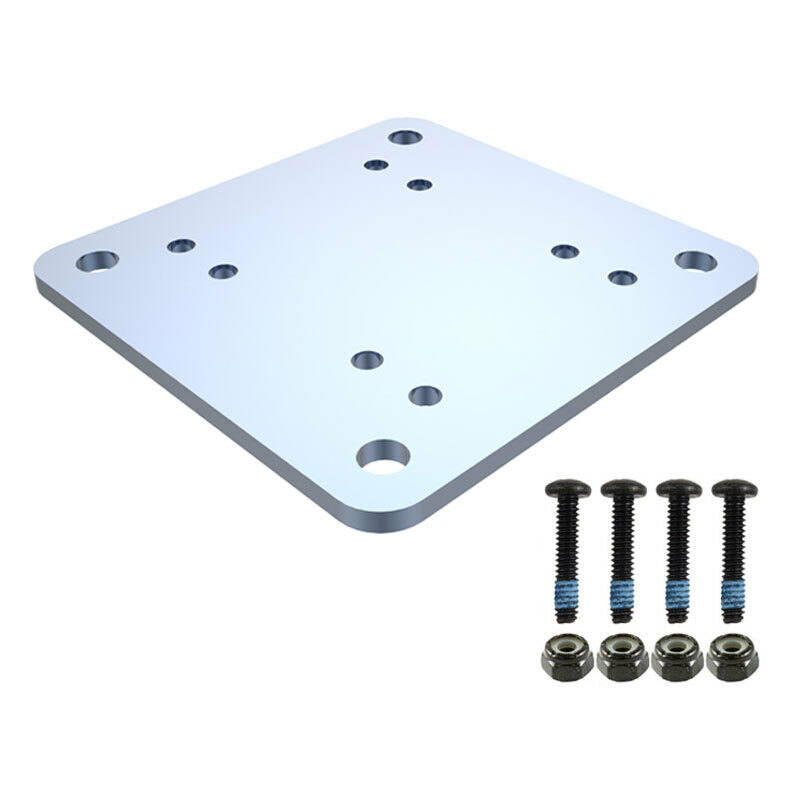

(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
(1) mUSB Cable
(1) Hardwire Charger

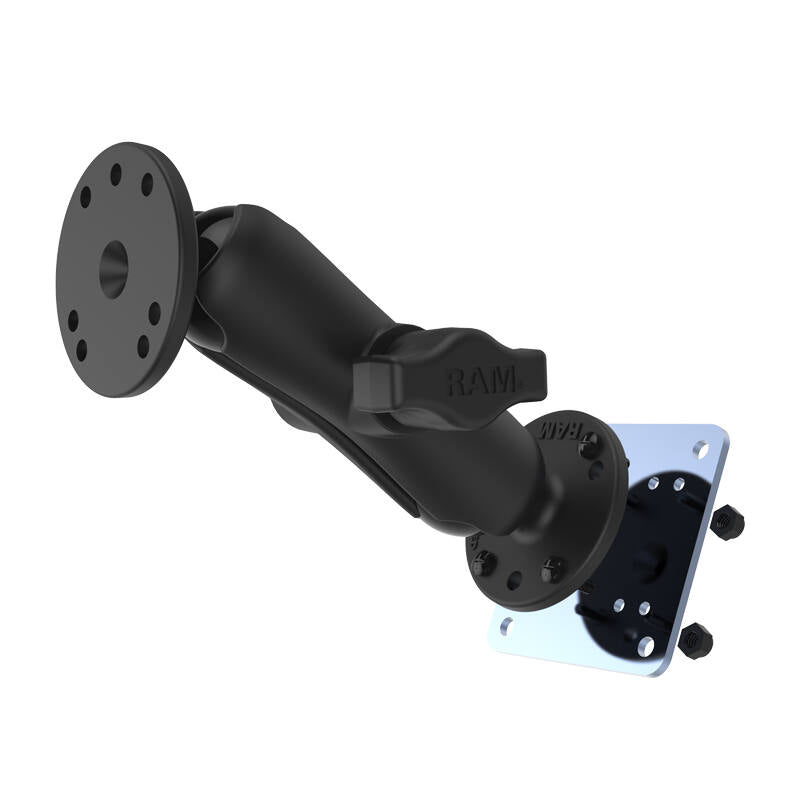

Socket-to-Socket Length
76.2mm (3")
Ball/Socket Size
B Size (1")
Weight Capacity
0.907 kg (2 lbs)
Weight
885 grams (1.95 lbs.)
Materials
Steel
Marine-grade aluminium
High strength composite
Input Range
8V - 40V DC
Output Voltage
5VDC
Output Current
2.5A max
Connector Type
mUSB 2.0
Input Cable Length
1.2 Meters including 2 pole flat marine connector
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Compliance
Overvoltage/Load Dump Compliance: Meets SAE J-1113
Certifications
Integrated Short Circuit Protection
FCC, Industry Canada, CE, WEEE, e-Mark and RoHS Compliant USB 2.0 BC 1.2 DCP Support
