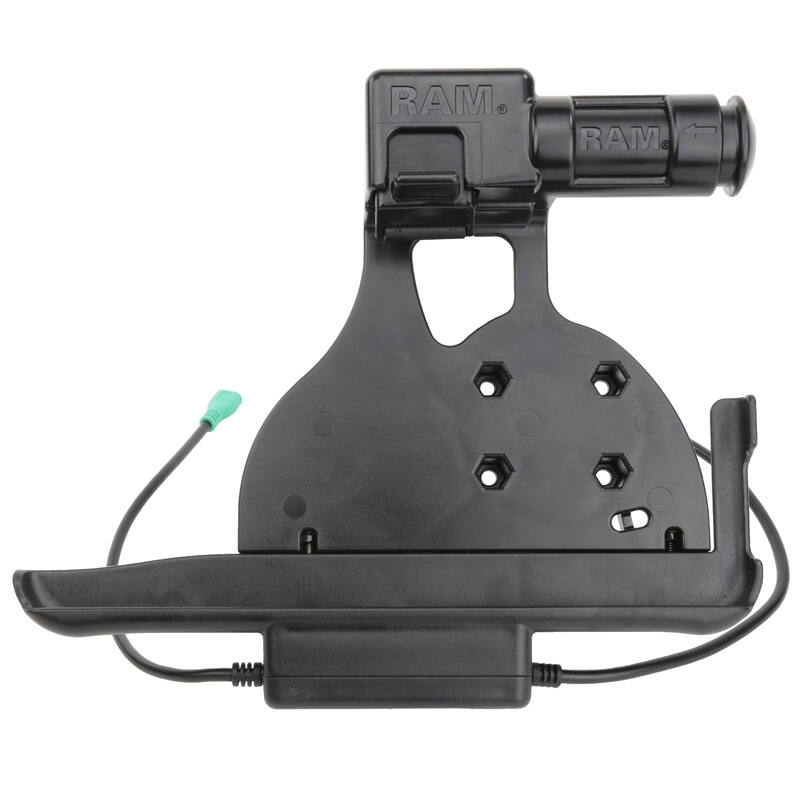

RAM-HOL-SAM7PKL2 - RAM® Key-Locking Power & Data Cradle for Samsung Tab Active2
Features
Key locking mechanism for theft deterrence
Access for camera use, stylus and NFC reader while docked
Ultra-low cost with one handed operation
No need to lock the latch for shock and vibration applications
Works with the protective sleeve attached
Cigarette plus in chargers included
This RAM® EZ-Roll’r™ powered cradle for the Samsung Tab Active2 supports simultaneous data syncing, and has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through seven GDS® pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence this features a keyed lock. Unique features include access to the NFC reader while in the cradle for scanning NFC tags as well as the stylus.

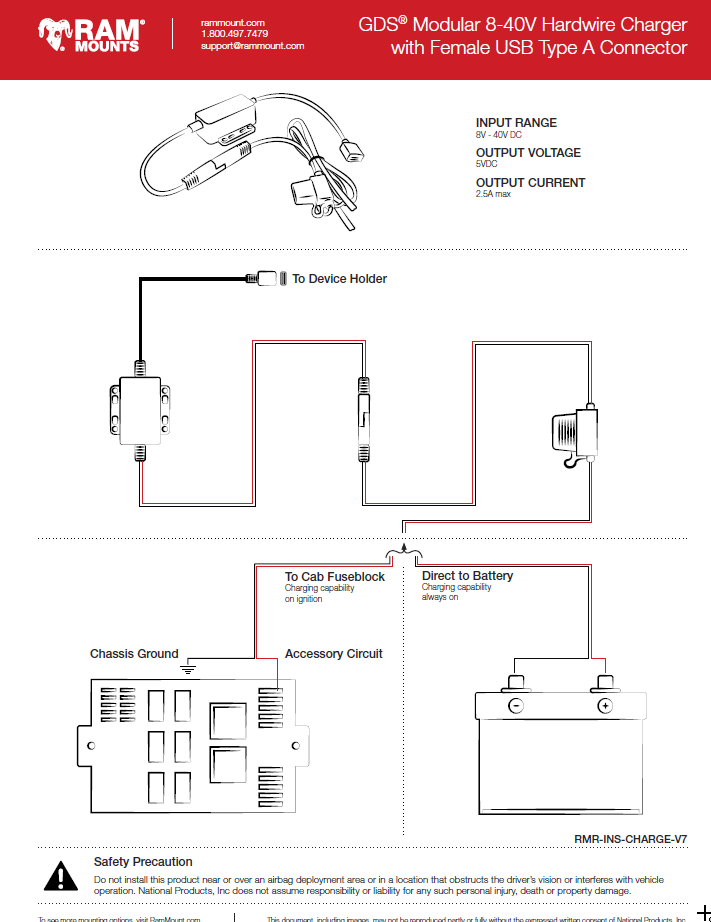

Included is the GDS® modular hardwire charger, GDS® genuine USB 2.0 straight cable, 200mm cable with mUSB female connector for power, and 200mm cable with USB Type-A female connector to attach any USB 1.1 peripherals, 500mA max.
Compatible Devices
Samsung Galaxy Tab Active2
Hardware Included
Keys, Machine Screws, Nylock Nuts, Cable Tie
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Input Range
8V - 40VDC
Output Voltage
5VDC
Output Current
2.5A max
Connector Type
90° DC Plug
Input Cable Length
1.2m including 2 Pole Flat Marine Connector
Output Cable Length
1.2m including 1M Type-A male to 90° DC cable
Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +70°C
Compliance
Over Voltage / Short Circuit / Reverse Polarity Protection
RoHS / WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
Certifications
CE / e-Mark / RCM /FCC Certification
Weight
562g / 1.24 lbs.
Warranty Status
3 years
YouTube:
https://www.youtube.com/watch?v=M3o4wn_HcTc
Note: This product will not support the RAM® Skin™ or IntelliSkin®. Type-A port does not support USB peripheral charging (USB 2.0 BC1.2)
