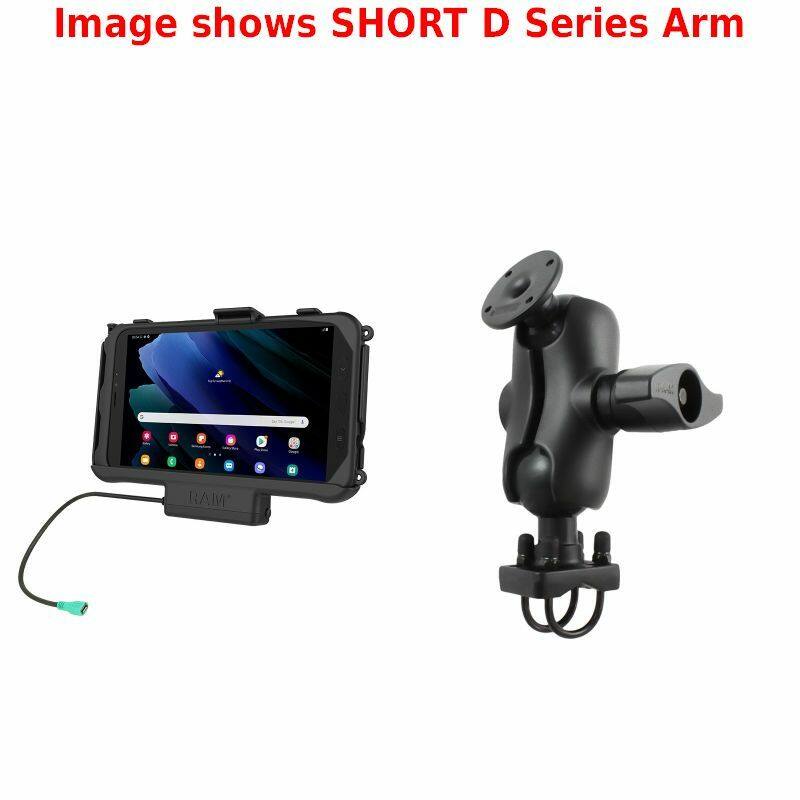

RAM-D-101-235-SAM60PU RAM® EZ-Roll'r™ Powered Cradle for Samsung Galaxy Tab Active 3 and Active 2 with D Series Rail Base
Features
* RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
* Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
* Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
* D Series RAM double U-bolt base accommodates rails from 25.4 to 31.75mm in diameter
* Medium D Series Arm with double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Made of high-strength composites, powder-coated marine-grade aluminum and stainless steel components for durability and reliability in the most demanding environments
* Backed by a 3-year warranty
This is an ideal solution for mounting your Samsung TAb Active 2 /3 into a high vibration environment and enable it to be powered in place. It includes the RAM® EZ-Roll'r™ Powered Cradle with a D Series Arm and Double U-Bolt base.
The powered cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins. You can easily rotate the device for use in portrait or landscape mode. Access to the stylus remains while the device is docked. Round base plate included
Look to the RAM-GDS-CHARGE-V7B1U hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.
The double u-bolt base with 2.25" diameter ball uses two stainless steel u-bolts. This will accommodate rails from 25.4 to 31.75mm (1" to 1.25") in diameter.
Cradle Dimensions
W: 235mm (9.25")
H: 162mm (6.375")
D: 51mm (2")
Compatible Devices
Samsung
Tab Active3
Tab Active2
Hardware Included
Machine Screws,
Nylock Nuts
GDS® Genuine USB 2.0 Straight Cable
Cable Clamp Housing
Large / Small Cable Ties
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
U-Bolt Dimensions:
Rails from 25.4 to 31.75mm (1.0" - 1.25") diameter
Arm Dimensions
Overall Length:
212.7mm ( 8.375")
Socket-To-Socket Length:
166.6mm (6.5625")
Materials
High strength composite
Marine Grade Powder Coated Aluminium Alloy
Additional Information
This product will not support IntelliSkin®.
Mount using a round ball base (RAM-202U recommended)
Device speakers and mics / Device headphone jack exposed
Zip tie locations for cable retention
Includes mUSB male to Type-A male cable and cable clamp with zip ties
mUSB female pigtail for power
YouTube:
https://www.youtube.com/watch?v=M3o4wn_HcTc
Components

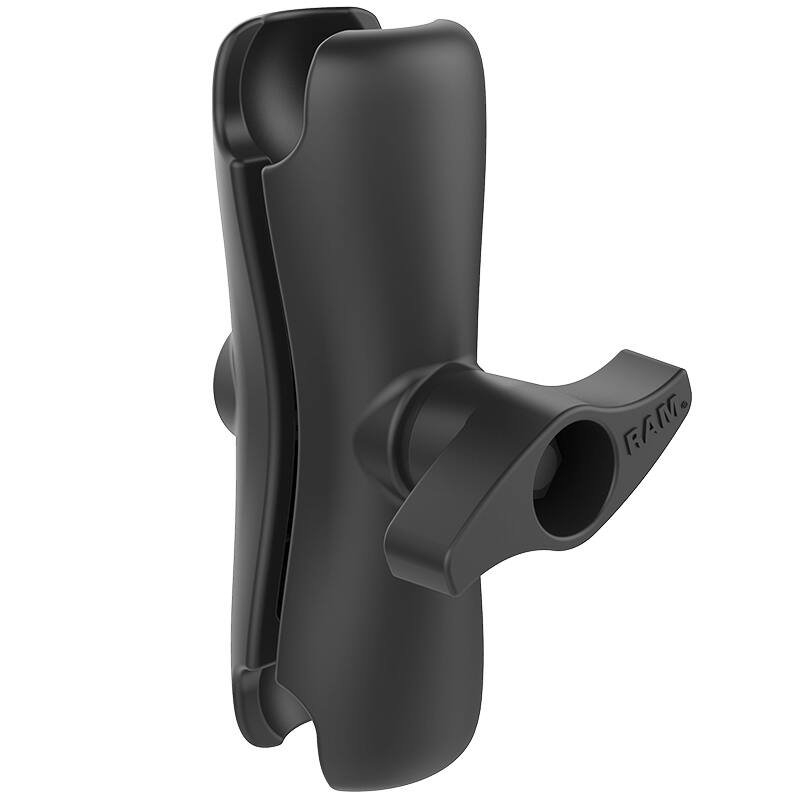

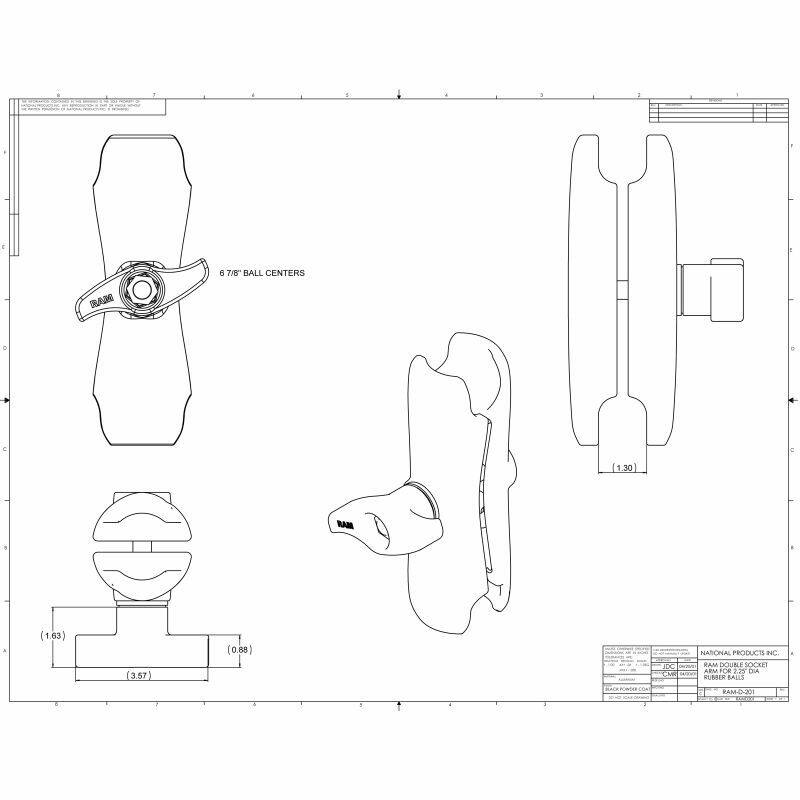

RAM-D-201U RAM Medium Length Double Socket Arm for D

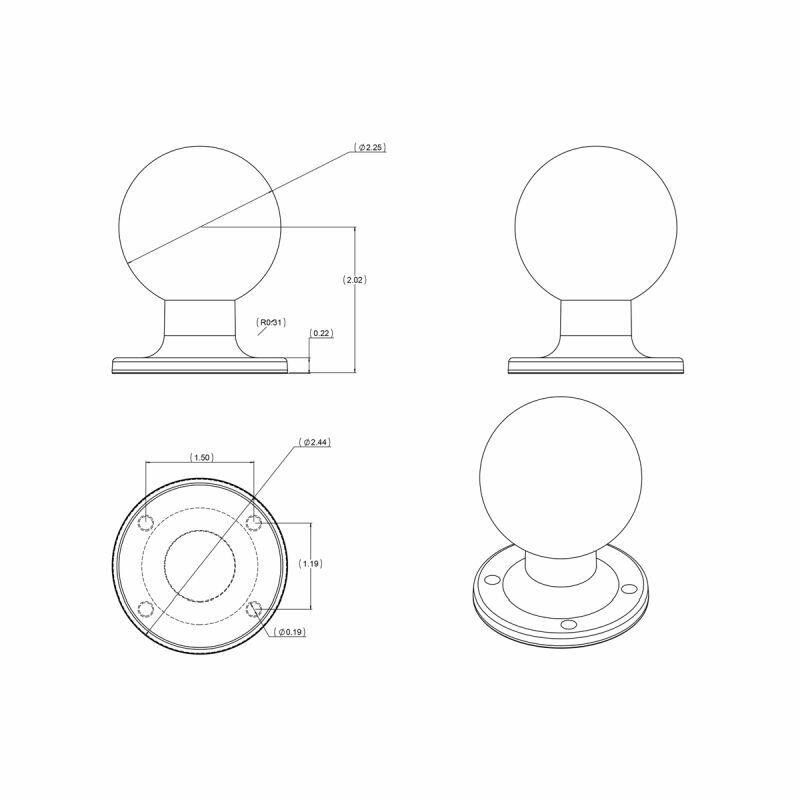

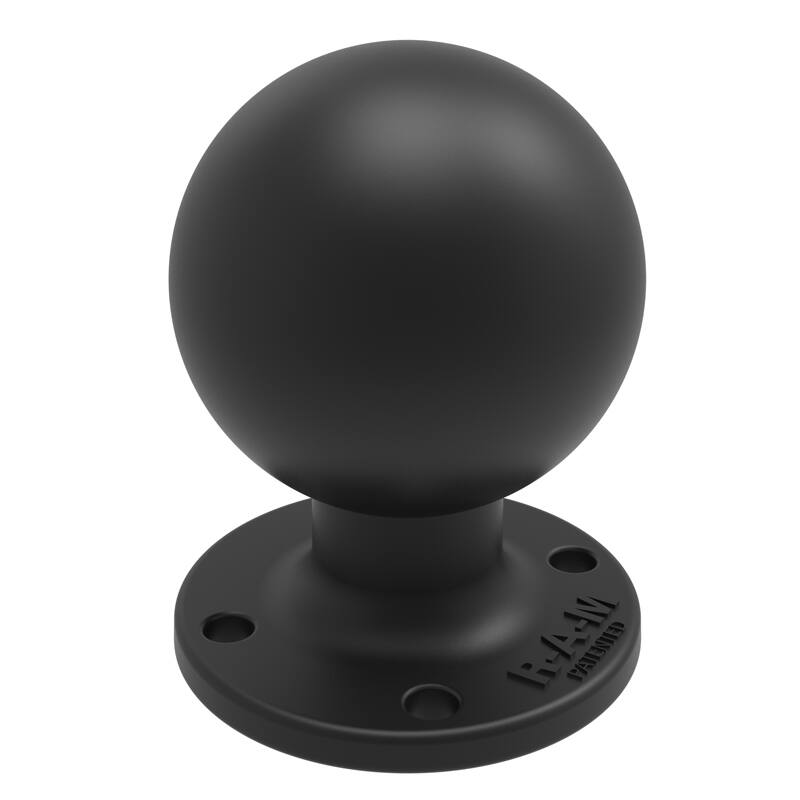

RAM-D-254U RAM Round Plate with 2.25"/57mm D Sized Ball

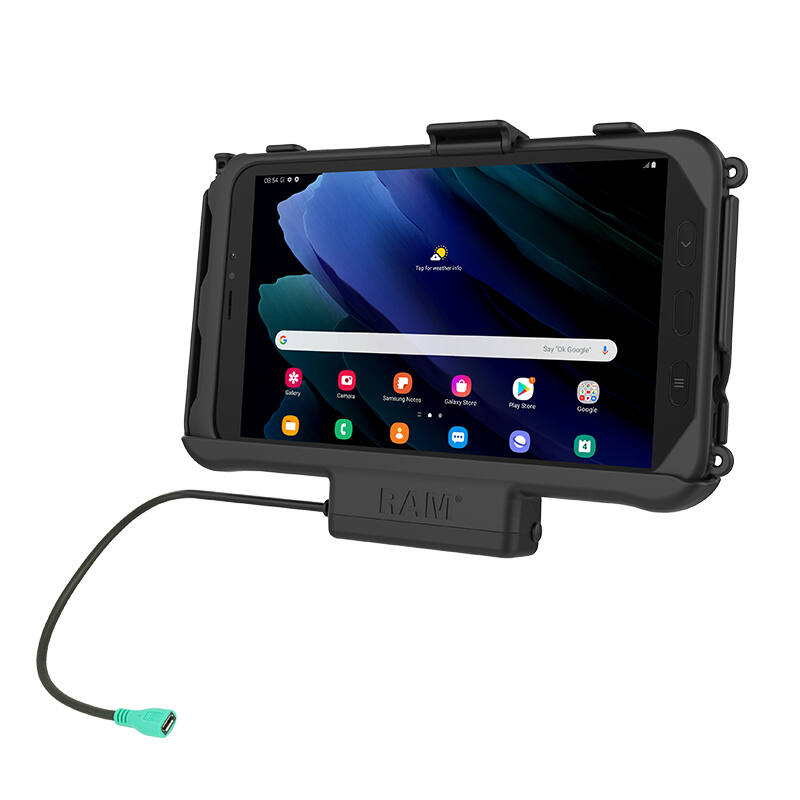

RAM-HOL-SAM60PU RAM EZ-Roll'r Powered Cradle for Samsung Tab Active3 and Tab Active2

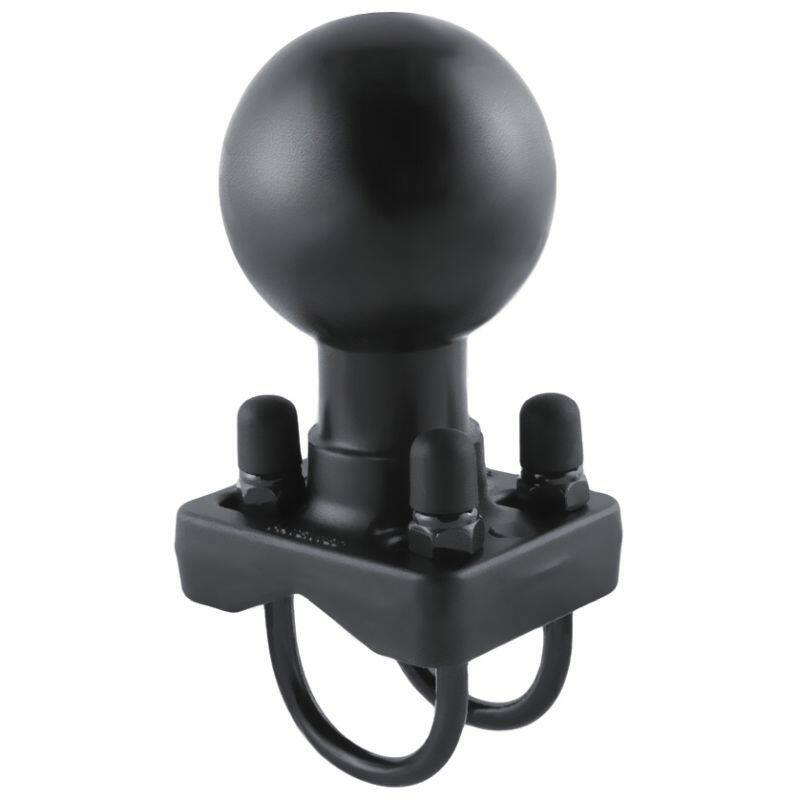

RAM-D-235U RAM W/ 2 U-BOLTS FOR 3/4 TO 1 1/4
