RAM EZ-Roll'r Powered Cradle for Samsung Tab Active 3 - D Series - Round Base

RAM EZ-Roll'r Powered Cradle for Samsung Tab Active 3 - D Series - Round Base

SKU:RAM-D-101-254-SAM60PU-v

Regular price $447.00 NZD
Regular price Sale price $447.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

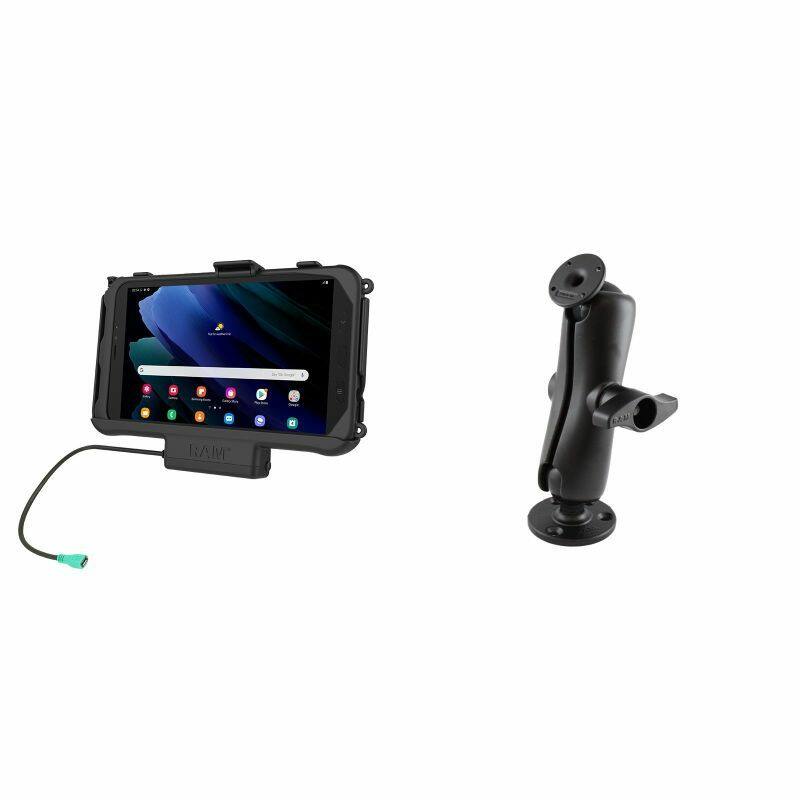

RAM® EZ-Roll'r™ Powered Cradle for Samsung Galaxy Tab Active 3 and Active 2 with D Series Round Drill Down Base


Features

* RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
* Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
* Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
* Two round D series base plates - small with the universal AMP's pattern for attachment to most RAM cradles
* Large round base is ideal for drill down applications with two holes at 180 degrees and three holes at 120 degrees.

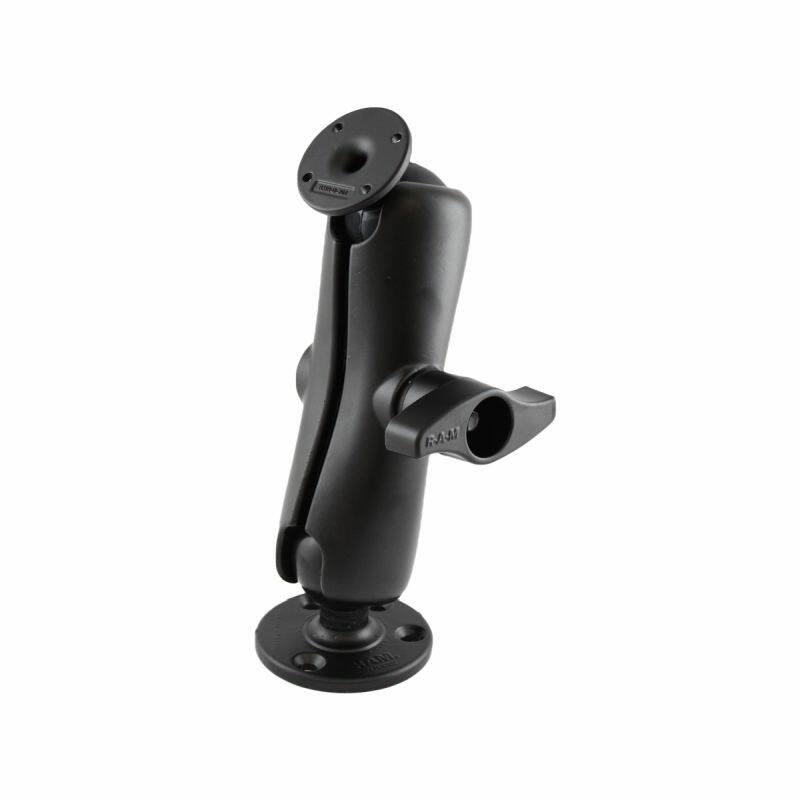

* Medium D Series Arm with double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Made of high-strength composites and powder-coated marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a 3-year warranty

This is an ideal solution for mounting your Samsung TAb Active 2 /3 into a high vibration environment and enable it to be powered in place. It includes the RAM® EZ-Roll'r™ Powered Cradle with a short D Series Arm and Round Plate for drill-down applications.


The powered cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins. You can easily rotate the device for use in portrait or landscape mode. Round base plate included. Access to the stylus remains while the device is docked.


Look to the RAM-GDS-CHARGE-V7B1U hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.

The round base plate contains a D series rubber ball and has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

Cradle Dimensions
W: 235mm / 9.25"
H: 162mm / 6.375"
D: 51mm / 2"


Compatible Devices

Samsung
Tab Active3
Tab Active2


Hardware Included
Machine Screws,
Nylock Nuts
GDS® Genuine USB 2.0 Straight Cable
Cable Clamp Housing
Large / Small Cable Ties
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps


Large Round Plate Size
93.5mm (3.68")

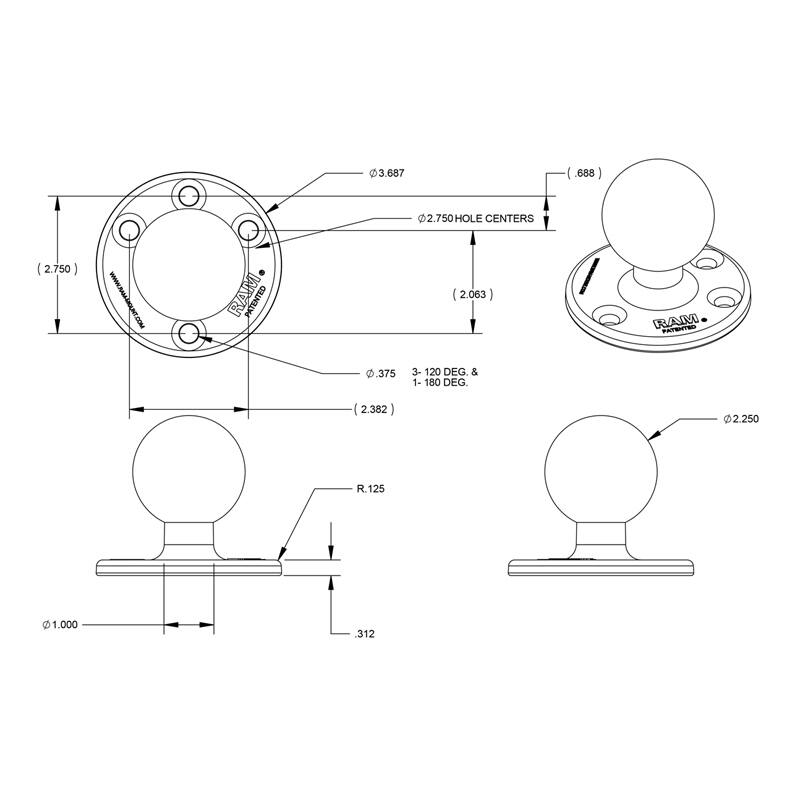

Large Round Plate Hole Pattern (see drawing)
2 hole - 180 degrees
3 holes - 120 degrees.

Small Round Plate Plate Size:
63.5mm (2.5") Diameter

Small Round Plate Hole Pattern:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)

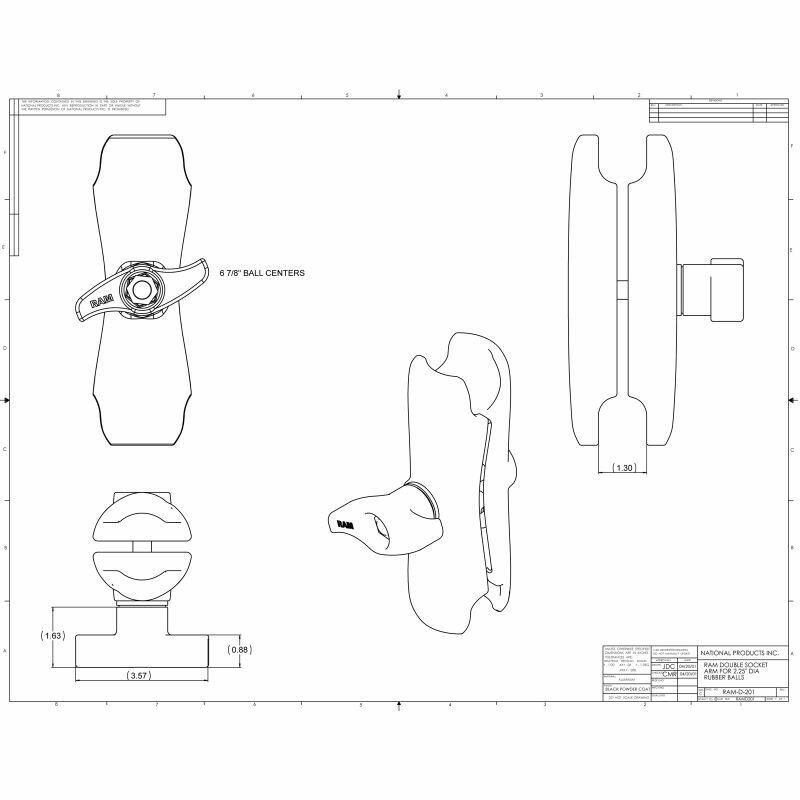

Arm Dimensions
Overall Length:
212.7mm ( 8.375")
Socket-To-Socket Length:
166.6mm (6.5625")


Materials
High strength composite
Marine Grade Powder Coated Aluminium Alloy


Additional Information

This product will not support IntelliSkin®.
Mount using a round ball base (RAM-202U recommended)
Device speakers and mics / Device headphone jack exposed
Zip tie locations for cable retention
Includes mUSB male to Type-A male cable and cable clamp with zip ties
mUSB female pigtail for power


YouTube:
https://www.youtube.com/watch?v=M3o4wn_HcTc


Components

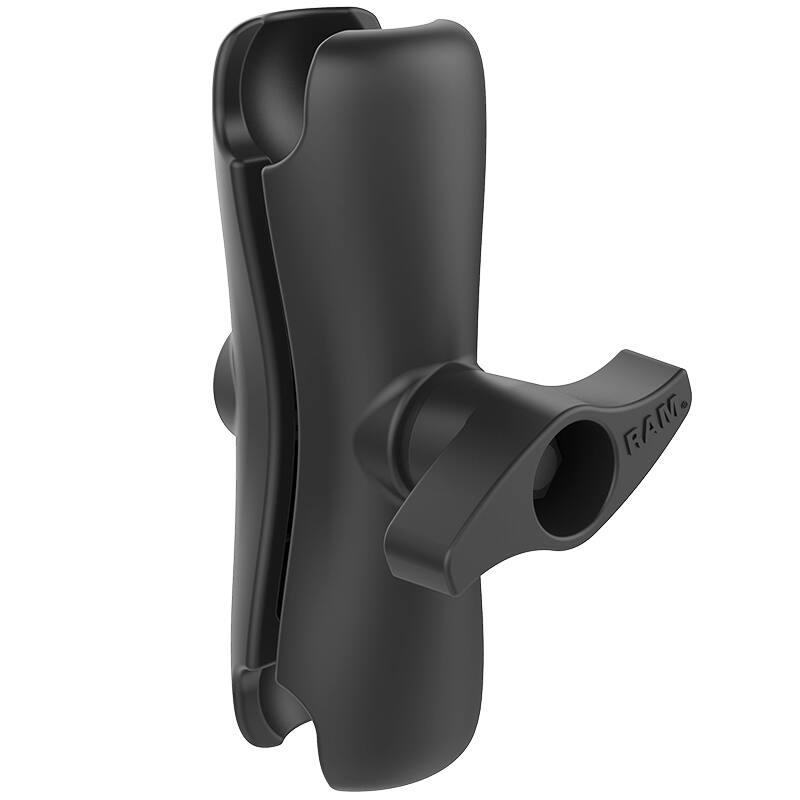

RAM-D-201U RAM Medium Length Double Socket Arm for D Size 2.25" Balls

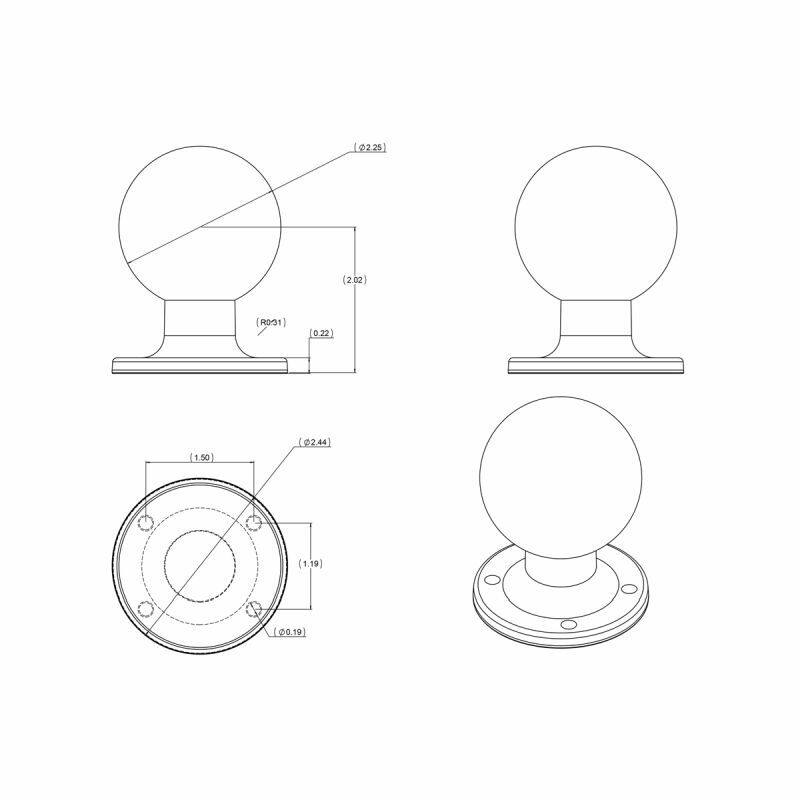

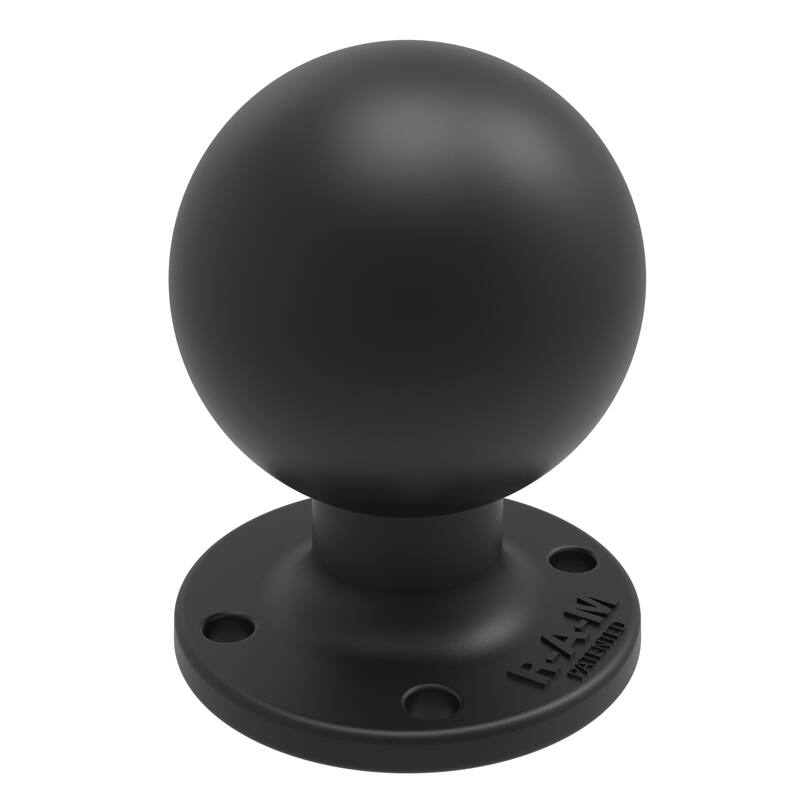

RAM-D-254U RAM Round Plate with 2.25"/57mm D Sized Ball

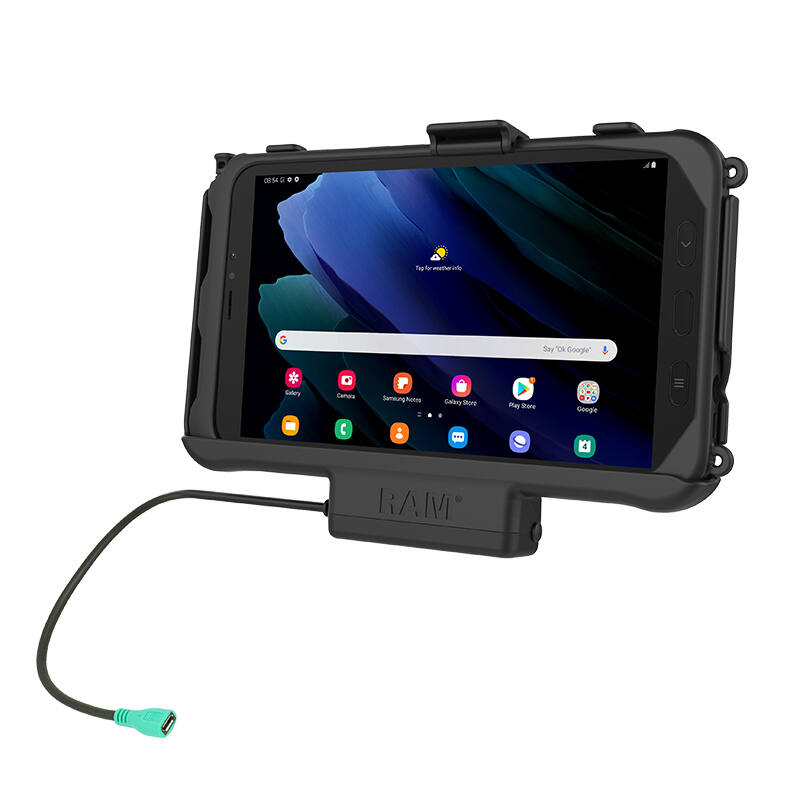

RAM-HOL-SAM60PU RAM EZ-Roll'r Powered Cradle for Samsung Tab Active3 and Tab Active2

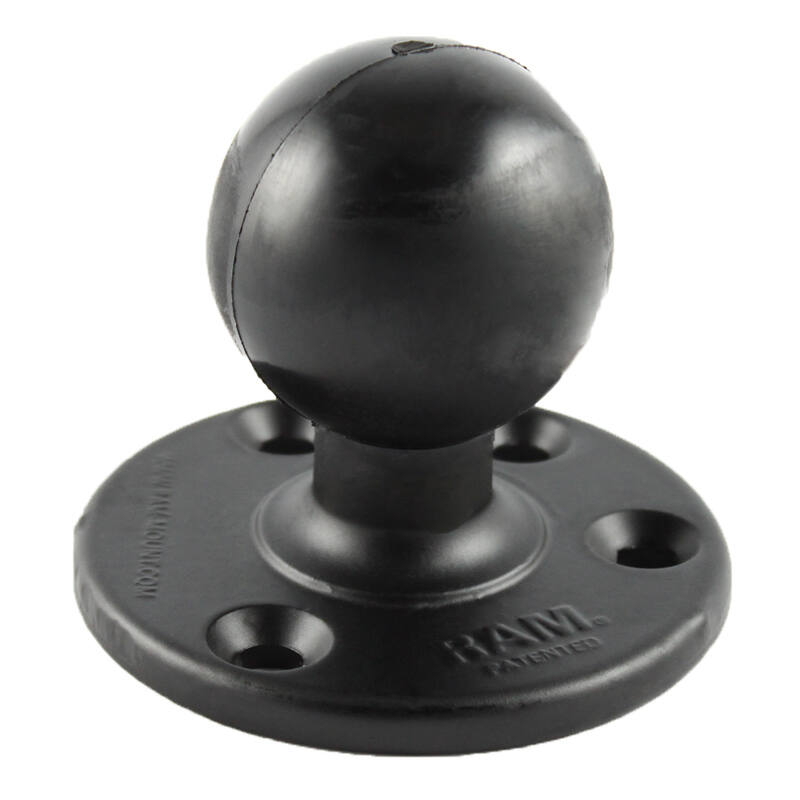

RAM-D-202U RAM 93.5mm Diameter Round Plate with D Size 2.25"/57mm Ball
