RAM Mounts
RAM Heavy Duty Fishfinder Deck Mount
RAM Heavy Duty Fishfinder Deck Mount
Please Enquire
Couldn't load pickup availability
RAM-FF1U – RAM® Heavy-Duty Fishfinder Deck Mount

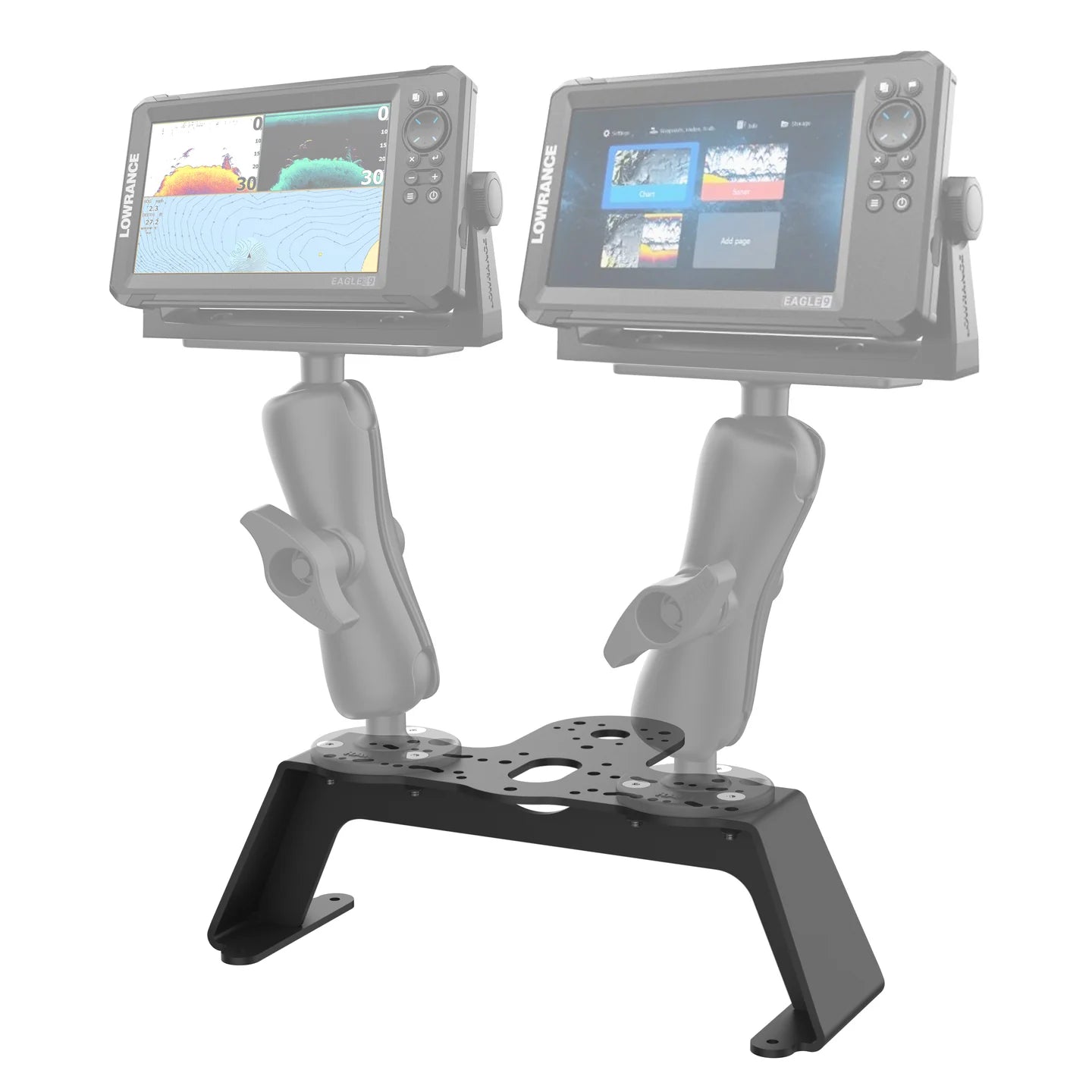

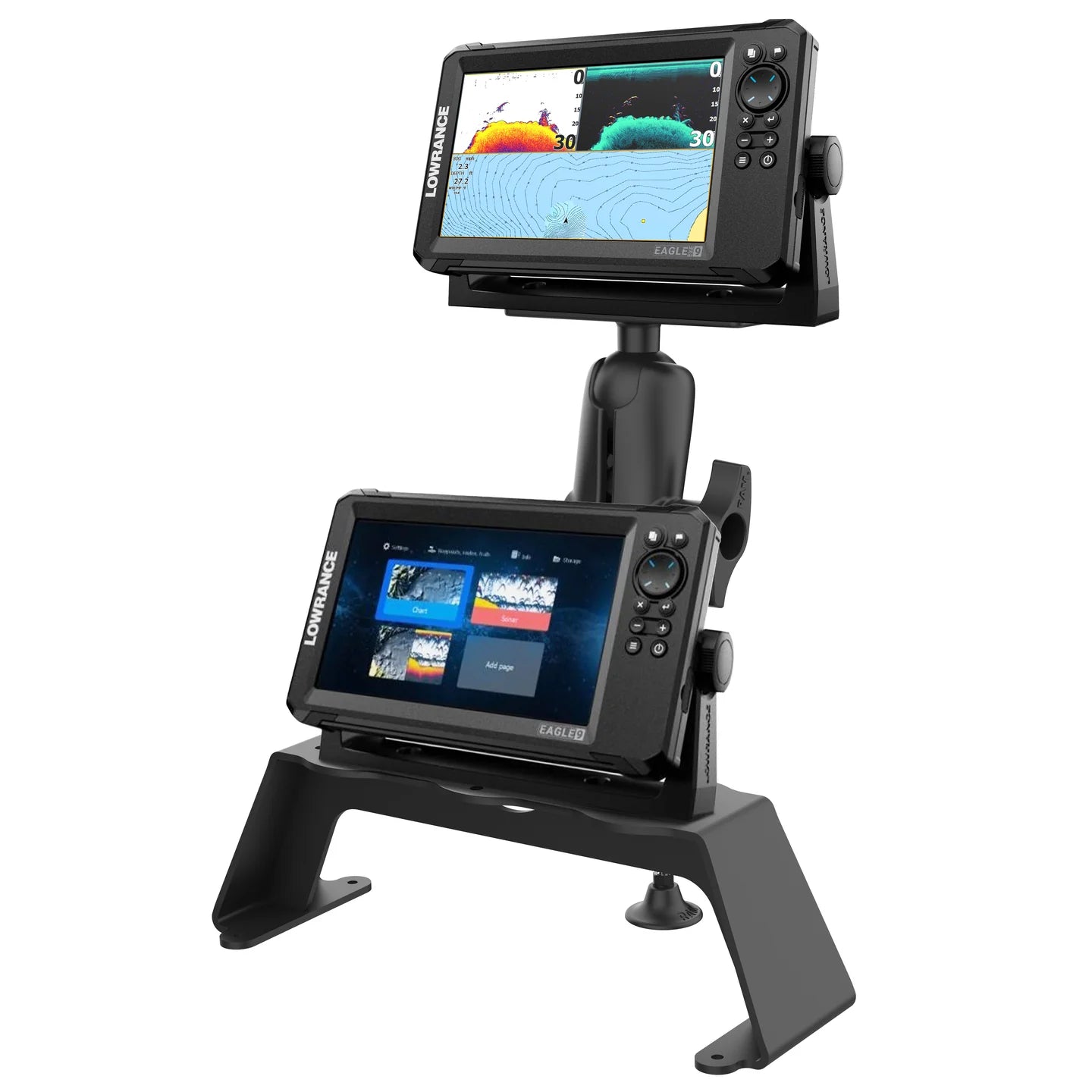

The RAM-FF1U is a powder-coated marine-grade aluminium deck bracket built to carry up to three fishfinders at once, so you can take in more data whether you're trolling deep water or scanning shallow coves. A wide array of pre-drilled hole patterns makes it compatible with the major fishfinder brands and with RAM® D-size bases.
Key Features
- Supports up to three fishfinders at once — ideal for bow or stern setups
- Compatible with Garmin®, Lowrance® and Humminbird® mounting patterns
- Includes three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for RAM® D-size bases
- Marine-grade aluminium with a powder-coated, corrosion-resistant finish
- Backed by a lifetime warranty
Works With
Fishfinders using Garmin®, Lowrance® or Humminbird® mounting patterns, and RAM® D-size bases via the AMPS and tri-hole patterns. For a secure stern mount in rough water, pair it with the RAM® Foot Stabilizer.

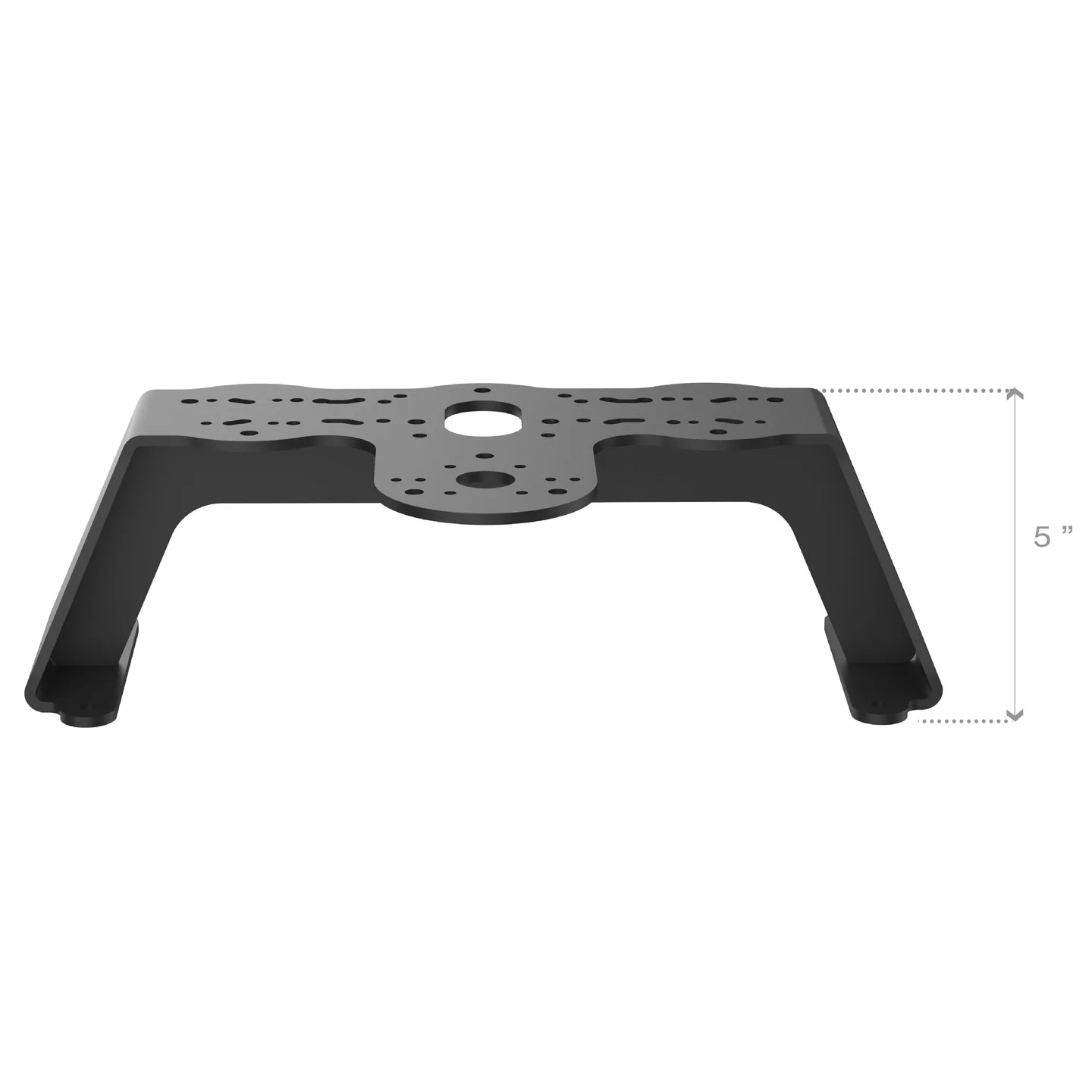

Dimensions & Specifications
- Capacity: up to three fishfinders

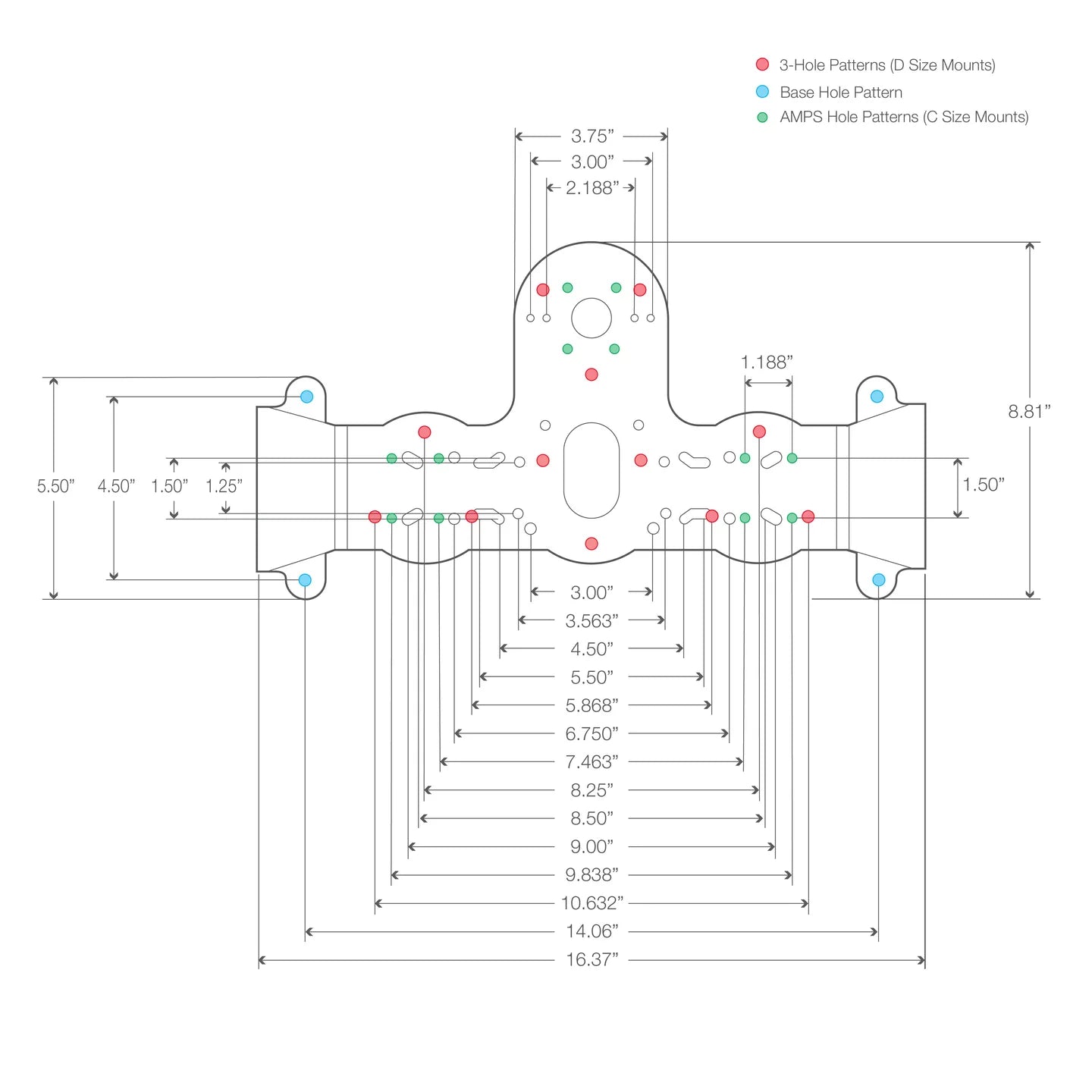

- Hole patterns: three sets of 4-hole AMPS; three sets of tri-hole (for RAM® D-size bases); plus brand-specific patterns — refer to the product drawing for exact layouts
- Material: powder-coated marine-grade aluminium
- Weight: 1.914kg (4.22 lb)

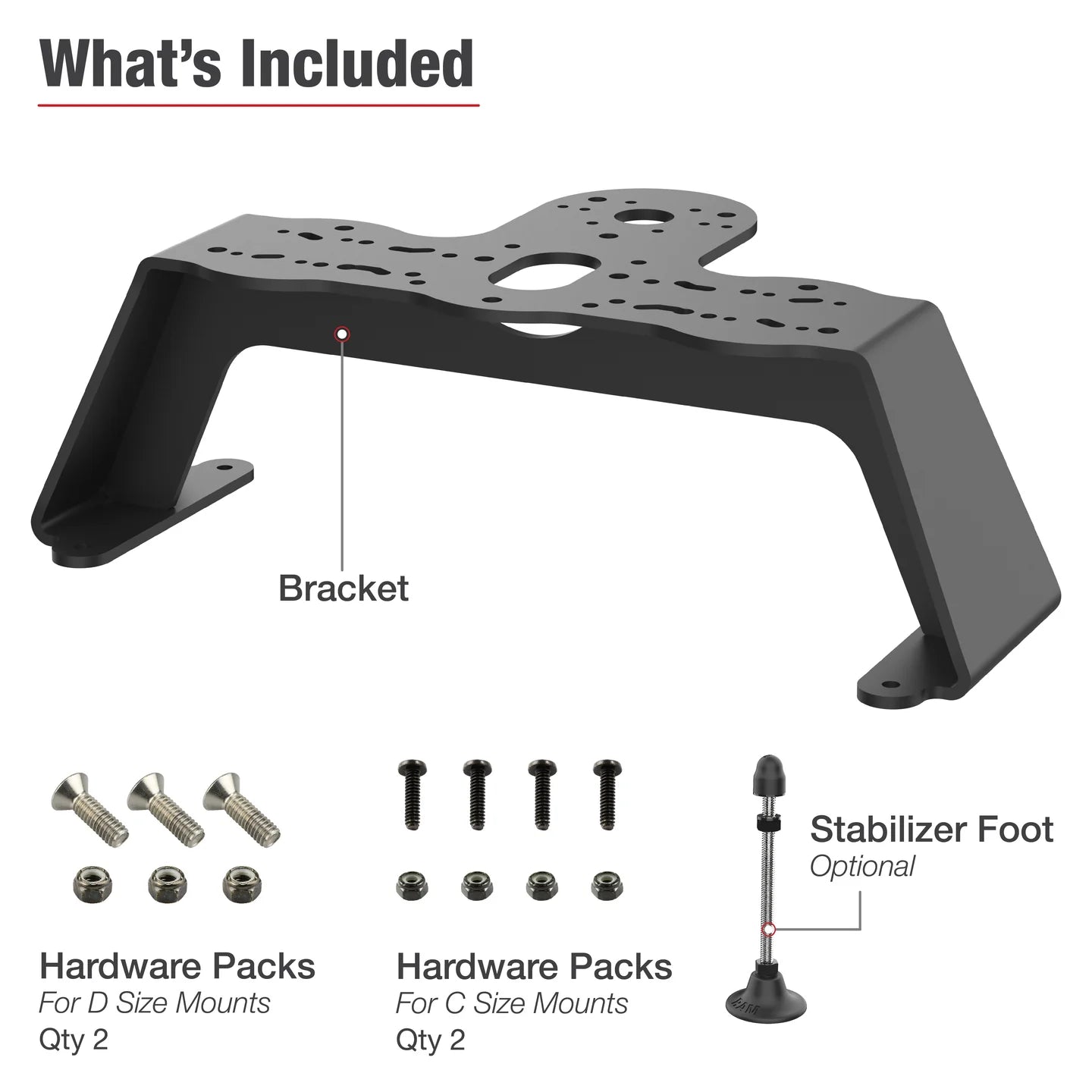

What's Included
- (6) 5/16"-18 x 1" machine screws, (6) 5/16"-18 Nylock nuts
- (8) #10-24 x 3/4" machine screws, (8) #10-24 Nylock nuts
FAQs
Will it fit my fishfinder? It carries pre-drilled patterns for Garmin®, Lowrance® and Humminbird® units, plus RAM® D-size AMPS and tri-hole patterns. Check your unit's mounting pattern against the product drawing, and get in touch if you'd like us to confirm.

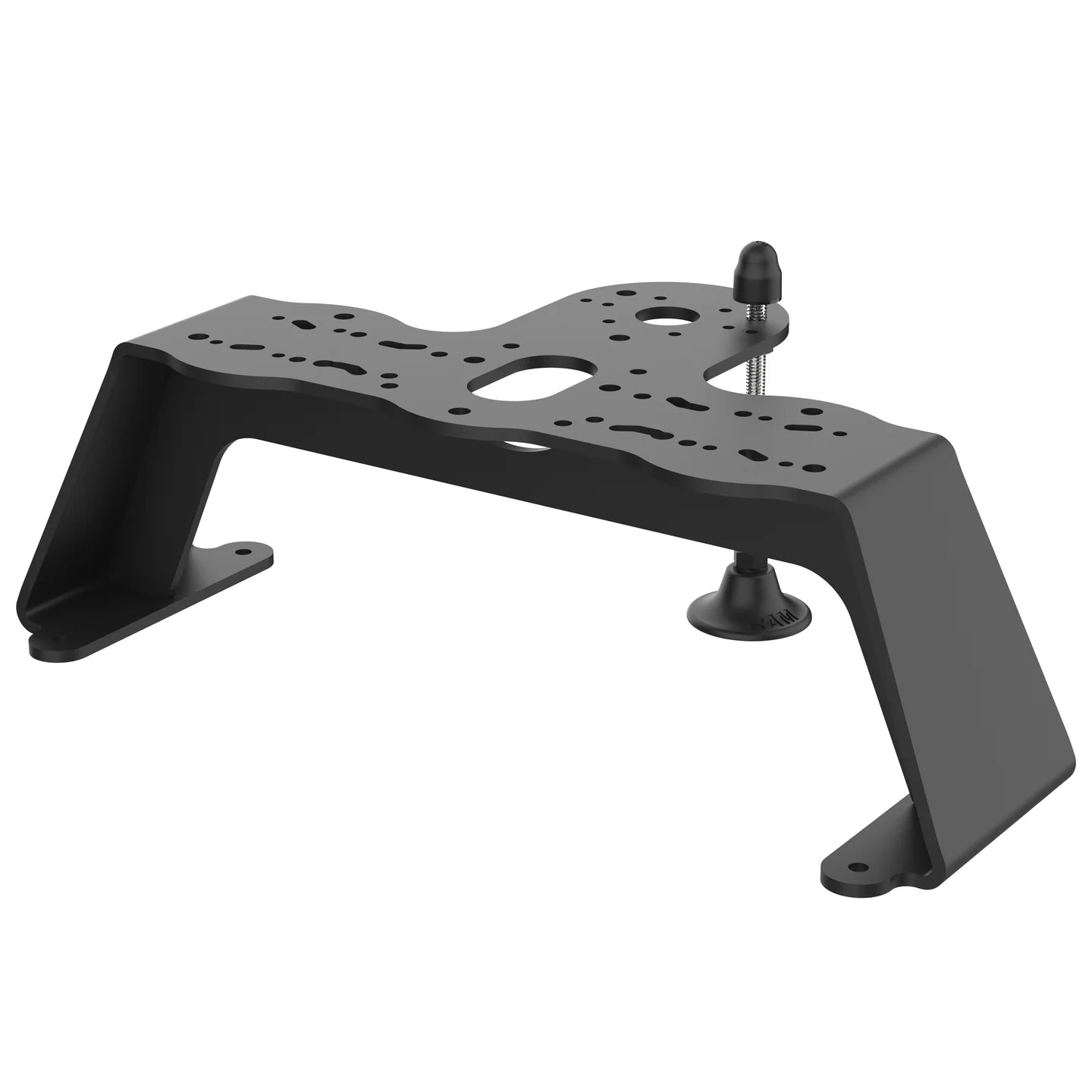

Can I run it at the stern? Yes — for extra stability in rough water, pair it with the RAM® Foot Stabilizer.
How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
