RAM GDS Uni-Con Powered Left Locking Snap-In Dock with USB-C Connector

RAM-GDS-DOCKLL-U3CPU – GDS® Uni-Conn™ Powered Left-Locking Snap-In Dock with USB-C

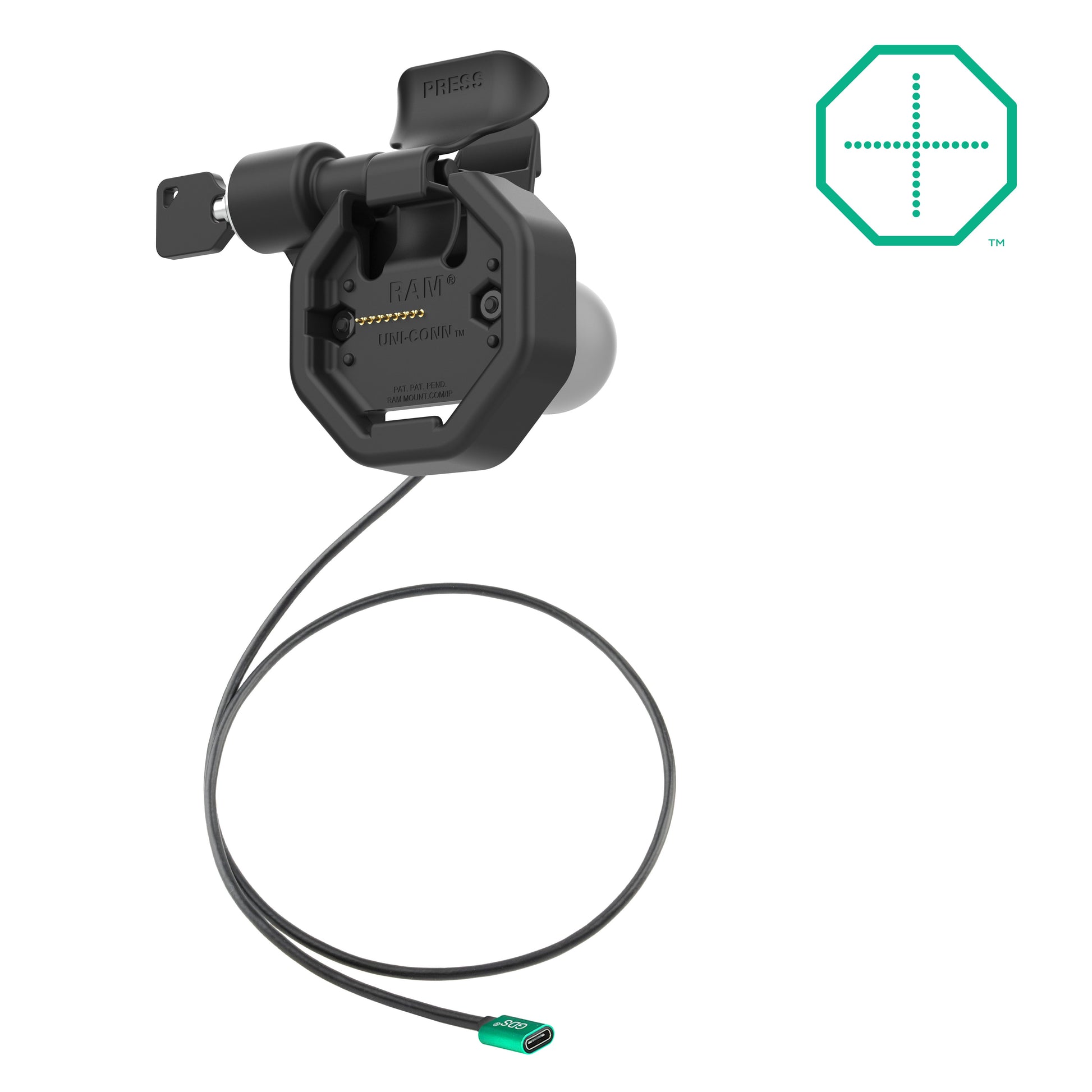

The RAM-GDS-DOCKLL-U3CPU is a powered snap-in dock for devices in an IntelliSkin® Thin-Case™ with rear pogo pads, with a left-side key lock for theft deterrence. Snap the device in and the GDS® Uni-Conn™ pogo pins deliver high-speed charging through the USB-C connection; no cables at the device.

Key Features

• Snap-in dock with GDS® Technology™; integrated pogo pin connector provides high-speed charging
• Designed for devices enclosed in the IntelliSkin® Thin-Case™ with rear pogo pads
• USB Type-C female connector enables high-speed charging up to 60W

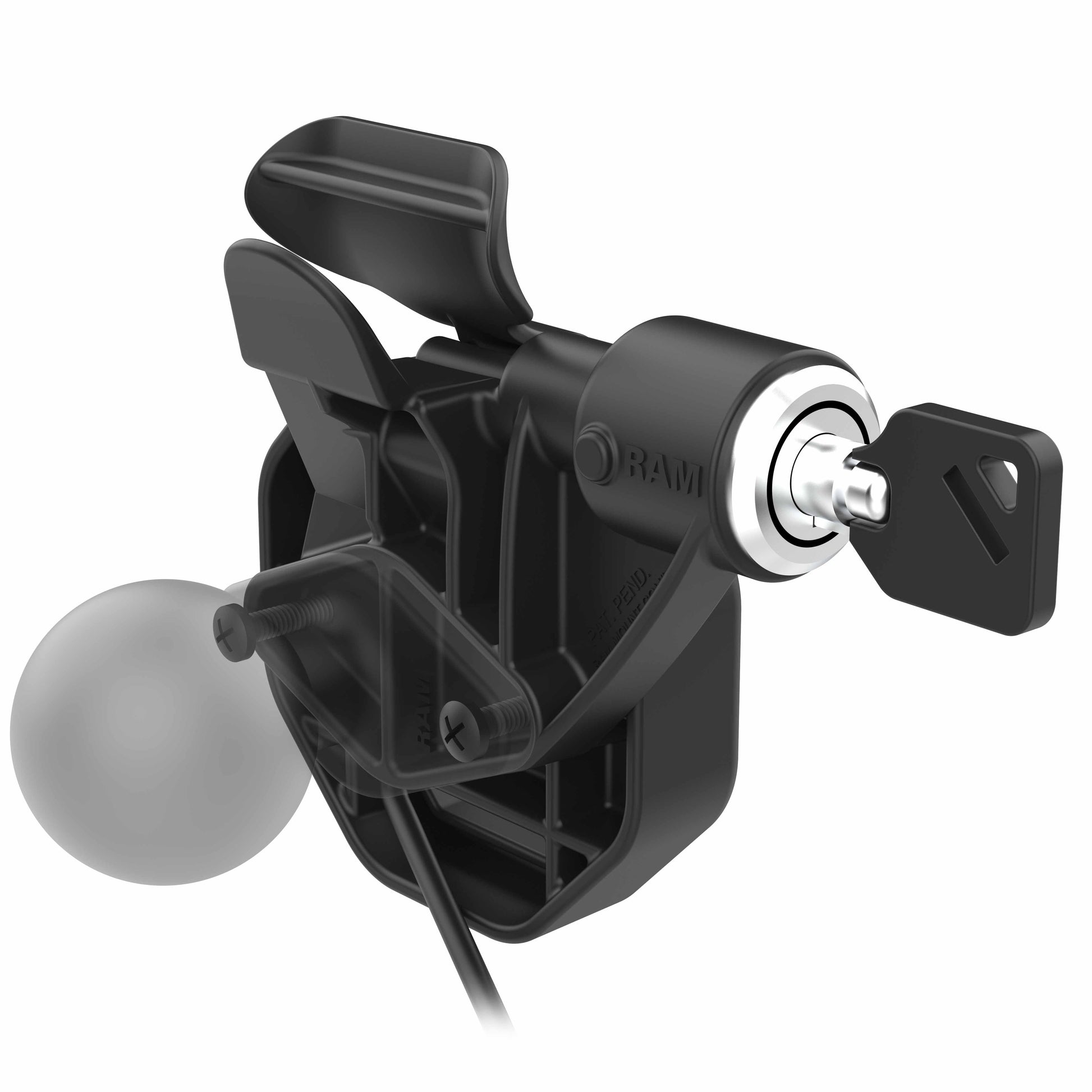

• Left-side key lock for additional theft deterrence
• Backed by a 3-year warranty

Works With

Devices in an IntelliSkin® Thin-Case™ with rear pogo pads, such as the RAM-GDS-SKIN-SAM88-TCB for the Samsung Tab A9+. The dock's 2-hole AMPS pattern connects it to the RAM® ball and socket system via a diamond or round ball base.

Dimensions & Specifications

• Hole pattern: 2-hole AMPS, 1.912" (48.6mm)
• Output voltage: USB-C tablets 5V–20V @ 3A max; mUSB tablets 9V @ 1.67A max
• Power output: 60W max
• Input connector: USB Type-C (female); input cable length 800mm
• Material: high-strength composite
• Weight: 240g (0.53 lb)

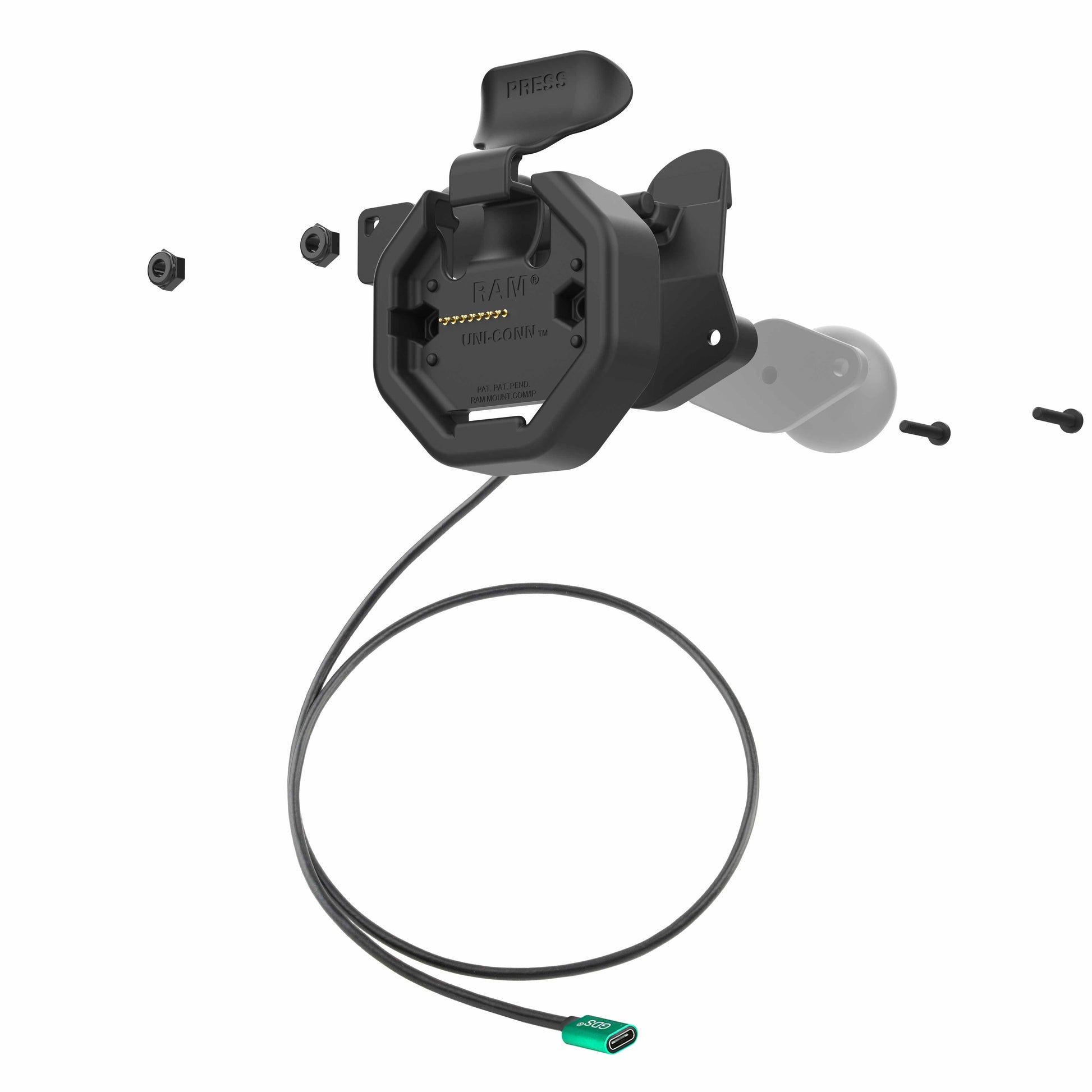

• Hardware included: (2) keys, (1) locking lever stop, (2) #8-32 x 1.125" machine screws, (2) #8-32 nylock nuts
• Warranty: 3 years (void if the lever stop is not installed)

FAQs

Can I use this on a forklift?

No; GDS® Uni-Conn™ docks are not recommended for high-vibration applications such as forklifts. For forklift use look at the GDS® Tough-Dock™ range instead.

Why does the lever stop matter?

The included lever stop is required for the dock to function properly, and the warranty is void if the dock is used without it installed.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
