RAM-B-400-GDS-DOCK-V1U GDS® Powered Phone Dock with RAM® Tough-Claw™ Small Clamp Mount
Features
* GDS Technology™ offers a universal charging platform for any device wrapped in IntelliSkin™
* Spring loaded tension provides secure support for your device, even in vibration applications

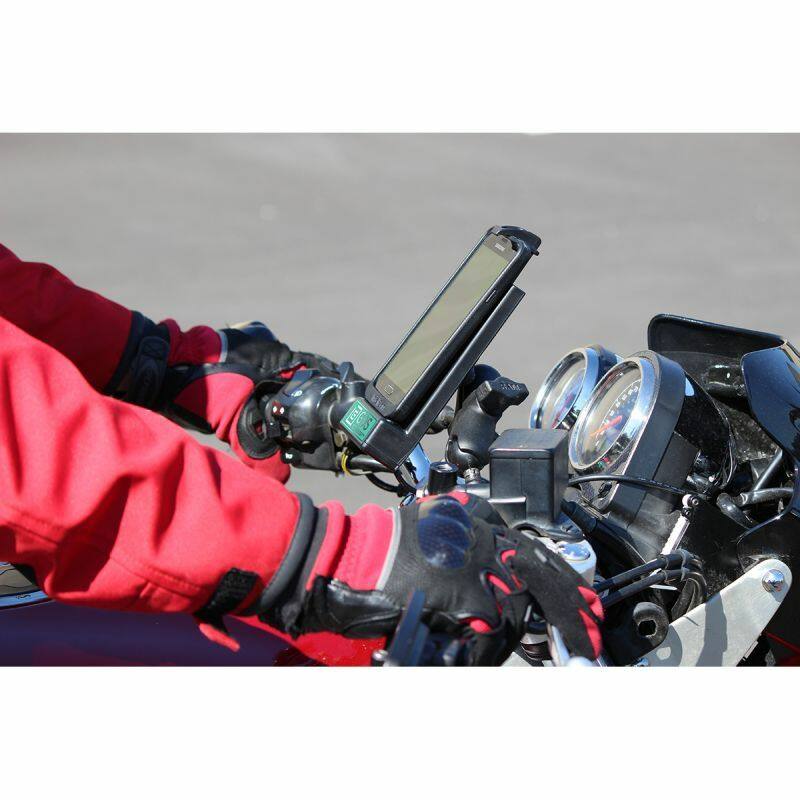

* Waterproof, ideal for outdoor environments such as motorcycles, ATVs, boats and more

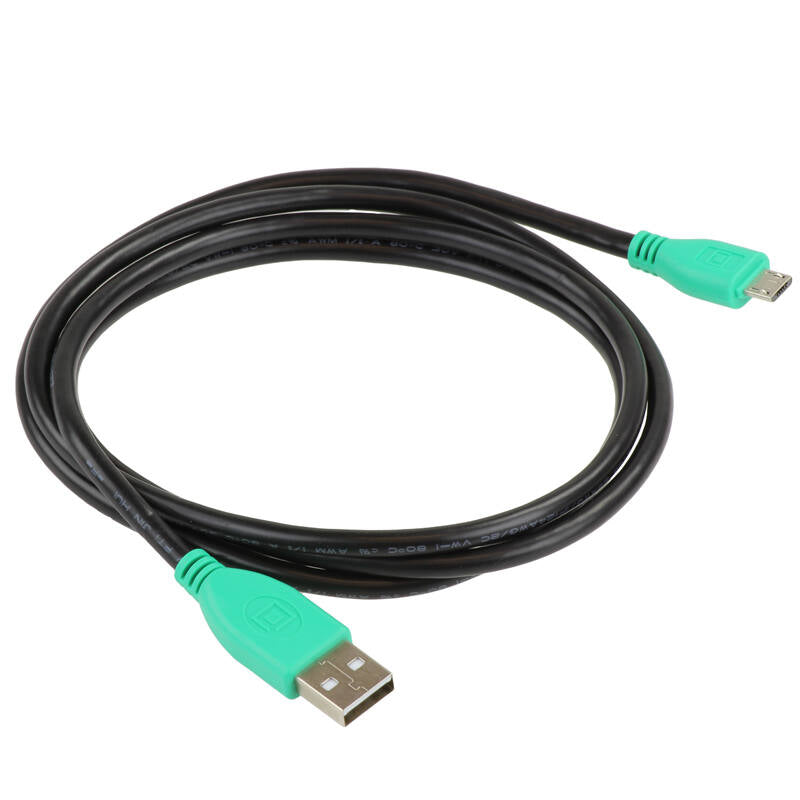

* Includes a 3” long USB cable with a female micro USB 2.0 connector to connect to a power source
* Easy, quick release of your device for on-the-go application
* Small version Tough-Claw base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16 to 38mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments

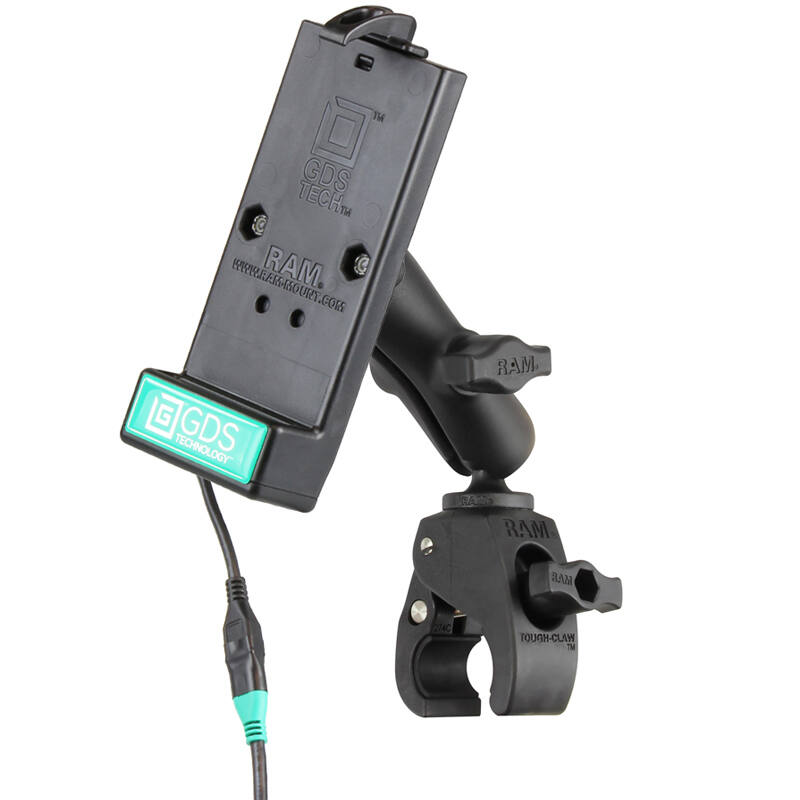

The RAM-B-400-GDS-DOCK-V1U consists of the Tough-Claw™ rail clamp base, standard length double socket arm and the RAM® Universal Vehicle Phone Dock with GDS® Technology.

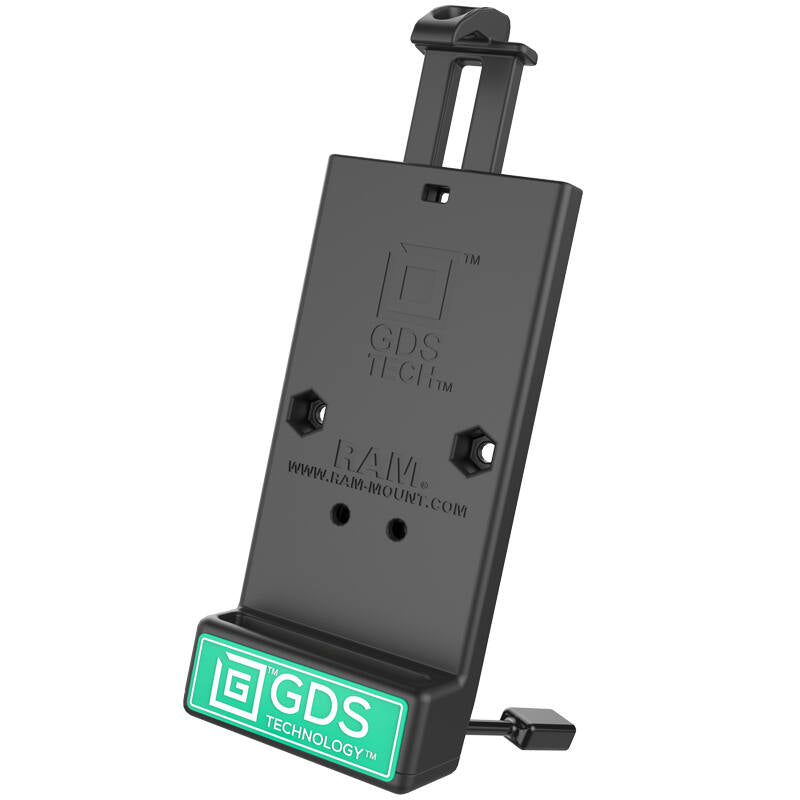

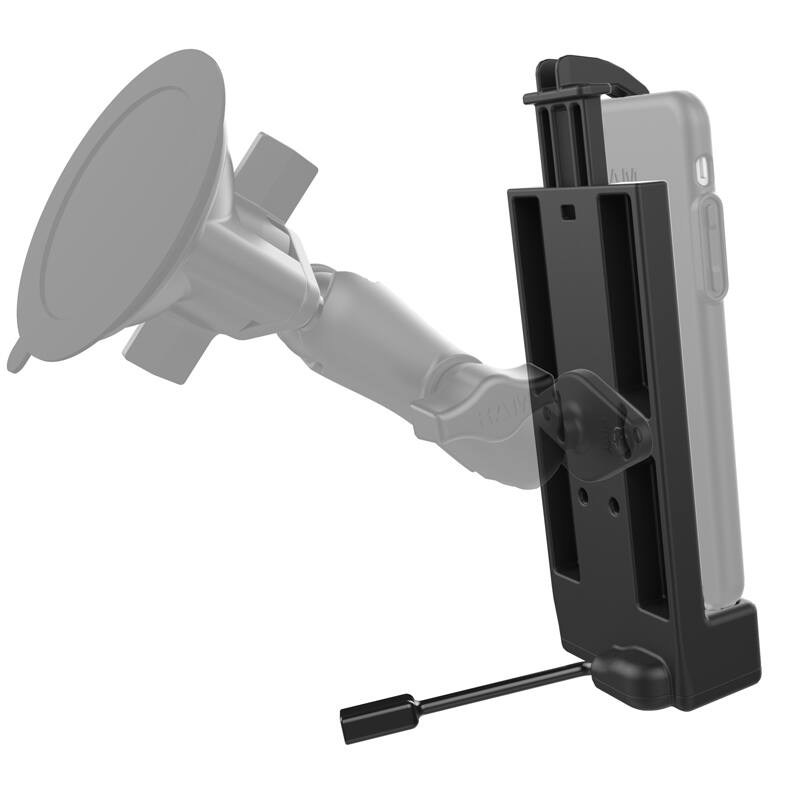

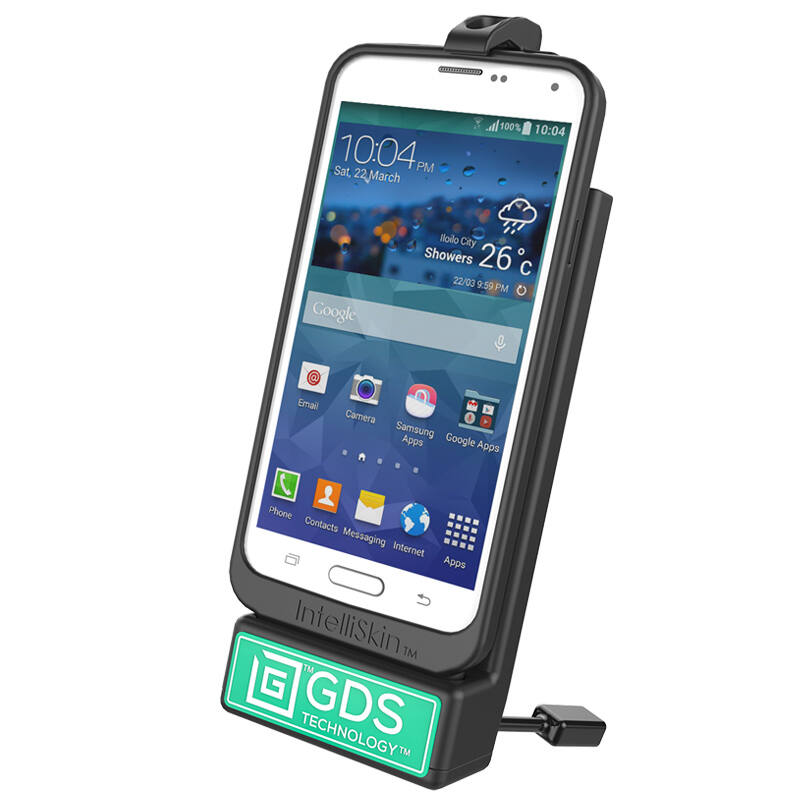

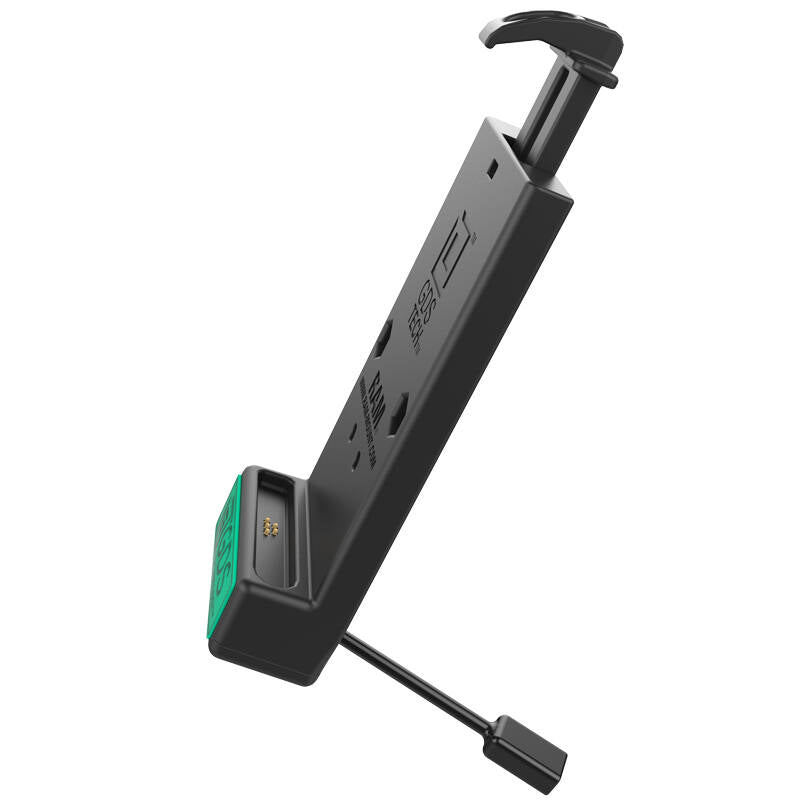

The RAM® Universal Vehicle Phone Dock with GDS Technology™ is a spring loaded, quick release cradle that offers a secure fit with easy access to the mounted phone or phablet. This docking station is compatible with any phone or phablet wrapped in IntelliSkin™.
The integrated GDS Technology™ platform enables charging of the mounted device and safely secures the phone in a variety of vibration application. Without the need to remove the IntelliSkin™ from the device, the user can quickly and efficiently mount the device in the vehicle dock and keep the device charged.

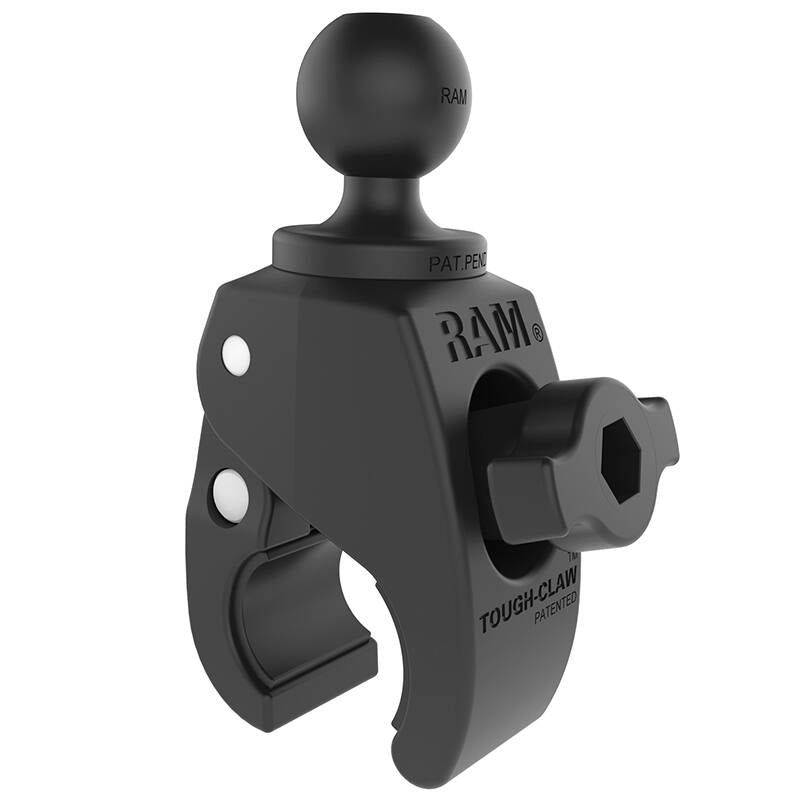

The Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars.

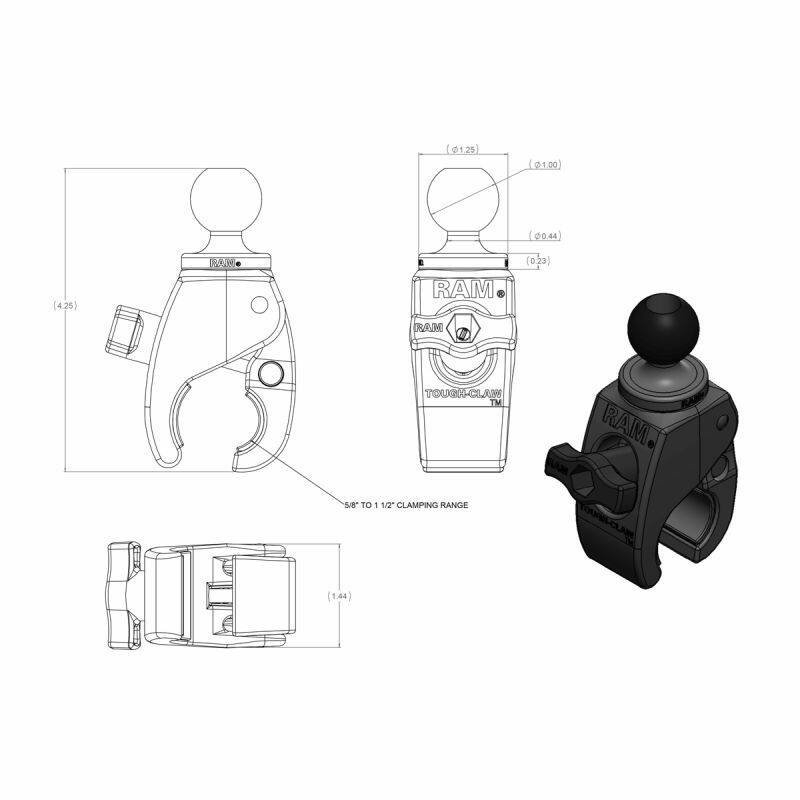

Clamping Range
(Rail/Tube Surfaces): 16mm to 28mm (0.625" to 1.14")
(Flat Surfaces): 0 to 28mm (0" to 1.14")
Medium Arm Dimensions:
Overall Length: 94.7mm (3.73")
Socket-To-Socket Length: 76.2mm (3.0")
Compatible Devices
Any GDS Compatible™ device, including devices wrapped with IntelliSkin
Specifications:
• Max power: 5V-12V @ 2A*
Material:
High Strength Composite
Marine-grade aluminium
Input Range
5-12V @ 2A
Connector Type
mUSB 2.0 Female
* mUSB products supporting USB 2.0/3.0 will have a max current of 1.5A
Output Cable Length
323mm / 12.75"
Weight Capacity:
907 grams (2 lbs )
Components:
RAM-GDS-DOCK-V1U UNIVERSAL PHONE DOCK

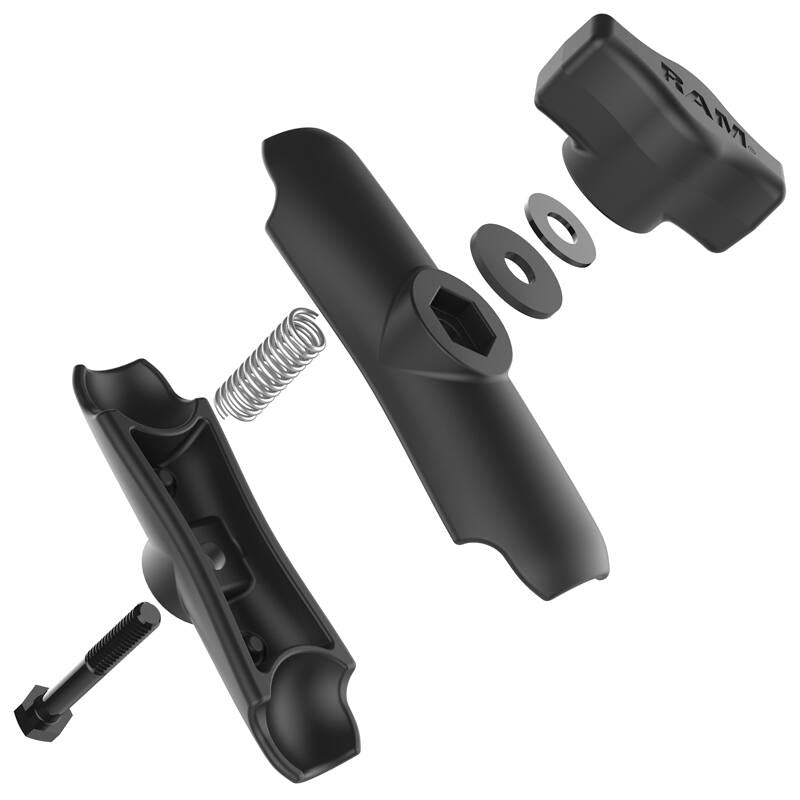

RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAP-B-400U SMALL TOUGH CLAW WITH 1" BALL
