RAM Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3

RAM-HOL-SAM58CPKLU RAM® Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3

Features

• Key locking powered cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable (Non-Power Delivery charger required)
• Contains 4-hole AMPS hole pattern for RAM® ball components
• Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
• Backed by a 3-year warranty

This powered key locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode.

For security and theft deterrence, this powered cradle features a key lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories.

Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern.

Compatible Devices:

Samsung

Tab Active5

Tab Active3

Tab Active2

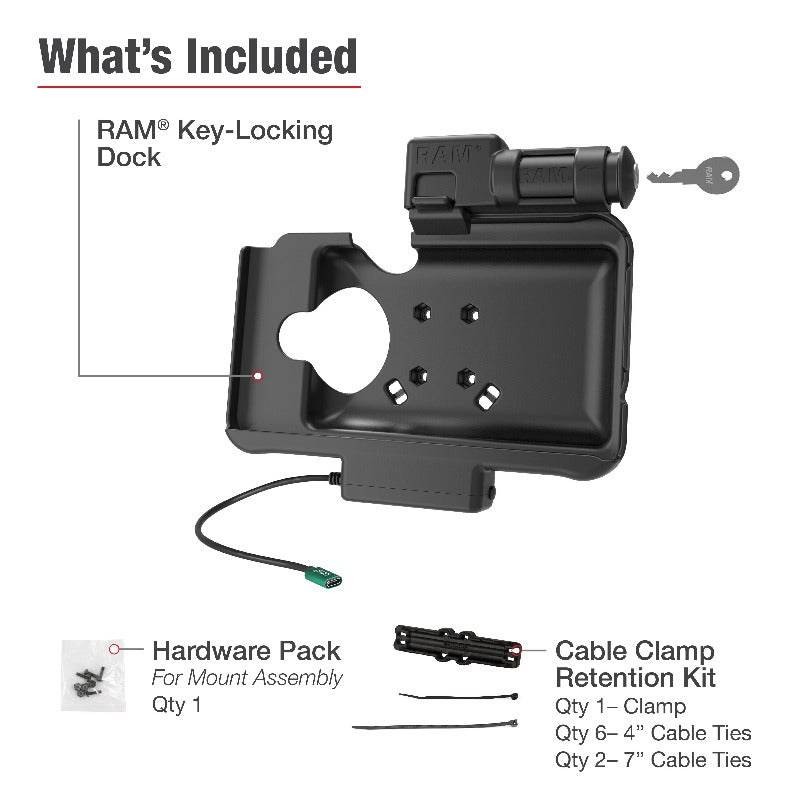

Hardware Included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties

Product Dimensions:

Width: 234mm (9.25")
Height: 196.8mm (7.75")
Depth: 76.2mm (3")

Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"

Materials:

High strength composite

Input Voltage:

5.3-5.4VDC

Output Voltage:

5VDC

Power Output:

500mA

Input Connector:

USB Type-C Female

Input Cable Length:

215mm

Warranty:

3 year warranty

Weight:

467 grams (1.03 lb)

Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options
