RAM EZ-Roll'r Power + Data Dock Samsung Tab Active 5 & 3

RAM-HOL-SAM60CP-1AU  RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3



Features

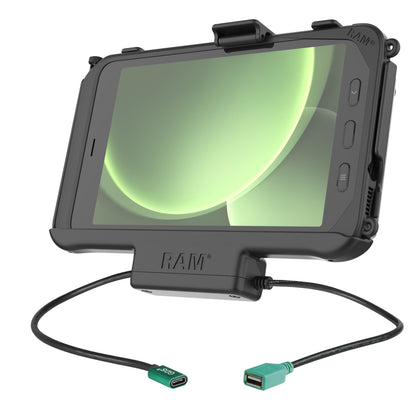

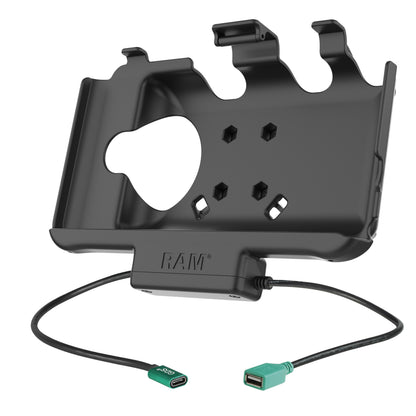

RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector

Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility

Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector

Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™

Backed by a 3-year warranty

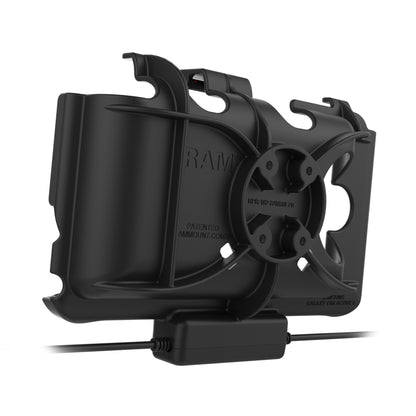

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle to your person, or to your desk with zero hassle.

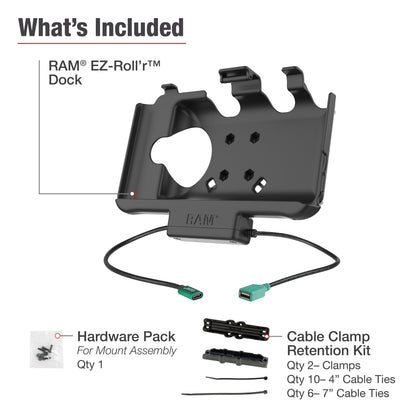

Hardware Included:

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(6) Large Cable Ties
(10) Small Cable Ties

Product Dimensions:

Width: 234.7mm / 9.24"
Height: 161mm / 6.34"
Depth: 65.3mm / 2.57"



Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"



Materials:

High strength composite



Input Voltage:

5.3-5.4VDC



Output Voltage:

5VDC



Power Output:

500mA



Input Connector:

USB Type-C Female



Input Cable Length:

250mm



Output Connector:

USB 1.1 Type A



Output Cable Length:

250mm



Peripheral Output:

500mA



Transfer Speed:

12Mbps



Warranty:

3 year warranty



Weight:

322 grams / 0.71 lb



Additional Information:

Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options



Note: This new SKU with USB-C replaces the existing SKU RAM-HOL-SAM60PDU which utilised microUSB for power
