RAM-B-349-201 RAM® Ball Adaptor with M10 X 1.25 Threaded Post with Double Socket Arm
Features
* Universal threaded hole solution for a variety of use cases
* Included RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Double socket arm has overall length of 94mm and a socket-to-socket length of 76mm
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

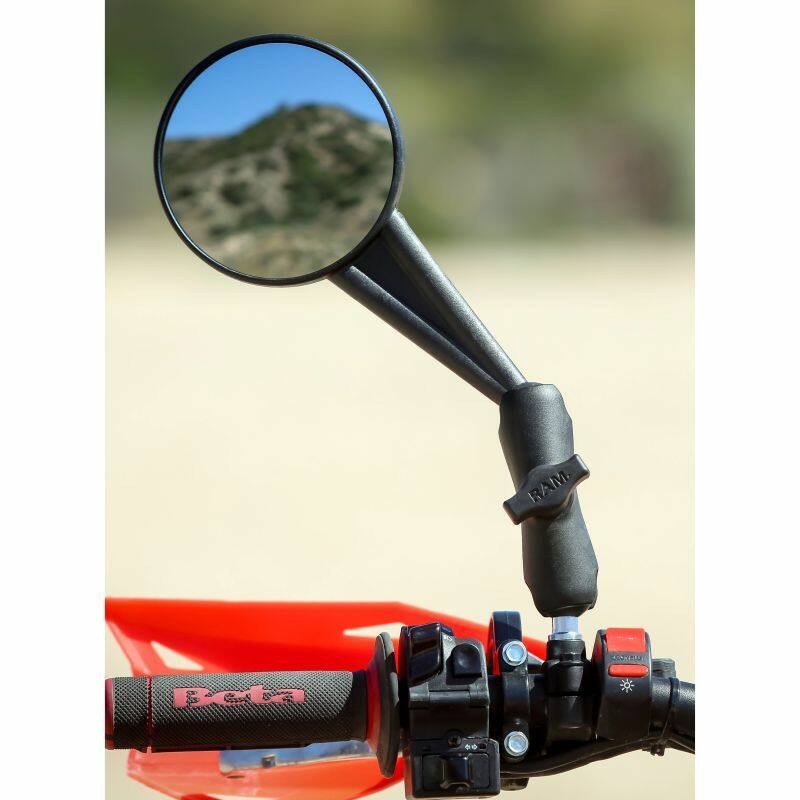

This makes an ideal base for Doubletake Mirrors.

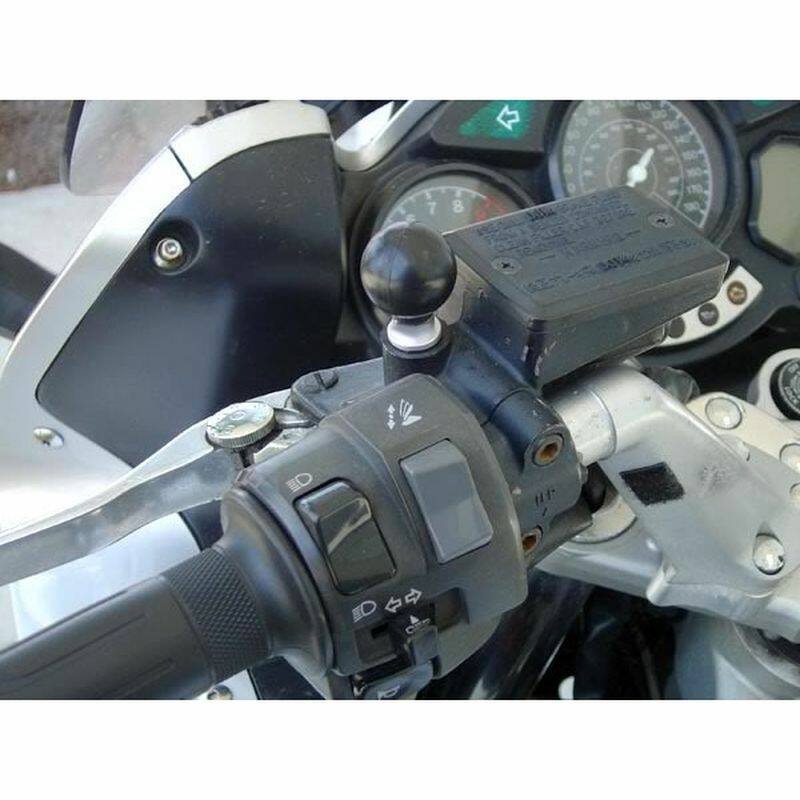

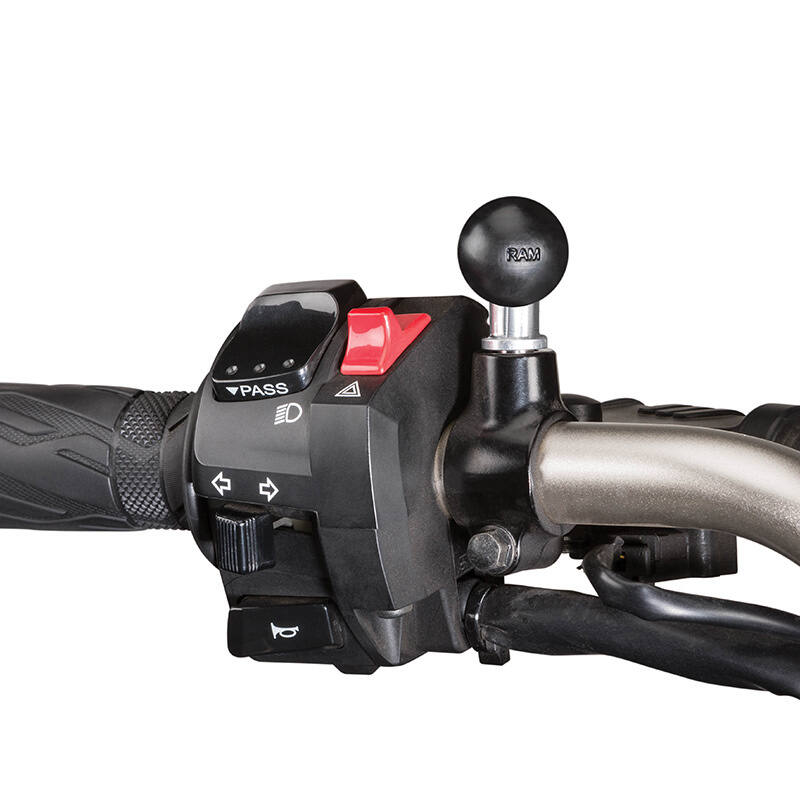

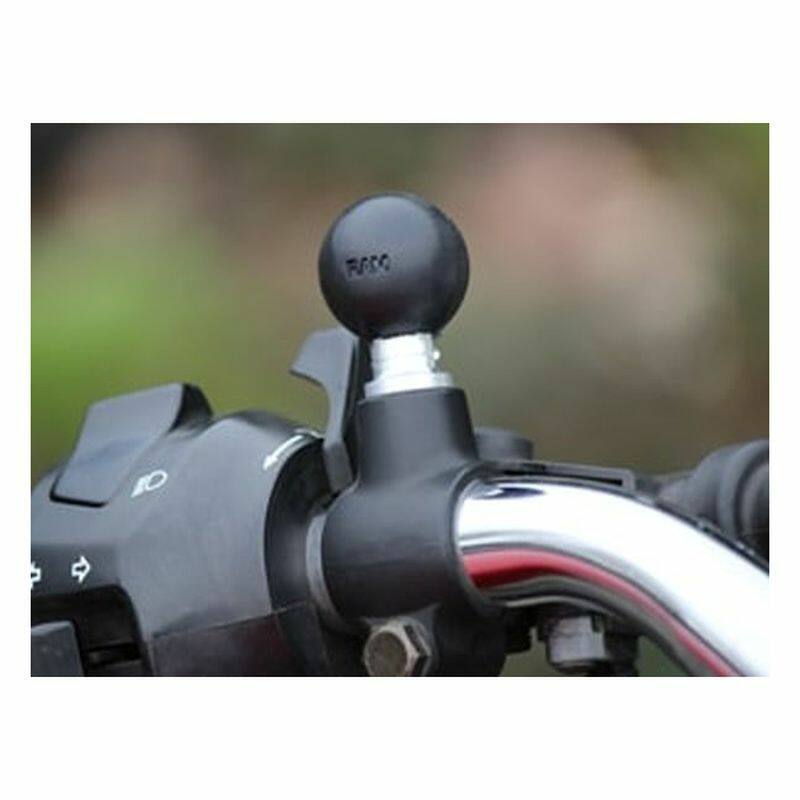

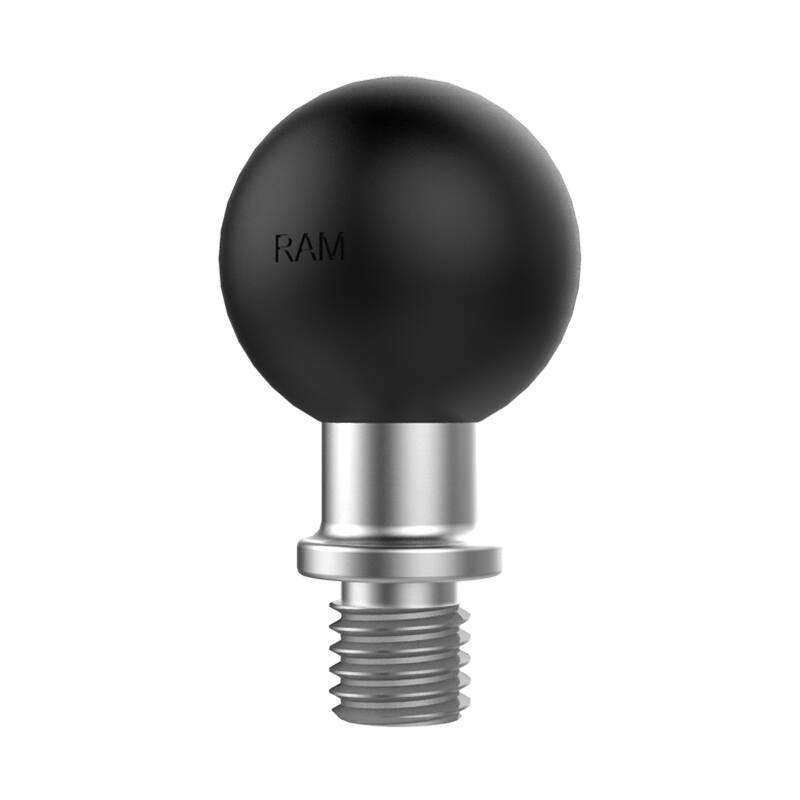

The RAM® Ball Adaptor is a M10 x 1.25 pitch male thread connected to a 1" rubber ball.
Thread Pitch
M10-1.25 x 7/16"
Compatibility:
Threaded hole must contain the following dimensions for this base to fit: M10 1.25 pitch with a 14.5mm flange diameter with a 10.15mm thread length

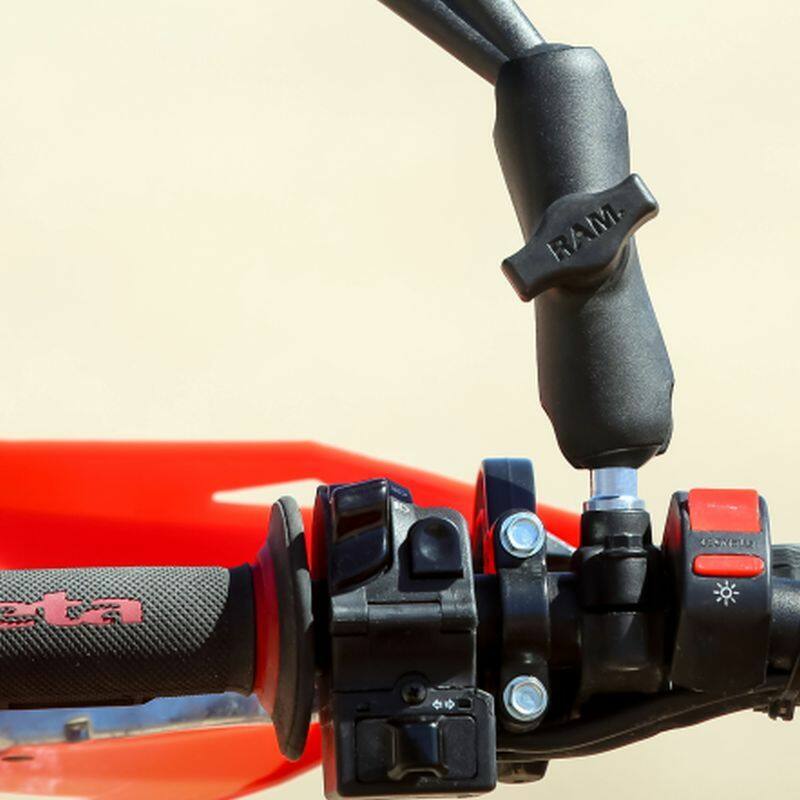

Arm is a RAM-B-201U medium (standard length) arm for 1 inch balls. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology provides for almost infinite adjustment and perfect viewing angles. The easy to adjust knob allows for near-infinite adjust-ability for your connected device.
Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Material:
Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Components:
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-349U RAM BASE W/ M10 X 1.25 PITCH & 1" BALL

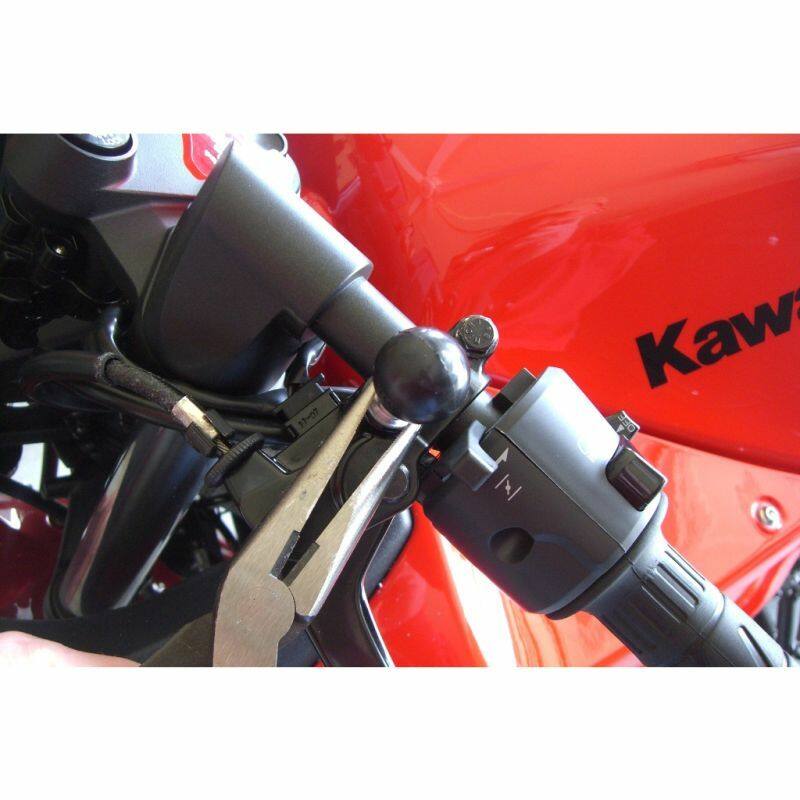

Installation Instructions: https://forums.ninja250.org/posting.php?mode=topicreview&t=63955&tro=1
