RAM Quick-Grip 15W Waterproof Wireless Charging Holder with Charger

RAM-HOL-UN14WB-V7M-1 – RAM® Quick-Grip™ 15W Waterproof Wireless Charging Holder with Charger

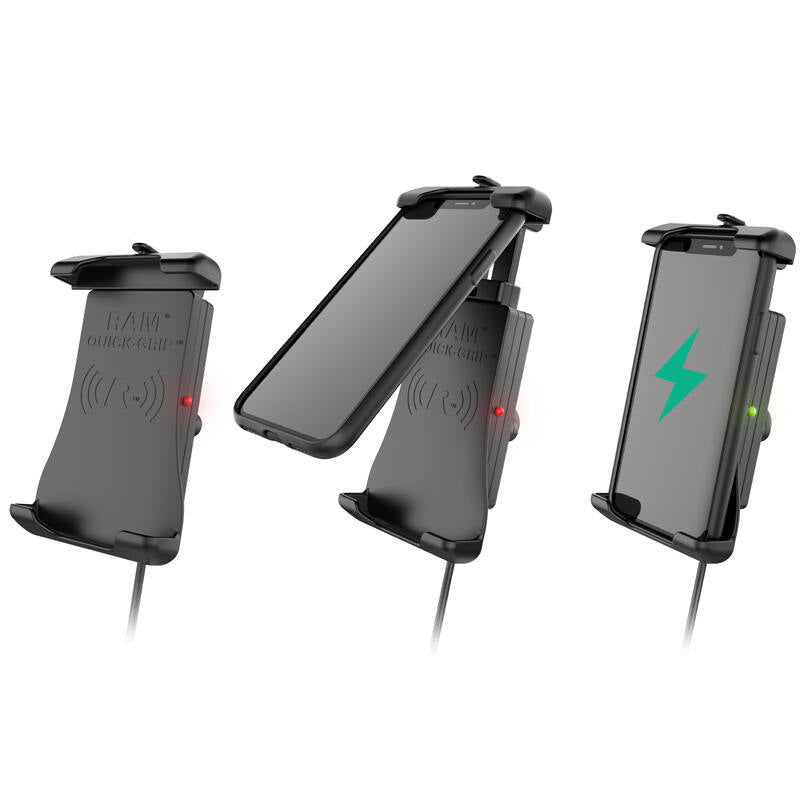

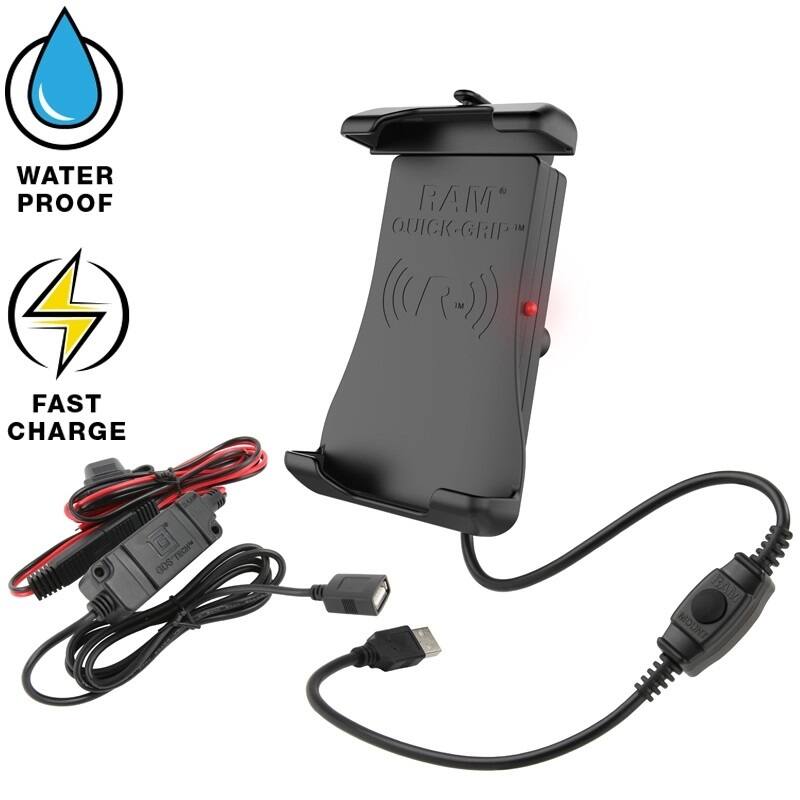

The RAM-HOL-UN14WB-V7M-1 is the RAM® Quick-Grip™ 15W waterproof Qi wireless charging cradle supplied as a complete kit with a hardwire charger and a B-size diamond ball base. Push the top cup up with your phone, seat it, and it charges wirelessly while held securely one-handed. The hardwire charger means it's ready to wire straight into a vehicle or bike, and the diamond base bolts onto any B-size RAM® double socket arm.

Key Features

• Waterproof Qi wireless charging cradle with up to 15W output and spring-loaded Quick-Grip™ design
• One-handed placement and removal; rubber top and bottom cups hold the phone firmly
• Supplied with a hardwire charger, so no separate USB power supply is needed
• In-line switch on the Type-A pigtail turns charging off when not in use; 1.2m Type-A extension cable included for in-vehicle wiring
• Includes a B-size diamond base with 1" ball and a device tether for outdoor use
• Powder-coated marine-grade aluminium, stainless steel and high-strength composite; RAM hardware lifetime warranty, electronics 1-year warranty

Works With

Most Qi-enabled phones within the cradle dimensions below, with a case up to 6mm thick. The included diamond base attaches to any B-size RAM® double socket arm.

Not recommended for Apple iPhone 12, 13 and 14. These models favour Apple's proprietary MagSafe over the WPC Qi standard, and MagSafe charges roughly 33–45% faster than Qi. RAM wireless chargers deliver the WPC Qi BPP and EPP standard up to 15W. Exposure to strong vibration, such as from a high-powered motorcycle engine, may also affect iPhone cameras.

Dimensions & Specifications

• Cradle height range: 142mm to 168mm (5.625" to 6.625")
• Cradle maximum width: 79.4mm (3.125")
• Cradle maximum depth: 17.8mm (0.7")
• Maximum case thickness for charging: 6mm
• Input power: 5V at 2A, or 9V at 1.67A; compatible with QC2.0/QC3.0 supplies
• Output: 15W; conversion efficiency up to 85%; working frequency 110–205kHz; WPC v1.2.4 / Qi compatible
• Operating temperature: 0°C to +37.7°C
• Ball size: B size, 1" ball (on the included diamond base)
• Weight capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use
• Materials: high-strength composite, stainless steel
• Compliance: over-voltage, short-circuit and reverse-polarity protection; SAE J-1113-5 load dump; moisture resistant; RoHS, WEEE
• Certifications: CE, KC, e-Mark, RCM, FCC

Compatible Devices

What's Included

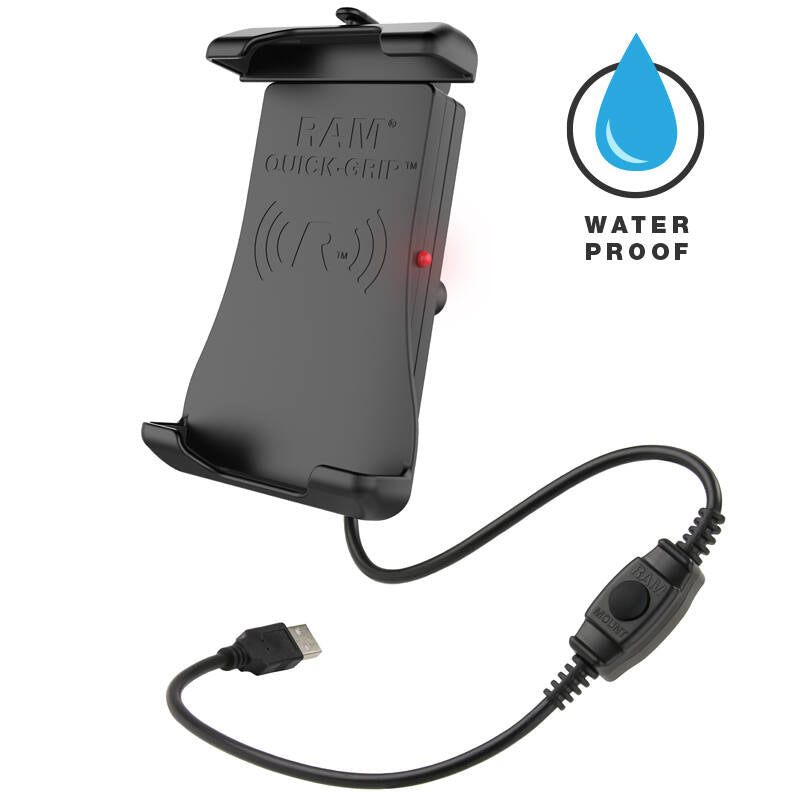

• Quick-Grip™ 15W waterproof Qi wireless charging cradle

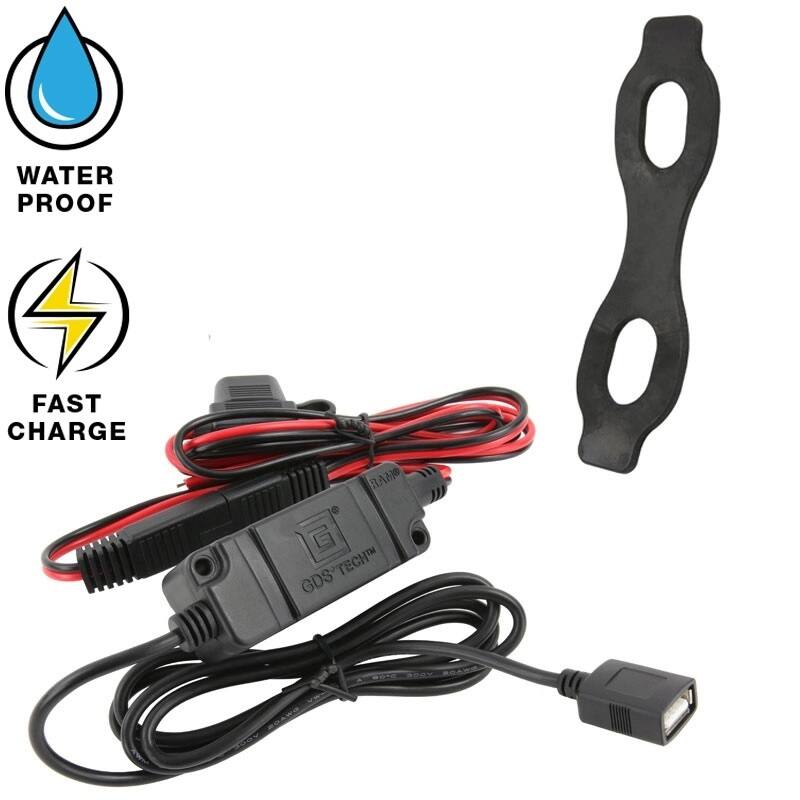

• Hardwire charger with cable

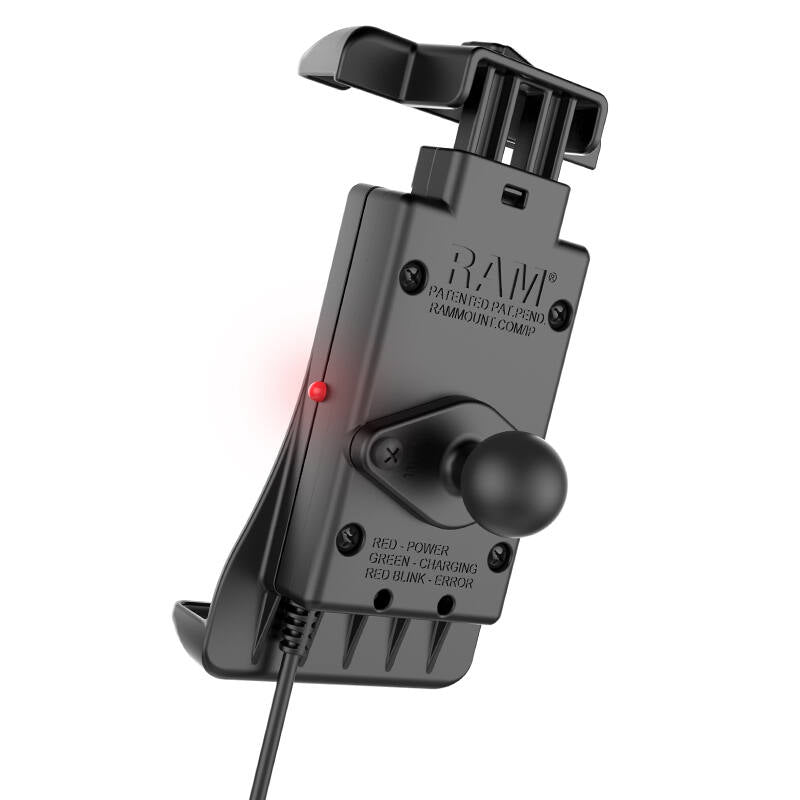

• B-size diamond ball base with 1" ball
• Safety tether, silicone sleeve for the waterproof USB connection, 4 small zip ties, 4 large zip ties

FAQs

Do I need to buy a power supply? No — unlike the standalone RAM-HOL-UN14WB-1, this kit includes a hardwire charger, so it's ready to wire into your vehicle or bike.

Will it charge my iPhone 12, 13 or 14? It's not recommended for those models. They're built around MagSafe, which charges faster than the Qi standard this cradle uses. It suits iPhone 11 and earlier, and most Qi Android phones.

Is it waterproof? The charging module is sealed and water-resistant, with a silicone sleeve for the USB connection, so it suits open-cab and motorcycle use. The phone still needs to be Qi-compatible with a case no thicker than 6mm.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

• RAM Tough-Charge / Quick-Grip installation
• RAM wireless charging overview
