RAM Square Base - C Series - 38.1 x 38.1mm - 4-Hole Pattern

RAM-202U-22 RAM® Ball Base with 4-Hole Pattern - C Size

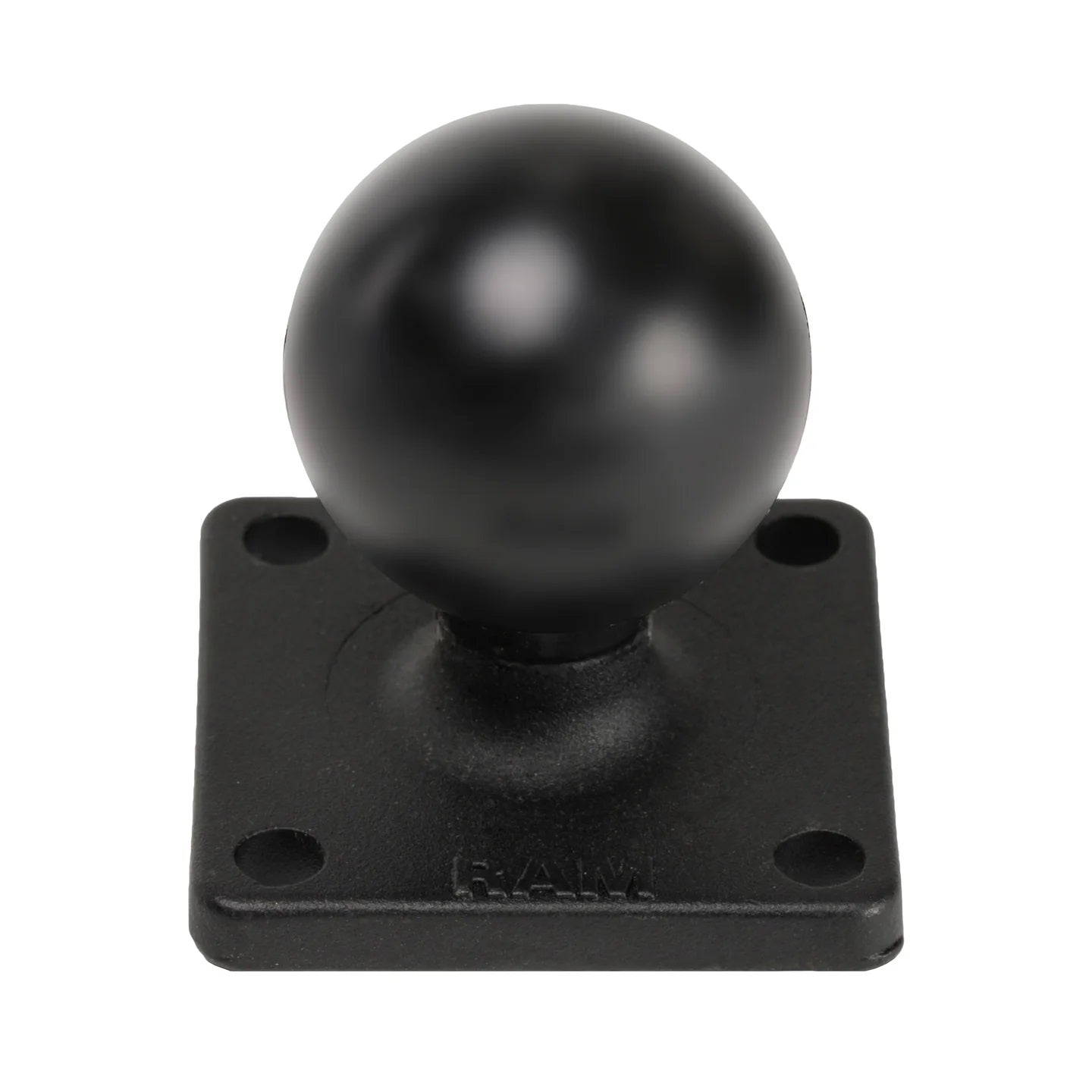

The RAM-202U-22 is a square base plate with a 4-hole 38.1mm x 38.1mm (1.5" x 1.5") pattern and a C Size 1.5" rubber ball, ideal for mounting accessories with a matching bolt pattern. This base requires an arm and cradle to form a complete mounting solution.

Key Features

• Square plate with a 4-hole pattern, 38.1mm x 38.1mm (1.5" x 1.5") centre to centre
• Included C Size 1.5" rubber ball connects to any C Size double socket arm
• Ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by a lifetime warranty

Dimensions & Specifications

• Hole pattern: 4-hole, 38.1mm x 38.1mm (1.5" x 1.5") centre to centre
• Plate size: 51mm x 51mm (2" x 2")
• Ball/socket size: C Size (1.5")
• Material: powder-coated marine-grade aluminium
• Weight: 100g (0.22 lbs)
• Weight capacity: standard use 1.814kg (4 lbs); heavy-duty use 1.36kg (3 lbs)
