RAM-2461-200-400 RAM® Screen / Tablet mount with swivel arm and Tough-Claw™ base
FEATURES
* Square plate includes the 75x 75mm VESA hole pattern for connection to a wide variety of devices
* C size 1.5" swivel arm and double socket arm with ball and socket technology allow for near-infinite adjustability
* Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16mm to 38mm diameter
* Rubber pads provide stable gripping and protection of mounting surface
* Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

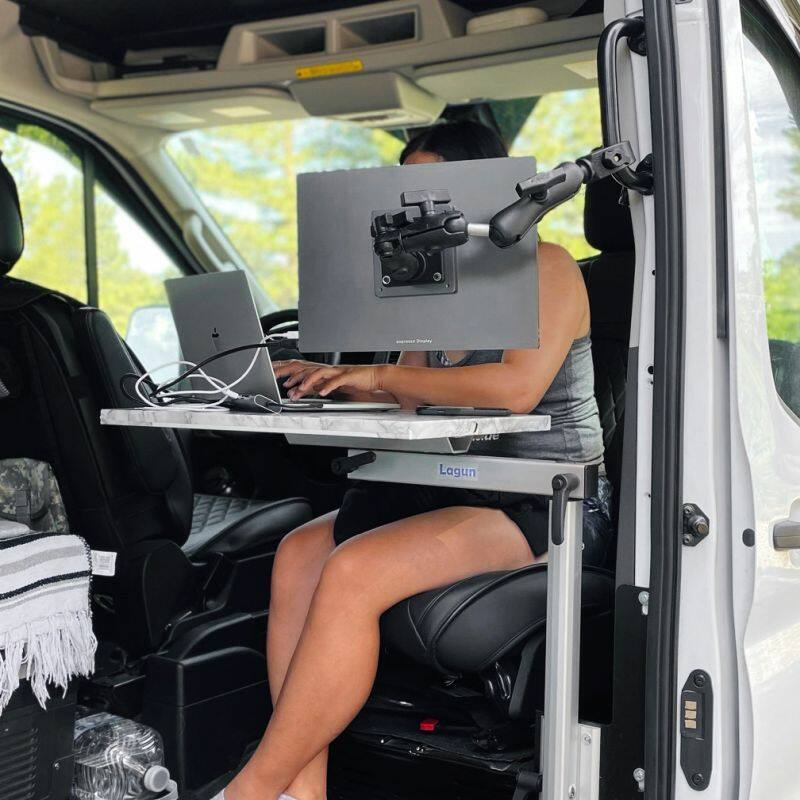

We have combined the RAM VESA plate for mounting screens and tablets with a base that can mount to virtually any bar or handle in your vehicle. The adjust-ability of the system allow you to move it beteen positions and the Tough-Claw can be installed or removed in seconds with no tools required.

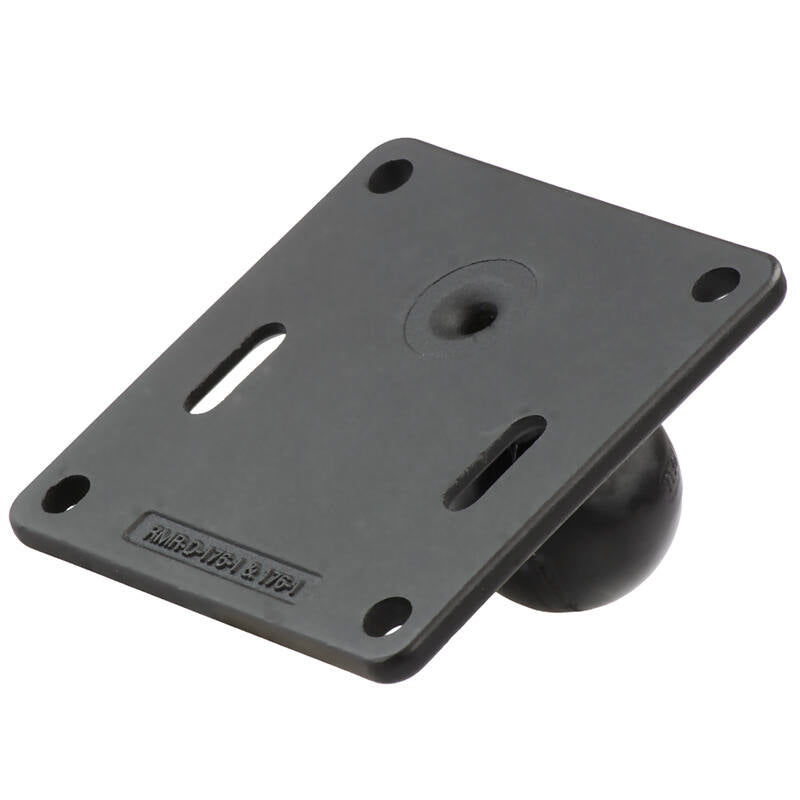

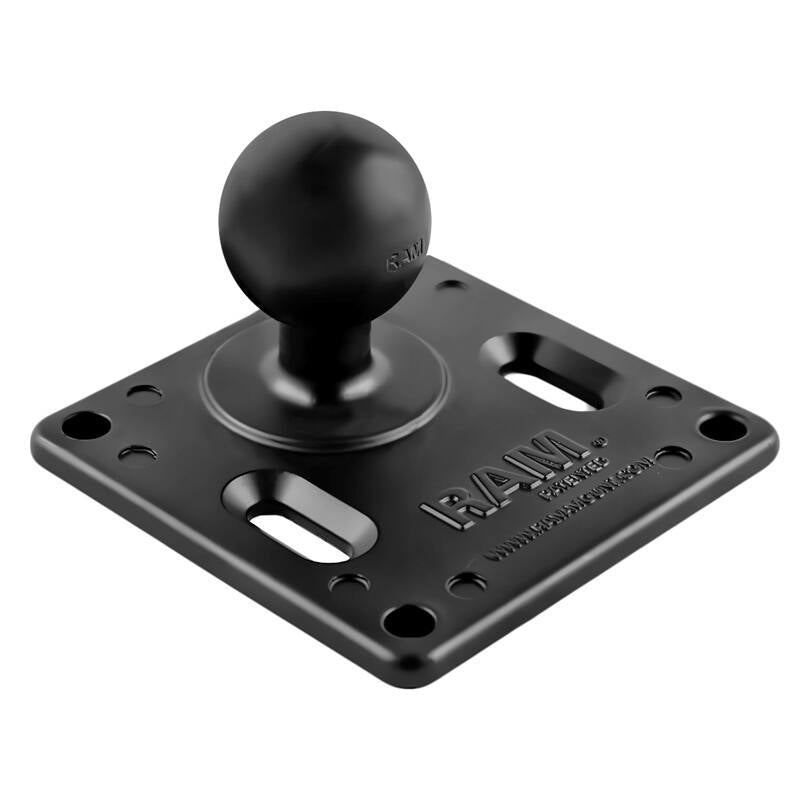

The VESA plate consists of a 1.5" rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88" from the centre of one edge.

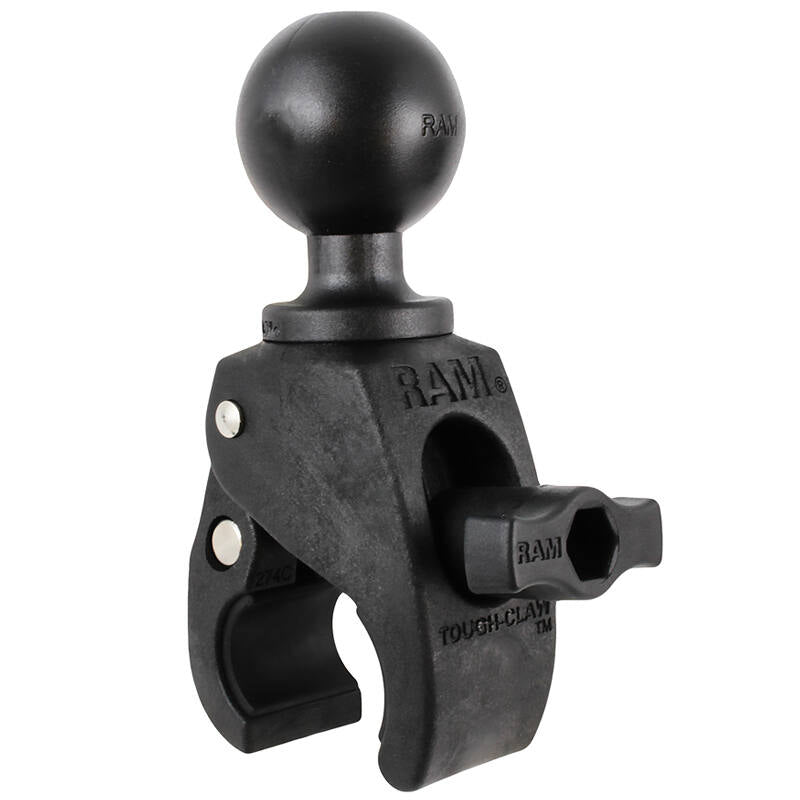

The clamping base is a RAM Tough-Claw which is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 28 mm diameter.
Connecting the two are a medium double socket arm (143mm long), a double ball adaptor and a swivel arm

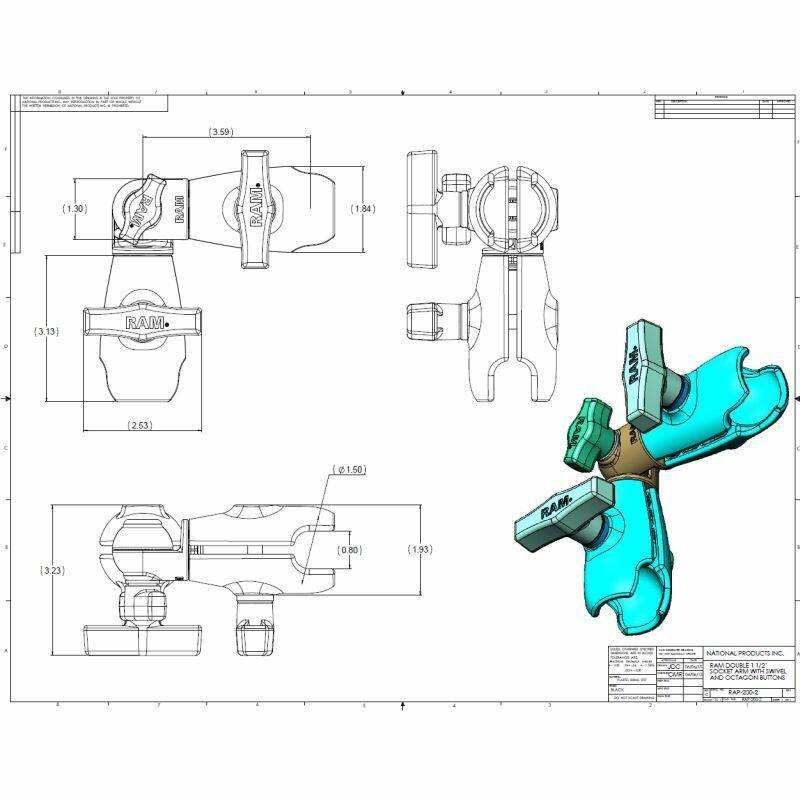

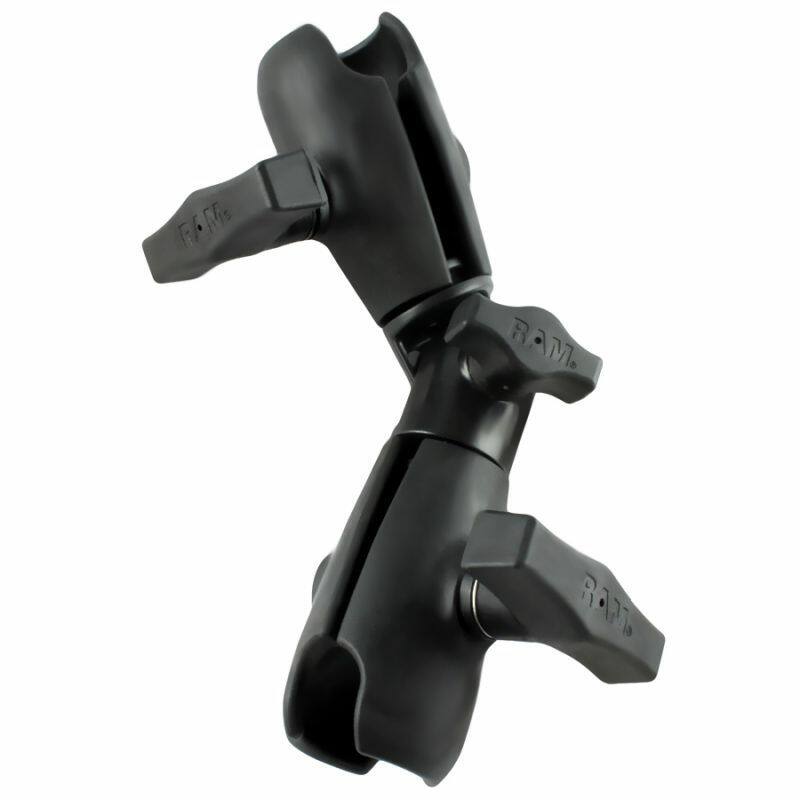

The Swivel Arm consists of double 1.5" diameter open ball sockets with a 360° rotation point at the centre and a connecting swivel joint that rotates forward and back 180°. The rubber ball and socket at either end, and a central pivot point provides unsurpassed adjust-ability.
Specs & Features
Swivel Arm Dimensions:
Overall length 208mm (8.2")
socket-to-socket length 182mm (7.16")

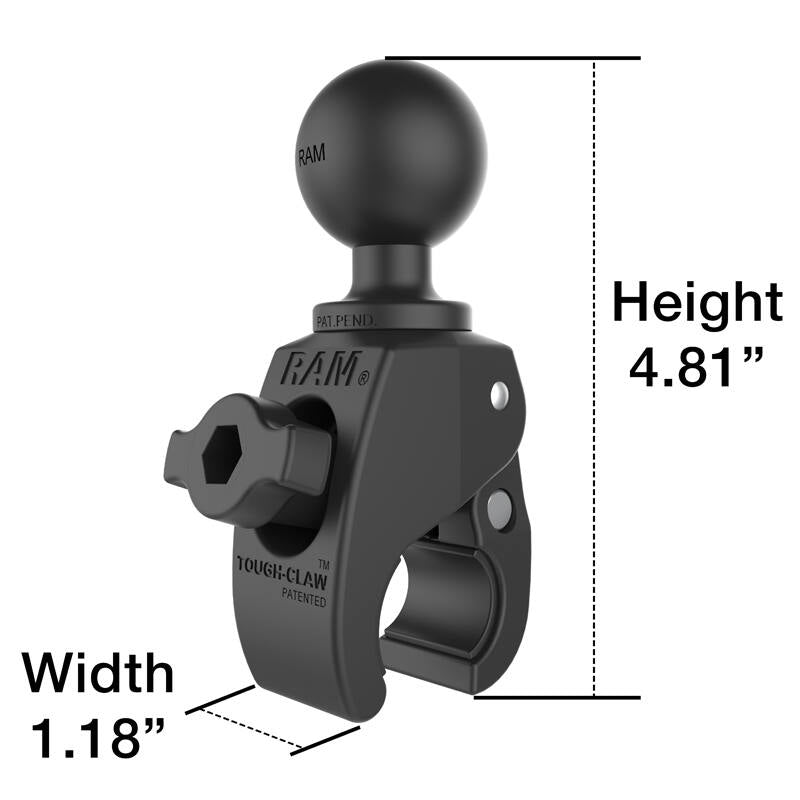

Tough-Claw Dimensions
Rail/Tube Surfaces: 16mm to 28mm (0.625" to 1.14")
Flat Surfaces: 0 to 29mm (0" to 1.14")

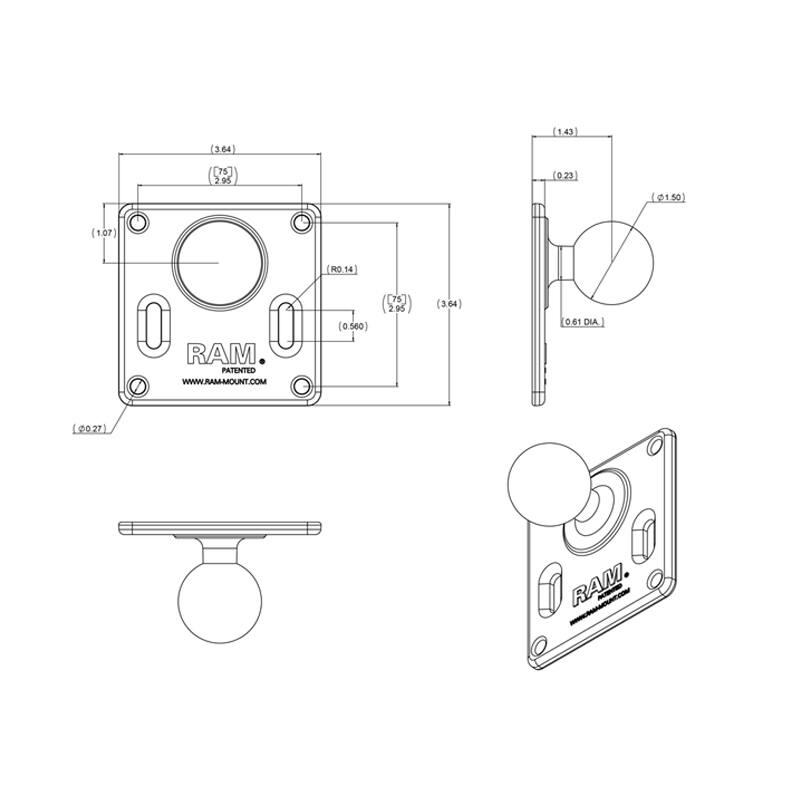

Square Plate Dimensions
Hole Pattern
(See Drawing)
Includes 75mm X 75mm VESA hole pattern
Plate Measurements
92.1mm x 92.1mm (3.625" x 3.625")
Components:
RAM-2461U 90MM VESA PLATE STD BALL
RAP-400U TOUGH-CLAW WITH 1.5" DIA BALL
RAM-201U Standard Double Socket Arm for 1.5" Balls
RAP-200-2U Double Socket Swivel Arm

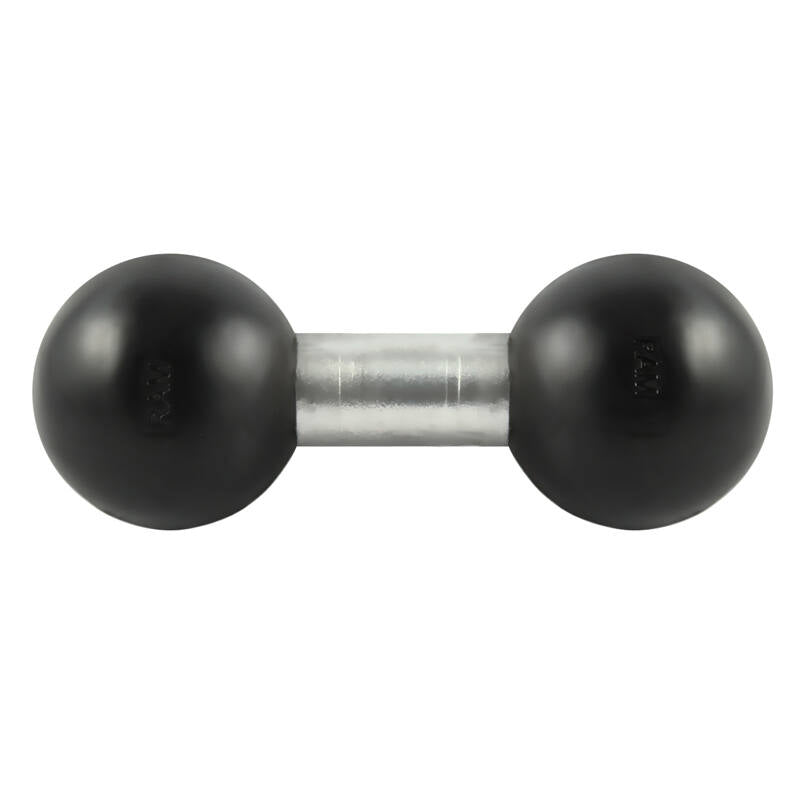

RAM-230U 1.5" Double Ball Adapter

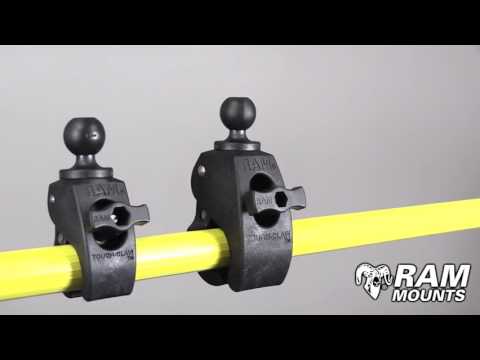

YouTube:
