RAM Strap base - for 1"- 2.1" Round Bars - C Series

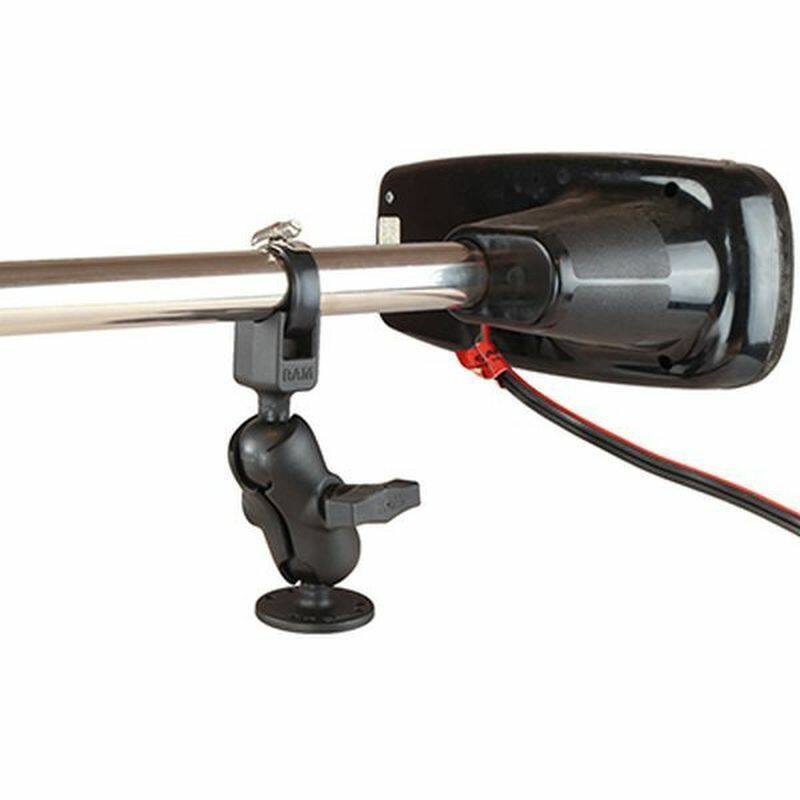

RAM-108BU RAM® Strap Hose Clamp Base – C Size (1.5" Ball)

The RAM-108BU is a strap clamp base with a 1.5" C Size rubber ball, fitting round rails from 25.4mm to 53.34mm (1" to 2.1") in diameter.

Key Features

• Clamp mount suits rails ranging from 25mm to 53mm in diameter
• 1.5" C Size rubber ball connects to any C Size RAM® double socket arm
• Ball-and-socket design allows near-infinite adjustability
• Powder-coated marine-grade aluminium construction
• Backed by RAM's lifetime warranty

Dimensions & Specifications

• Strap range: 25.4mm to 53.34mm (1" to 2.1")
• Ball size: C Size (1.5" rubber)
• Material: Powder-coated marine-grade aluminium
• Weight: 136 grams (0.3 lbs)
• Weight capacity: 1.814kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

Hardware Included

• 1 x #20 worm drive strap clamp
• 1 x #28 worm drive strap clamp
• 1 x 6" rubber strip

FAQs

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

Installation video
