RAM Suction Cup Base - Dual Suction Cups with 1" (B Series) Ball

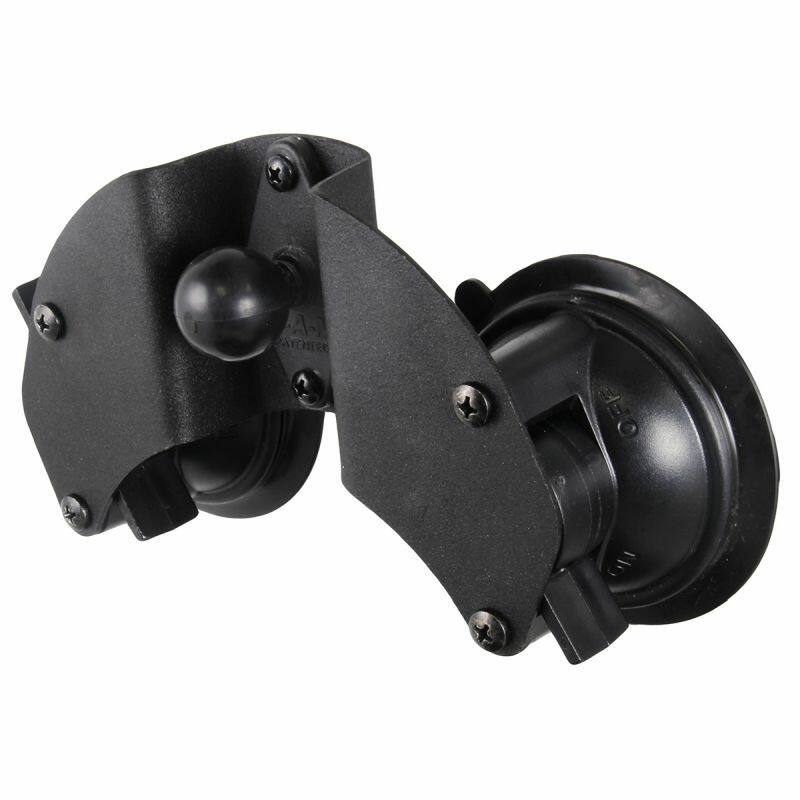

RAM-B-189B-ALA1U – RAM® Dual Suction Cup Base with 1" B-Size Ball

The RAM-B-189B-ALA1U is a twist-lock dual suction cup base with a 1" B-size diamond ball, giving you a strong, drilling-free mounting point on glass and other smooth non-porous surfaces. The two 84mm cups and locking levers hold firmly for in-vehicle, marine and aircraft use.

Key Features

• RAM® Twist-Lock™ dual suction base for glass and other smooth non-porous surfaces
• Diamond ball base with 1" B-size ball connects to any B-size RAM® arm
• High-strength composite and powder-coated marine-grade aluminium
• Backed by a lifetime warranty

Works With

Any B-size RAM® double socket arm. Best results on glass or non-porous plastic; RAM® adhesive disks let you use it on textured or painted surfaces. If your surface is curved, consider the RAM-B-189B-PIV1U articulating version instead.

Dimensions & Specifications

• Suction cups: 84mm (3.3") diameter, twin twist-lock
• Ball size: 25mm (1") rubber, B size
• Material: high-strength composite, powder-coated marine-grade aluminium
• Weight: 363g (0.8 lb)
• Weight capacity: 907g (2 lb)

FAQs

Will it hold on a curved dash? The flat twin-cup base is designed for flat surfaces. For a curved surface, the articulating RAM-B-189B-PIV1U is the better choice, or add a RAM® adhesive disk to create a flat mounting pad.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
