RAM-B-189-TAB20-ALA1-KRU RAM® Tab-Tite™ with RAM® Twist-Lock™ Suction for 9"-10.5" Tablets
Features
* Spring-loaded holder secures most 9" tablets with heavy-duty cases; interchangeable end cups allow you to modify the holder when upgrading devices
* RAM® double socket arm uses ball and socket technology allows for near-infinite adjustability
* Retention arm allows for easy adjustment of viewing angles when the tablet is in place
* Made of high-strength composites and Powder Coated Aluminium Alloy for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

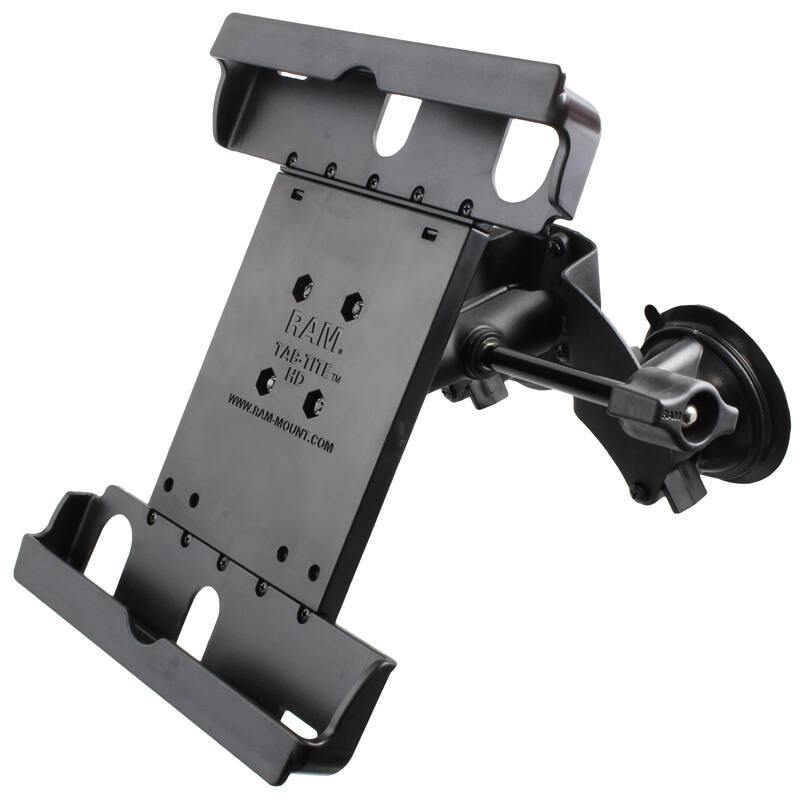

Thus consists of a double 3.3" twist lock suction cup base, MEDIUM double socket arm, extended retention knob, round base adapter and Tab-Tite™ universal clamping cradle.

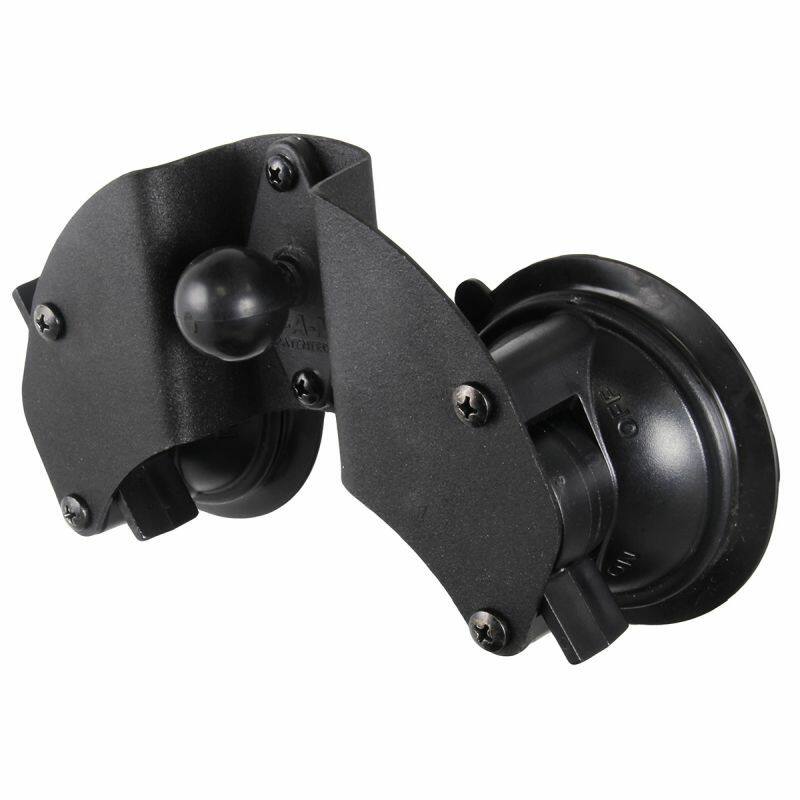

The double 3.3" twist lock suction cup base that is connected to the diamond base with 1" rubber ball. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.
The ball on this base connects to the standard length double socket arm with retention knob. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. The knob extension allows for easy adjustment of the mount and prevents over loosening of the knob. This socket technology allows for almost infinite adjustment and perfect viewing angles.

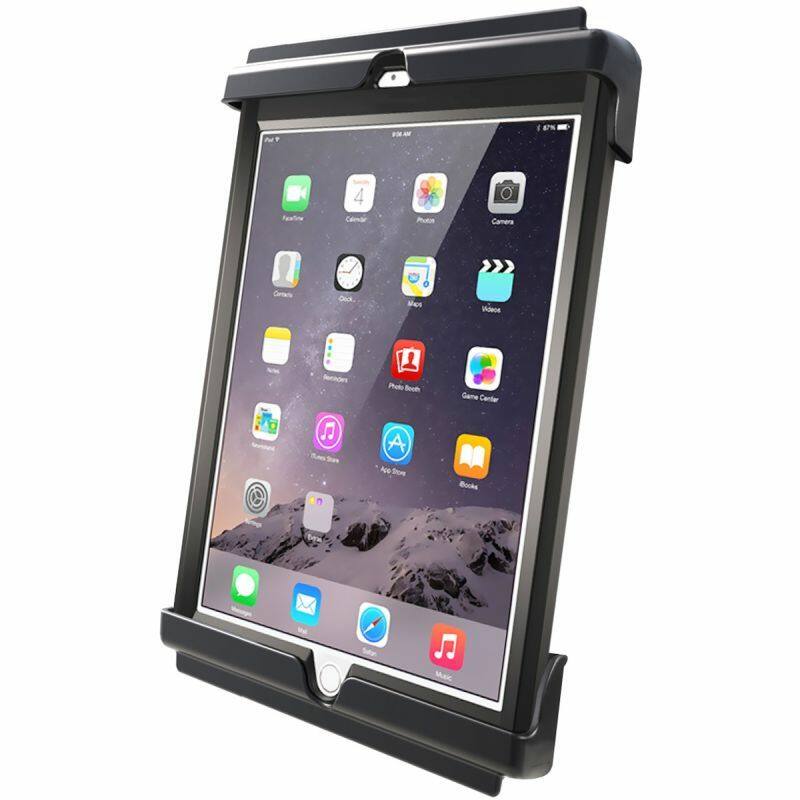

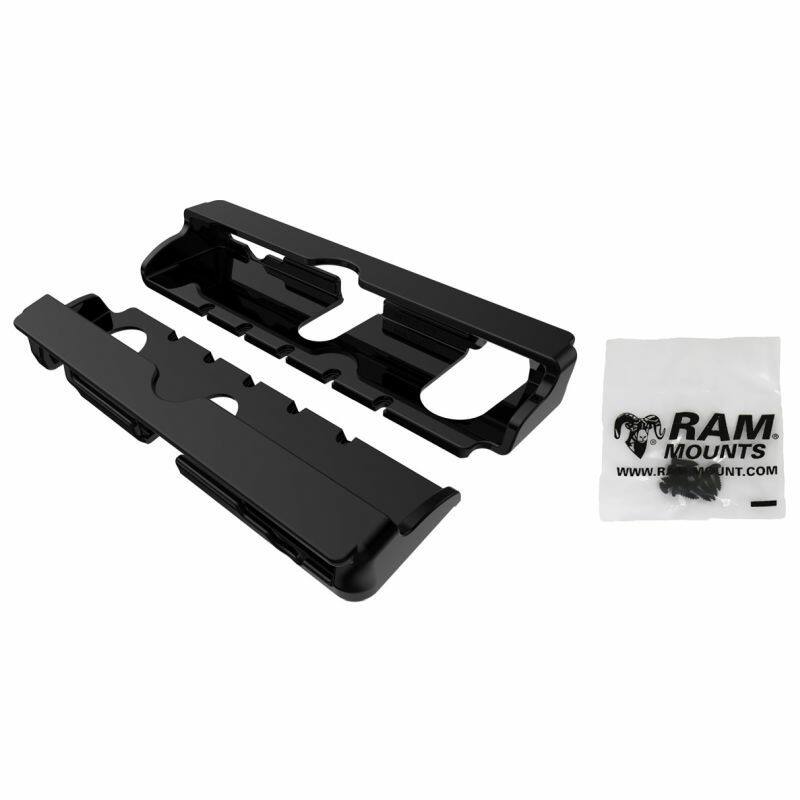

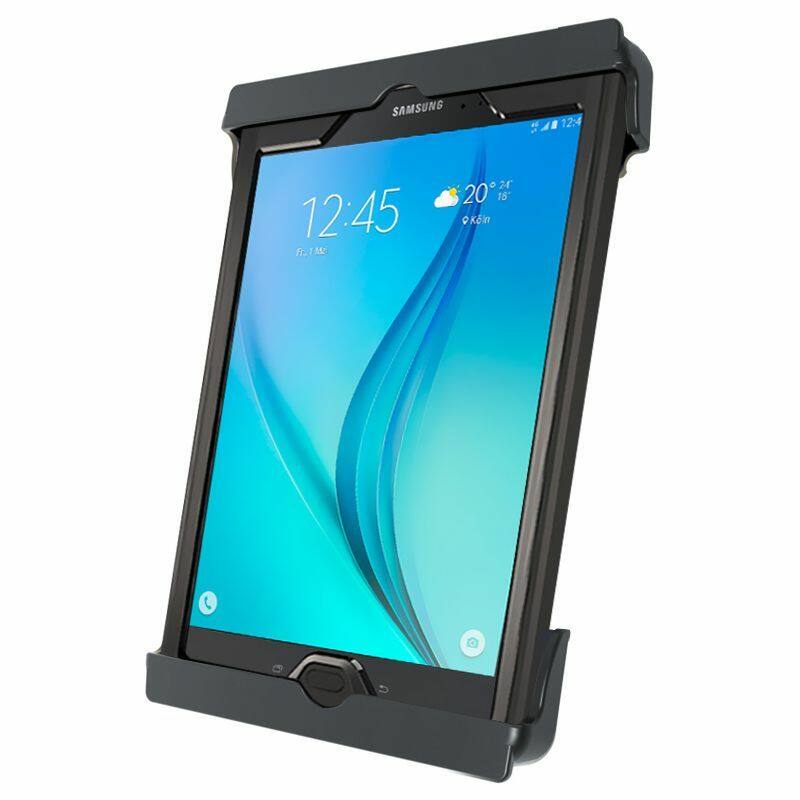

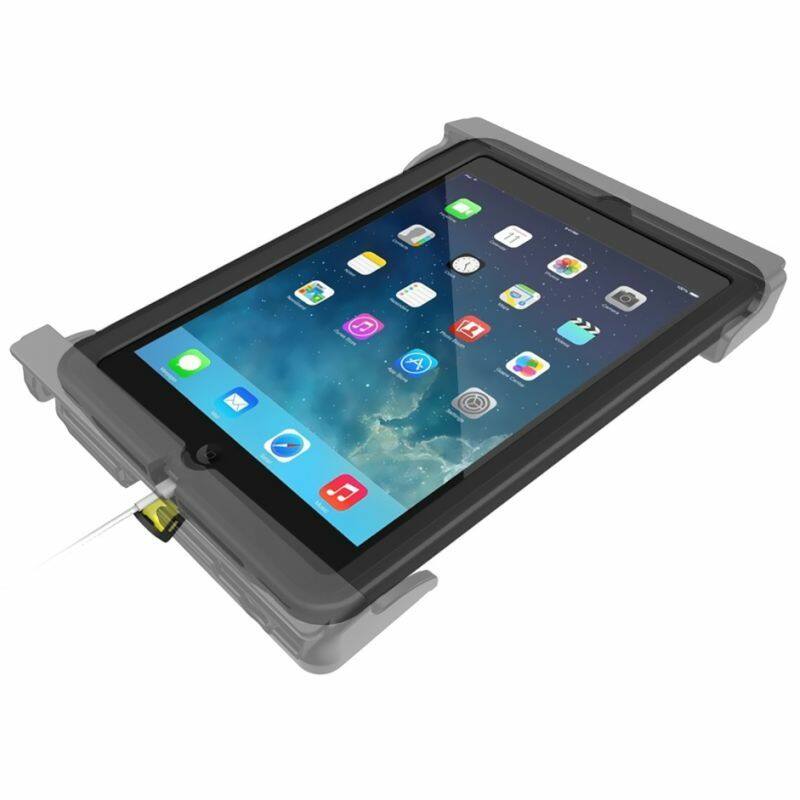

The RAM® Tab-Tite™ spring-loaded, quick release holder offers a secure fit with easy access to the mounted tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions.
The Tab-Tite cradle is compatible with any tablet that will fit the following dimensions. Please verify the dimensions of your tablet when determining the overall size.
Tab-Tite Cradle Dimensions:
Height:
241mm min to 308mm max (9.5" to 12.125")
Width:
166mm to 189mm (6.55" to 7.43")
Depth:
7.6mm to 22mm (0.3" to 0.875")
Compatible Devices (WITH CASE, SKIN, SLEEVE):
Apple
iPad (5th Generation) with Case
iPad (6th Generation) with Case
iPad (7th Generation) with Case
iPad (8th Generation) with Case
iPad (9th Generation) with Case
iPad 9.7 (2017) with Case
iPad 9.7 (2018) with Case
iPad Air with Case
iPad Air 2 with Case
iPad Pro 10.5 (2nd Generation) with Case
ASUS
ZenPad 10 with Case
ZenPad 3S 10 with Case
ZenPad Z10 with Case
Huawei
MediaPad M2 10.0 with Case
Lenovo
Tab 2 A10-70 with Case
Tab 4 10 with Case
Tab 4 10 Plus with Case
Tab3 10 Business with Case
Yoga Tab 3 10 with Case
LG
G Pad 10.1 with Case
G Pad II 10.1 with Case
G Pad X 10.1 with Case
G Pad X II 10.1 with Case
Microsoft
Surface Go with Case
Surface Go 2 with Case
Samsung
Galaxy Tab 10.1 with Case
Galaxy Tab 3 10.1 with Case
Galaxy Tab 8.9 with Case
Galaxy Tab A 9.7 with Case
Galaxy Tab A 10.5 with Case
Galaxy Tab Pro 10.1 with Case
Galaxy Tab S2 9.7 with Case
Galaxy Tab S3 9.7 with Case
Galaxy Tab S4 10.5 with Case
Galaxy Tab S6 with Case
Galaxy Tab S7 with Case
Galaxy Tab S8 with Case
Sony
Xperia Tablet Z with Case
Vankyo
MatrixPad Z4 10"
Material:
High Strength Composite
Powder Coated Aluminium Alloy
Weight:
857 grams (1.89 lbs)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components:
RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-HOL-TAB20U TAB-TITE IPAD AIR W CASE
RAM-B-201-ALA1-KRU STD ARM W EXTENSION KNOB RET
RAM-B-189B-ALA1U DOUBLE SUCTION CUP BASE
