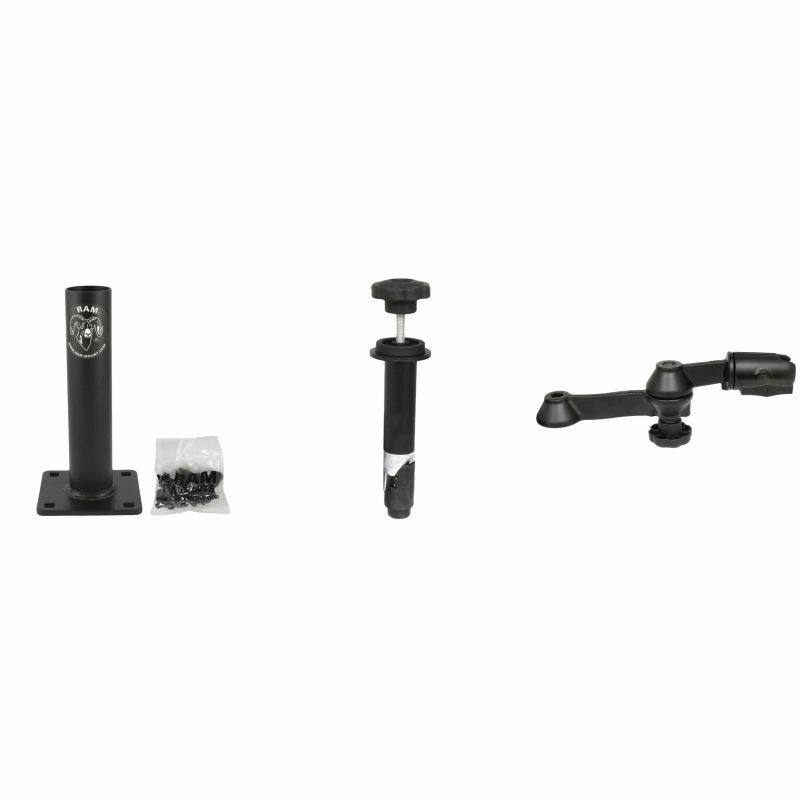

RAM-VB-SW1-47-NB RAM Tele-Pole with 4" & 7" Poles and Double Swing Arm
Features
* Swing arm rotates to provide ideal viewing angles - overall legth is 305mm
* Overall height adjustable between 312 and 389mm
* C size 1.5" RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder coated steel and power-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
The RAM-VP-SW1-47 consists of a 178mm (7") lower female Tele-Pole™, 102mm (4") upper male Tele-Pole™ and a double swing arm with a female 1.5" ball socket.
The RAM Tele-Pole female tube base has a square plate base that will connect to many of the RAM-VB No-Drill™ and Drill plate bases, as well as RAM-VP-TTMXX and RAM-VP-TTMFXX top tele-poles™. The female post is 7" tall and has a 1.375" diameter.
The height of the Tele-Poles™ when combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles.
The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place. The length of the double swing arm is 305mm (12").
HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps
PRODUCT DIMENSIONS
Minimum Height:
312mm (12.3")
Maximum Height:
389mm (15.3")
PLATE SIZE
Lower Pole:
88.9mm x 88.9mm (3.5" x 3.5")
BALL SIZE
C Size (1.5")
MATERIALS
Powder coated steel
Marine-grade aluminium
WEIGHT
2.9KG
Components:

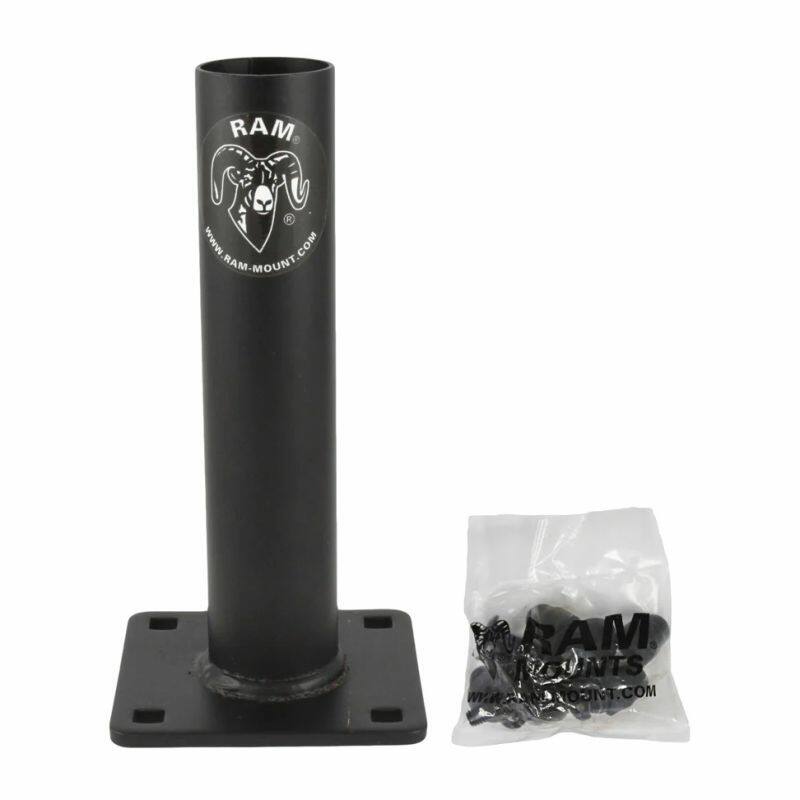

RAM-VP-TBF7U RAM 7" Lower Telepole Base

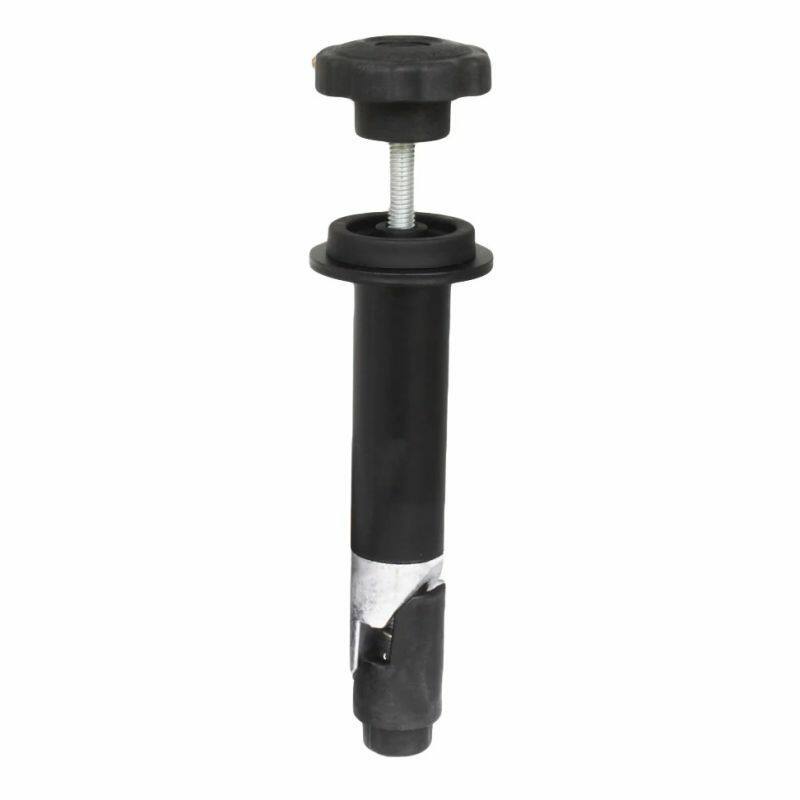

RAM-VP-TTM4U RAM 4" Upper Telepole

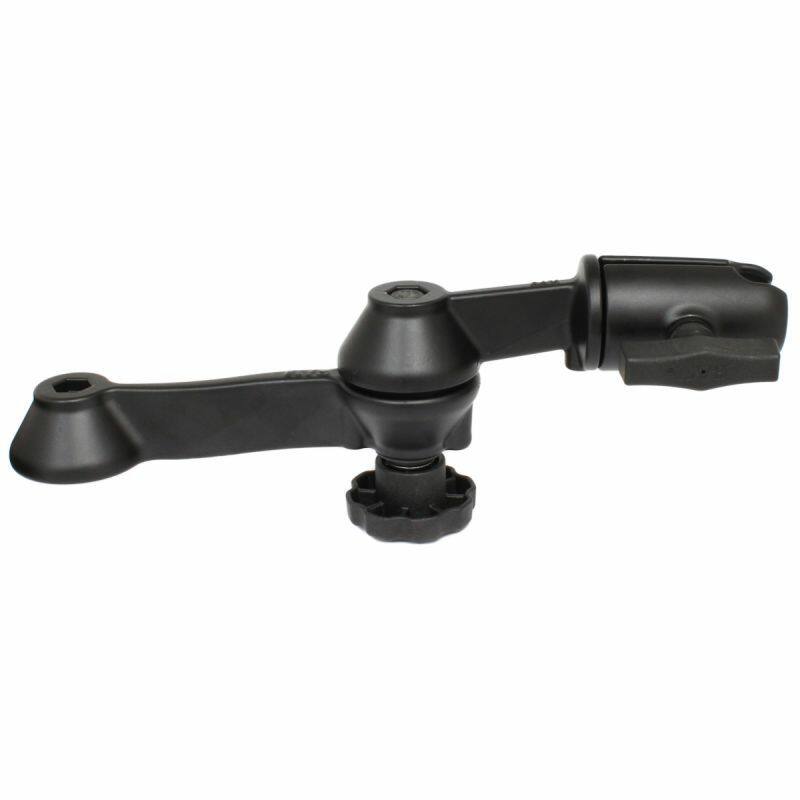

RAM-VB-110-1NBU RAM 12" Double Swing Arm with Swivel Socket
