RAM Tele-Pole with 12" lower and 8" Upper Poles, Swing arms and 75x75mm VESA Plate

RAM-VP-SW1-812-2461 RAM® Tele-Pole™ with 12" lower and 8" Upper Poles, Swing arms and 75x75mm VESA Plate

Features

* Designed to support a screen and laptop from the same base
* Base rotates to provide ideal viewing angles
* Square plate features the 75 x 75mm VESA hole pattern for connection to a wide variety of devices
* C size 1.5" RAM® ball and socket technology allows for near-infinite adjustability
* Made of power-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

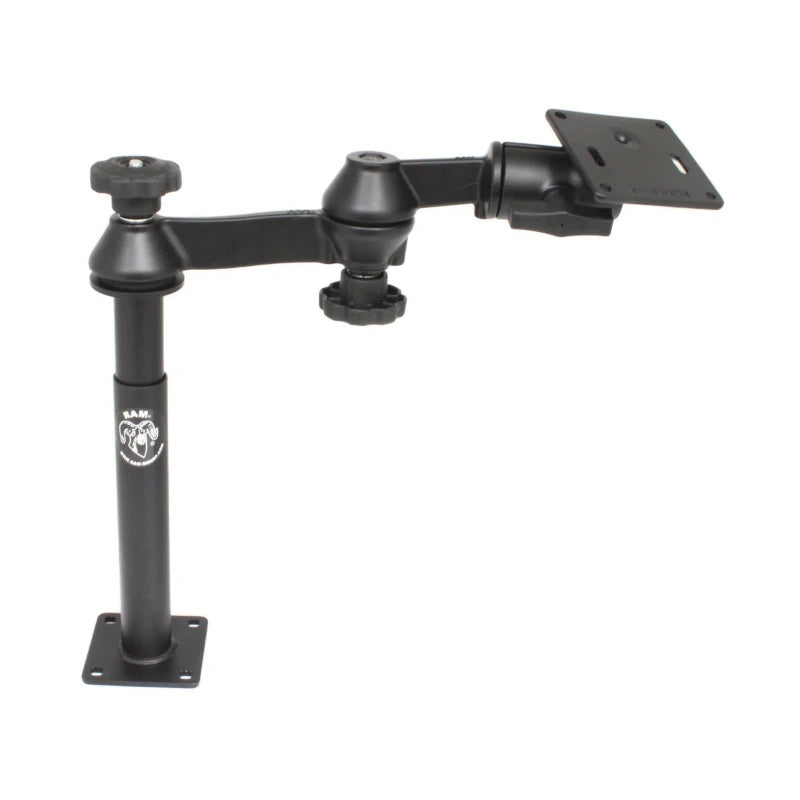

The RAM-VP-SW1-812-2461 consists of a 12" lower female Tele-Pole™, 8" upper male Tele-Pole™, double swing arm and 3.625" square base that contains the VESA hole pattern.

The lower female Tele-Pole™ will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole™. The height of the Tele-Poles™, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole™ becomes a rigid support for connecting devices or cradles.

The double swing arm allows you to twist and tilt the viewing angle of your connected electronic device, when mounted on your RAM Vehicle Mount. The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place.

The length of the double swing arm is 12".

The 3.625" square base includes a 75mm X 75mm VESA hole pattern with 1.5" rubber ball positioned 0.88" from the center of one edge.

HARDWARE INCLUDED

Assembly Hardware

(4) 5/16"-18 x 1" Carriage Bolts

(4) 5/16"-18 Hex Nuts (4) 5/16" Flat Washers

 (4) 5/16" Split Lock Washers

(4) Rubber Caps

PRODUCT DIMENSIONS

Minimum Height: 19.3"

Maximum Height: 24.3"

HOLE PATTERN

Tele-Pole: 2.625" x 2.625"

VESA Plate: 75 x 75mm

 VESA PLATE SIZE

 3.625" x 3.625"

Lower Pole: 3.5" x 3.5"

BALL SIZE C Size (1.5")

MATERIALS

 Powder coated steel Marine-grade aluminum

COMPONENTS

RAM-2461U - 75 x 75mm VESA plate

RAM-VB-110-1NBU - Double swing arm

RAM-VP-TBF12U - RAM 12" Female Lower Base for Telepole

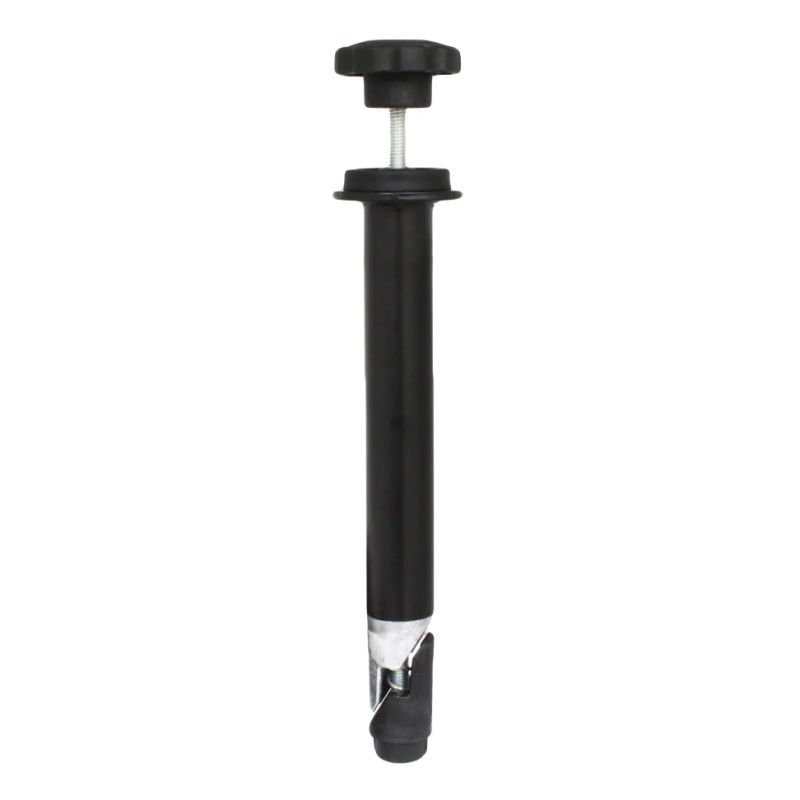

RAM-VP-TTM8U - RAM Tele-Pole Male Base - 203mm
