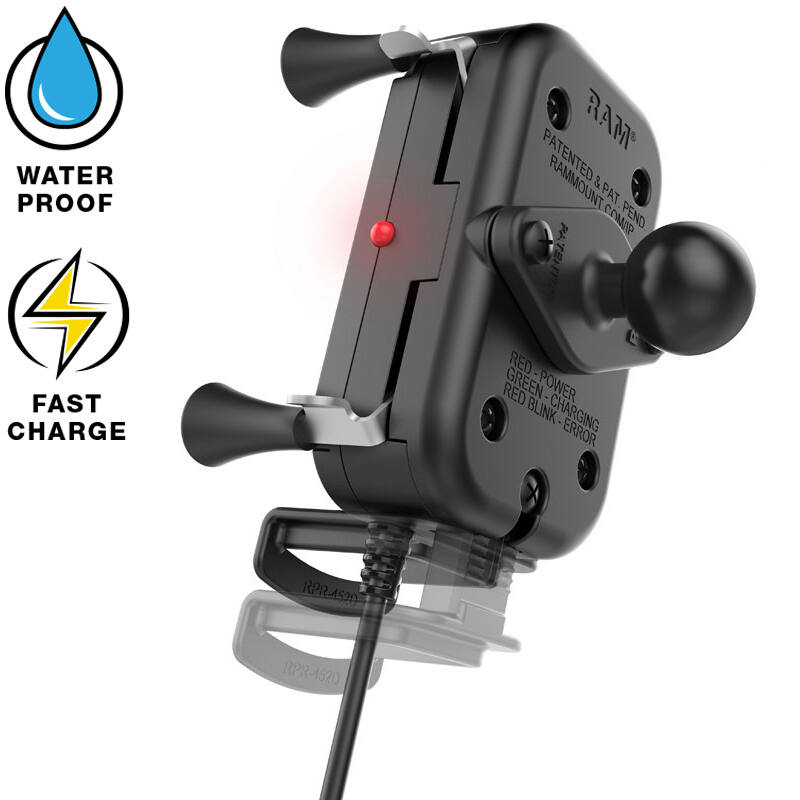

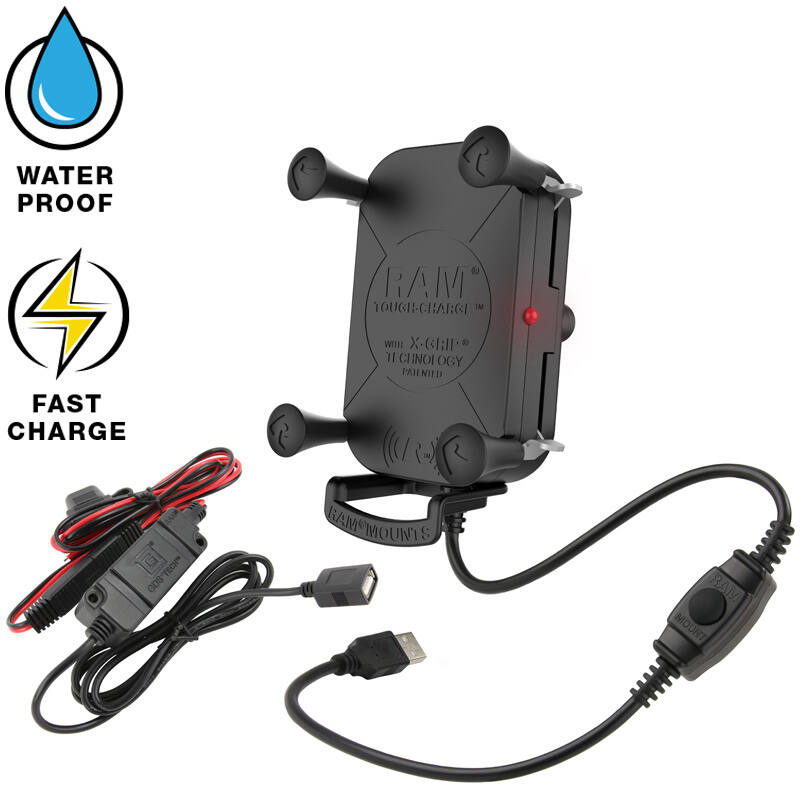

RAM-HOL-UN12WB-V7M RAM® Tough-Charge™ with X-Grip® Tech Waterproof Wireless Charging Holder with charger (includes RAM-B-238U Diamond plate)
Features
* Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 10W maximum output
* Kit for motorcycles includes wireless cradle, B size diamond ball base, and hardwire charger; attaches to B size double socket arms
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required
The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones.

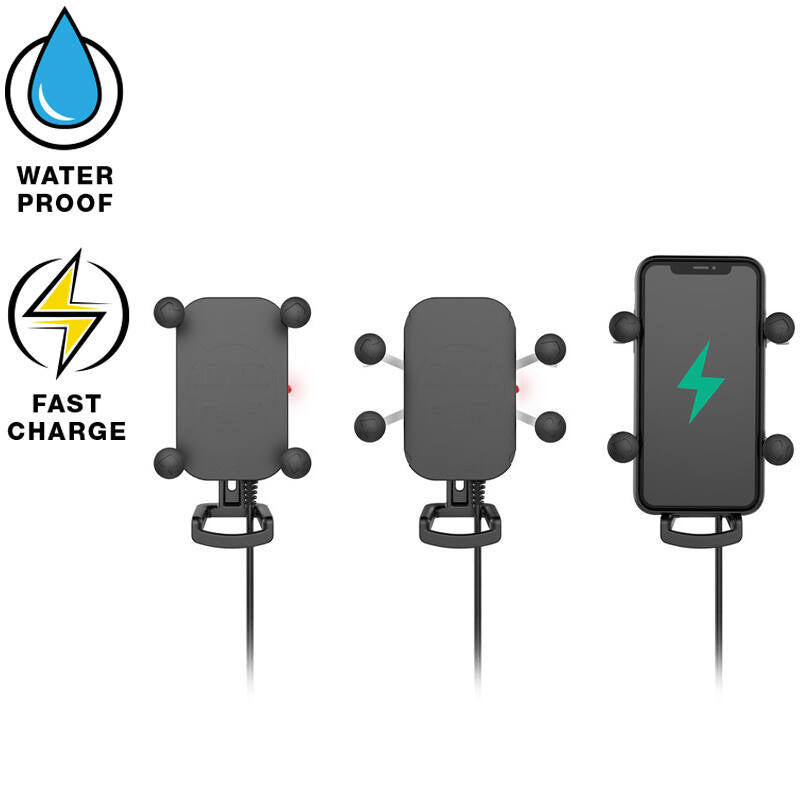

To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it’s placed at.
For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether.
The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
This RAM® Tough-Charge™ with X-Grip® Technology wireless charging kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm.
Please ensure that your device is suitable within the following Cradle Dimensions
Width Range: 60.3mm to 82.6mm (2.375" - 3.25")
Depth Range: 22.2mm (0.875") max
Compatible Devices Include:
Apple
iPhone 11
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 8
iPhone 8 Plus
iPhone SE
iPhone X
iPhone Xr
iPhone Xs
iPhone Xs Max
Blackberry
Evolve X
Blackview
BV9900
BV9900 Pro
Google
Pixel 3
Pixel 3 XL
Pixel 4
Pixel 4 XL
Pixel 5
Huawei
Mate 20 Pro
P30 Pro
LG
G6
G6+
G7 ThinQ
G8 ThinQ
G8S ThinQ
V30
V35 ThinQ
V40 ThinQ
V50 ThinQ
Nokia
8 Sirocco
9 PureView
Razer
Phone 2
Samsung
Galaxy Note 10
Galaxy Note 10 Plus
Galaxy Note 5
Galaxy Note 8
Galaxy Note 9
Galaxy S10
Galaxy S10 5G
Galaxy S10+
Galaxy S10e
Galaxy S20
Galaxy S20+
Galaxy S20 Ultra 5G
Galaxy S21 5G
Galaxy S21+ 5G
Galaxy S21 Ultra 5G
Galaxy S6
Galaxy S6 Edge
Galaxy S6 Edge+
Galaxy S7
Galaxy S7 Active
Galaxy S7 Edge
Galaxy S8
Galaxy S8+
Galaxy S8 Active
Galaxy S9
Galaxy S9+
Sony
Xperia XZ2
Xperia XZ2 Compact
Xperia XZ3
Xiaomi
Mi 9
Mi 9 Explorer
Mi Mix 2S
Mi Mix 3
ZTE
Axon 10 Pro
Axon 9 Pro
This kit includes a hard-wire charger.
Power Specifications
Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Maximum Case Thickness: 6mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
Qi Compatible
Compatible with QC2.0/QC3.0 power supplies
Compliance
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant

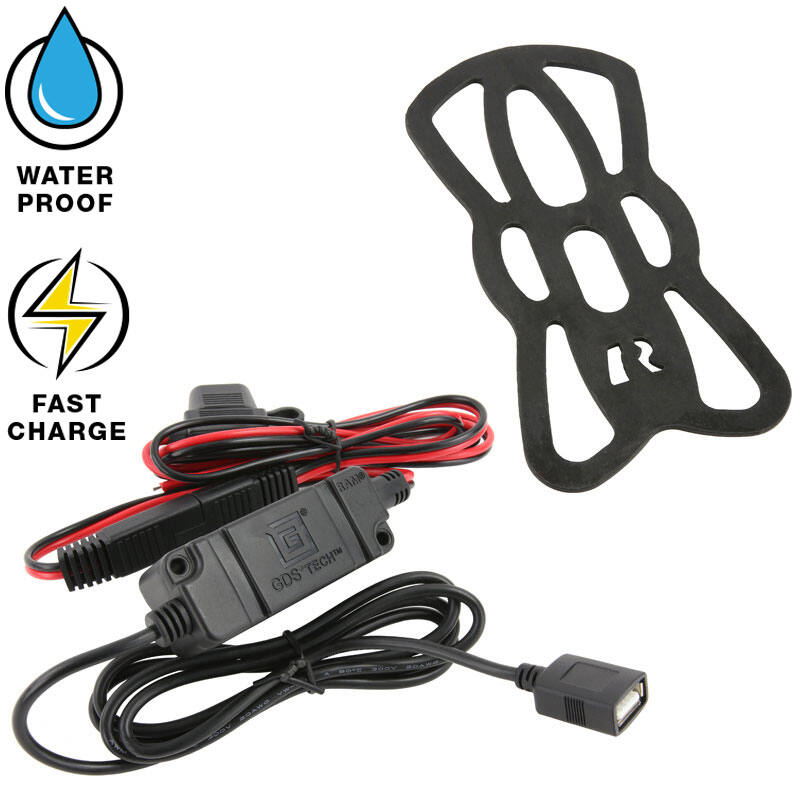

Hardware Included
(1) Safety Tether
(1) Glue Tube for Rubber Caps
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Silicon sleeve for USB waterproof connection
(1) 1.2 Meter USB Extension Cable
Weight Capacity
907 grams (2 lbs)
Materials:
High strength composite
Stainless steel
Weight
322 grams (0.71 lbs.)
Warranty Status
1 year warranty
Ball/Socket Size
B Size (1")
