RAM Mounts

RAM X-Grip Universal Cradle for 7"- 8" Tablets w/ Double Suction Cup / Retention

RAM X-Grip Universal Cradle for 7"- 8" Tablets w/ Double Suction Cup / Retention

SKU:RAM-B-189-UN8-ALA1-KRU-V

Regular price $319.18 NZD
Regular price Sale price $319.18 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

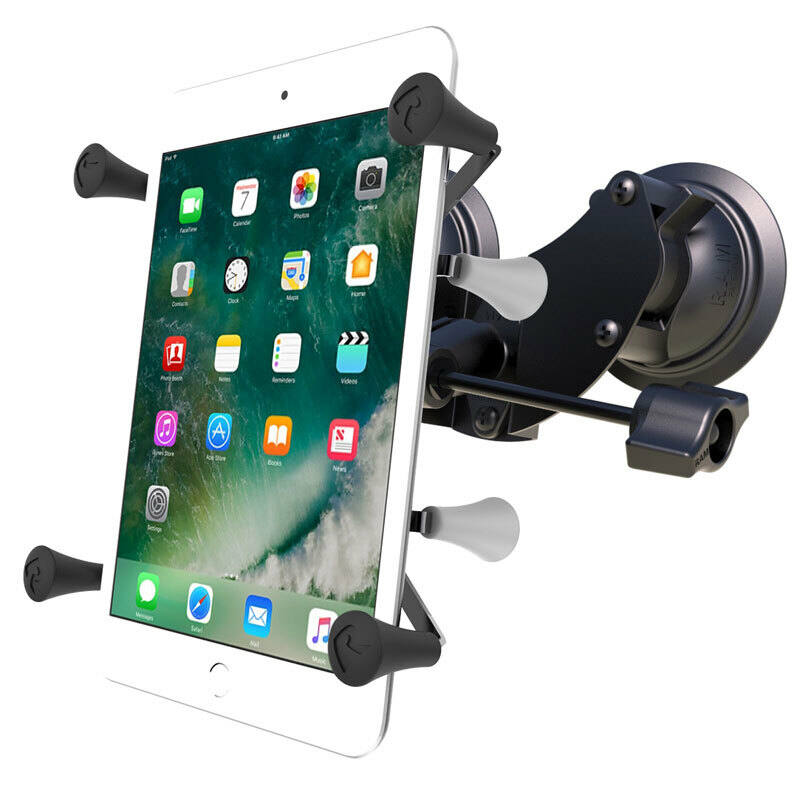

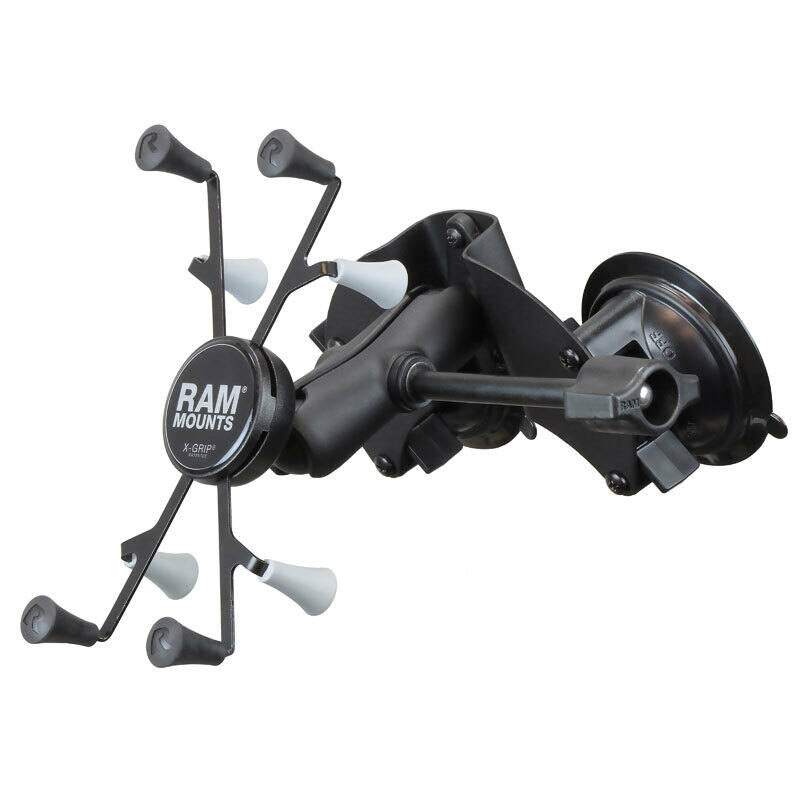

RAM-B-189-UN8-ALA1-KRU RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction for 7"-8" Tablets

Features

* Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 7-8" tablets
* Easy access grip knobs on the back of the holder allow for the quick release of your tablet
* The dual suction cup base can be used in a variety of applications such as curved windows and surfaces
* RAM double socket arm with double socket technology allows for infinite adjustment angles
* Retention arm allows easy adjustment of the device whilst in place
* Made of high-strength composite, powder coated aluminium alloy and steel components for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

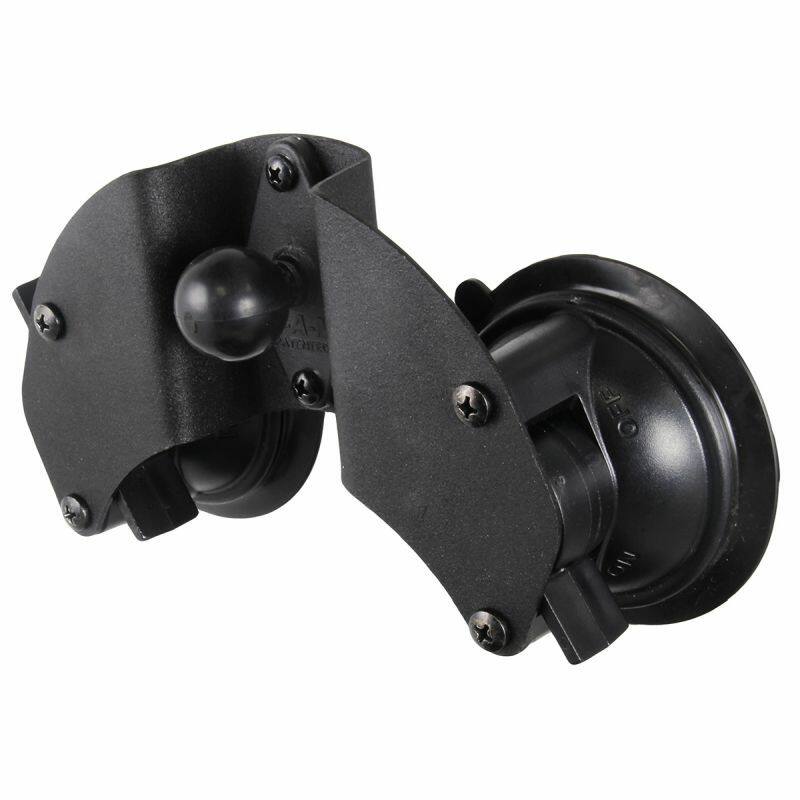

The RAM-B-189-UN8-ALA1-KRU consists of a double 3.3" twist lock suction cup base, STANDARD length double socket arm, easy access retention knob and universal spring loaded X-Grip® cradle for 7"-8" tablets. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces.

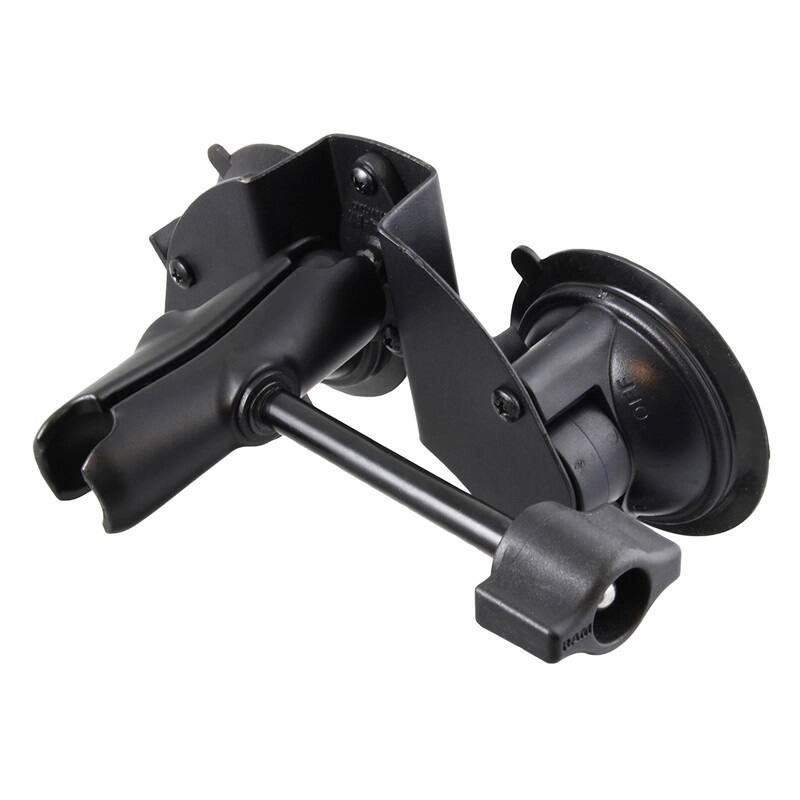

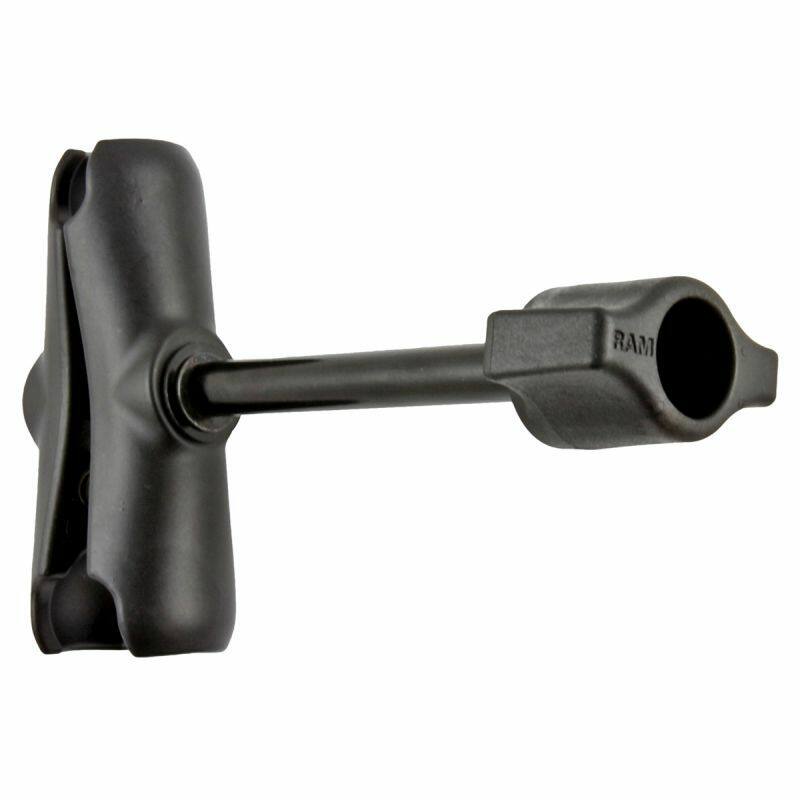

This STANDARD/medium length double socket arm with retention knob, has a socket at both ends that accommodates 1" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. The knob extension allows for easy adjustment of the mount and prevents over loosening of the knob. This socket technology allows for almost infinite adjustment and perfect viewing angles.

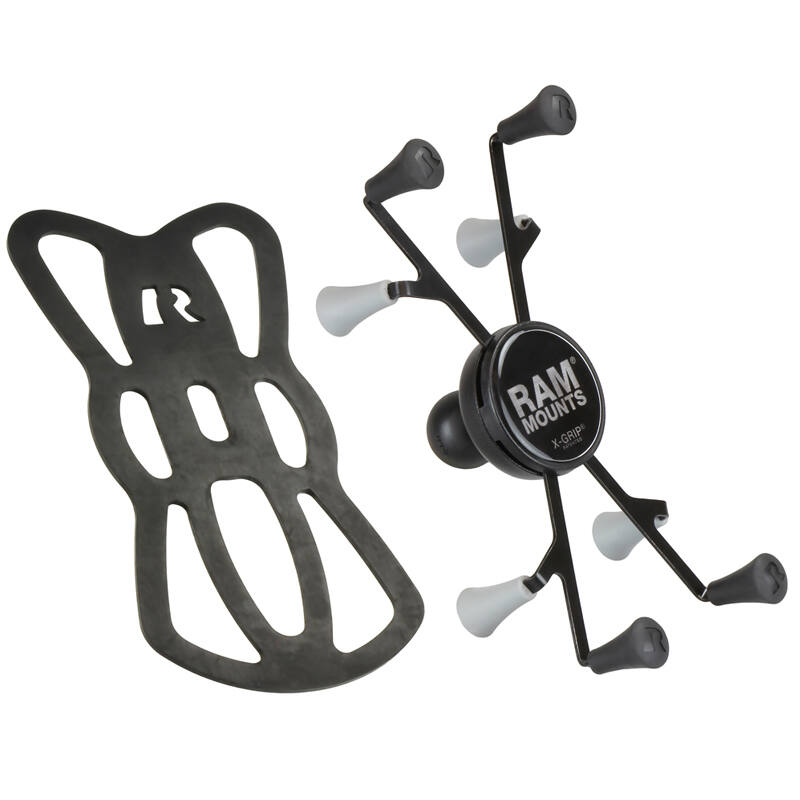

The X-Grip consists of a spring-loaded cradle and 1" rubber ball connected to the back of the base. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. It expands and contracts for perfect fit of most 7"-8" tablets.


The X-Grip® includes a device tether recommended for outdoor applications.


The cradle is compatible with devices that will fit the dimensions listed below. It is important to verify the dimensions of your device with a case/sleeve/skin when determining the overall size.


Cradle Dimensions
Minimum Width = 63.5mm (2.5”) – (if it is minimum width then the minimum height = 177.8mm / 7")
Maximum Width = 146.05mm (5.75") – (if it is maximum width then the minimum height = 101.6mm / 4")
Maximum Thickness = 22.2mm (0.875")


Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-UN8BU


Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
