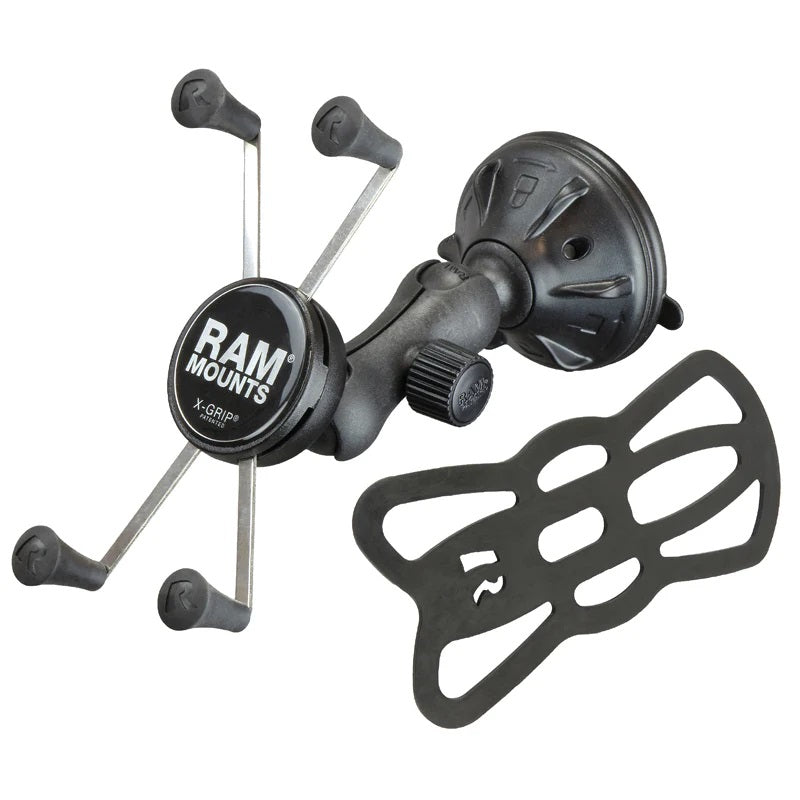

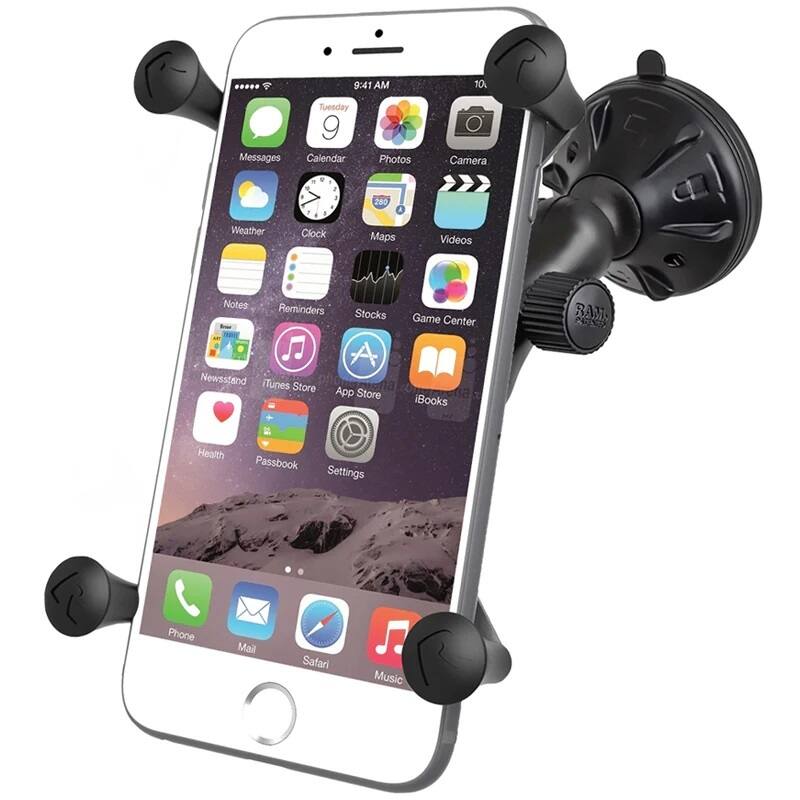

RAP-B-166-2-UN10U – RAM® X-Grip® Phablet Mount with Low-Profile Twist-Lock™ Suction Base

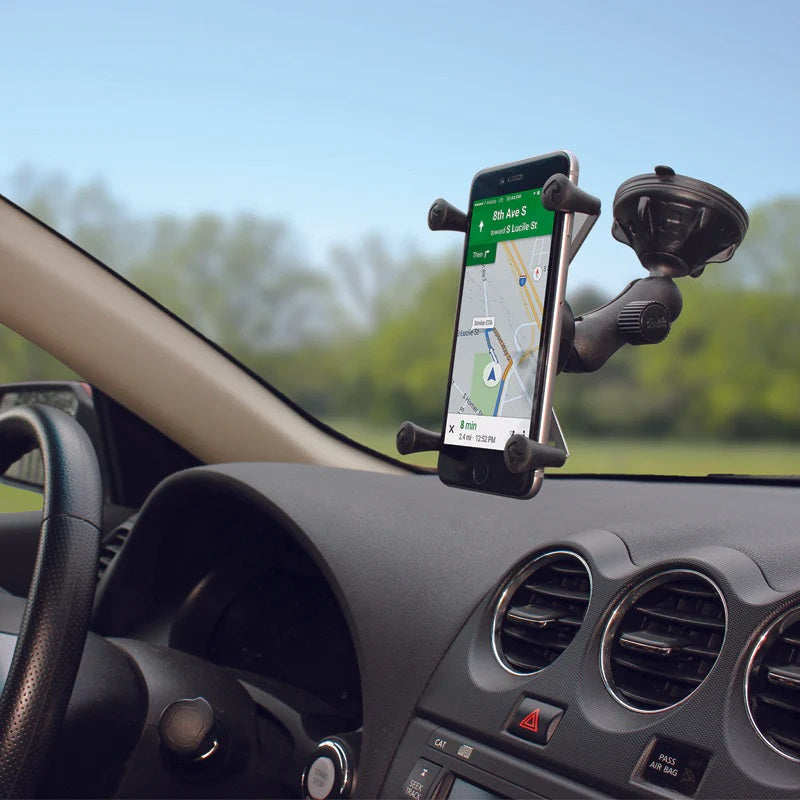

The RAP-B-166-2-UN10U pairs the RAM® X-Grip® large phone and phablet cradle with a low-profile 70mm (2.75") RAM® Twist-Lock™ suction cup base and a composite double socket arm. It holds large phones and phablets up to 114mm (4.5") wide on glass and smooth, non-porous surfaces, making it ideal for vehicle windscreens.
Key Features
Spring-loaded 'X' design with rubber caps grips large phones and phablets firmly without covering the screen, camera, or buttons
Low-profile 70mm (2.75") Twist-Lock™ suction cup base for a strong hold on glass and smooth, non-porous surfaces, including RAM adhesive disks
Composite double socket arm; ball-and-socket design allows near-infinite positioning and damps shock and vibration
Includes an optional device tether for extra security during outdoor use
High-strength composite and stainless steel construction; backed by a lifetime warranty
Dimensions & Specifications
Suction cup diameter: 69.9mm (2.75")
Arm socket-to-socket length: 53.3mm (2.1")

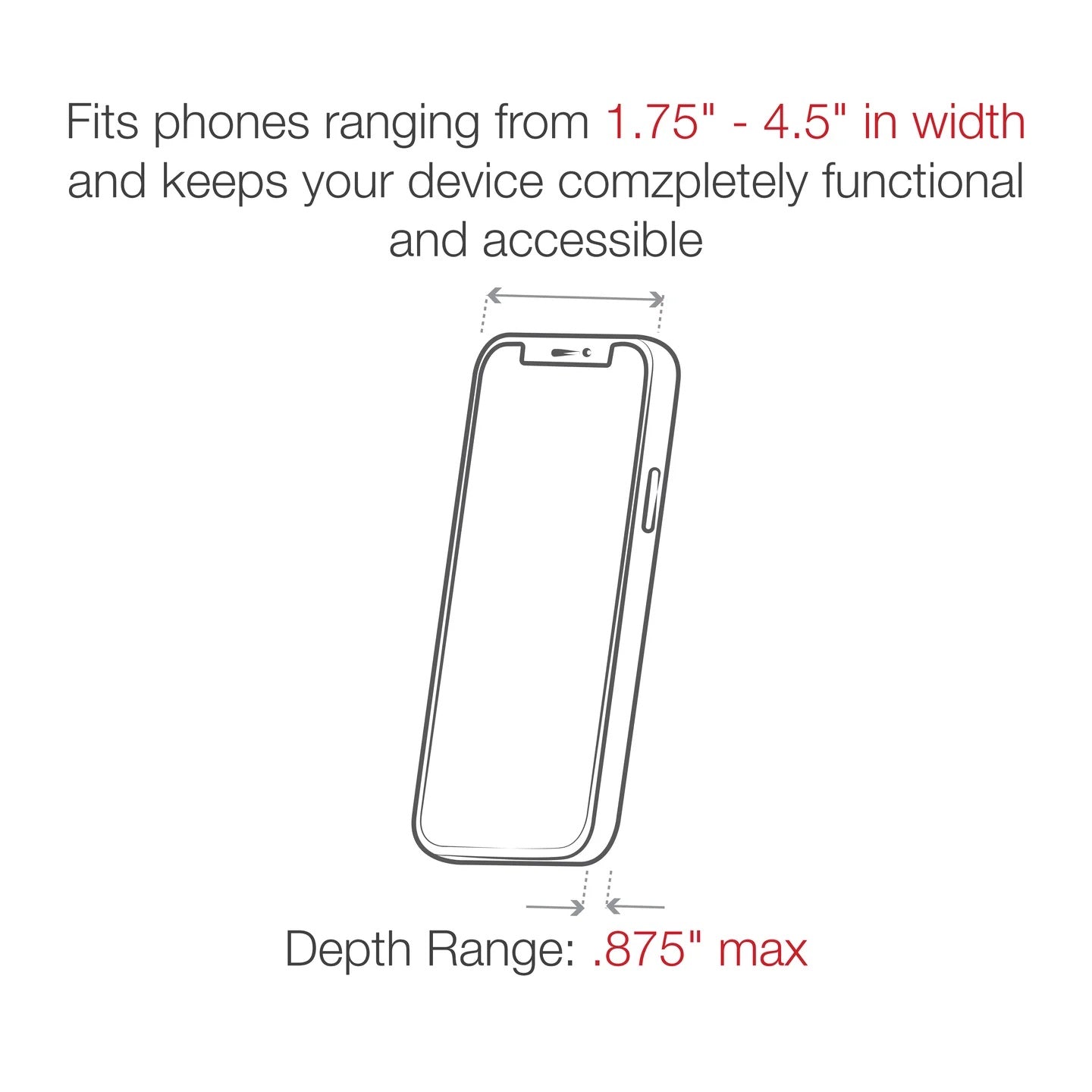

Cradle minimum device width 44.45mm (1.75"), which needs a minimum height of 139.7mm (5.5")
Cradle maximum device width 114.3mm (4.5"), which needs a minimum height of 82.55mm (3.25")

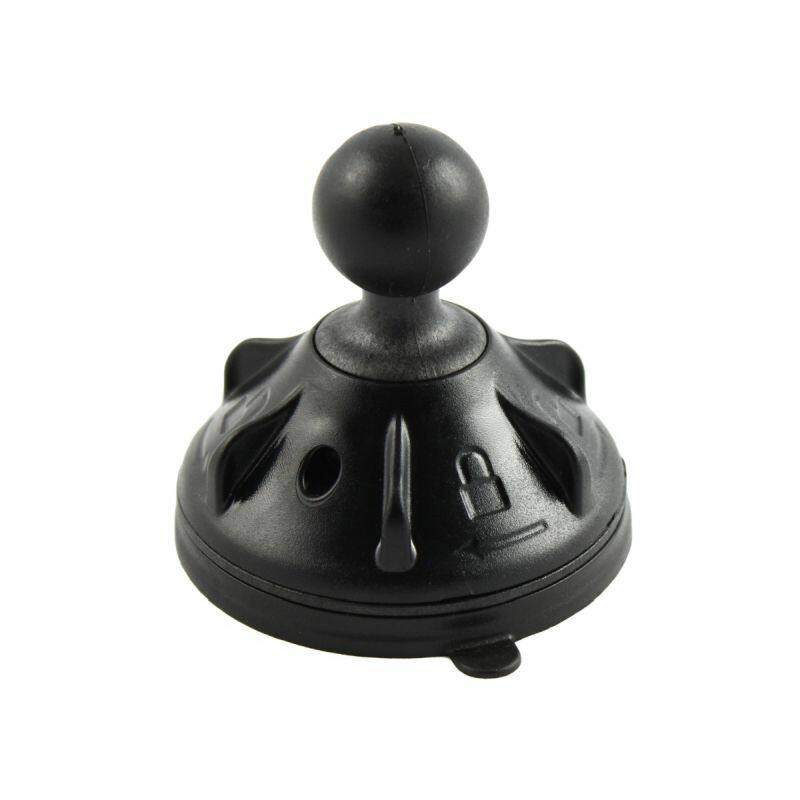

RAP-B-224-2U low-profile Twist-Lock™ suction cup base, 69.9mm (2.75") diameter, with 1" B-size ball

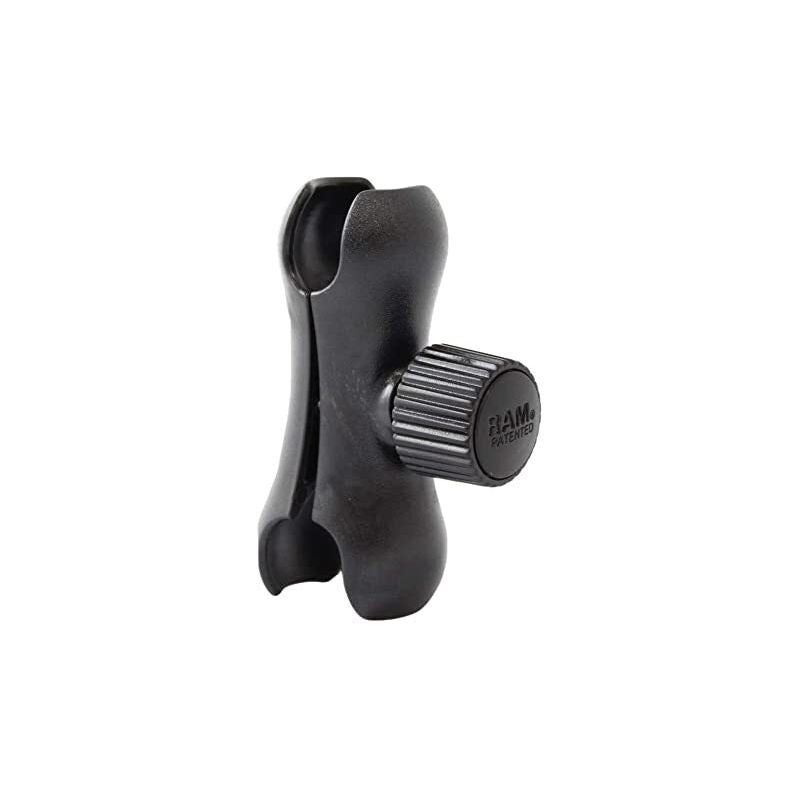

RAP-B-201-1U lightweight composite double socket arm (B size)

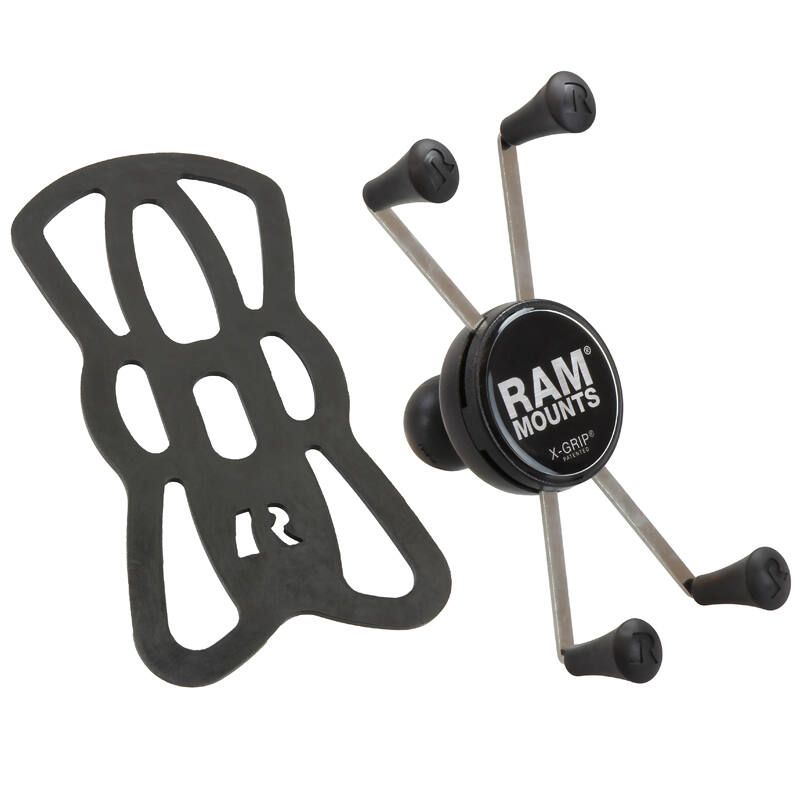

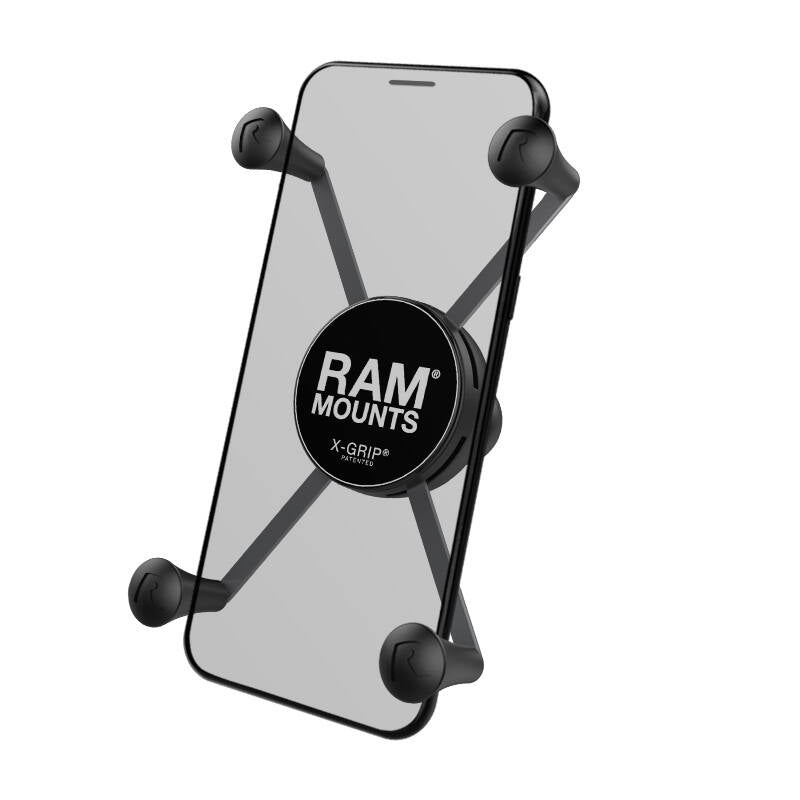

RAM-HOL-UN10BU X-Grip® large phone/phablet cradle with device tether
Compatible Devices
The X-Grip cradle fits large phones and phablets within the width and thickness ranges above. Always measure your device with any case, sleeve, or skin fitted before ordering. For the full list of compatible models, see our RAM-HOL-UN10BU cradle listing.
