RAM Composite Double Ball Mount with Two Round Plates - C Series - Short

RAP-101U-B RAM® Composite Double Ball Mount with Two Round Plates - Short

Features

* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

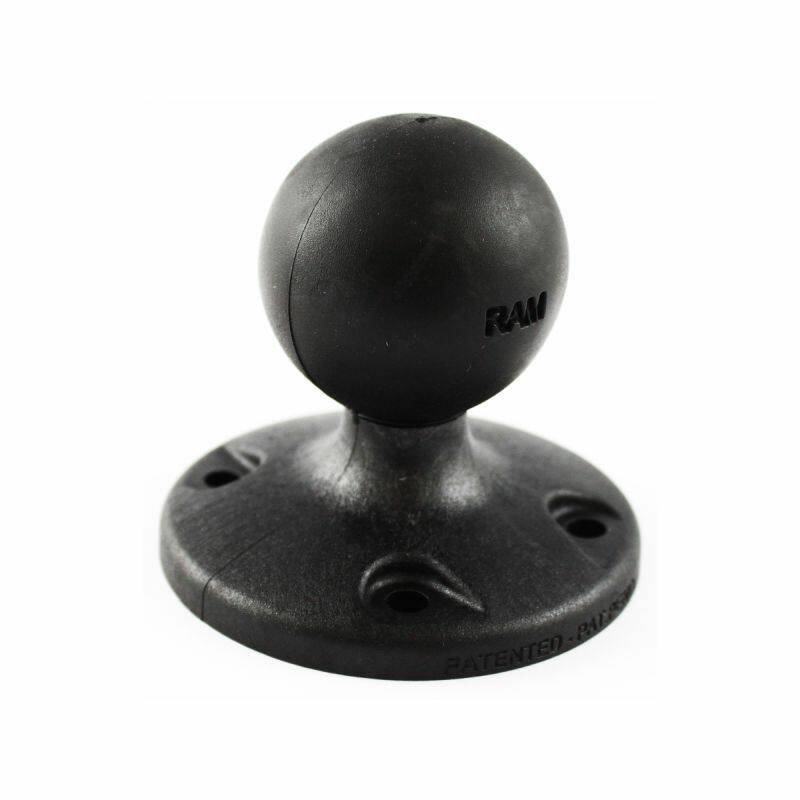

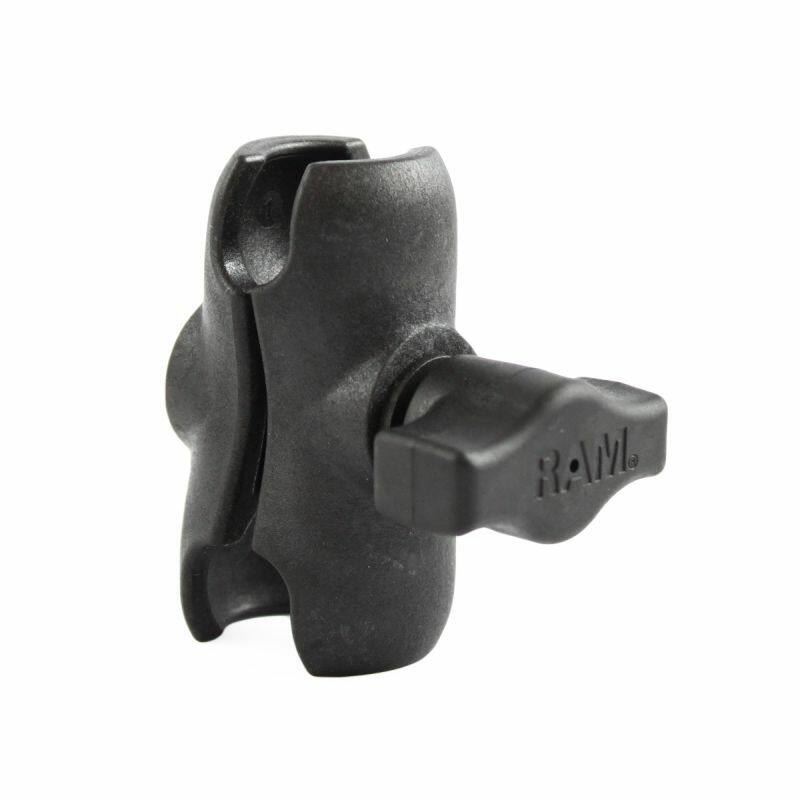

* Includes two round ball bases and C size SHORT length double socket arm; ball and socket technology allows for near-infinite adjust-ability
* Made of High Strength Composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

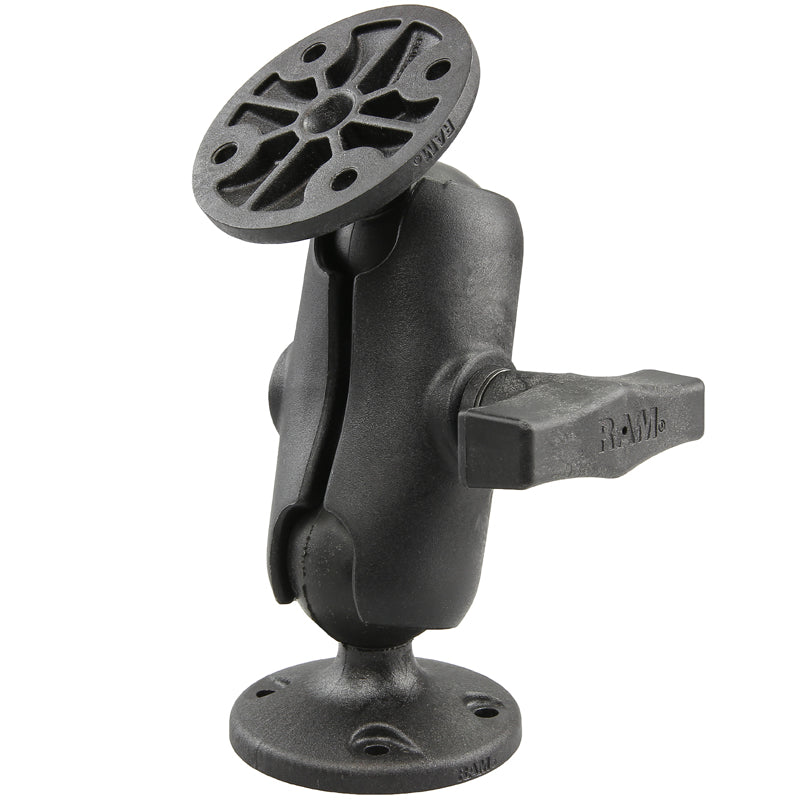

The RAP-101U-B, high strength composite flat surface mount, consists of a short double socket arm mount and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials ensure your device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device.

Specs and Features:

Product dimensions:

Overall Height: 146mm (5.75")

Socket To Socket Length:

63.5mm (2.5")

Hole Pattern:

4-Hole AMPS: 1.181" x 1.496"

Plate Size:

2.5" Diameter

Ball Size:

C Size (1.5")

Weight Capacity:

Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)

Materials:

High strength composite

Weight:

281 grams (0.62 lb)
