RAM Double U-Bolt Ball Base for .75" - 1" Rails

RAM-235-2U RAM® Double U-Bolt Ball Base for 0.75"-1" Rails

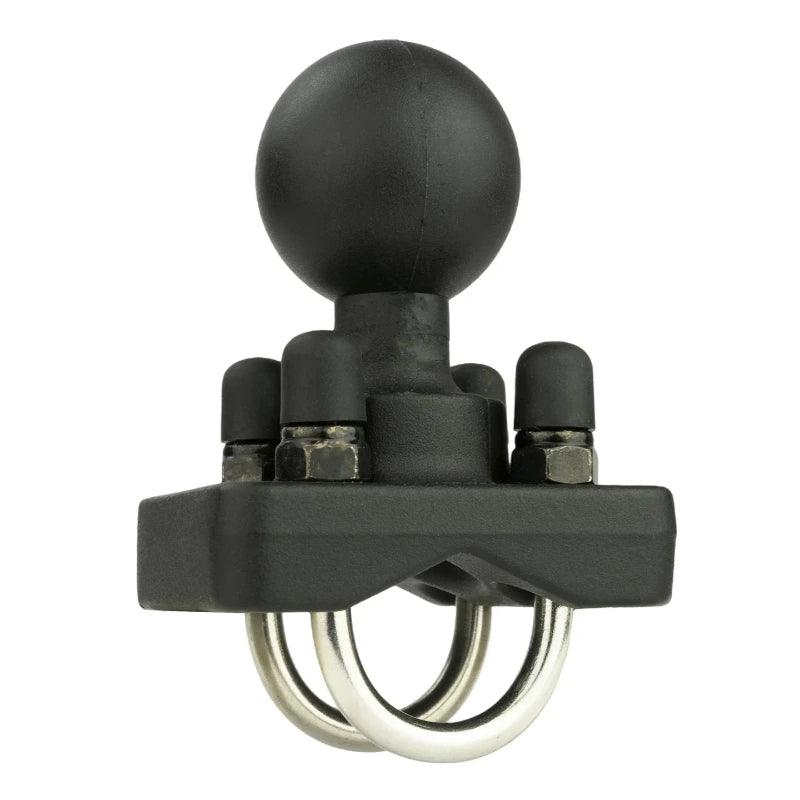

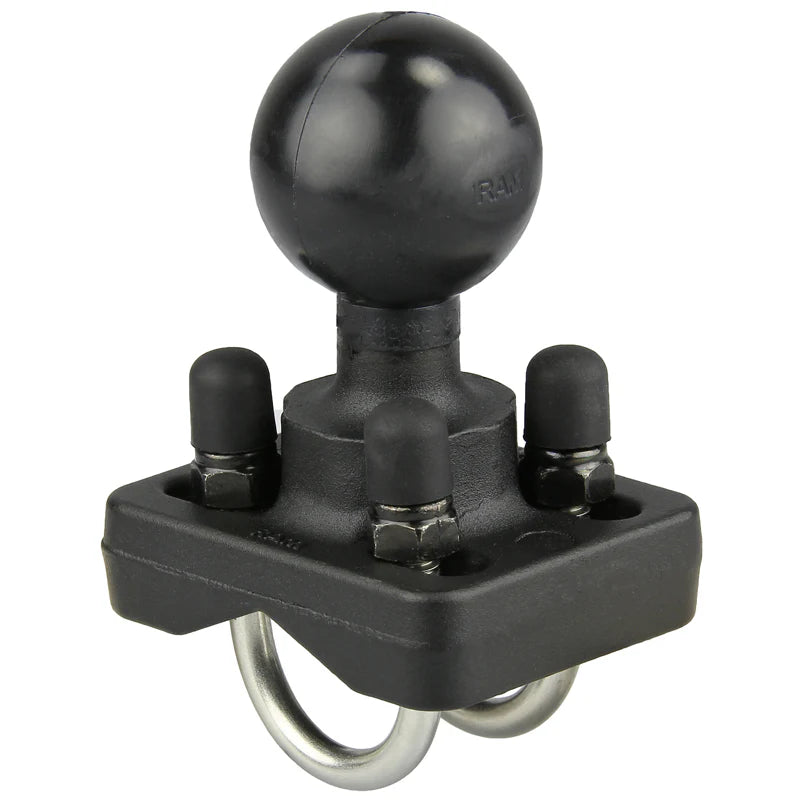

The RAM-235-2U is a double U-bolt base with a 1.5" C size ball, fitted with two zinc-coated U-bolts for mounting to smaller rails or handlebars 0.75" to 1" in diameter.

Key Features

• Zinc-coated double U-bolt base accommodates rails 0.75"-1" in diameter
• 1.5" C size RAM® rubber ball connects to any C size double socket arm
• RAM® ball and socket technology for near-infinite adjustability
• Powder-coated marine-grade aluminium construction
• Backed by a lifetime warranty

Works With

Any RAM® C size (1.5") arm or holder. Fits smaller rails and handlebars 0.75" to 1" in diameter.

Dimensions & Specifications

• Clamp range: 0.75"–1" diameter
• Ball size: C size (1.5")
• Weight: 235g (0.52 lbs)
• Weight capacity — standard use: 1.814kg (4 lbs)
• Weight capacity — heavy-duty use: 1.36kg (3 lbs)

Hardware included: (2) 1/4"-20 U-bolts for 0.75"-1" rails, (4) 1/4"-20 nylock nuts, (4) rubber caps.

FAQs

How does this compare to RAM-235U? Same C size ball and double U-bolt design, but sized for smaller 0.75"-1" rails rather than RAM-235U's 25.4-31.75mm (1"-1.25") range.

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
