RAM-GDS-CHARGE-V19U - GDS Hardwire Charger - 10-32V In, 14V Out - DC 5.5mm Barrel

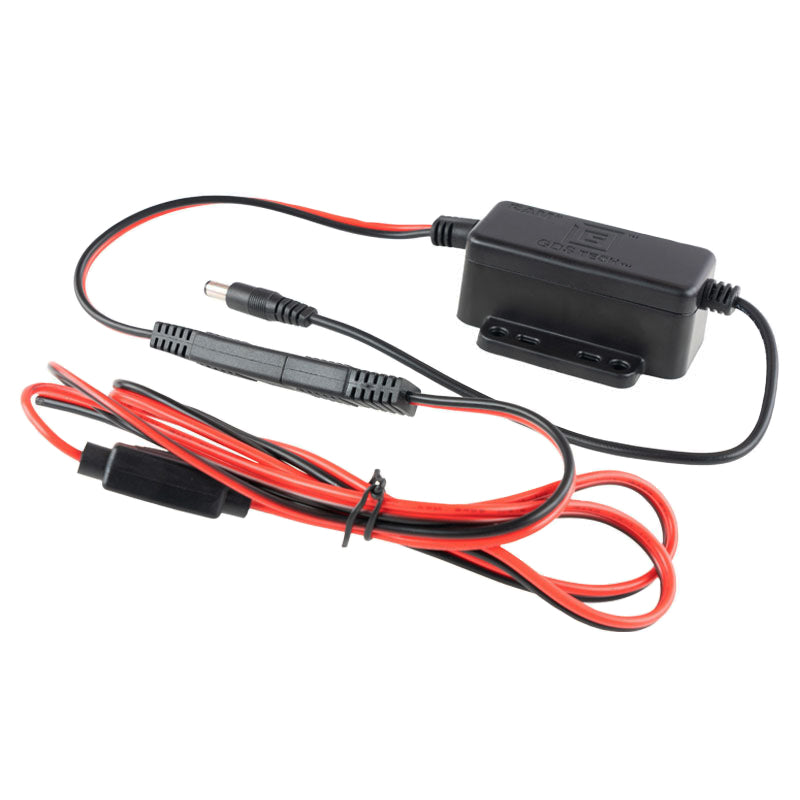

RAM-GDS-CHARGE-V19U GDS® 10-32VDC Hardwire Charger, 14VDC Output, Male DC 5.5mm

RAM-GDS-CHARGE-V19U is a GDS® modular hardwire charger that takes 10-32V DC from a vehicle's electrical system and delivers a regulated 14V DC at up to 3.5A through a 5.5mm barrel plug, ready for any RAM® or GDS® DC powered dock that calls for a 14V input.

Key Features

• Built for fuel-powered vehicles: the 10-32V input range covers standard 12V and 24V systems in cars, trucks, vans, tractors and propane forklifts.
• Modular design: the power connector unplugs, so changing the device end later does not mean rewiring the vehicle.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant, with E-Mark and RCM certification.
• Backed by RAM's three-year warranty.

Works With

Any RAM® or GDS® dock that specifies a 14V DC input on a 5.5mm barrel. Check what your dock actually asks for before ordering, because output voltage is not interchangeable across this range; a 14V dock will not run correctly from a 12V charger. If your machine is an electric forklift or similar 20-60V equipment, the same 14V output is available as RAM-GDS-CHARGE-V20U. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 10-32V DC
• Output voltage: 14V DC
• Output current: 3.5A max
• Barrel connector: male, 5.5mm outer diameter × 2.5mm inner
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Wiring: 18AWG copper
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Weight: 141g (0.31lb)
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark and RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Can I use a 12V charger on a 14V dock? No. Match the output voltage your dock specifies. The compatibility guide above sets out the whole range side by side.

Will it charge a tablet directly? No. It outputs 14V on a barrel plug for a powered dock, not USB. If your device charges over USB, you want one of the USB-C or USB-A chargers instead.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
