RAM-GDS-CHARGE-V11U - GDS Hardwire Charger - 10-32V In, 19V Out - DC 5.5mm Barrel

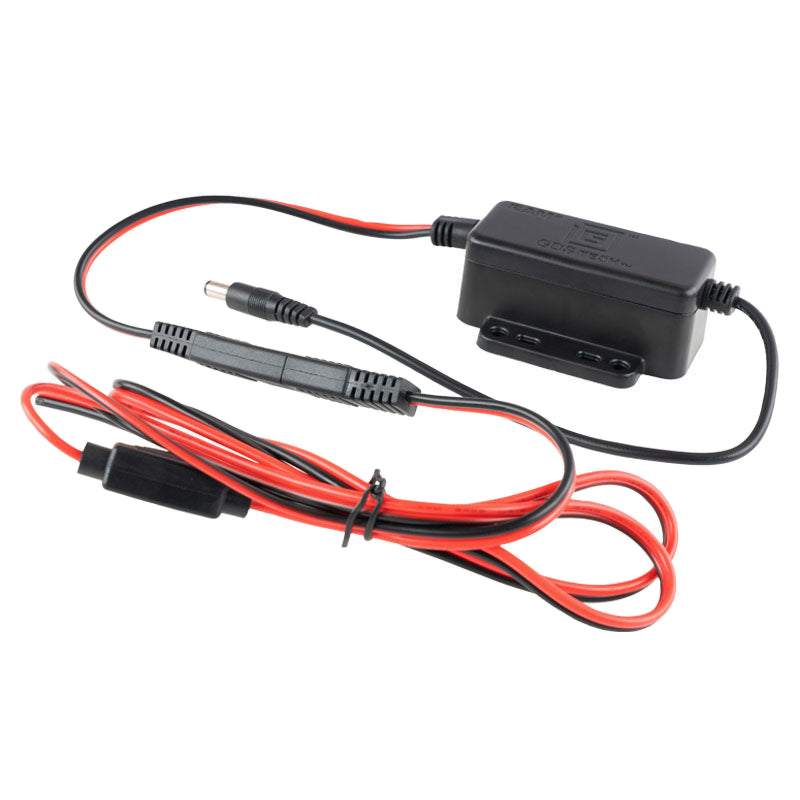

RAM-GDS-CHARGE-V11U GDS® 10-32VDC Hardwire Charger, 19VDC Output, Male DC 5.5mm

RAM-GDS-CHARGE-V11U is a GDS® modular hardwire charger that takes 10-32V DC from a vehicle's electrical system and delivers a regulated 19V DC at up to 3.5A through a 5.5mm barrel plug, for RAM® and GDS® DC powered docks that call for a 19V input.

Key Features

• 19V output: the highest in the barrel range, typically specified by docks built around laptop-class hardware.
• Built for fuel-powered vehicles: the 10-32V input range covers standard 12V and 24V systems in cars, trucks, vans, tractors and propane forklifts.
• Properly protected: IP66 sealed, with a 3A inline ATC fuse, 18AWG copper wire, and over-voltage, short circuit and reverse polarity protection.
• Rated for vehicle use: SAE J-1113-5 load dump and moisture resistant, with E-Mark and RCM certification.
• Backed by RAM's three-year warranty.

Works With

Any RAM® or GDS® dock that specifies a 19V DC input on a 5.5mm barrel. Check the figure printed on your dock rather than assuming, since running a 19V dock from a lower-output charger will not work. If your machine is an electric forklift or similar 24-60V equipment, the same 19V output is available as RAM-GDS-CHARGE-V12U. The rest of the range sits in Chargers and Docks and GDS Tech.

Dimensions & Specifications

• Input voltage: 10-32V DC
• Output voltage: 19V DC
• Output current: 3.5A max
• Barrel connector: male, 5.5mm outer diameter × 2.5mm inner
• Input cable length: 1.2m, including 2-pole flat marine connector
• Output cable length: 0.2m
• Wiring: 18AWG copper
• Operating temperature: -10°C to +70°C
• Storage temperature: -40°C to +70°C
• Weight: 141g (0.31lb)
• Ingress protection: IP66
• Protection: over voltage, short circuit, reverse polarity, SAE J-1113-5 load dump, moisture resistant; 3A inline ATC fuse
• Certifications: FCC, CE, UKCA, IC, E-Mark and RCM; RoHS and WEEE compliant
• Warranty: 3 years

Documents

GDS Hardwire Charger Compatibility Guide (PDF): compares input voltage, output voltage and connector type across the GDS hardwire charger range, so you can confirm this one suits your dock and your vehicle.

FAQs

Which docks need 19V? Docks designed around laptop-class devices generally do. The figure is printed on the dock or listed in its manual; the compatibility guide above sets the whole range out side by side.

Will it charge a tablet directly? No. It outputs 19V on a barrel plug for a powered dock, not USB. If your device charges over USB, you want one of the USB-C or USB-A chargers instead.
