RAM GDS Uni-Conn Powered Dock

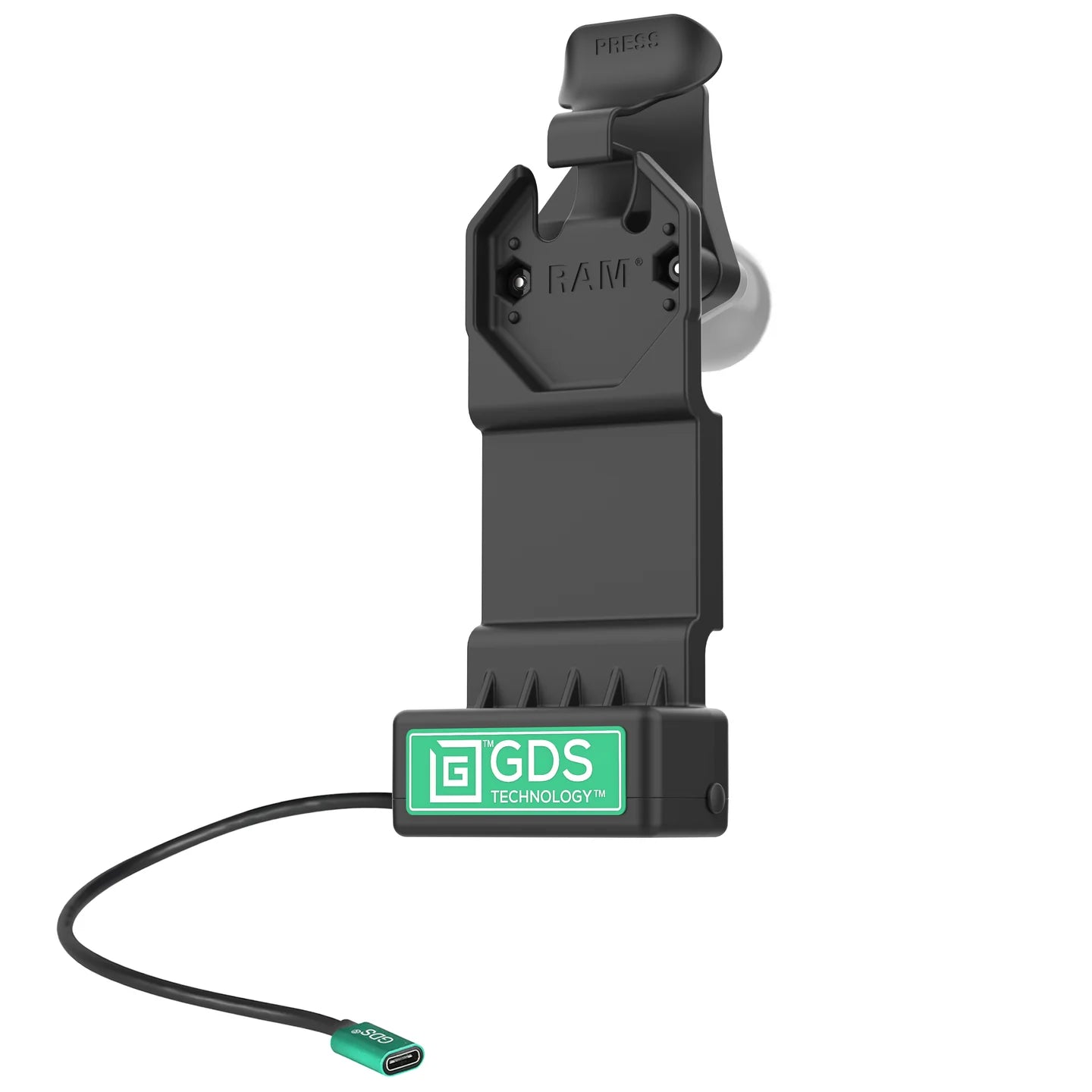

RAM-GDS-DOCK-U1CPU GDS® Uni-Conn™ Powered Dock

One Dock to Connect Them All™

Features

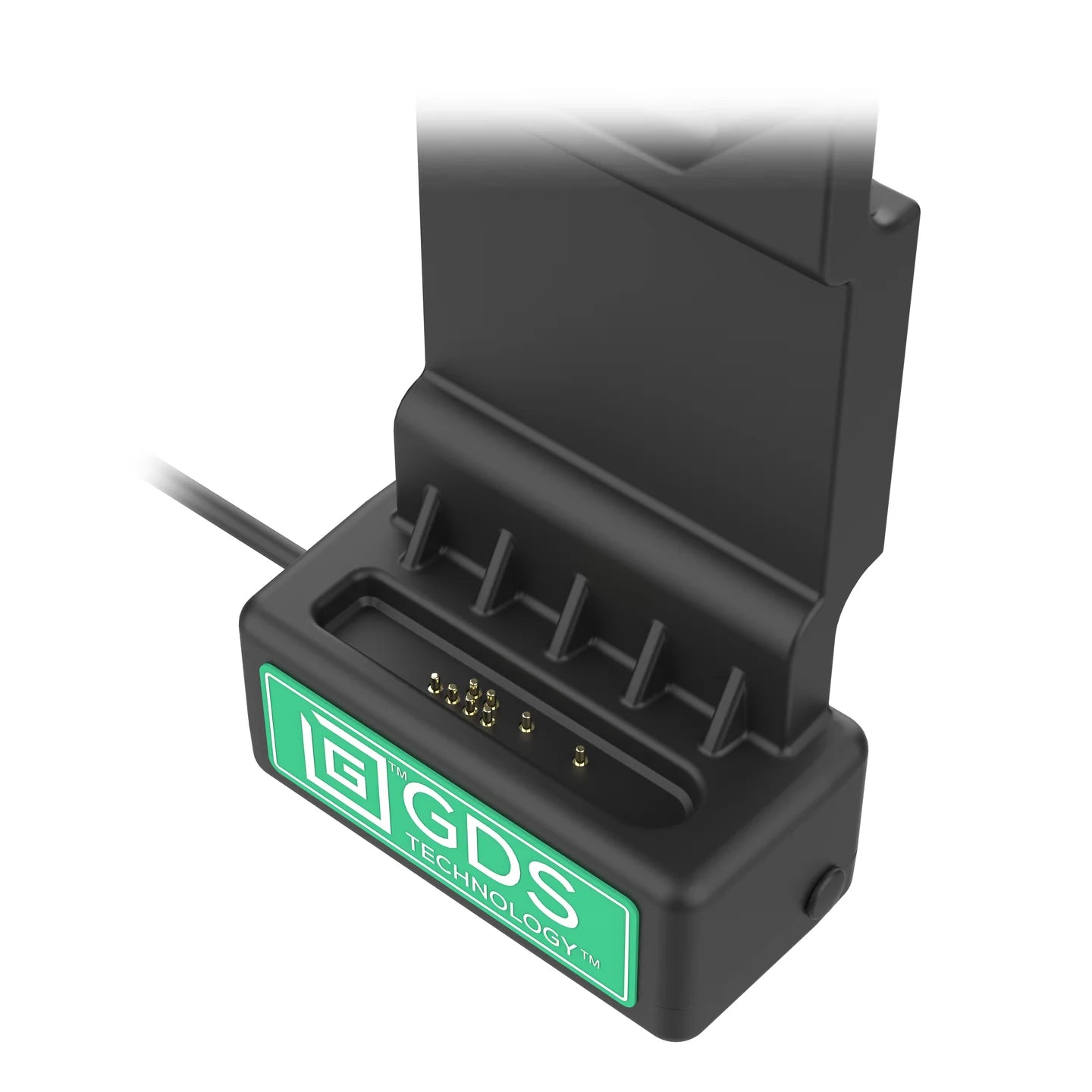

·        Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

·         Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed

·         USB Type-C Female connector provides high-speed charging to the dock

·         RAM® Mounts Compatible™

·         Backed by a 3-year warranty

·

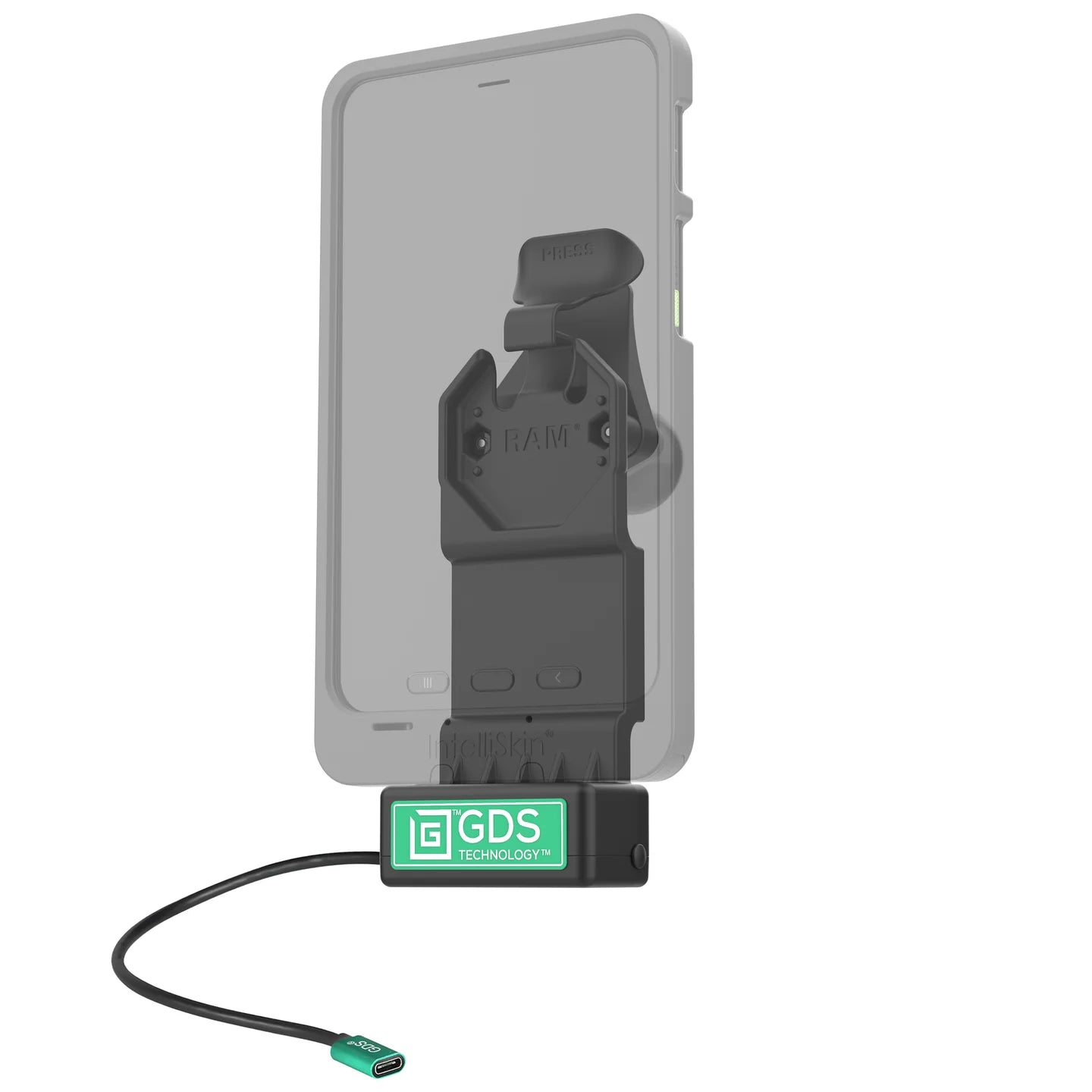

The GDS® Uni-Conn™ Powered Dock (RAM-GDS-DOCK-U1CPU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet.

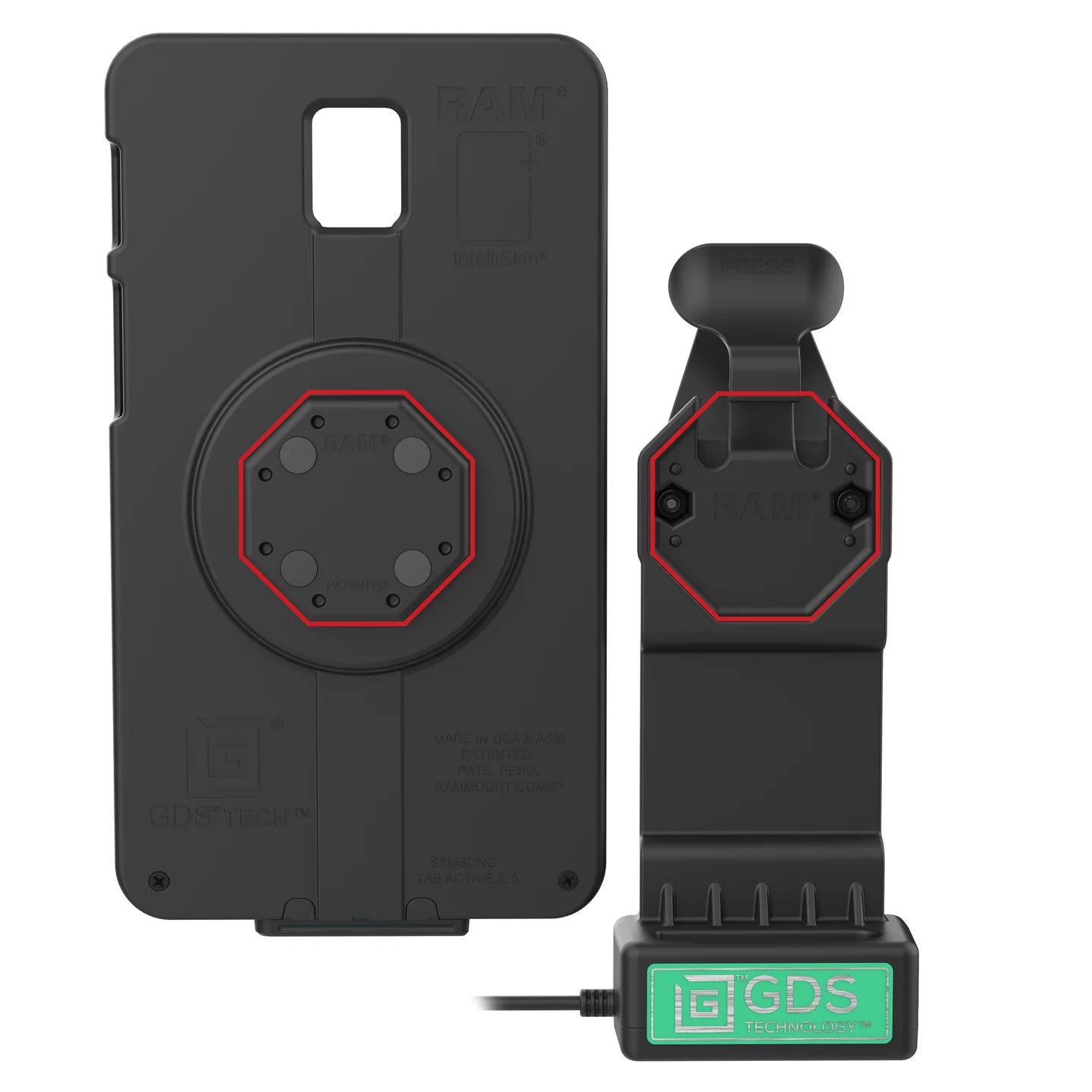

The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device.

Current compatibility for this fixed dock height includes the Samsung Tab A 7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+.

Other Intelliskins can be adapted using the RAM-GDS-U1AU

The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed.

Always Protected. Always Connected.® One Dock to Connect Them All™.

Hardware included:

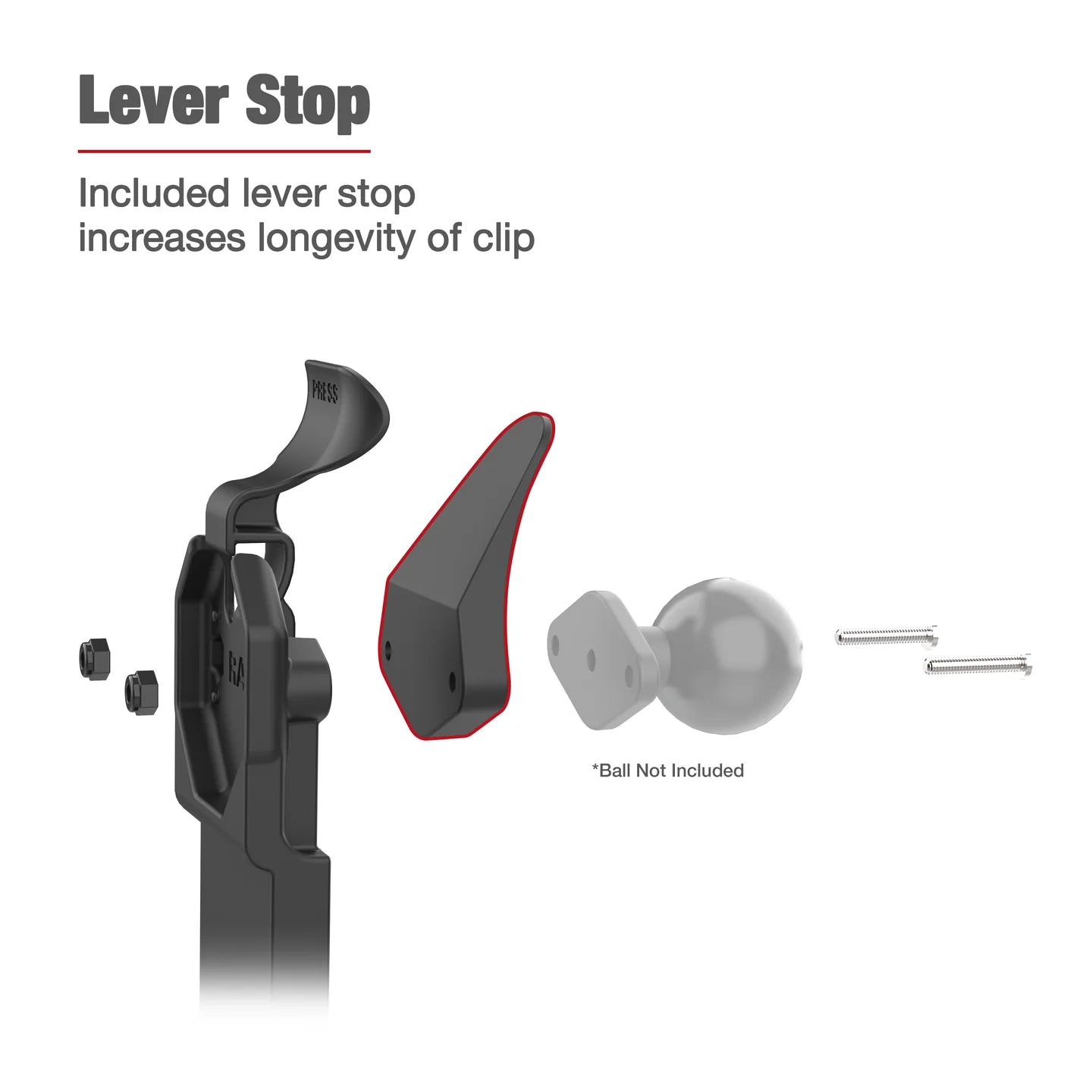

Lever Stop
2 x #8-32 x 1" Machine Screws
2 x  #8-32 Nylock Nuts
1 x Cable Clamp Kit

Product dimensions:

Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"

Hole pattern:

2-Hole AMPS: 1.912"

Materials:

High strength composite

Output voltage:

5V - 12V @ 3A

Power output:

15W

Input connector:

USB Type-C

Input cable length:

215mm

Warranty:

3 year warranty

Weight:

240 grams / 0.53 lb

Additional Information:

The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
