RAM Marine Drill-Down Double Ball Mount for Humminbird Piranha + More

RAM-B-107-1U RAM® Drill-Down Double Ball Mount for Humminbird Piranha + More

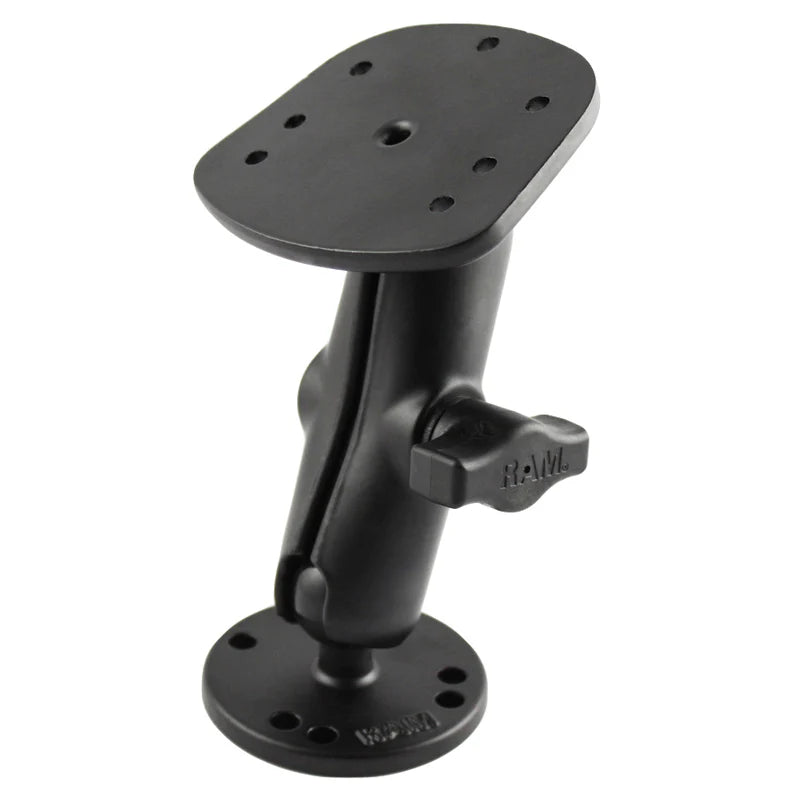

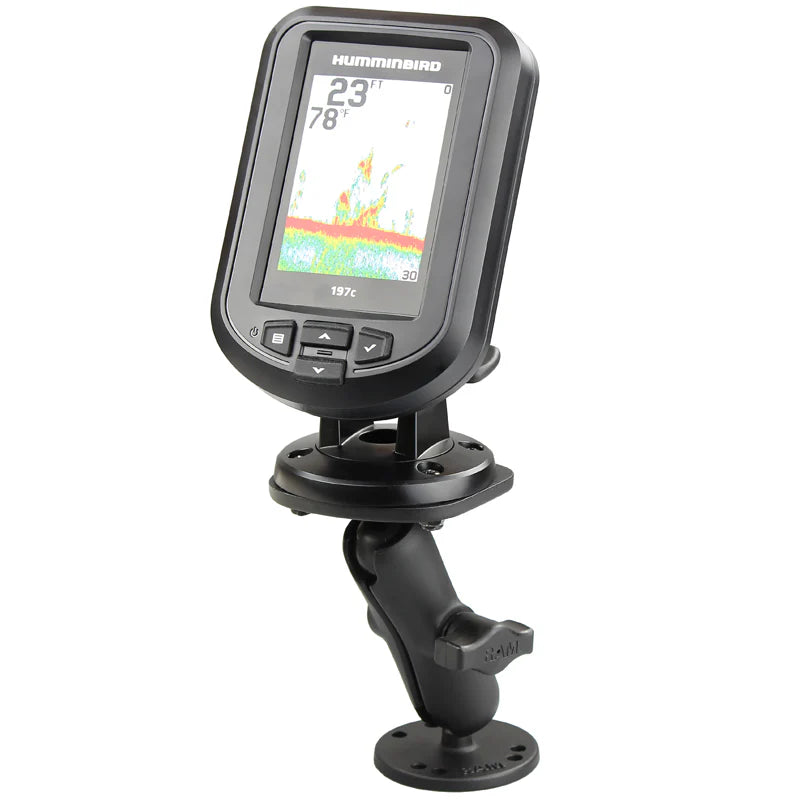

The RAM-B-107-1U is a complete drill-down mount for Humminbird Piranha, Eagle and Lowrance X-4 fishfinders. It pairs a connecting marine base with a double socket arm and a 2.5" round AMPS base, with adjustment points at both the cradle base and the bottom base for a precise viewing angle.

Key Features

• Complete drill-down mounting solution with an overall height of 127mm (5")
• Round drill-down plate with the 4-hole AMPS pattern
• 1" rubber ball and socket system with adjustment points at the cradle base and bottom base
• Powder-coated marine-grade aluminium for longevity and strength

Dimensions & Specifications

• Top plate: 83.6mm x 72.4mm (3.29" x 2.85")
• Bottom plate: 63.5mm (2.5") diameter
• Hole pattern: 4-Hole AMPS 1.181" x 1.496"; 3-Hole 120-degree 1.812" diameter
• Overall height: 127mm (5")
• Socket-to-socket length: 76.2mm (3")
• Ball size: 1" (B size)
• Material: marine-grade aluminium
• Weight: 281g (0.62 lbs)
• Weight capacity: standard use 907g (2 lbs); heavy-duty use 454g (1 lb)

Compatible Devices

Fits the same range as the matching RAM-B-107-1BU base: Humminbird Piranha MAX 10/15/20, Eagle Cuda 128/168/240/240i and FishEasy 240/320C, and Lowrance X-4/X-4 Pro.
