RAM-137U RAM® Large Marine Electronics Mount
Features
* Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
* Included C size 1.5" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

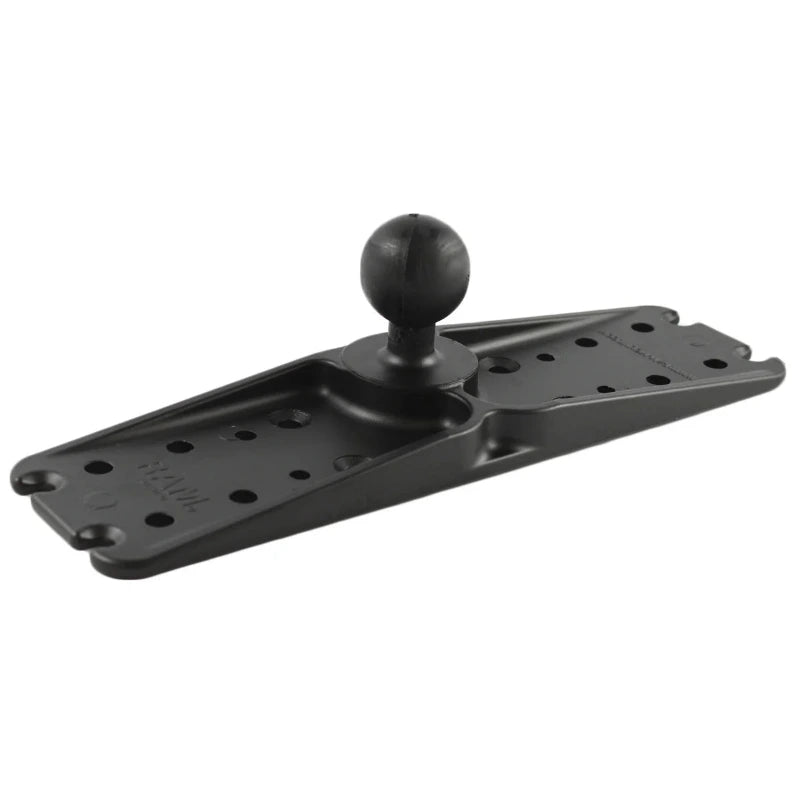

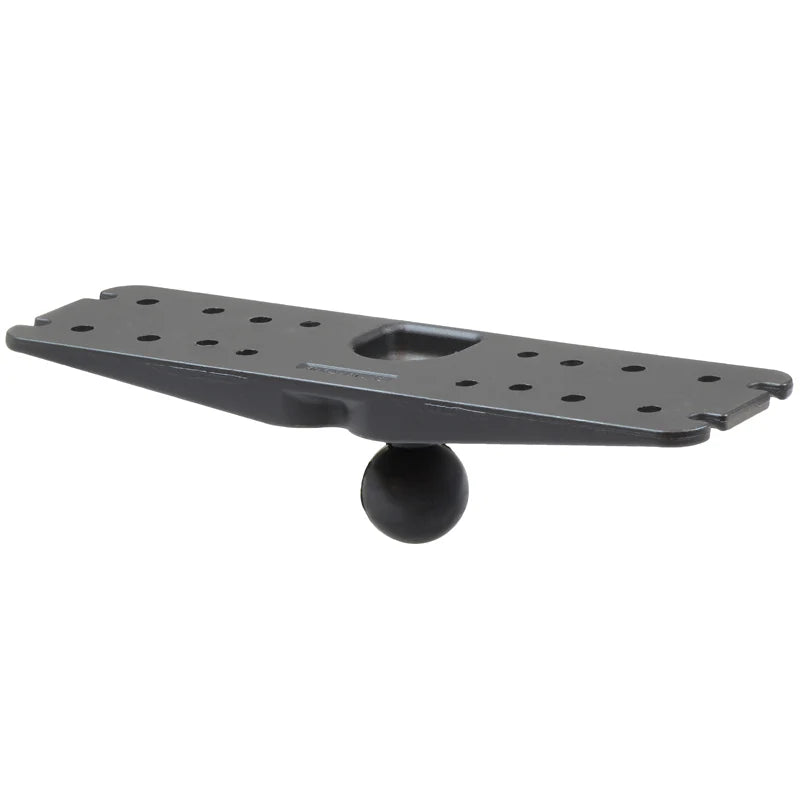

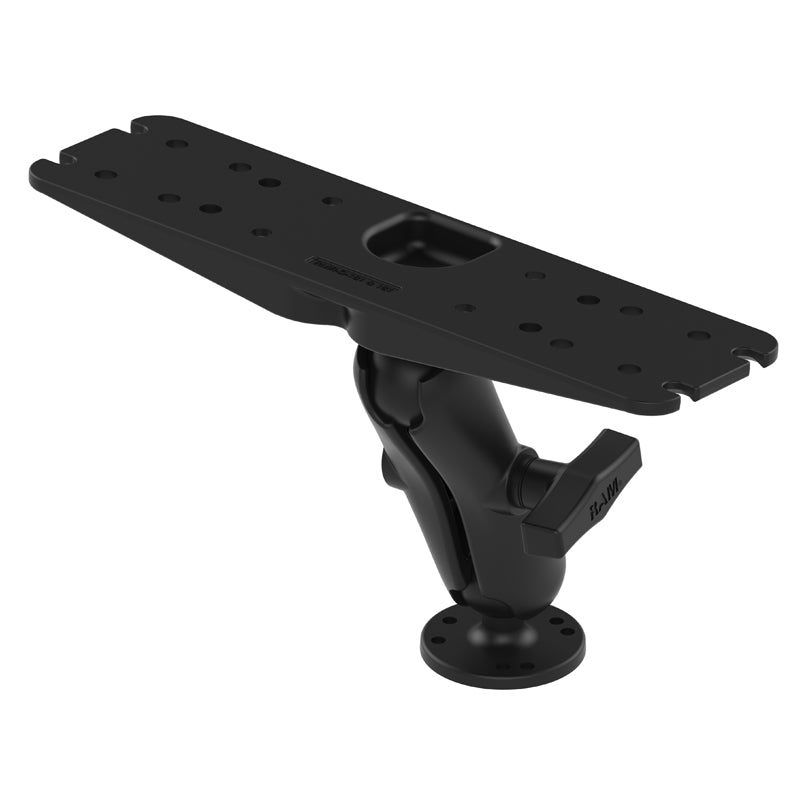

The RAM-137U, powder coated marine grade aluminium mount, consists of a double socket arm mount, one 2.5" diameter round base with 1.5" rubber ball and flat 11" x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.
Hardware Included:
(4) .312" x .187" Shoulder Washers
Hole Pattern:
Round Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Electronics Plate:

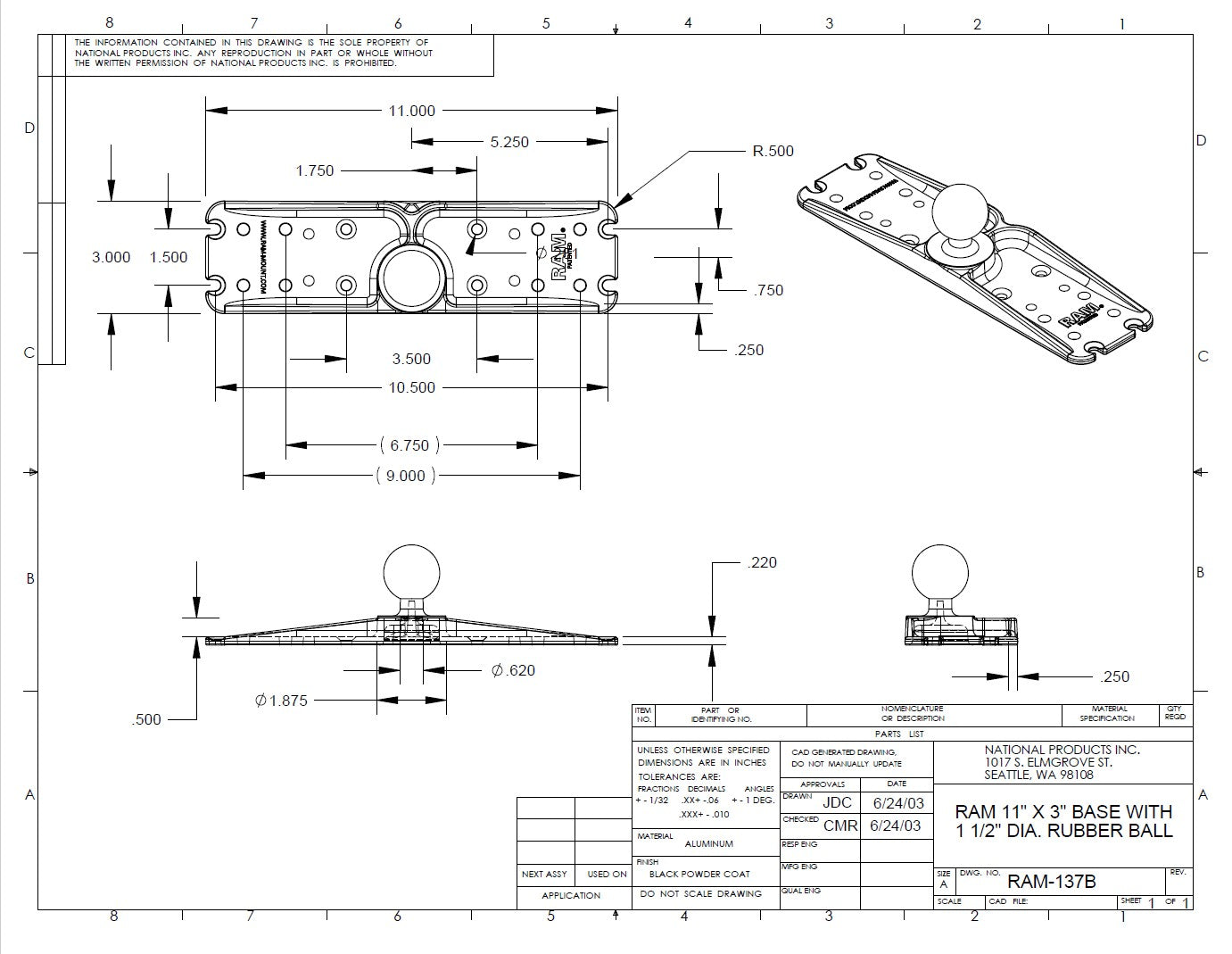

See Drawing
Plate Size:
Round Plate: “63.5mm (2.5”)
Electronics Plate: 76.2 mm x 279.4mm (3" x 11")
Arm Length
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Ball Size:
C Size (1.5")
Weight Capacity:
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
Materials:
Marine-grade aluminium
Weight:
885 grams (1.95 lb)
Additional Information:
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
