RAM Large Marine Electronics Plate - C Series

RAM-137BU RAM® Large Marine Electronics Ball

Features

* Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjust-ability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

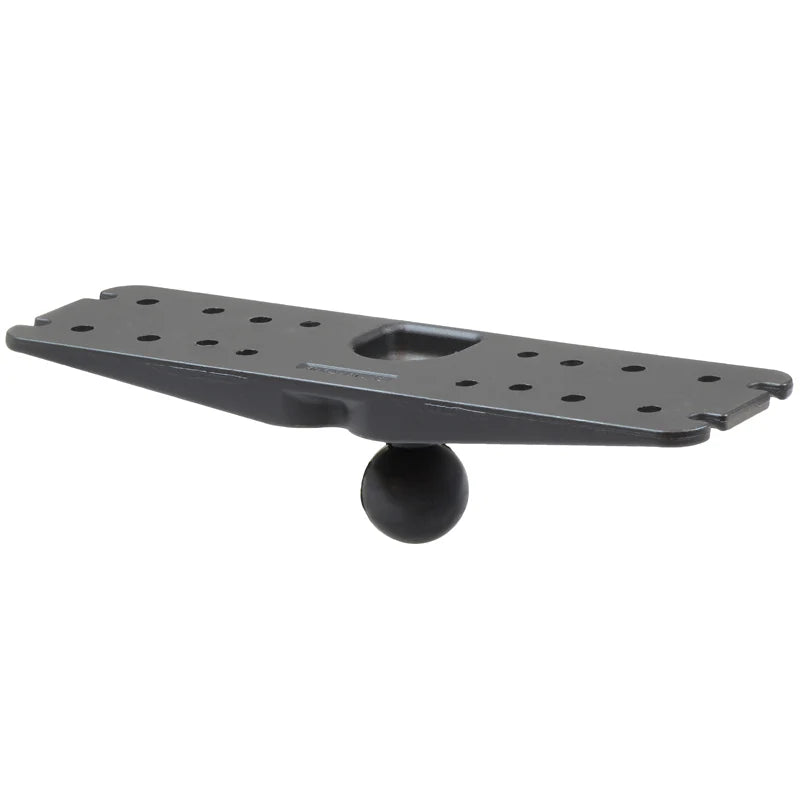

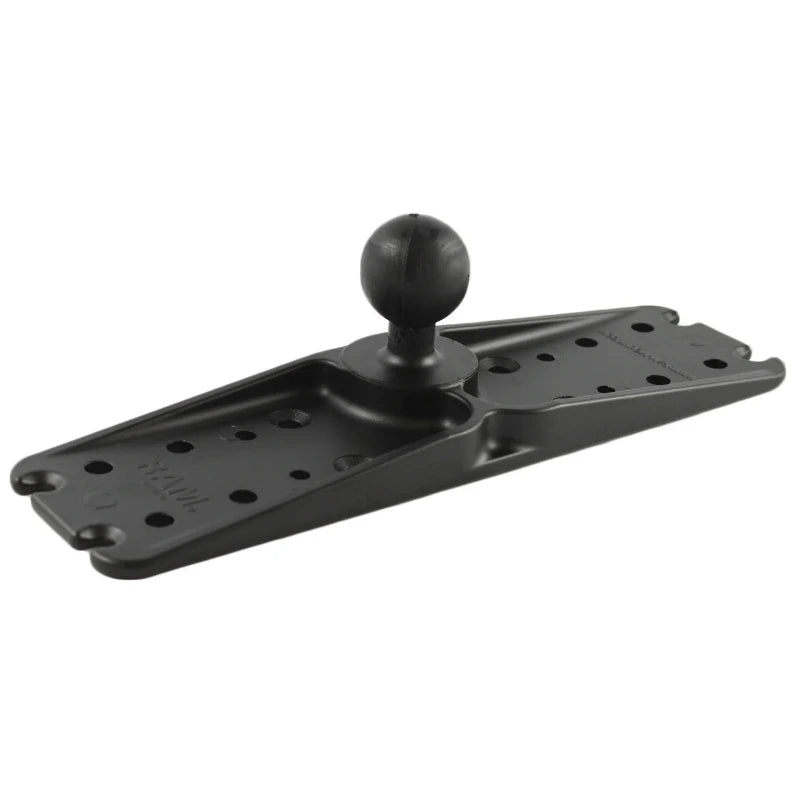

The RAM-137BU, universal mounting plate, consists of a 1.5" diameter rubber ball, connected at right angles to a flat 3" x 11" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

Hardware Included:

(4) .312" x .187" Shoulder Washers

Hole Pattern:

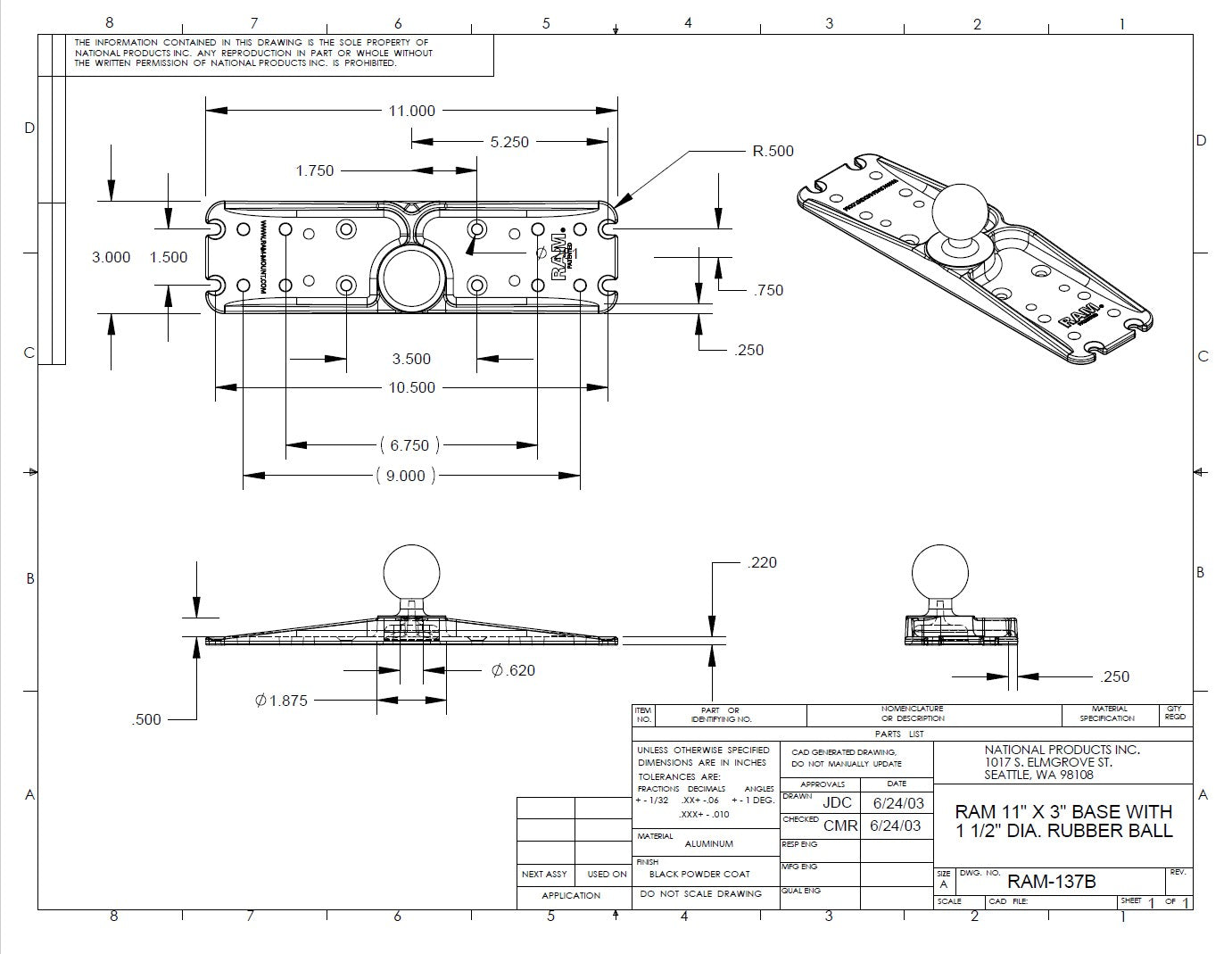

See Drawing

Plate Size:

76.2 mm x 279.4mm (3" x 11")

Ball Size:

C Size (1.5")

Weight Capacity:

Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)

Materials:

Marine-grade aluminium

Weight:

453 grams (1.0 lb)

Additional Information:

The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
