RAM Double U-Bolt Rail Mount for Smaller Rails with Diamond Plate

RAM-138U-235 RAM® Double U-Bolt Rail Mount for Smaller Rails with Diamond Plate

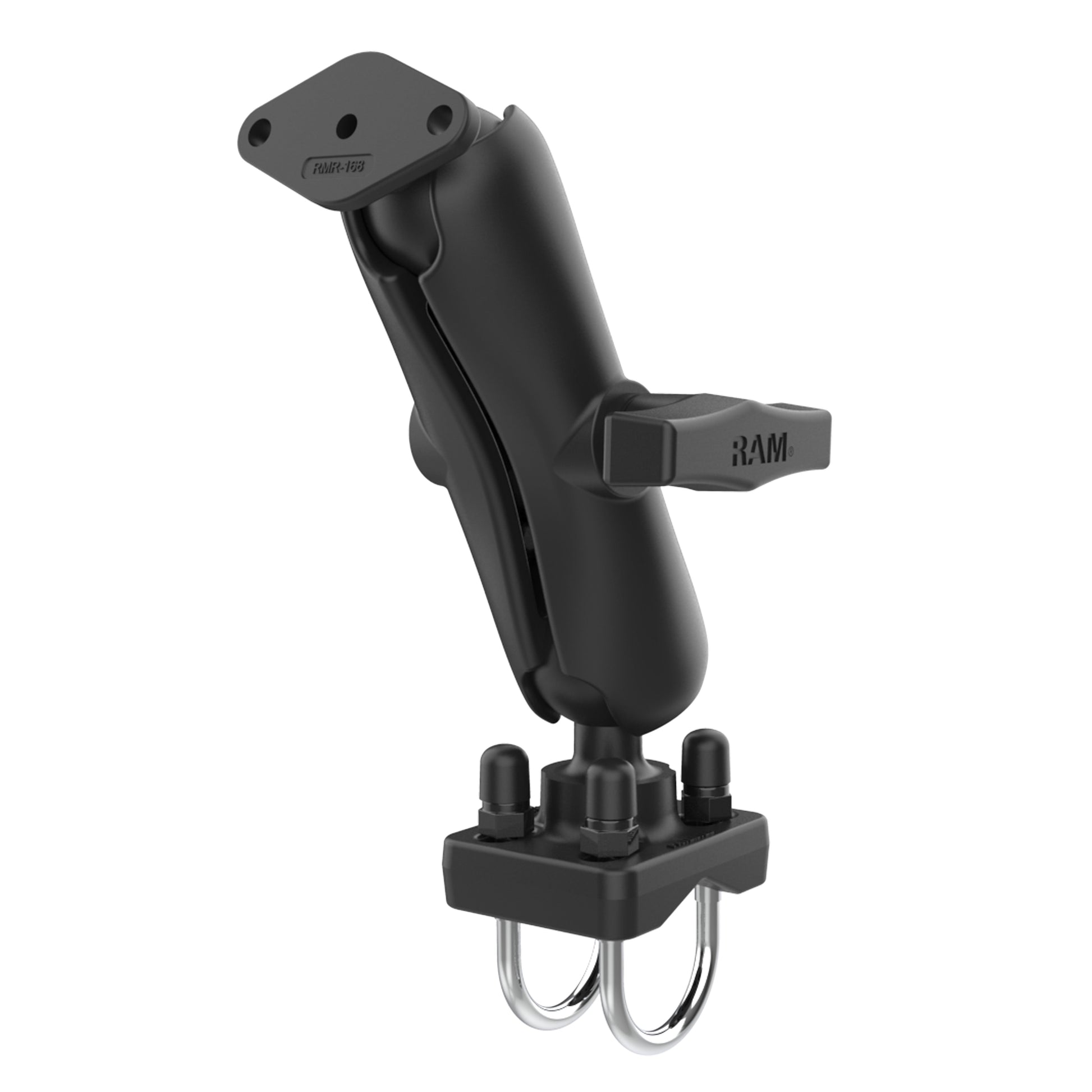

The RAM-138U-235 bundles a double U-bolt base for rails 25.4mm-31.75mm with a C size double socket arm and a 2-hole AMPS diamond plate, ready for any RAM® holder or dock.

Key Features

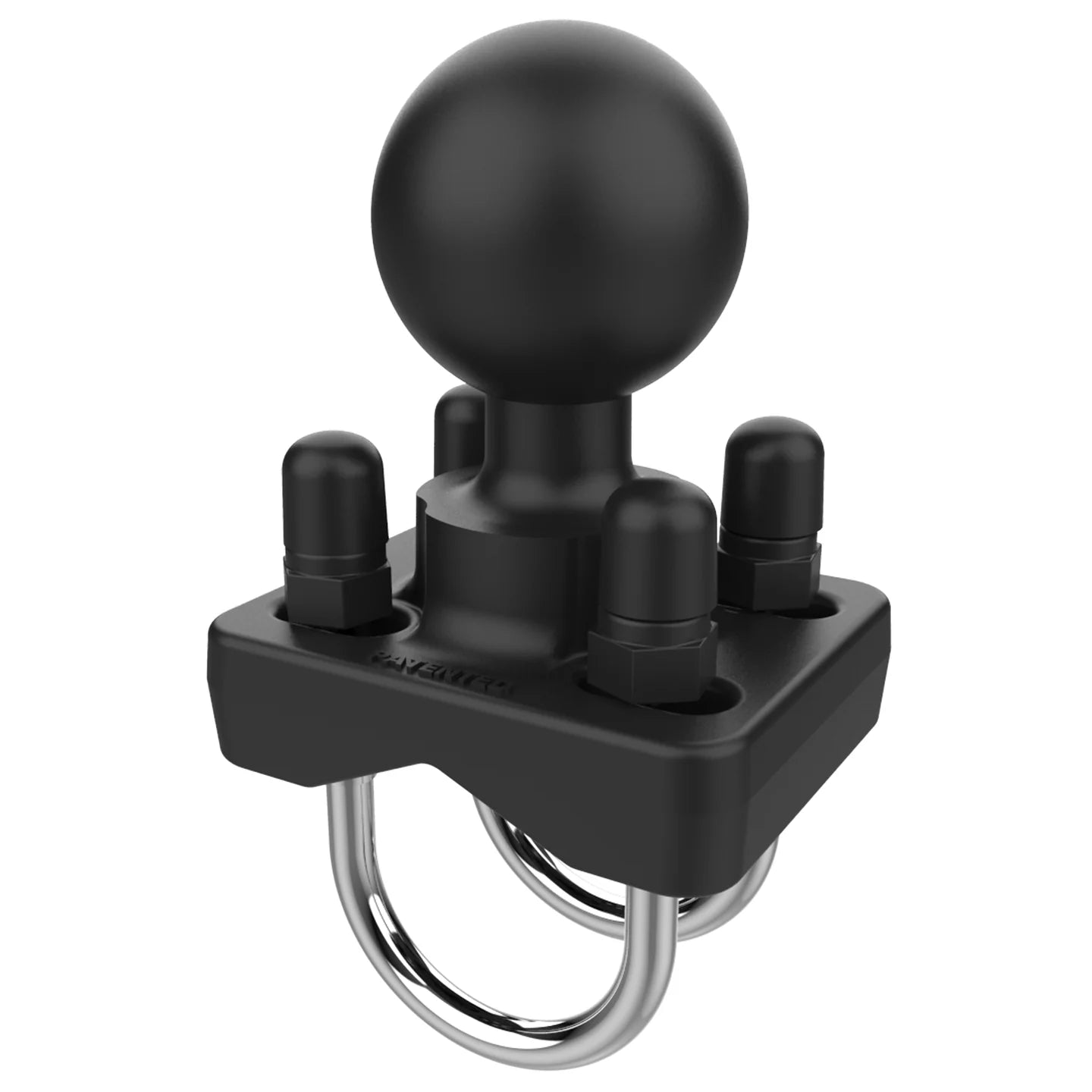

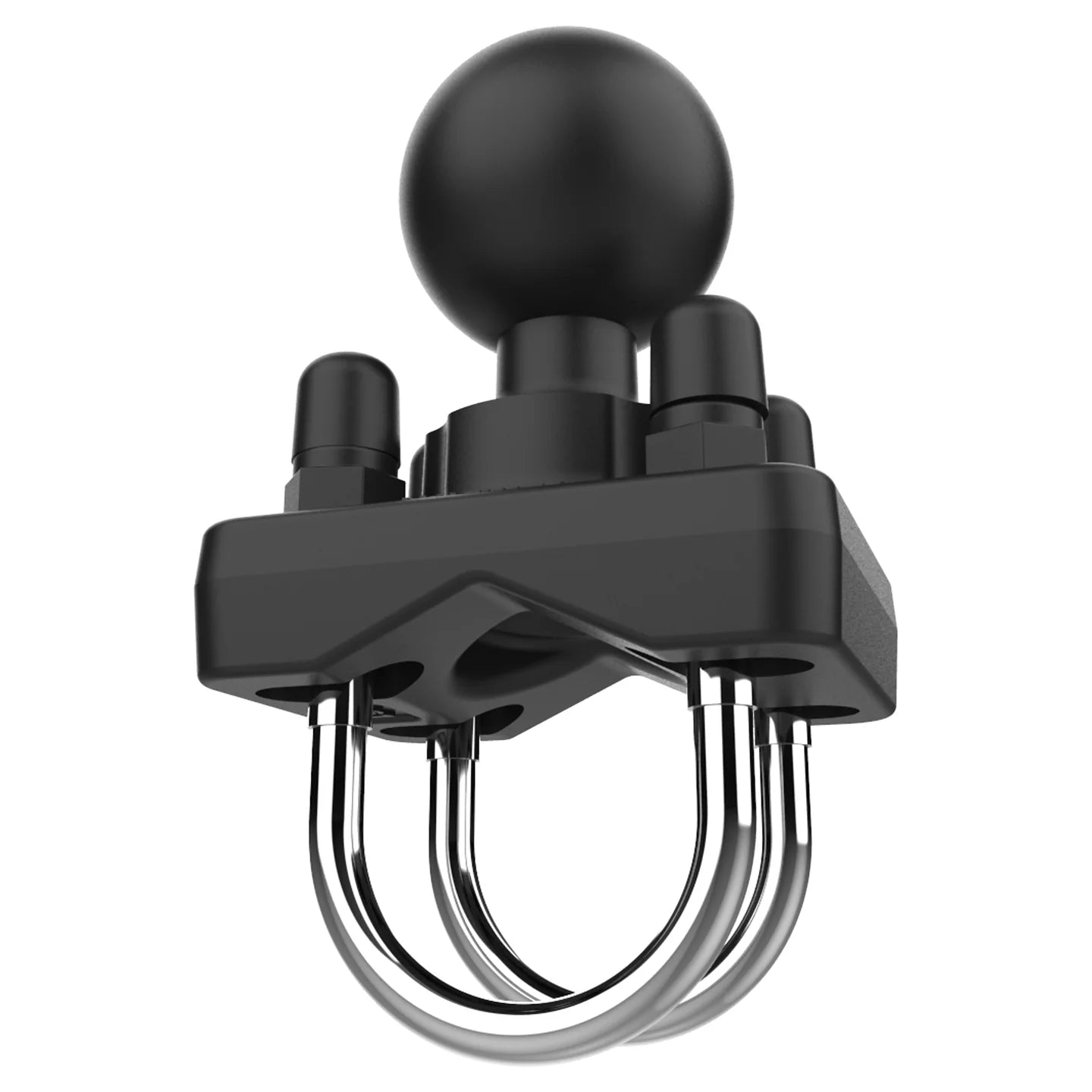

• RAM® U-bolt base secures to rails 25.4-31.75mm (1"-1.25") in diameter
• Diamond base features 2-hole AMPS pattern compatible with RAM® holders and docks
• C size bundle: double U-bolt base, medium arm, and diamond base
• High-strength composite and powder-coated marine-grade aluminium construction
• Anti-snag rubber caps on the U-bolts, suited to high-traffic or industrial settings
• Backed by a lifetime warranty

Works With

Any RAM® device holder or dock with a 2-hole AMPS pattern. Fits rails 25.4mm to 31.75mm (1"-1.25") in diameter.

Dimensions & Specifications

• Rail diameter: 25.4mm–31.75mm (1"–1.25")
• 2-hole AMPS pattern: 1.912" (48.6mm)

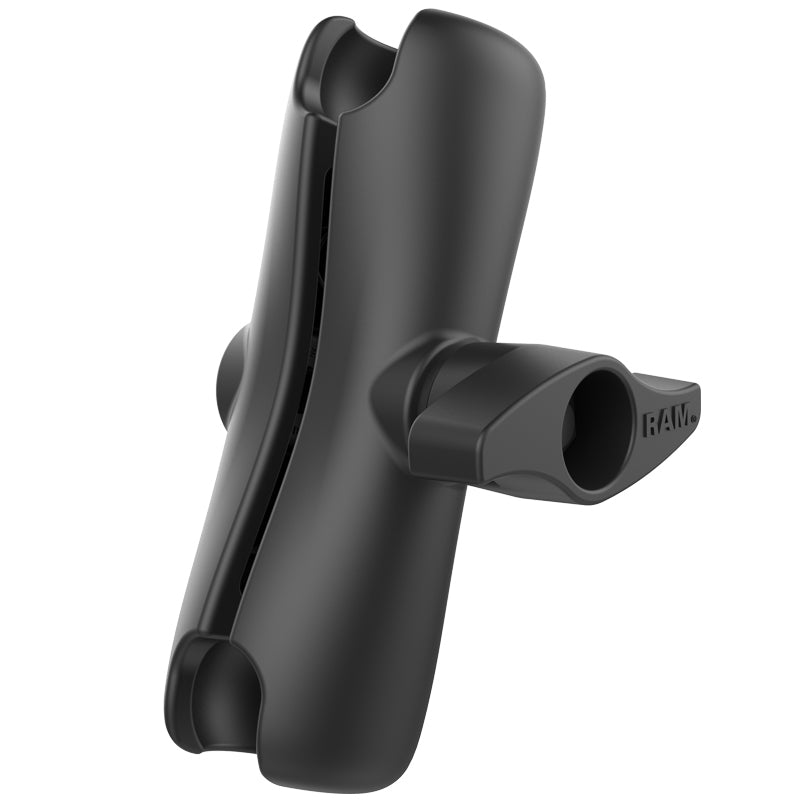

• Arm length overall: 143mm (5.625"); socket-to-socket: 114mm (4.5")
• Ball size: C size (1.5")
• Weight: 644g (1.42 lbs)
• Weight capacity — standard use: 1.814kg (4 lbs)
• Weight capacity — heavy-duty use: 1.36kg (3 lbs)

Hardware included: (2) 1/4"-20 U-bolts for 1"-1.25" rails, (4) 1/4"-20 nylock nuts, (4) rubber caps.

FAQs

What's the difference between this and RAM-138U-235-1? This version is sized for smaller 25.4-31.75mm rails; RAM-138U-235-1 fits larger 31.75-38.1mm rails. Both use the same C size diamond plate and arm.
