RAM Tough-Claw Medium Clamp Double Ball Mount with Round Plate

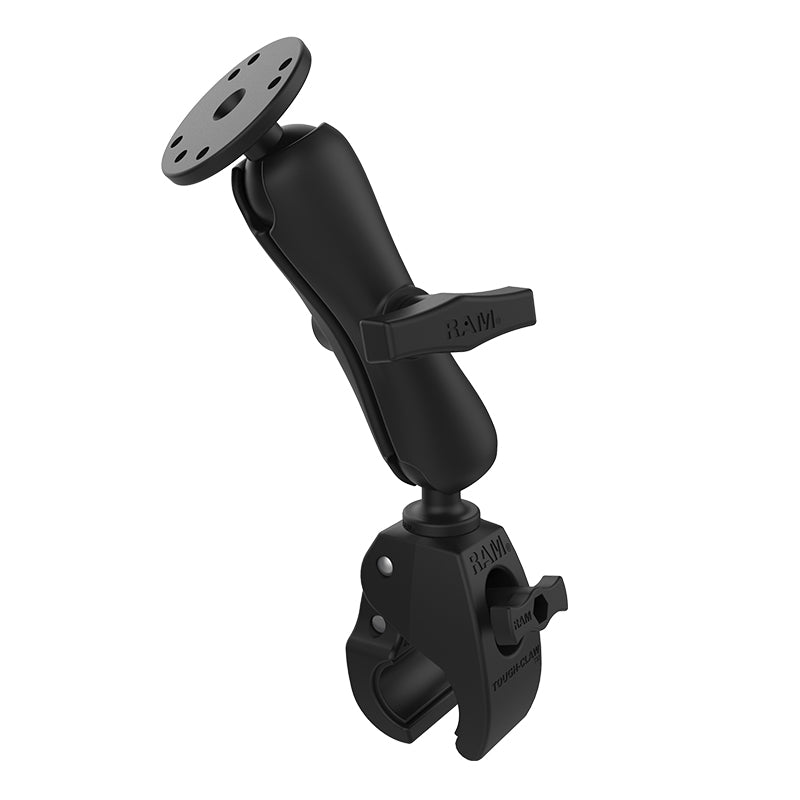

RAM-202-404U RAM® Tough-Claw™ Medium Clamp Double Ball Mount with Round Plate

The RAM-202-404U is the medium RAM® Tough-Claw™ with a 1.5" (C-size) ball, a C-size double socket arm and a 2.5" (63mm) AMPS round plate. It clamps tool-free onto rails from 1" to 1.6", giving you a heavy-duty adjustable base for a phone, tablet, camera or rod holder on a yoke, handlebar, boat rail or roll bar.

Key Features

• Medium Tough-Claw™ clamps tubes and bars from 25.4mm to 40.6mm (1" to 1.6") outer diameter; rubber pads grip and protect.
• 2.5" (63mm) round plate with the universal AMPS pattern connects to RAM® C-size holders and third-party cradles.
• Twin 1.5" ball-and-socket joints give near-infinite viewing-angle adjustment.
• Marine-grade aluminium and high-strength composite with stainless hardware. Lifetime warranty.

What's in the Kit

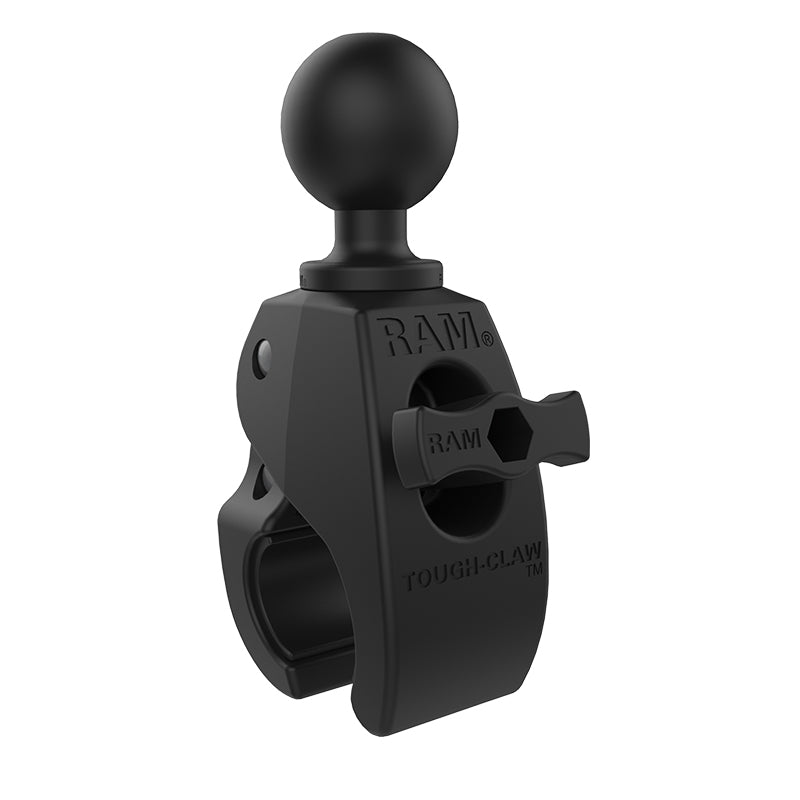

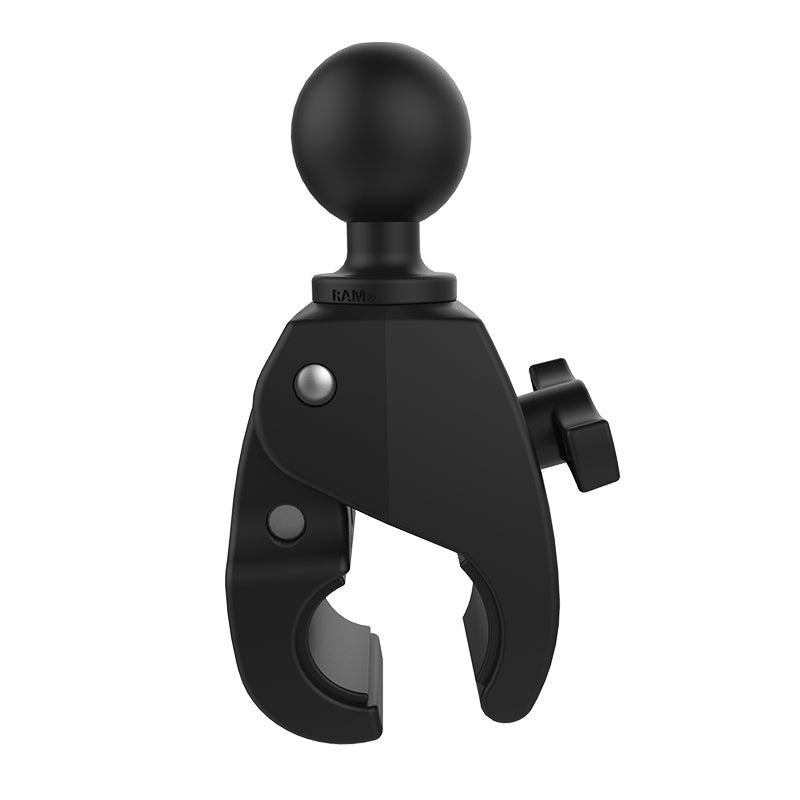

• Medium RAM® Tough-Claw™ with 1.5" (C-size) ball
• Double socket arm (C-size)
• 2.5" / 63mm round base with 1.5" ball

Works With

Any RAM® C-size (1.5") cradle, plus AMPS-pattern holders mounted directly to the round plate.

Dimensions & Specifications

• Clamping range, rails/tubes: 25.4mm to 40.6mm (1" to 1.6")
• Clamping range, flat surfaces: 0mm to 40.6mm (0" to 1.6")
• Arm length: overall 143mm (5.625"), socket-to-socket 114mm (4.5")
• Round plate: 63mm (2.5") diameter
• Hole pattern: 4-hole AMPS 1.181" x 1.496" (30mm x 38mm); 3-hole 120-degree AMPS 1.812" (46.0mm)
• Ball size: C Size (1.5")
• Weight capacity: standard use 1.81kg (4 lb), heavy-duty 1.36kg (3 lb)
• Materials: marine-grade aluminium, high-strength composite
• Weight: 726g (1.6 lb)

FAQs

What will it clamp to?
Round, square or odd-shaped rails from 1" to 1.6" across, tool-free.

Which cradles fit it?
RAM® C-size (1.5") cradles, or any AMPS-pattern holder on the round plate.
