RAM® Double Ball Mount with 3" Square Post Clamp Base and 1/4"-20 Stud

RAM-202A-247-3U RAM® Double Ball Camera Mount with 3" Square Post Clamp Base and 1/4"-20 Stud

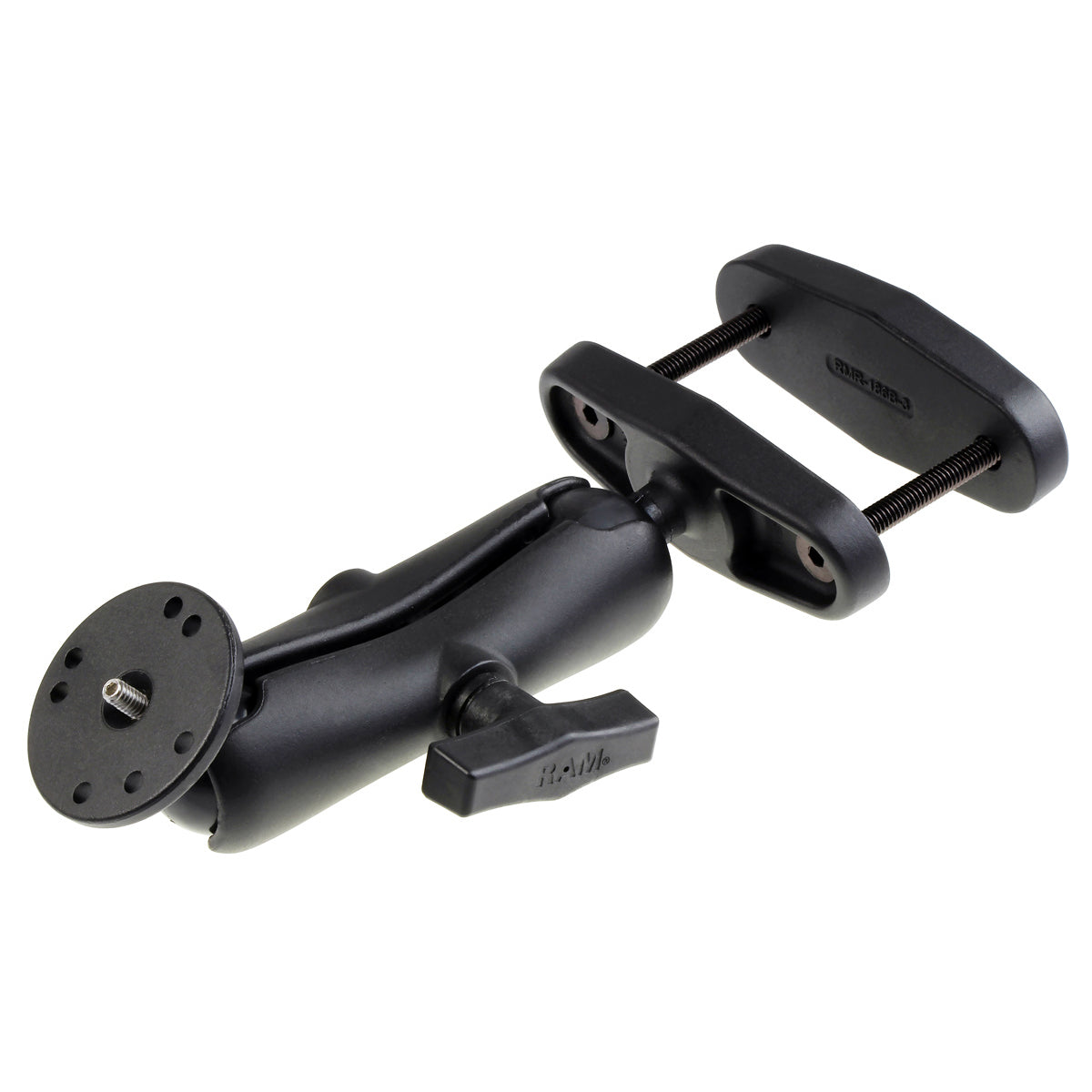

The RAM-202A-247-3U clamps a camera to a square post or bar up to 76mm (3") wide, using a 3" square post clamp base, a C-series double socket arm, and a round camera base with a centred 1/4"-20 threaded stud. It fits any camera or camcorder with a standard 1/4"-20 socket.

Key Features

• Square post clamp base bolts around posts and bars up to 76mm (3") wide
• Round camera base with a centred 1/4"-20 threaded steel stud supports the camera resting on top of it
• C-series double socket arm with 1.5" balls; ball-and-socket design allows near-infinite positioning
• Connects to any standard female 1/4"-20 thread on cameras and camcorders
• Marine-grade aluminium with stainless hardware; backed by RAM's lifetime warranty

What's Included

• RAM-247U-3 square post clamp base (fits posts up to 76mm / 3")
• RAM-201U C-series double socket arm
• RAM-202AU 63.5mm (2.5") round base with 1/4"-20 male camera thread
• Hardware: (2) 5/16"-18 x 3" machine screws, (2) 5/16"-18 Nylock nuts

Dimensions & Specifications

• Clamp range: up to 76mm (3") wide
• Overall height: 199mm (7.85")
• Arm socket-to-socket length: 118.4mm (4.66")
• Thread: 1/4"-20
• Hole pattern: 4-hole AMPS, 1.181" x 1.496", or 3-hole 120-degree, 1.812"
• Ball size: 1.5" rubber ball, "C" Size
• Weight capacity: standard use 1.81kg (4 lbs), heavy-duty use 1.36kg (3 lbs)
• Material: marine-grade aluminium

Compatible Devices

Any camera or camcorder with a standard 1/4"-20 female threaded socket.

Out of stock at the moment: please enquire and we will confirm availability and lead time for you.
