RAM-B-149Z-GA63U - RAM® Handlebar U-Bolt Double Ball Mount for Garmin VIRB™ Camera Adapter
Features:
* High strength composite cradle for Garmin VIRB™ Camera
* RAM® double socket arm provides great adjustability
* RAM® rail / bar mount will attach to bars / rails 12.7mm to 32mm diameter
* High strength composite and marine grade alloy construction ensures product longevity
* Lifetime warranty
The RAM-B-149Z-GA63U consists of a zinc coated u-bolt base, double socket arm and custom Garmin VIRB™ camera adapter. Included in this package is hardware that will accommodate rails from 12.7-32mm (0.50" to 1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket. .
Included in this package is hardware that will accommodate rails from 12.7 to 32mm (0.50" to 1.25") in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 13mm.
The GoPro Hero adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.
U-Bolt Dimensions:
Fits rails from 12.7mm to 32mm (0.5 to 1.25") in diameter.
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Compatible Devices
Garmin VIRB
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Components:

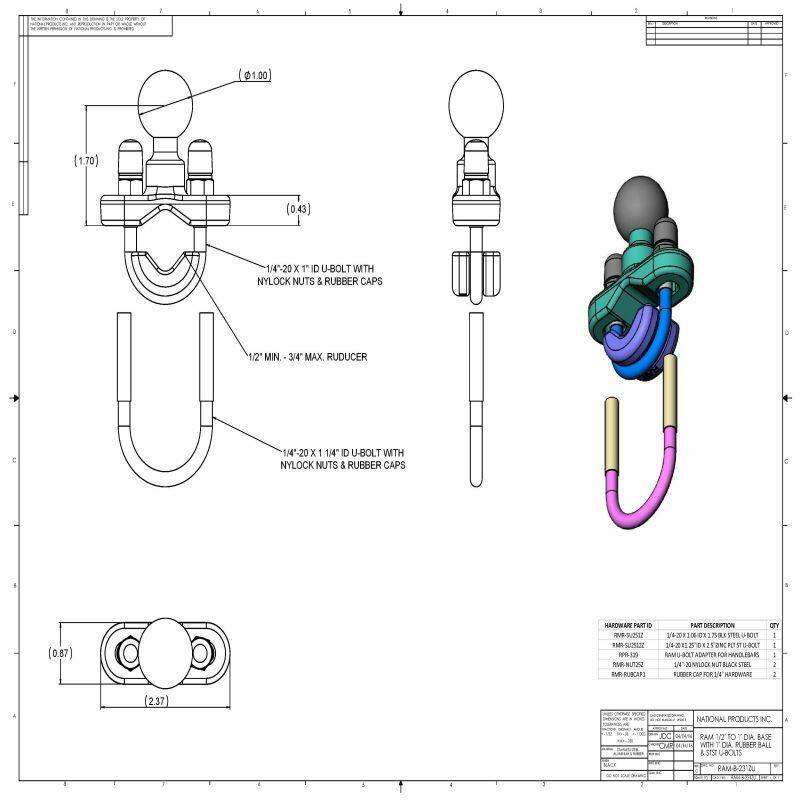

RAM-B-231ZU
RAM-B-201U

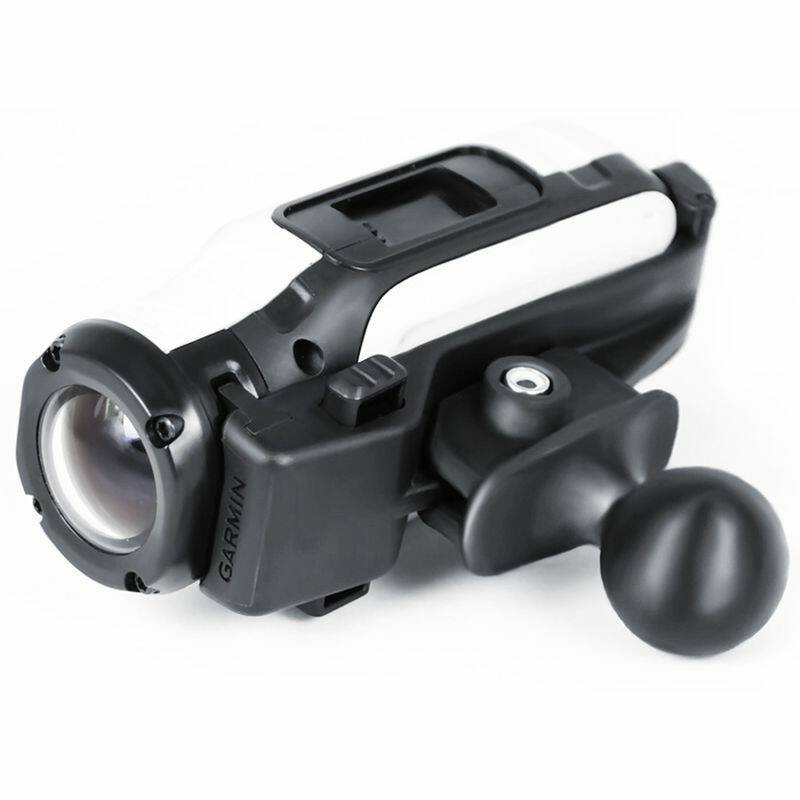

RAm-B-202U-GA63
