RAM Mounts

RAM Action Camera / GoPro Mount with Brake/Clutch Clamp / U-Bolt Base

RAM Action Camera / GoPro Mount with Brake/Clutch Clamp / U-Bolt Base

SKU:RAM-B-174-A-GOP1U-v

Regular price $104.51 NZD
Regular price Sale price $104.51 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

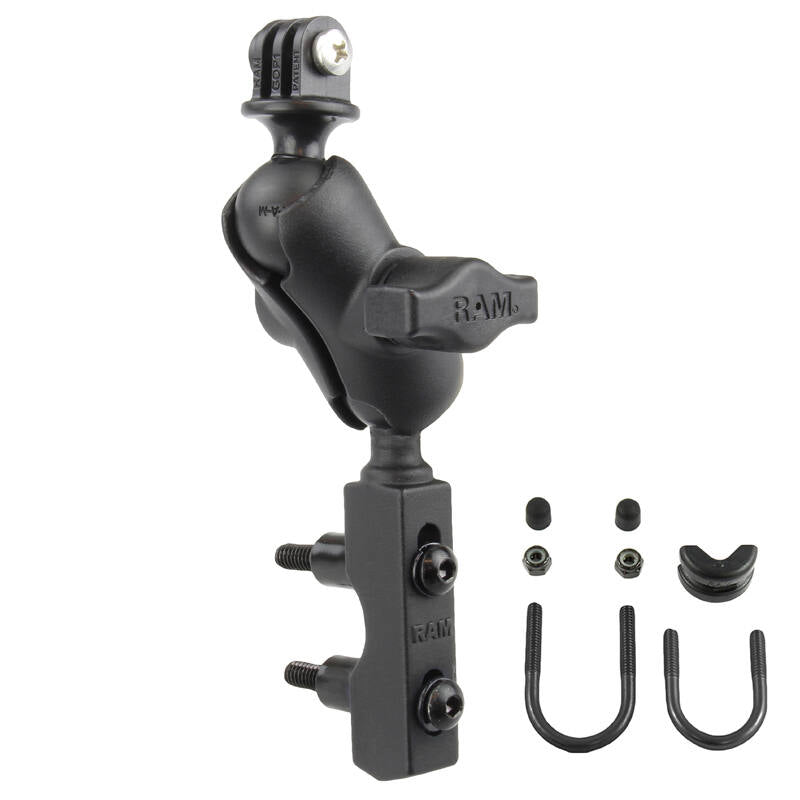

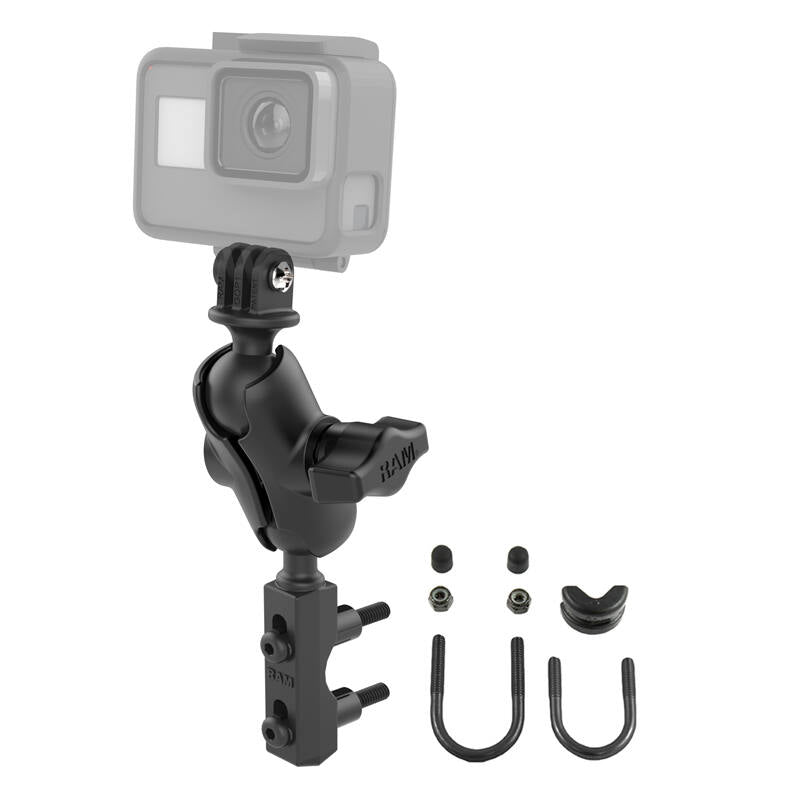

RAM-B-174-A-GOP1U RAM® Motorcycle Brake/Clutch Reservoir Base with Action Camera Mount

Features

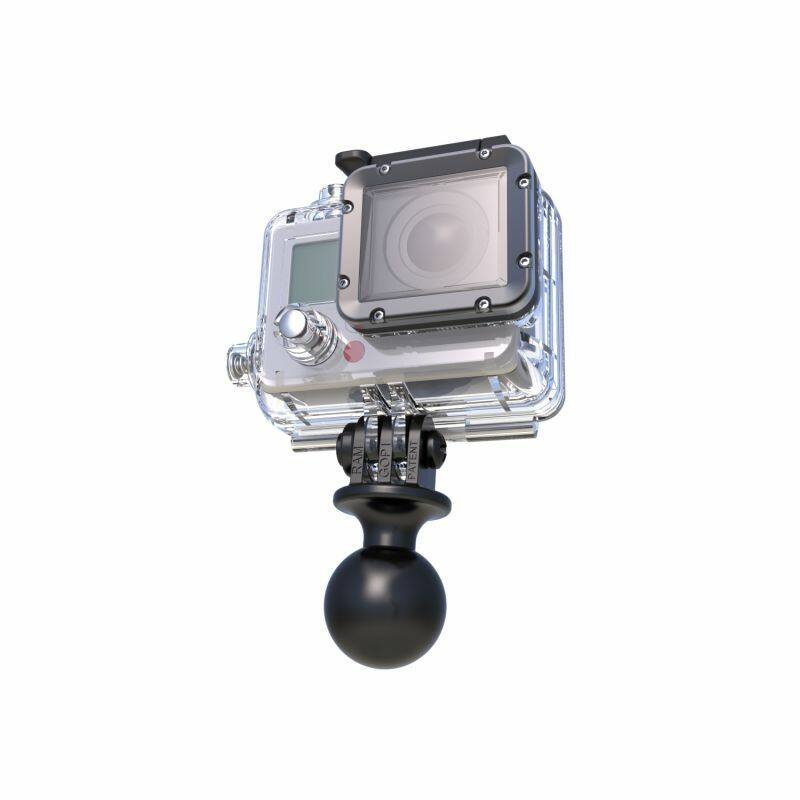

* Includes rubber ball connected to a custom action camera adaptor compatible with GoPro® and most other brands
* Attaches directly to the underside of the action camera to replace the factory mounting bracket
* RAM Brake/Clutch reservoir base and U-Bolt base included
* Rubber ball and socket system allows moving the camera to the optimum position with a twist of the knob
* Made of high-strength composites and Powder Coated Marine Grade Aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


This combines the popular RAM Action Camera / GoPro mount incorporating the 1" ball with a SHORT arm and the Combination Brake/Clutch Clamp / U-Bolt Mount.

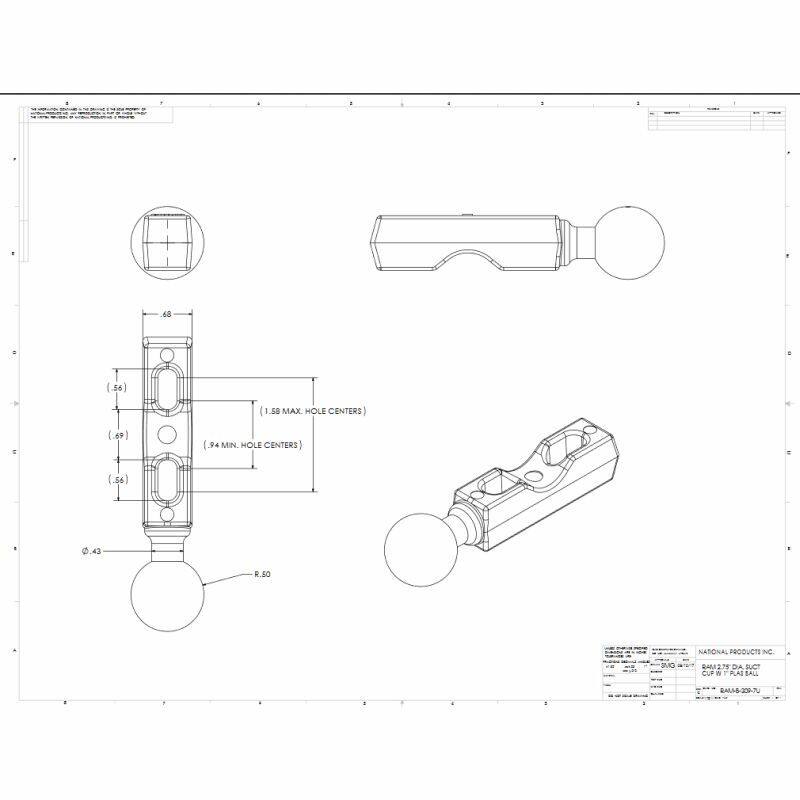

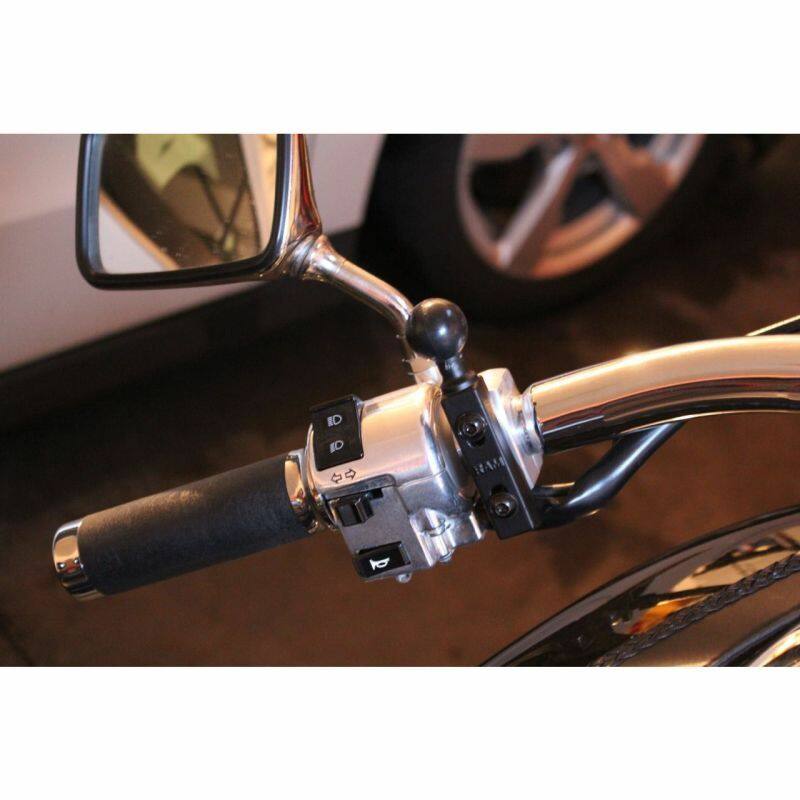

The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 23.9mm (0.94") and a maximum of 40.1mm (1.58").

If you would rather bolt directly to the handlebars then the included U-Bolt option allows for direct connection to rails/bars that are 12.7 to 31.75mm in diameter.


Compatible Devices (camera not included!)

GoPro
Hero
Session

Garmin
Virb

SJCAM
SJ4000
SJ5000X Elite 4K

Muvi
veho K-Series K-2 Pro 4K

Xcel
1080C

Vivitar
HD

ACTIVEON
CX Gold

Discovery
Kids Photo & Video Adventure Camera

Kyocera
/ Yashica YAC-400

AEE
ACE S70 Black 16MP 2"

AKASO
EK7000 4K WIFI Sports

AEDILYS
4K WIFI Sports

Lightdow
LD4000 1080P HD

WiMiUS
Q2 Black 1080P Wifi

Vtin
4k
WiFi

U Bolt Dimensions
12.7 to 31.75mm (0.5 to 1.25") diameter

Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")


Material:
Powder Coated Marine Grade Aluminium
High Strength Composite


Ball Size:
1" B size

Assembly Hardware Included


Related Links:

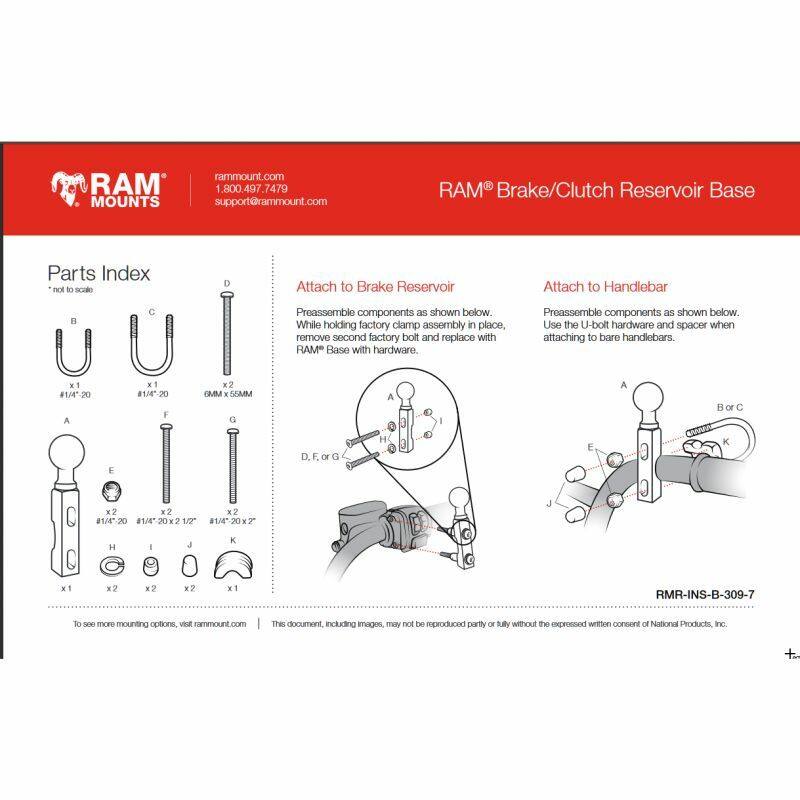

Brake/Clutch Reservoir Base Assembly Instructions: http://www.rammount.com/files/pdf/3091instructions.pdf


Components:

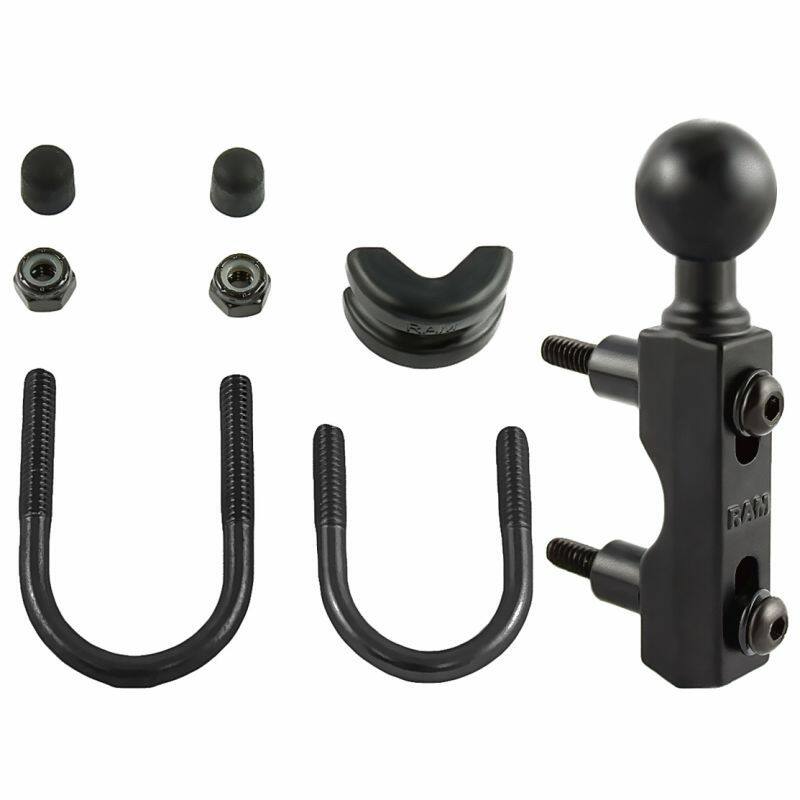

RAM-B-309-7U BRAKE/CLUTCH RESERVOIR & U-BOLT MOUNT COMBO
RAM-B-201U-A SHORT DOUBLE SOCKET ARM

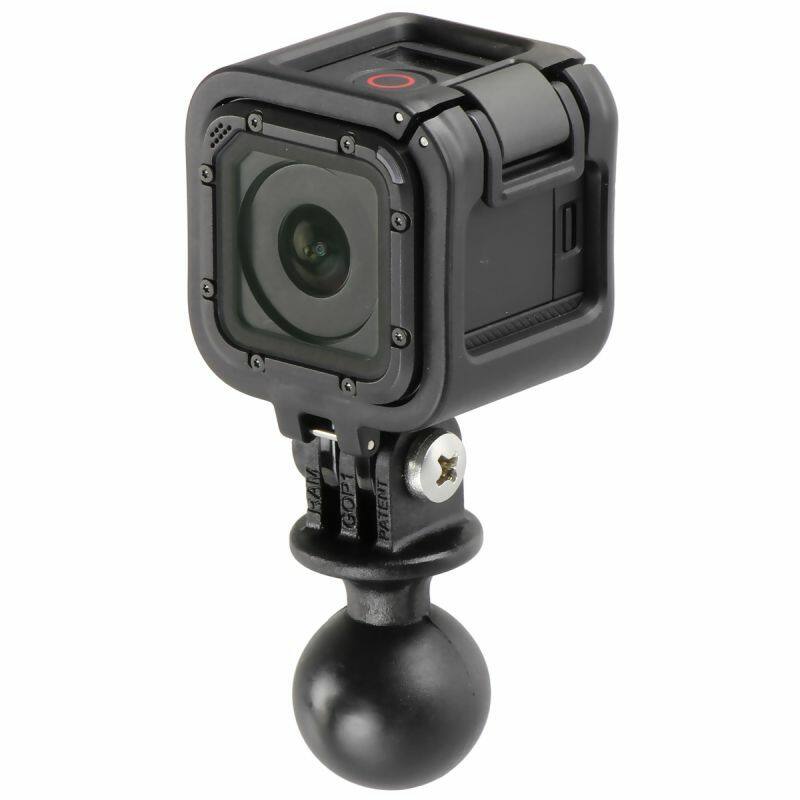

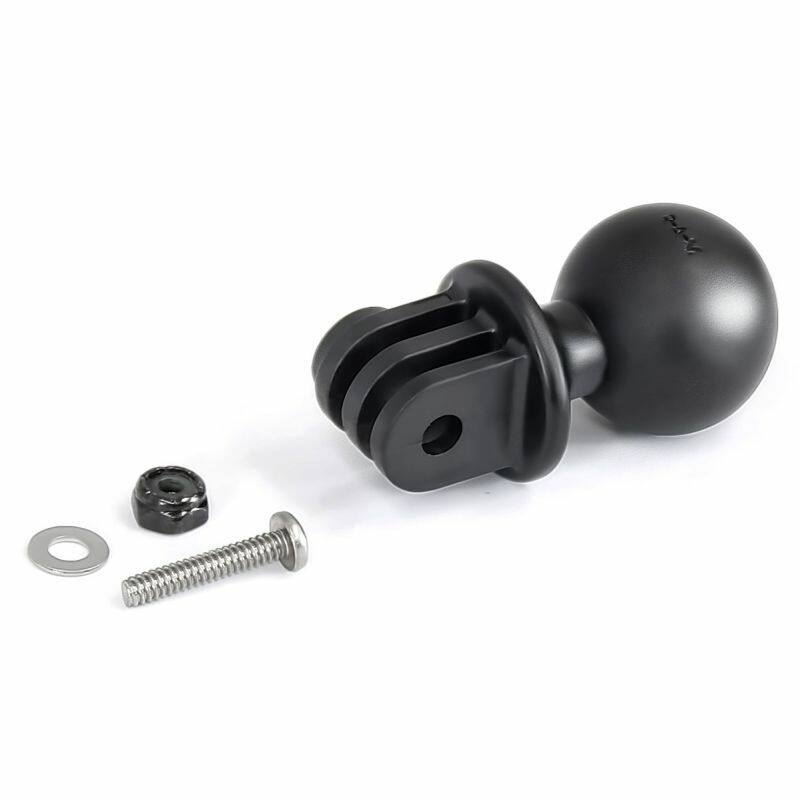

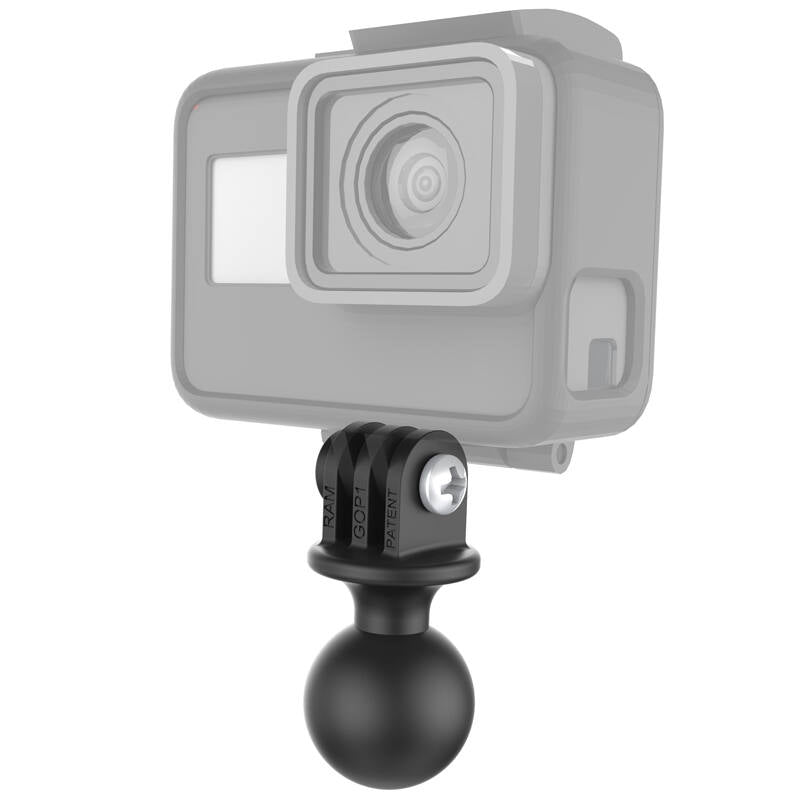

RAP-B-202U-GOP1 GOPRO MOUNTING BASE 1" DIA BASE
