RAM-B-138-GOP1U - RAM® Drill-Down Mount with Universal Action Camera Adaptor
Features
* Includes rubber ball connected to a custom action camera adaptor compatible with GoPro® and most other brands
* Attaches directly to the underside of the action camera to replace the factory mounting bracket
* B size RAM® double socket arm and rubber ball and socket system allows for almost infinite adjustment
* Round drill down plate incorporates AMP's hole pattern
* High Strength Composite and Powder Coated Marine Grade Aluminium construction for maximum longevity
* Backed by a lifetime warranty

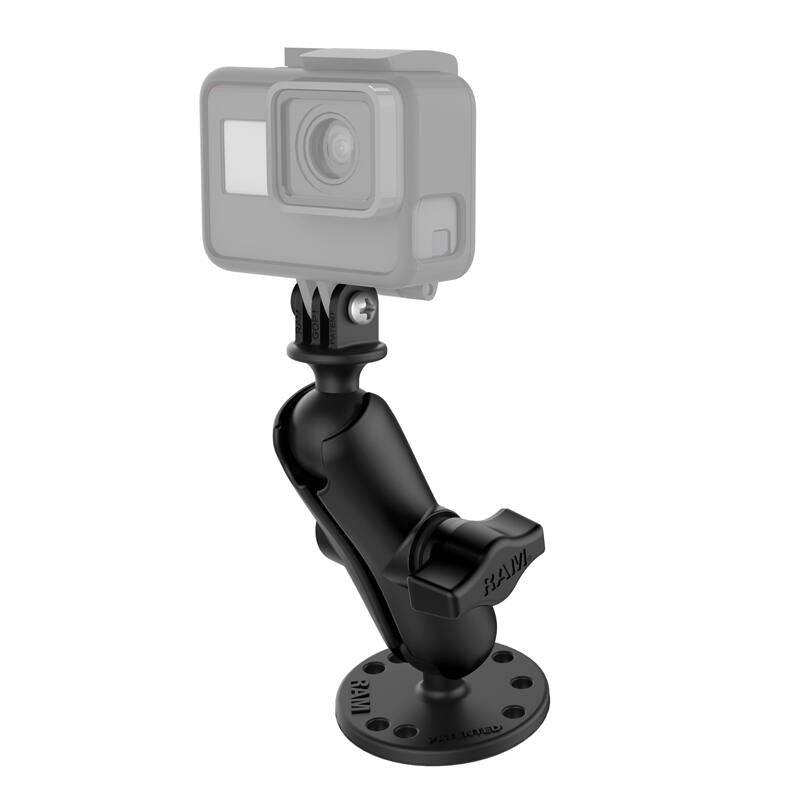

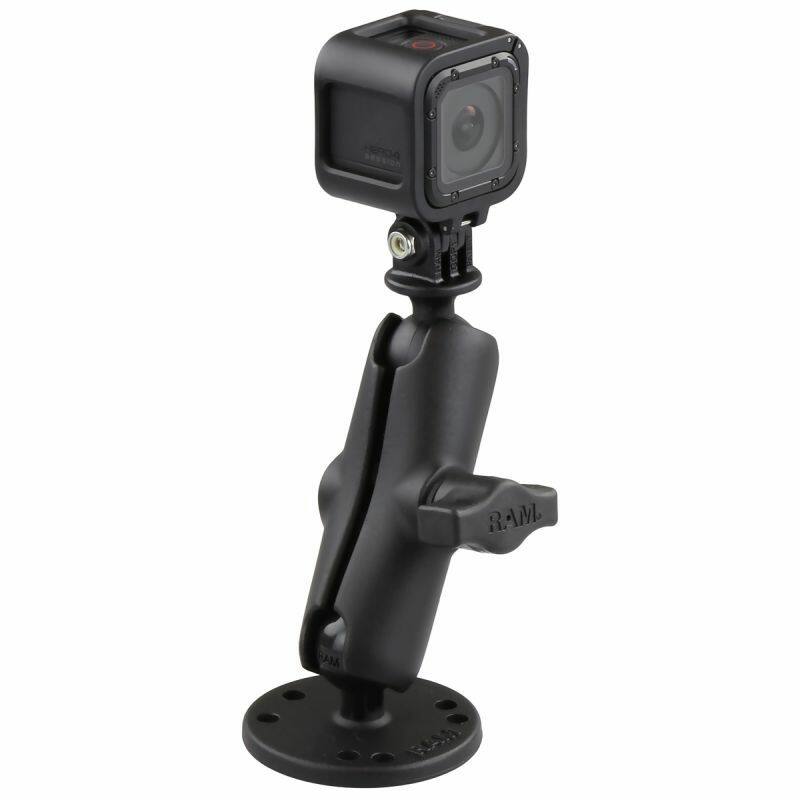

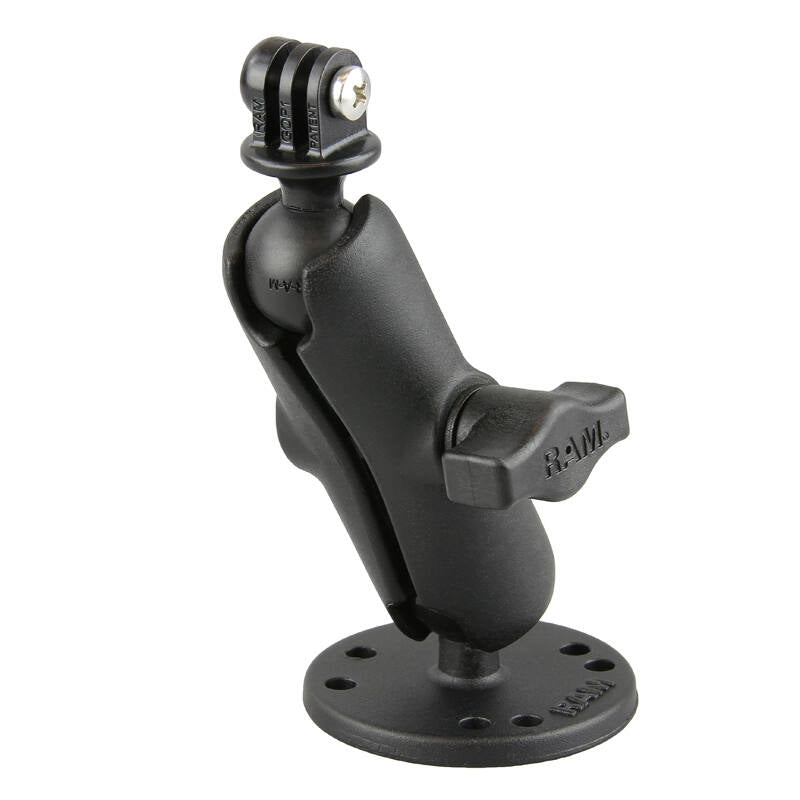

The RAM-B-138-GOP1U consists of a round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball with custom GoPro® Hero adaptor.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
The round plate is a 1" B size rubber ball connected to a 2.5" diameter round plate that includes pre-drilled holes using the universal 4 and 3 hole AMPS patterns.
This can be used as a drill-down mount. By adding a RAP-339U magnetic base this mount can also be a temporary, removable mounting solution.

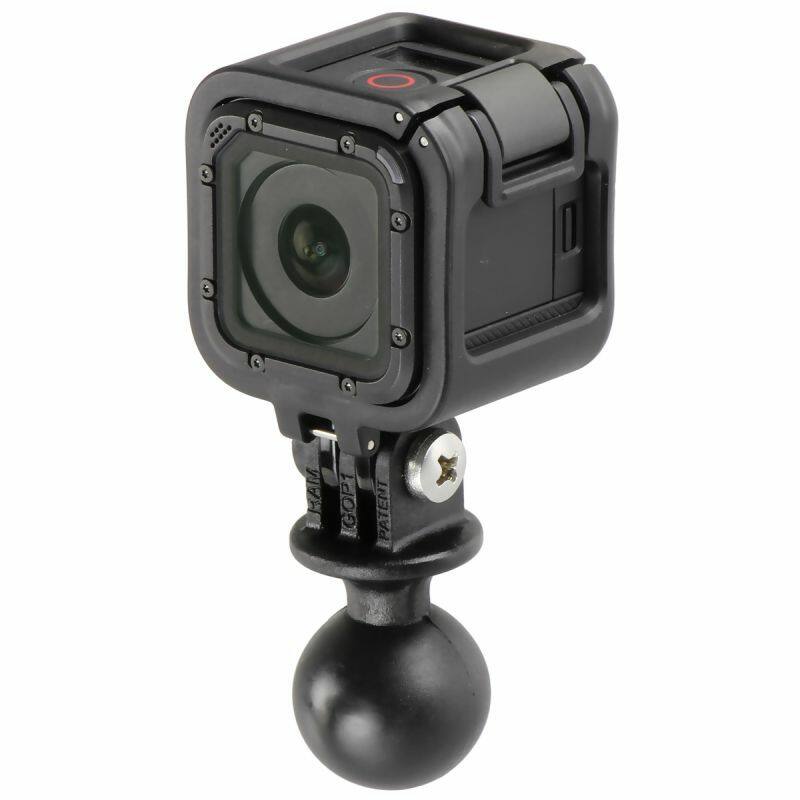

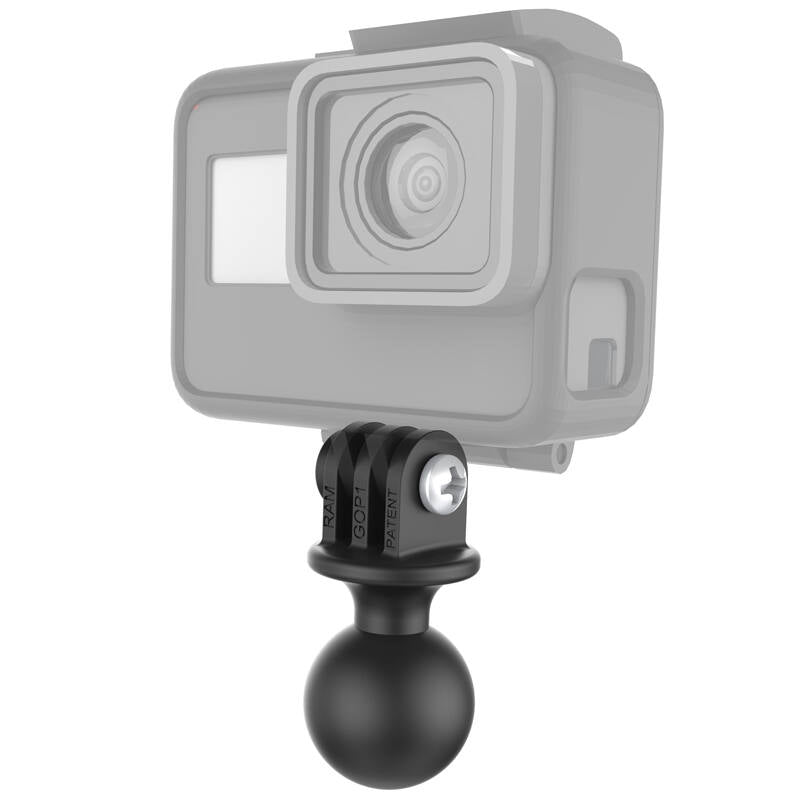

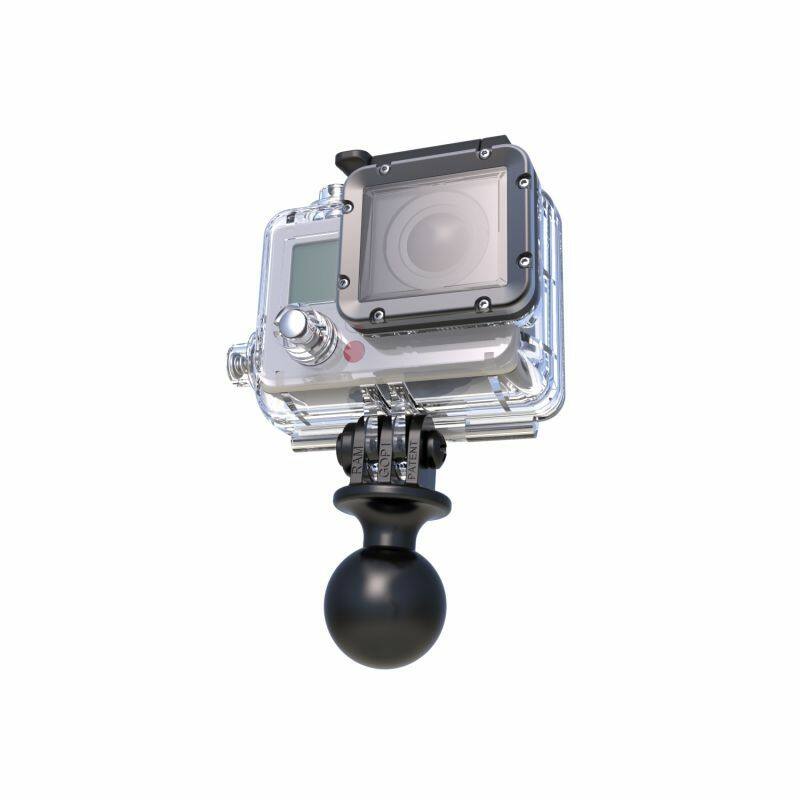

The GoPro® Hero adaptor attaches directly to the under-side of the camera, replacing the factory mounting bracket.
Compatible Devices
GoPro
Hero
Session
Garmin
Virb
SJCAM
SJ4000
SJ5000X Elite 4K
Muvi
veho K-Series K-2 Pro 4K
Xcel
1080C
Vivitar
HD
ACTIVEON
CX Gold
Discovery
Kids Photo & Video Adventure Camera
Kyocera / Yashica
YAC-400
AEE
ACE S70 Black 16MP 2"
AKASO
EK7000 4K WIFI Sports
AEDILYS
4K WIFI Sports
Lightdow
LD4000 1080P HD
WiMiUS
Q2 Black 1080P Wifi
Vtin
4k
WiFi
Round Base Hole Pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
Weight:
230 grams / 0.5 lbs.
Components:
RAM-B-201U - double socket arm

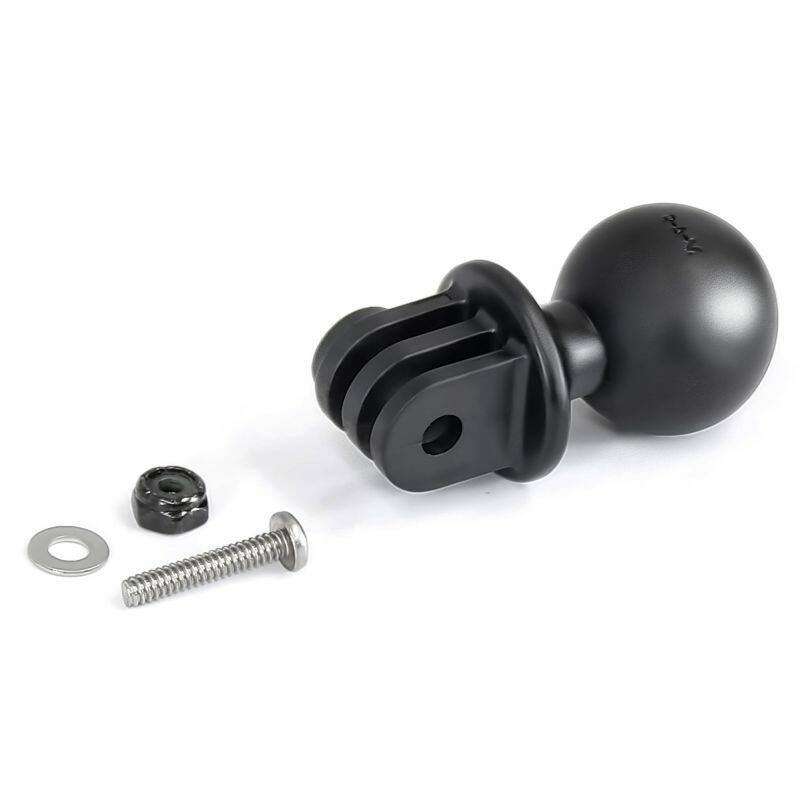

RAP-B-202U-GOP1 - GoPro Mount
RAM-B-202U - round base
