RAP-B-138-GOP1U RAM® Drill-Down Mount with Universal Action Camera Adaptor (composite)
Features
* Includes rubber ball connected to a custom action camera adapter compatible with GoPro® and most other brands
* Attaches directly to the underside of the action camera to replace the factory mounting bracket
* B size composite RAM® double socket arm and rubber ball and socket system allows for almost infinite adjustment
* Round drill down plate incorporates AMP's hole pattern
* Backed by a lifetime warranty

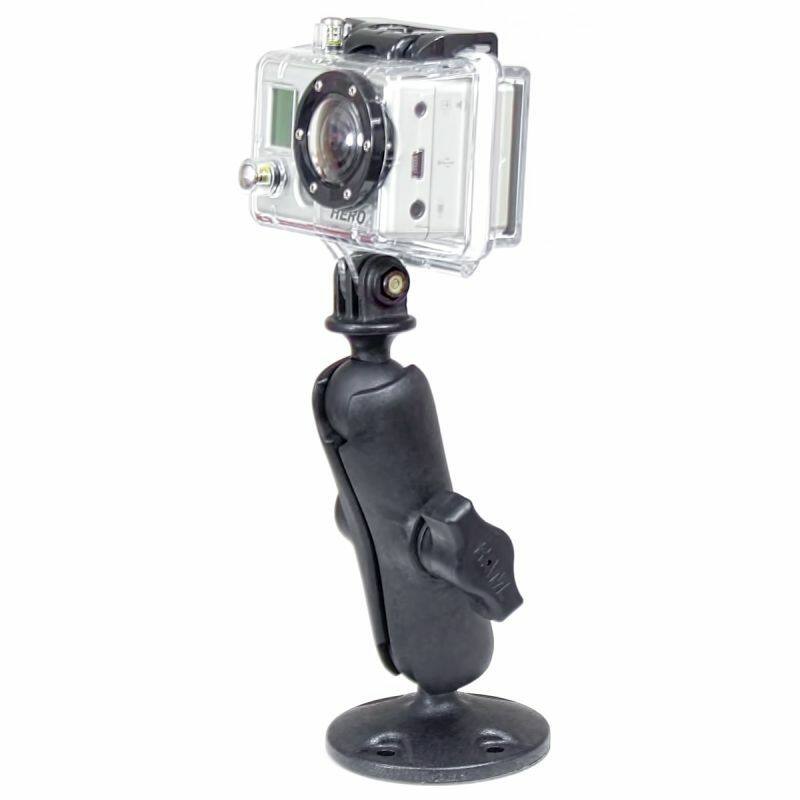

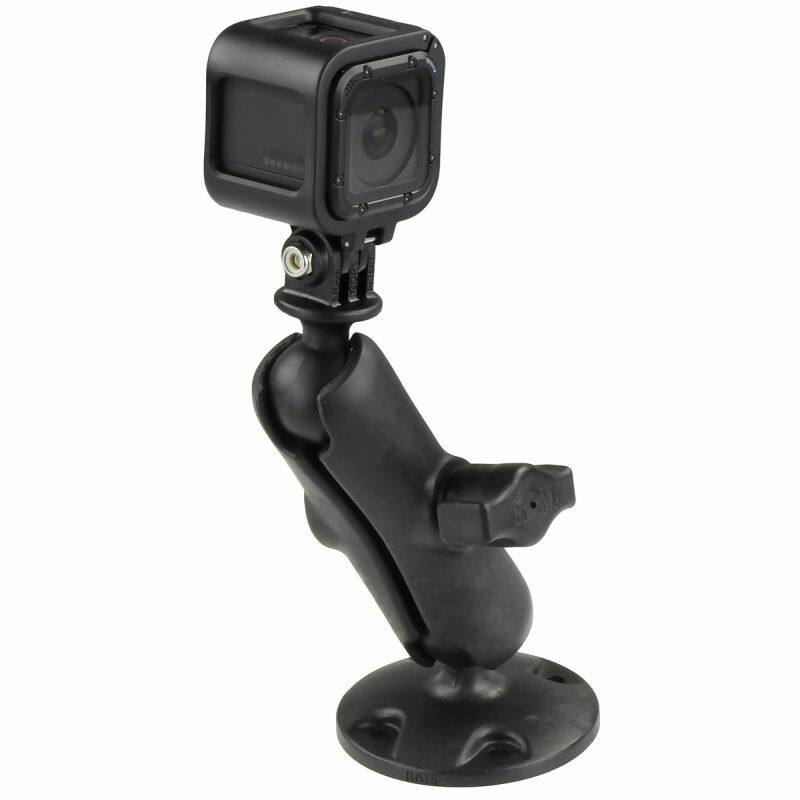

The RAP-B-138-GOP1U consists of a 2.5" composite diameter round base with the universal AMPS hole pattern, STANDARD size composite double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

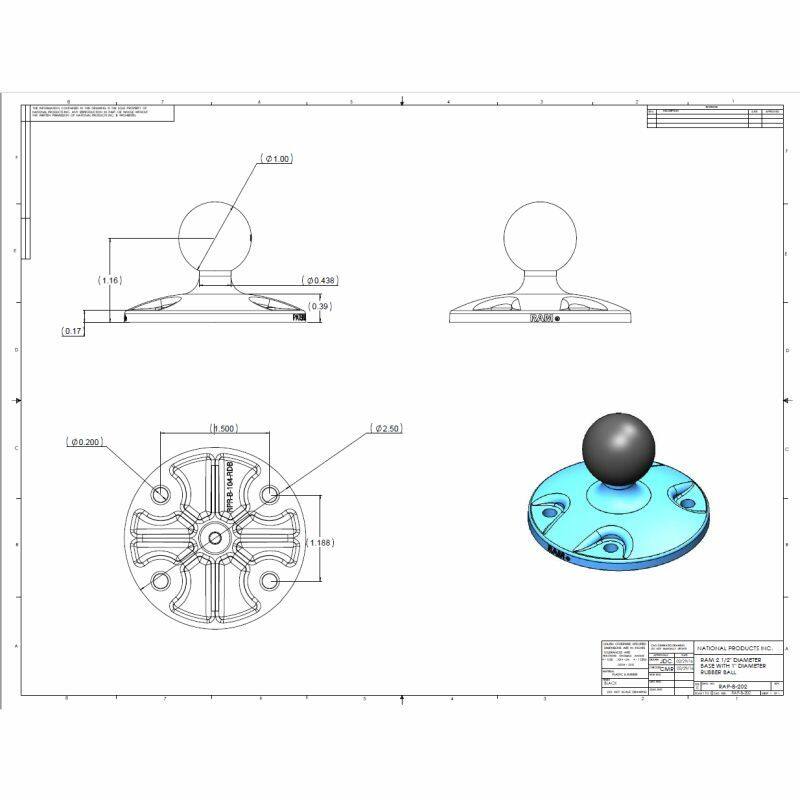

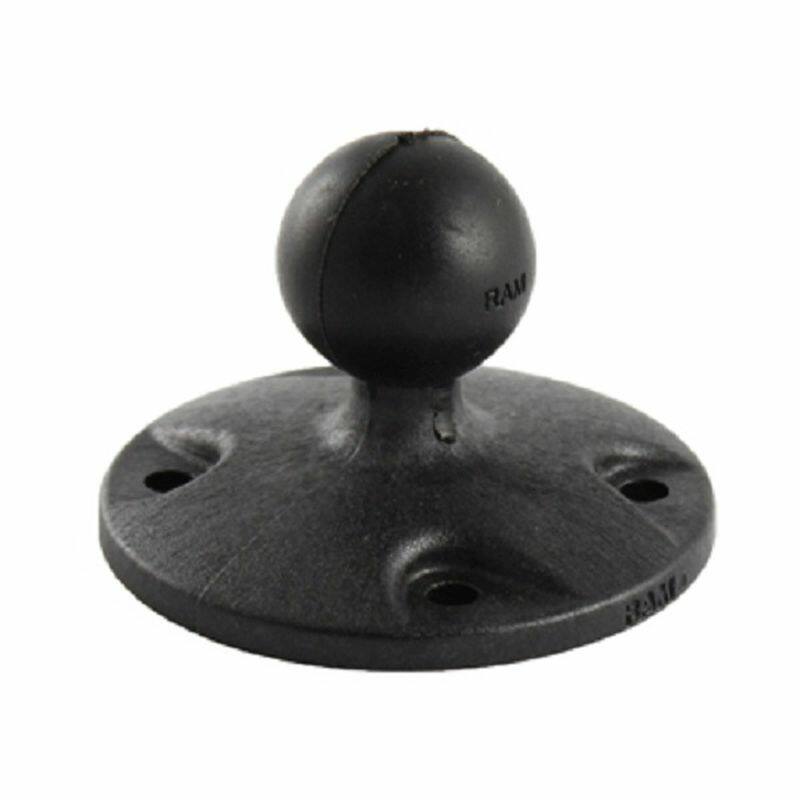

The round plate is a 1" B size rubber ball connected to a 2.5" diameter round plate that includes pre-drilled holes using the universal AMPS hole pattern.
This can be used as a drill-down mount. By adding a RAP-339U magnetic base this mount can also be a temporary, removable mounting solution.

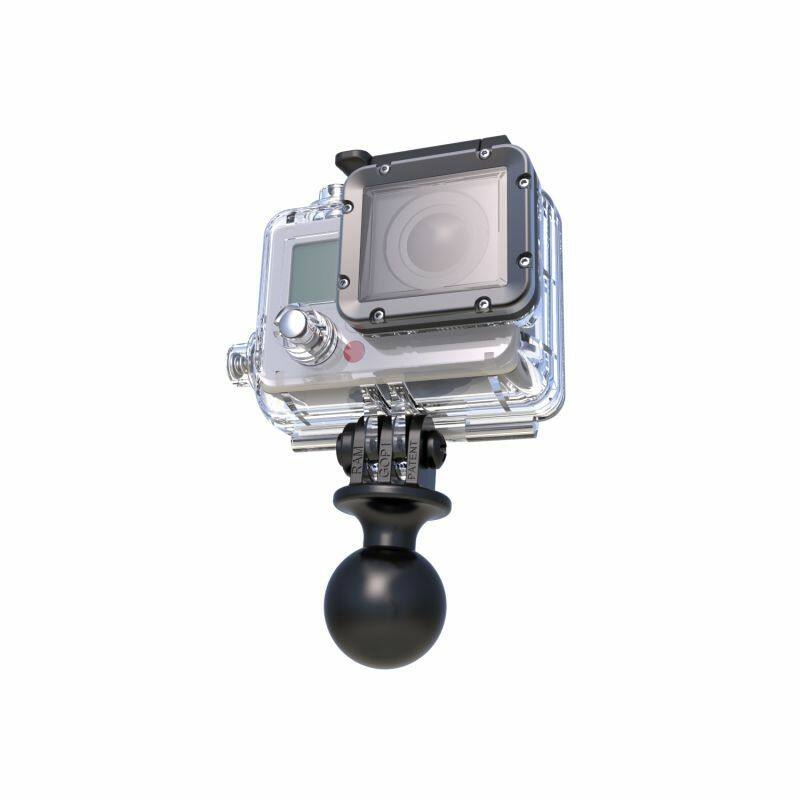

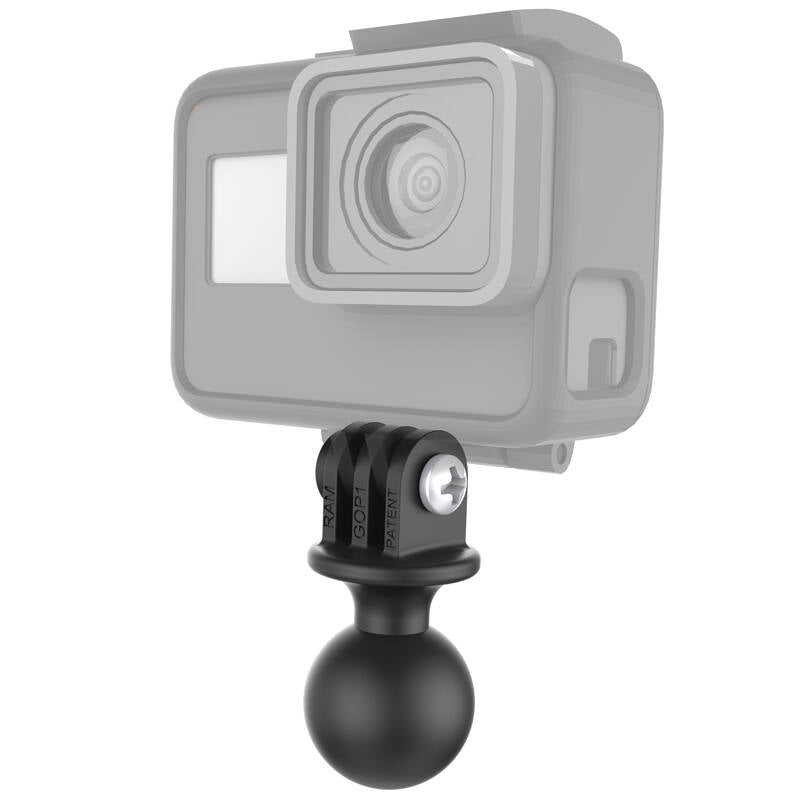

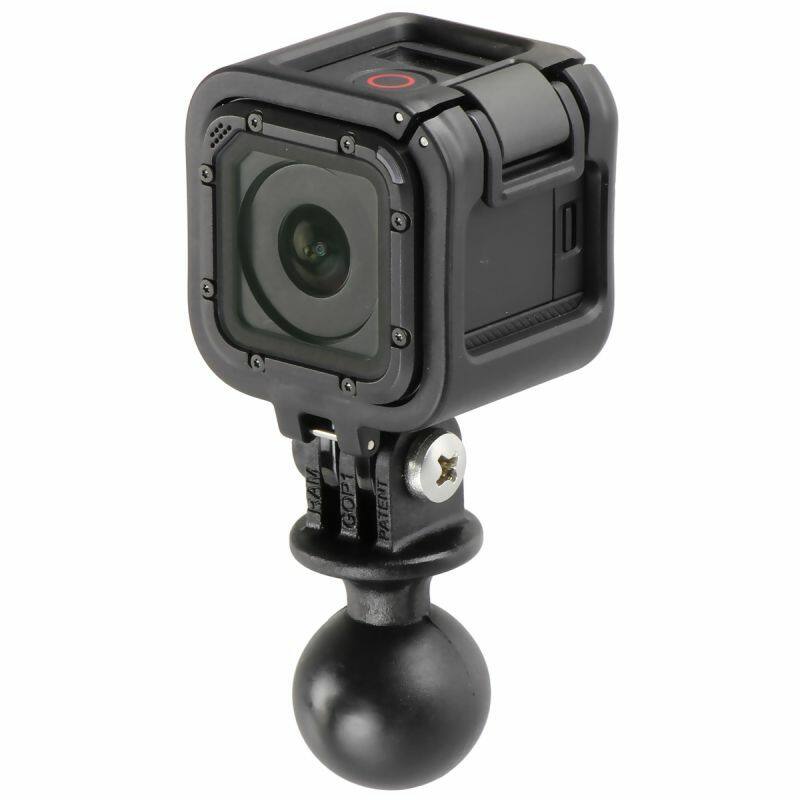

The GoPro® Hero adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.
Compatible Devices Include:
GoPro
Hero
Session
Garmin
Virb
SJCAM
SJ4000
SJ5000X Elite 4K
Muvi
veho K-Series K-2 Pro 4K
Xcel
1080C
Vivitar
HD
ACTIVEON
CX Gold
Discovery
Kids Photo & Video Adventure Camera
Kyocera
/ Yashica YAC-400
AEE
ACE S70 Black 16MP 2"
AKASO
EK7000 4K WIFI Sports
AEDILYS
4K WIFI Sports
Lightdow
LD4000 1080P HD
WiMiUS
Q2 Black 1080P Wifi
Vtin
4k
WiFi
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

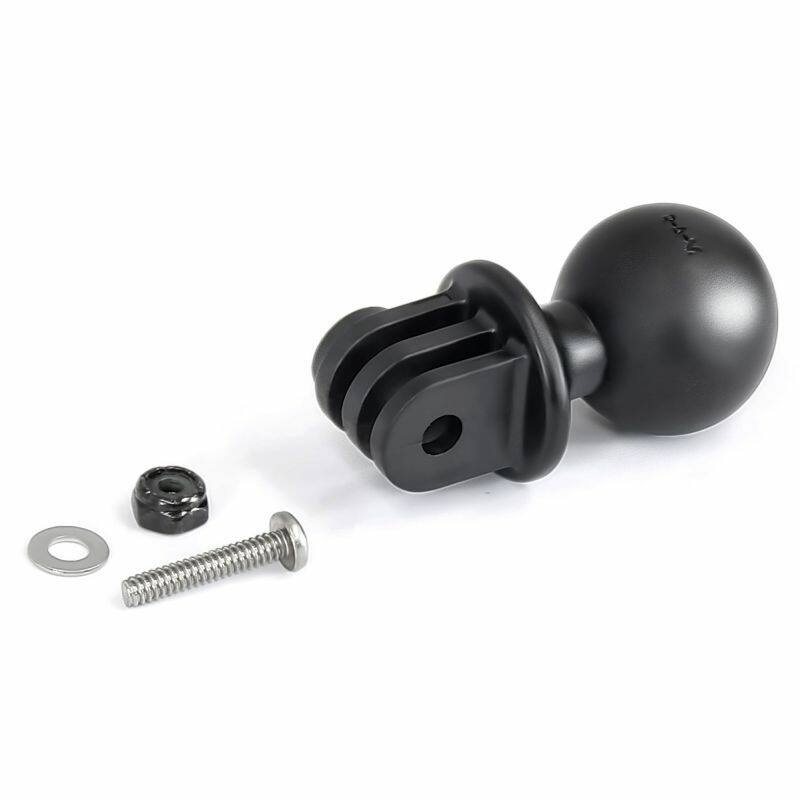

Components:
RAP-B-201U - composite double socket arm
RAP-B-202U-GOP1 - GoPro Mount
RAP-B-202U - composite round base
Note: GoPro camera and black thumb screw not included with purchase.
